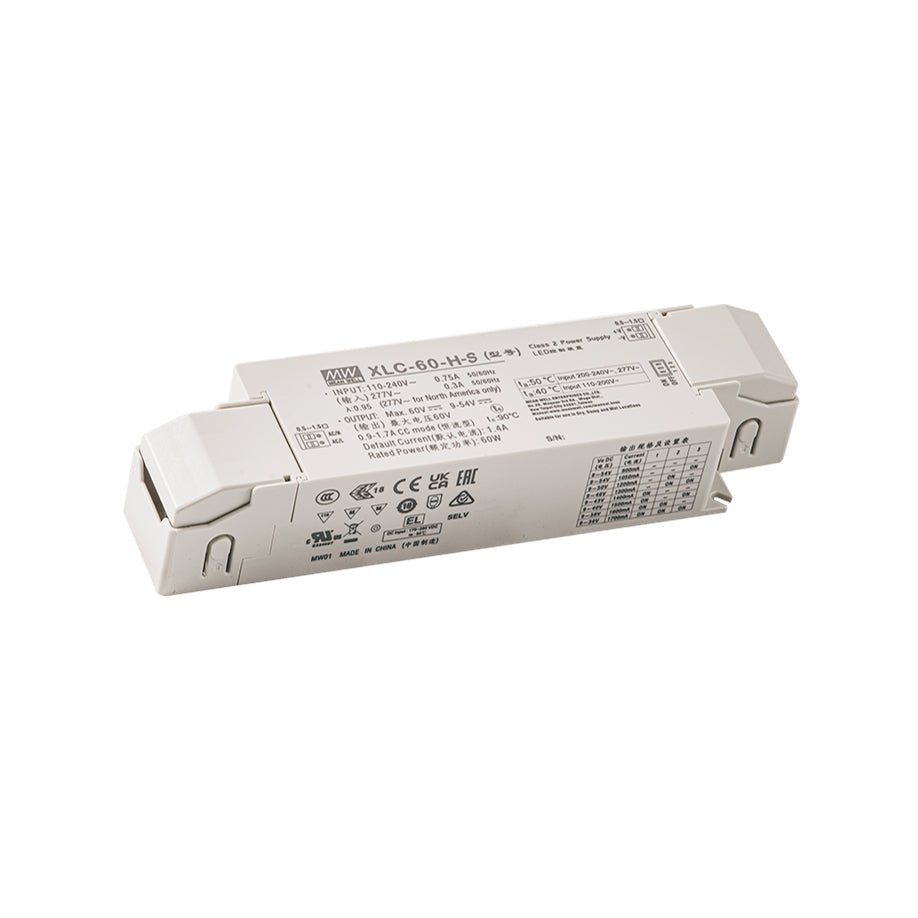

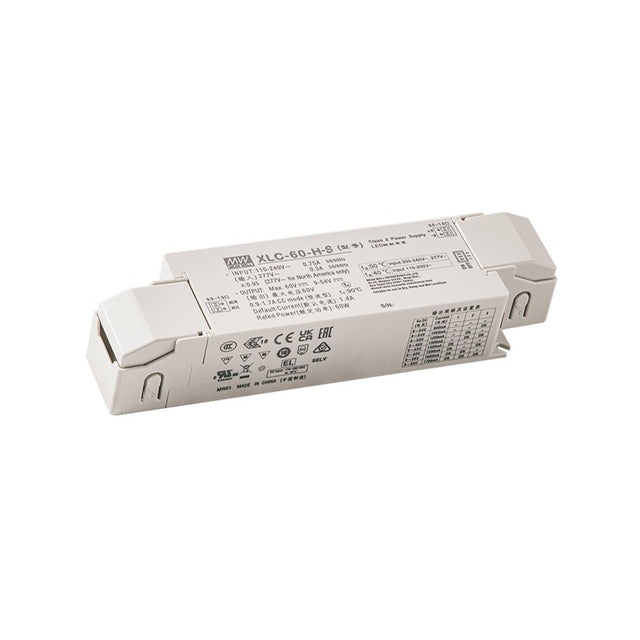

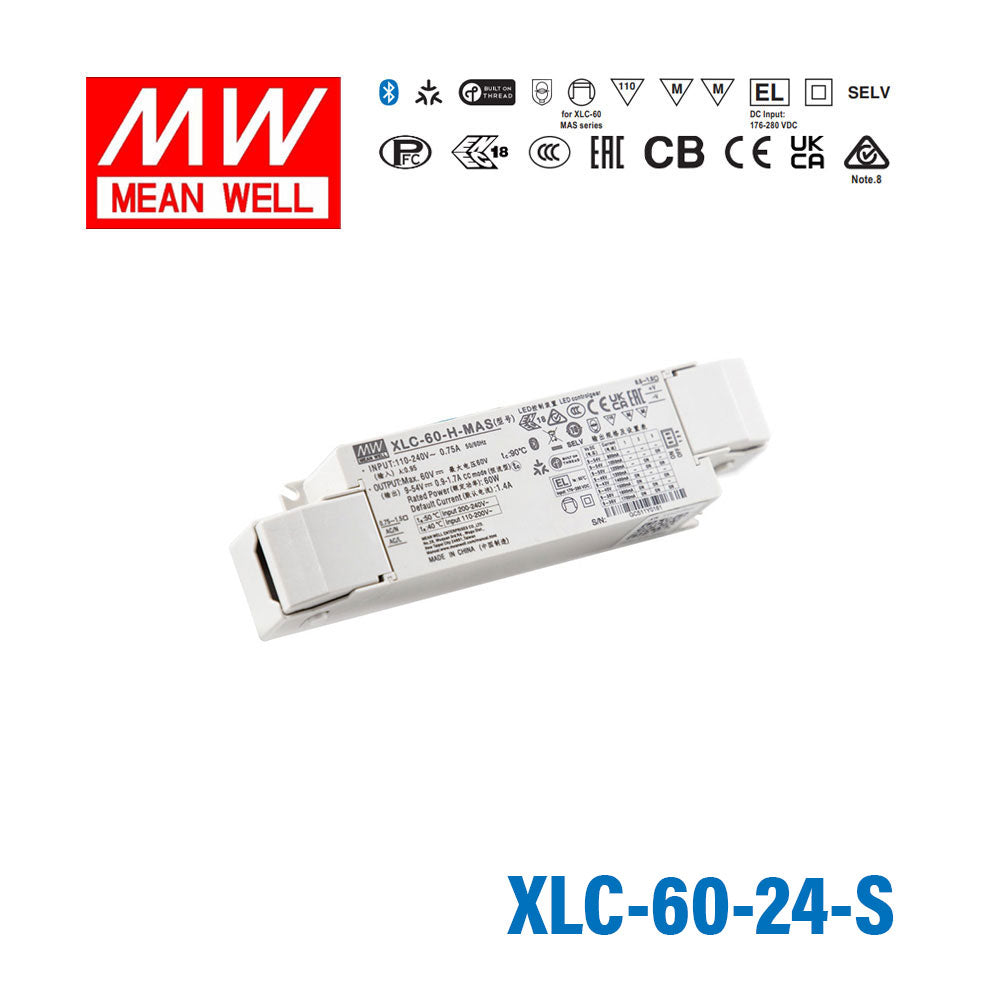

Mean Well XLC-60-24-S LED Driver 60W 24V with Strain-relief
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XLC-60-24-S?
The Mean Well XLC-60-24-S is a 60W constant-voltage LED driver with a 24V output. Its rated output current is 2.5A, making it suitable for compatible 24V LED loads within the 60W power limit.
What is the XLC-60-24-S typically used for?
This model is intended for 24V LED lighting applications that require an AC-DC LED driver. It is listed in LED driver and power supply categories, including 24V LED driver use cases.
Is the XLC-60-24-S compatible with 24V LED products?
Yes, this model provides a 24V constant-voltage output. Buyers should match the LED load voltage to 24V and keep the total load within the 60W rated power.
Is the Mean Well XLC-60-24-S dimmable?
The product data for this SKU lists the dimming control as non-dimmable. If dimming is required, buyers should confirm that they are selecting a dimmable variant rather than this specific listed model.
What operating temperature range is listed for the XLC-60-24-S?
The listed temperature range for this model is -25°C to 90°C. This makes the temperature rating an important spec to check against the conditions of the intended LED lighting application.
What warranty period is provided for the XLC-60-24-S?
The XLC-60-24-S is listed with a 5-year warranty period. This warranty term applies to this specific Mean Well 60W 24V LED driver model as provided in the product data.
