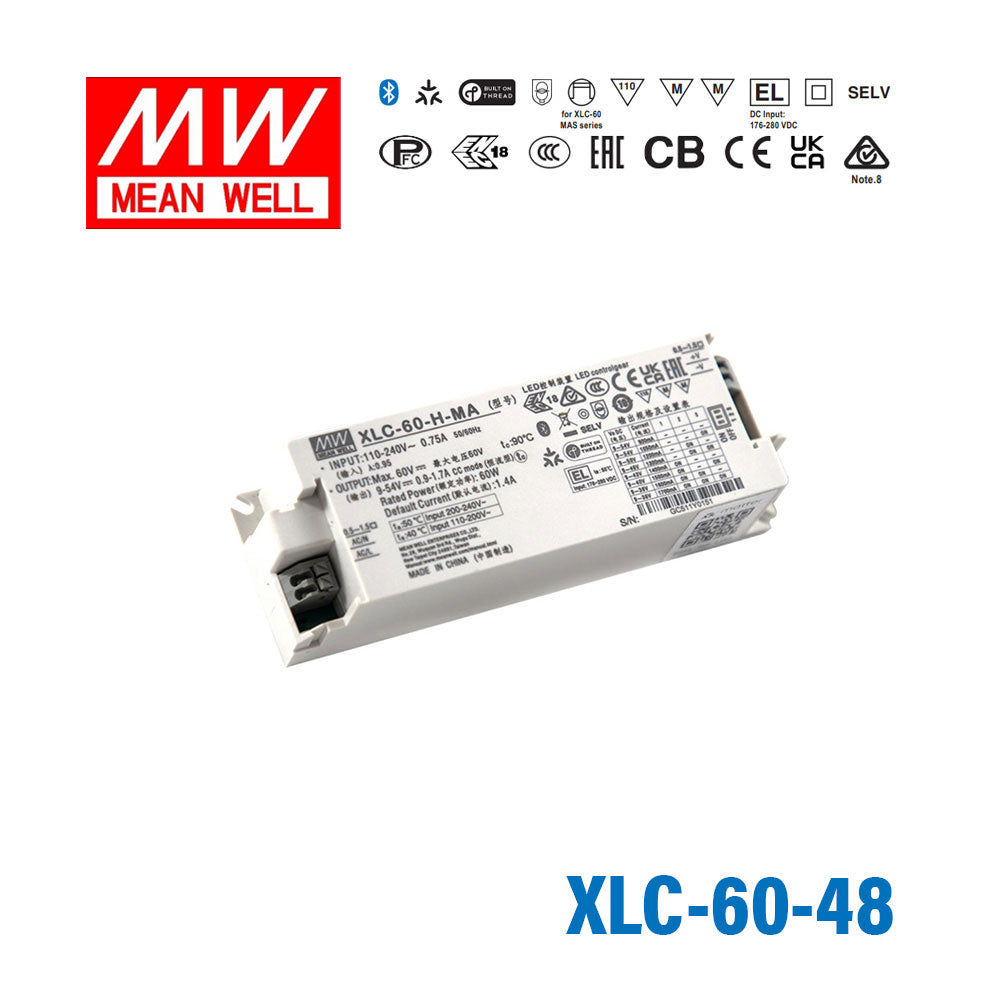

Mean Well XLC-60-48 LED Driver 60W 48V
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-48 to power 48V LED strips for retail display lighting?
Yes, the XLC-60-48 is well suited for 48V LED strip runs in retail display or cabinet lighting. It delivers 60W at 48V with a 1.25A output, so it pairs directly with 48V LED strip systems without a separate voltage converter. Its flicker-free operation also makes it appropriate for environments where camera-visible lighting is needed.
Is the XLC-60-48 suitable for powering 48V LED signage or channel letter lighting?
The XLC-60-48 can power 48V LED modules used in illuminated signage and channel letters. With 60W of output capacity, it can support multiple LED modules as long as total load stays within 60W. The built-in Class II design and wide input range of 110–305VAC also simplify installation in commercial signage enclosures.
How many meters of 48V LED strip can the XLC-60-48 power?
The XLC-60-48 provides 60W maximum output. To calculate compatible strip length, divide 60W by your strip's rated power per meter — for example, a 10W/m strip supports up to 6 meters, while a 14.4W/m strip supports approximately 4.2 meters. Always verify your specific strip's rated wattage per meter before sizing.
Can the XLC-60-48 be used indoors inside an enclosed luminaire?
Yes, the XLC-60-48 is rated for built-in use, meaning it is designed to be installed inside a luminaire or enclosure rather than exposed externally. It operates across a temperature range of -25°C to +90°C, accommodating the elevated thermal conditions common inside enclosed fixtures.
Does the XLC-60-48 support outdoor or damp-location installations?
The XLC-60-48 does not carry an IP rating, so it is not rated for direct exposure to moisture or outdoor environments. It is intended for dry or built-in installations only. For wet or outdoor locations, an appropriately IP-rated enclosure would be required.
What is the difference between the XLC-60-48, XLC-60-48-S, XLC-60-48-MA, and XLC-60-48-MAS?
All four variants share the same 60W, 48V, 1.25A output. The XLC-60-48 is the base model; the XLC-60-48-S adds a strain-relief cable fitting. The XLC-60-48-MA adds Matter 1.3 wireless dimming (down to 0.1%) and has a shorter 136mm body; the XLC-60-48-MAS combines Matter dimming with the strain-relief fitting and returns to the 176mm body length. Input range on the MA and MAS variants starts at 100VAC versus 110VAC on the base and -S models.
