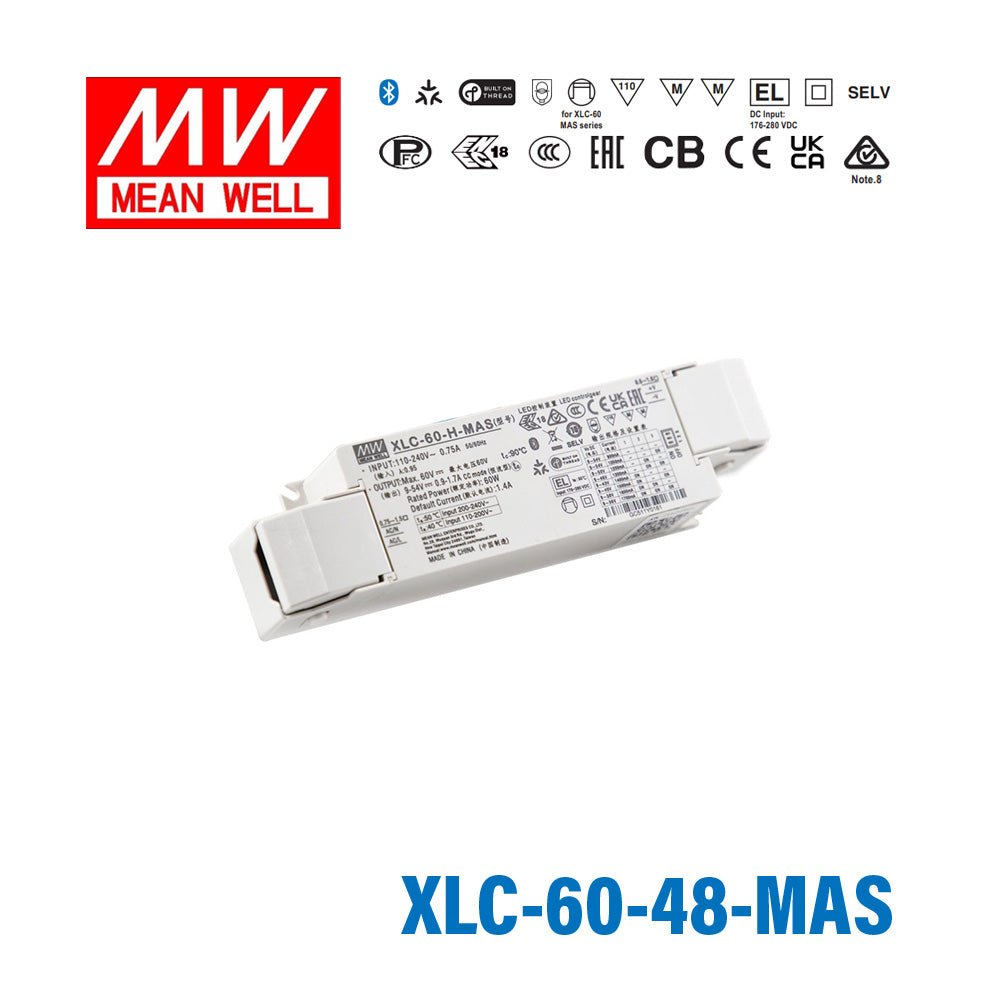

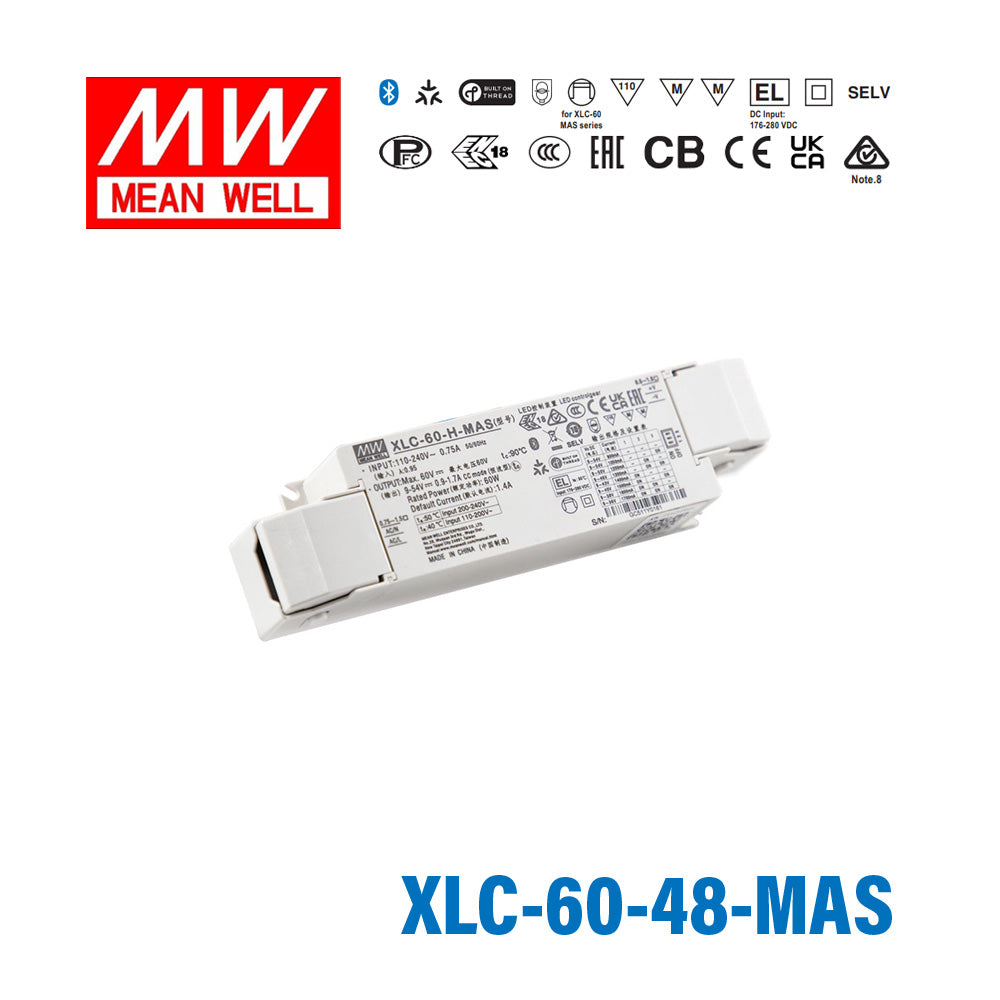

Mean Well XLC-60-48-MAS LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-48-MAS LED Driver 60W 48V Constant Voltage LED Dri...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current0.00 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-48-MAS dim 48V LED strips wirelessly through a Matter smart home system?
Yes, the XLC-60-48-MAS supports Matter 1.3 wireless dimming and can reduce output down to a minimum level of 0.1%. It integrates with any Matter-compatible hub or controller, enabling scene-based or automated brightness control of connected 48V LED strips without a separate in-wall dimmer.
Is the XLC-60-48-MAS a good fit for hospitality or commercial lighting using 48V LED strip?
The XLC-60-48-MAS suits commercial environments that need wireless dimming and secure cable management. Its 60W, 48V output powers typical high-density 48V LED strips, and the built-in strain-relief fitting reduces mechanical stress on output cables in applications where the driver is mounted in accessible service panels or ceiling voids.
What is the advantage of the strain-relief fitting on the XLC-60-48-MAS compared to the XLC-60-48-MA?
The XLC-60-48-MAS adds a factory-fitted strain-relief cable fitting to the same 60W, 48V, 1.25A Matter-dimmable driver. This fitting mechanically secures the output cable at the housing, reducing the risk of connector damage from cable movement or pulling in installations where cables are routed through conduit or under tension. Both models share identical electrical specifications and certifications.
How much 48V LED strip can the XLC-60-48-MAS power?
With a 60W maximum output, the XLC-60-48-MAS can drive 48V LED strip up to the length where total load reaches 60W. For a strip rated at 12W/m, that is 5 meters; for a strip rated at 20W/m, that is 3 meters. Always verify your strip's rated wattage per meter before finalising the run length.
Is the XLC-60-48-MAS suitable for installations inside enclosed luminaires or junction boxes?
The XLC-60-48-MAS is rated for built-in use as a Class II driver and operates from -25°C to +90°C. It can be installed inside luminaires, junction boxes, or ceiling voids where it will not be directly exposed to moisture. It does not carry an IP rating, so it requires an enclosure in damp or outdoor locations.
Does the XLC-60-48-MAS operate on 100VAC input circuits?
The XLC-60-48-MAS accepts input from 100 to 305VAC, covering 100VAC (Japan), 120VAC (North America), and 220–240VAC (Europe and international) supply. Matter wireless dimming operates within the CC Voltage Range of 115–230V. This broad input range makes the driver deployable across most global markets.
