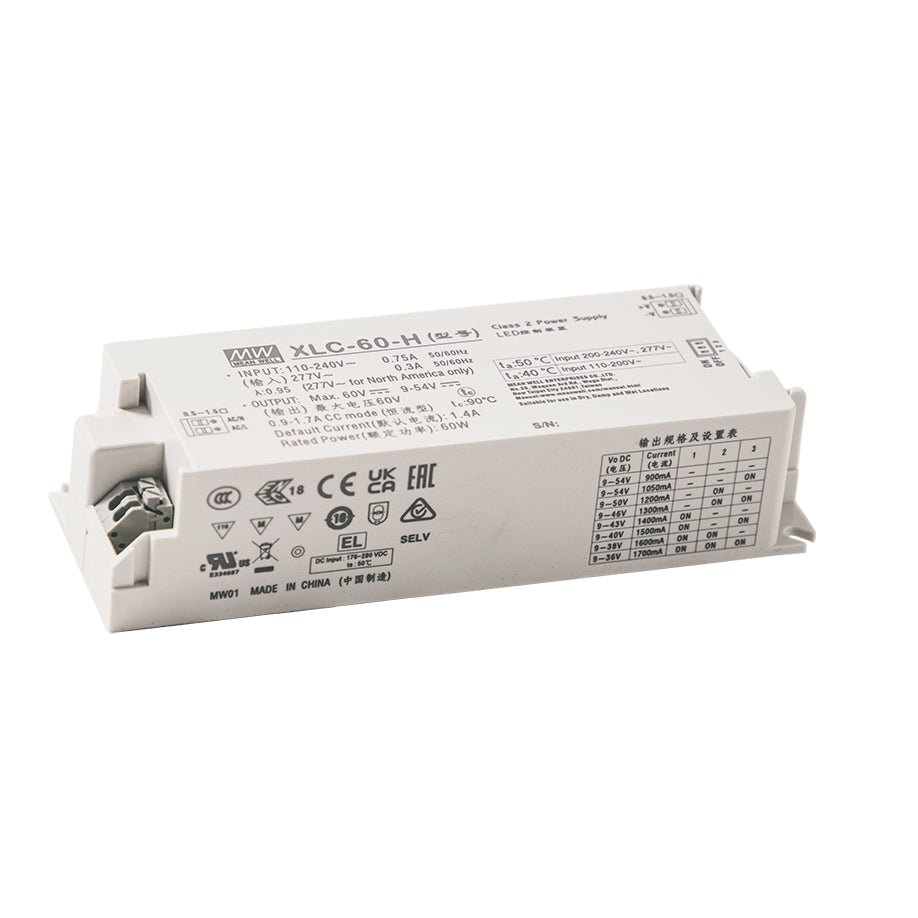

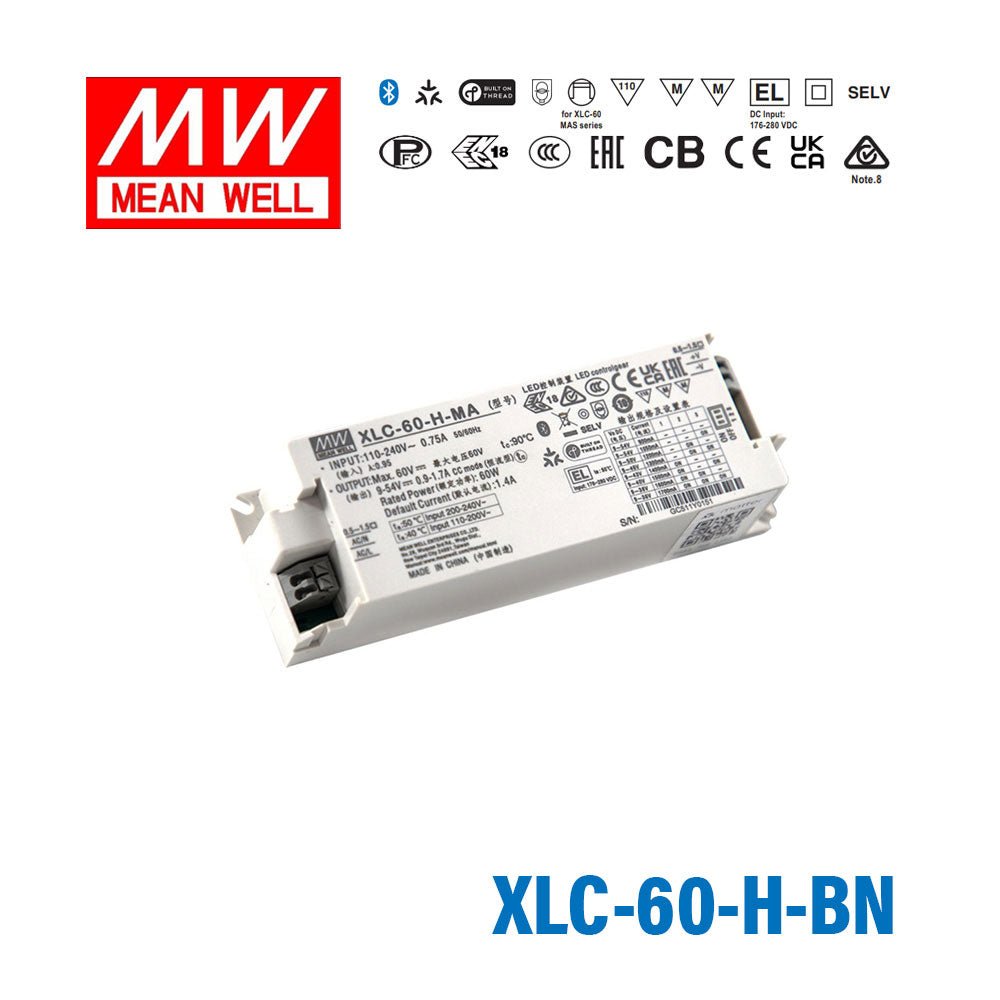

Mean Well XLC-60-H-BN LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-BN LED Driver 60W 1400mA 9~54V Constant Power, 3...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-BN for dimmable LED downlights where I want to set current without opening the fixture?
Yes. The XLC-60-H-BN combines 3-in-1 dimming with NFC-based current setting, letting you adjust the output current between 0.9A and 1.7A using an NFC-enabled device without physical access to the dip switch. This makes it well suited for recessed LED downlights that are difficult to reach after installation.
Is the XLC-60-H-BN suitable for driving LED modules in indoor signage where dimming is required?
Yes. The driver provides constant current across the 9–54V CC range at up to 60W with 3-in-1 dimming, suitable for indoor LED signage modules that require brightness control. NFC current programming adds flexibility for adjusting light levels on installed signs.
Can I use the XLC-60-H-BN in a small LED array where current must be fine-tuned after installation?
Yes. NFC current setting allows post-installation adjustment of the constant current output within the 0.9A to 1.7A range without rewiring or opening the enclosure, which is useful for LED arrays that require commissioning on-site.
What dimming methods does the XLC-60-H-BN support?
The XLC-60-H-BN supports 3-in-1 dimming: 0–10V analog, PWM, and resistance control. Current adjustment is done via NFC rather than a dip switch, differentiating it from the XLC-60-H-B.
Is the XLC-60-H-BN suitable for use in cold-temperature environments such as refrigerated display cases?
The XLC-60-H-BN has a rated operating range of -25°C to +90°C. A -25°C lower limit makes it suitable for installations in cold storage or refrigerated environments, provided it is installed within an appropriate enclosure for built-in use.
How does the XLC-60-H-BN differ from the XLC-60-H-B?
Both models are 60W, 1400mA constant-current drivers with 3-in-1 dimming and a 9–54V CC range. The key difference is the current-setting method: the XLC-60-H-B uses a dip switch, while the XLC-60-H-BN uses NFC programming, eliminating the need for physical access to set output current.
