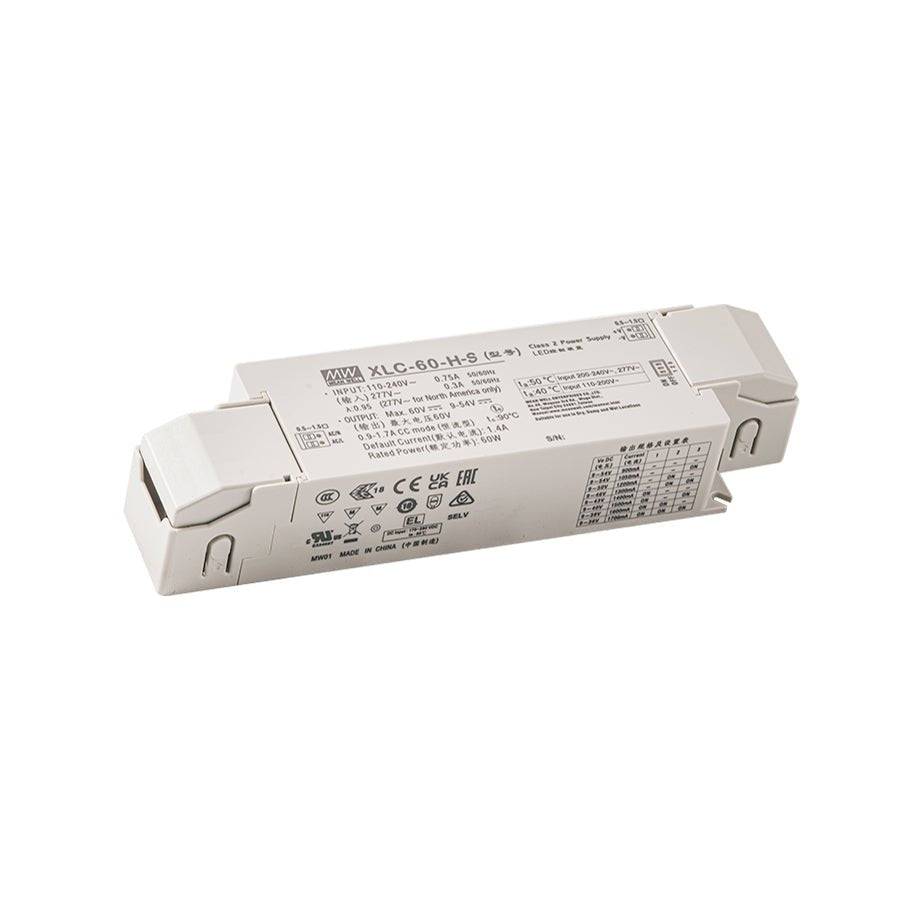

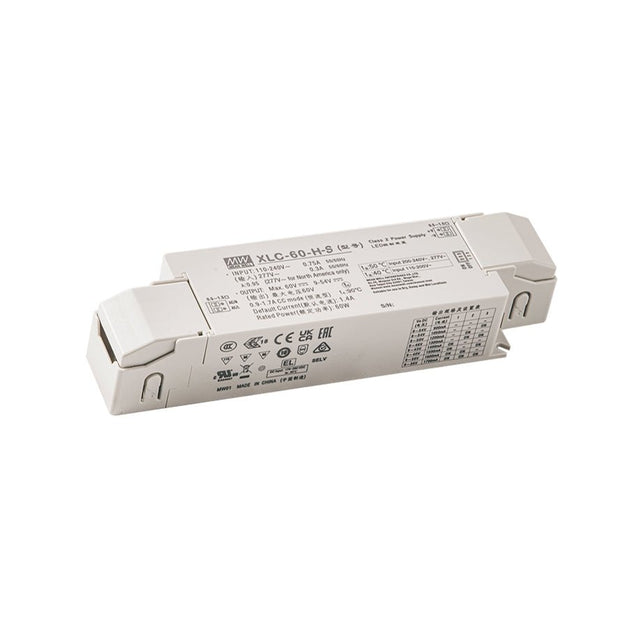

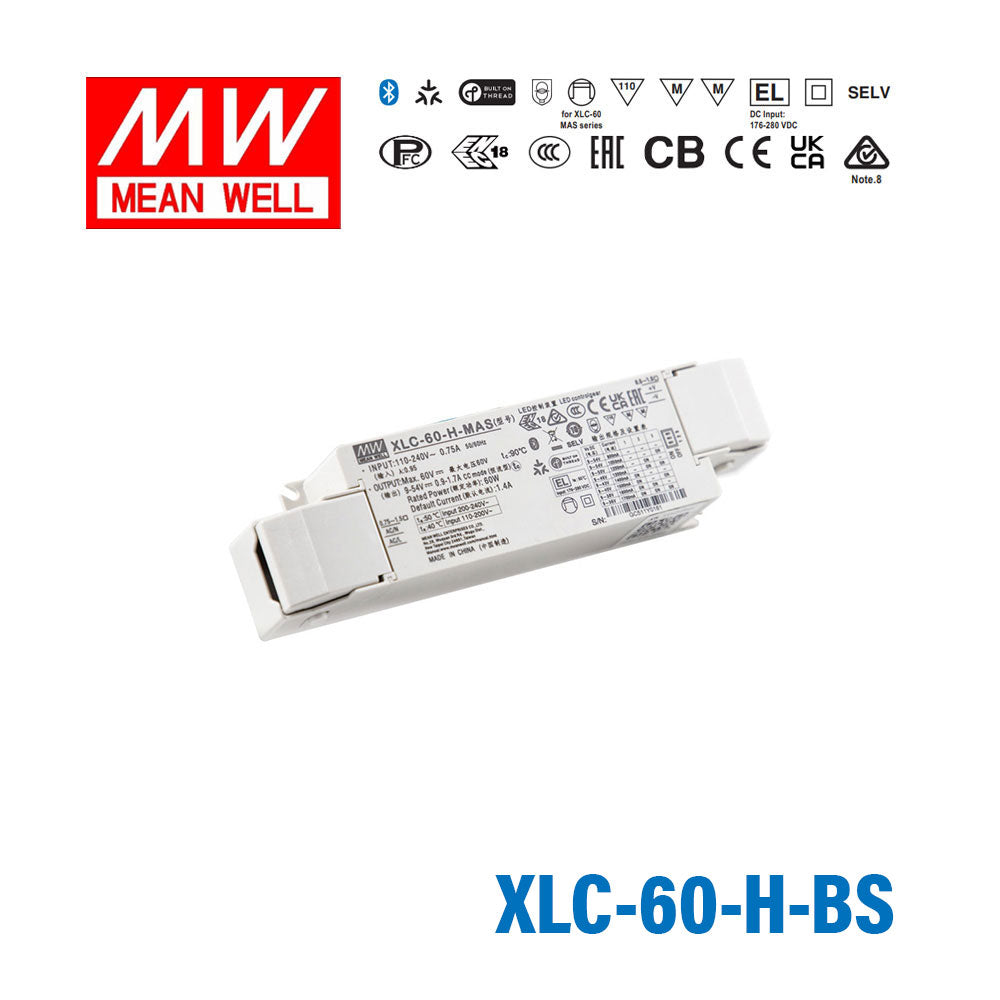

Mean Well XLC-60-H-BS LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-BS LED Driver 60W 1400mA 9~54V Constant Power, 3...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-BS for LED downlights installed in locations with vibration or cable movement?
Yes. The XLC-60-H-BS includes a strain-relief feature on the output cable, which helps prevent connector fatigue in installations subject to vibration or where cables may be pulled or moved. It delivers 60W at 1400mA constant current with 3-in-1 dimming.
Is the XLC-60-H-BS a good fit for dimmable LED signage requiring mechanical cable protection?
Yes. The strain-relief design of the XLC-60-H-BS makes it appropriate for LED signage installations where output cables are routed through tight channels or exposed to mechanical stress. It supports 3-in-1 dimming across the 9–54V CC range at up to 60W.
Can the XLC-60-H-BS drive LED arrays in industrial built-in fixtures that need a strain-relieved cable exit?
Yes. The built-in strain-relief is specifically useful in industrial luminaire applications where output wiring may be subject to repeated flexing. The constant current output is adjustable from 0.9A to 1.7A via the dip switch; the number of LEDs supported depends on each LED's forward voltage within the 9–54V range.
Does the strain-relief on the XLC-60-H-BS affect its operating temperature range or certifications?
No. The XLC-60-H-BS retains the same -25°C to +90°C operating range and the same CB, CCC, CE, EAC, ENEC, and c_selv certifications as other XLC-60-H variants. The strain-relief is a mechanical enhancement only.
What dimming interfaces are compatible with the XLC-60-H-BS?
The XLC-60-H-BS supports 3-in-1 dimming: 0–10V analog, PWM, and resistance. Current is set via the dip switch to any value in the 0.9A to 1.7A range.
How does the XLC-60-H-BS differ from the XLC-60-H-B?
Both are 60W, 1400mA constant-current drivers with 3-in-1 dimming and dip-switch current setting. The XLC-60-H-BS adds a strain-relief on the output cable, making it better suited for installations where mechanical stress on the wiring is a concern.
