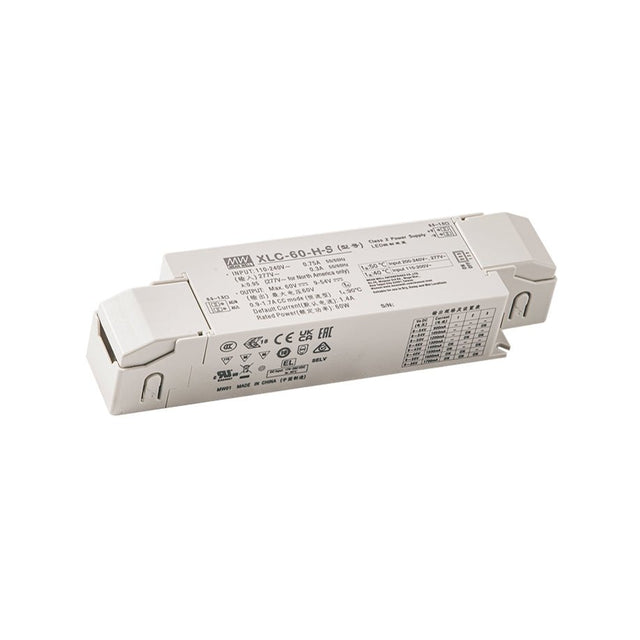

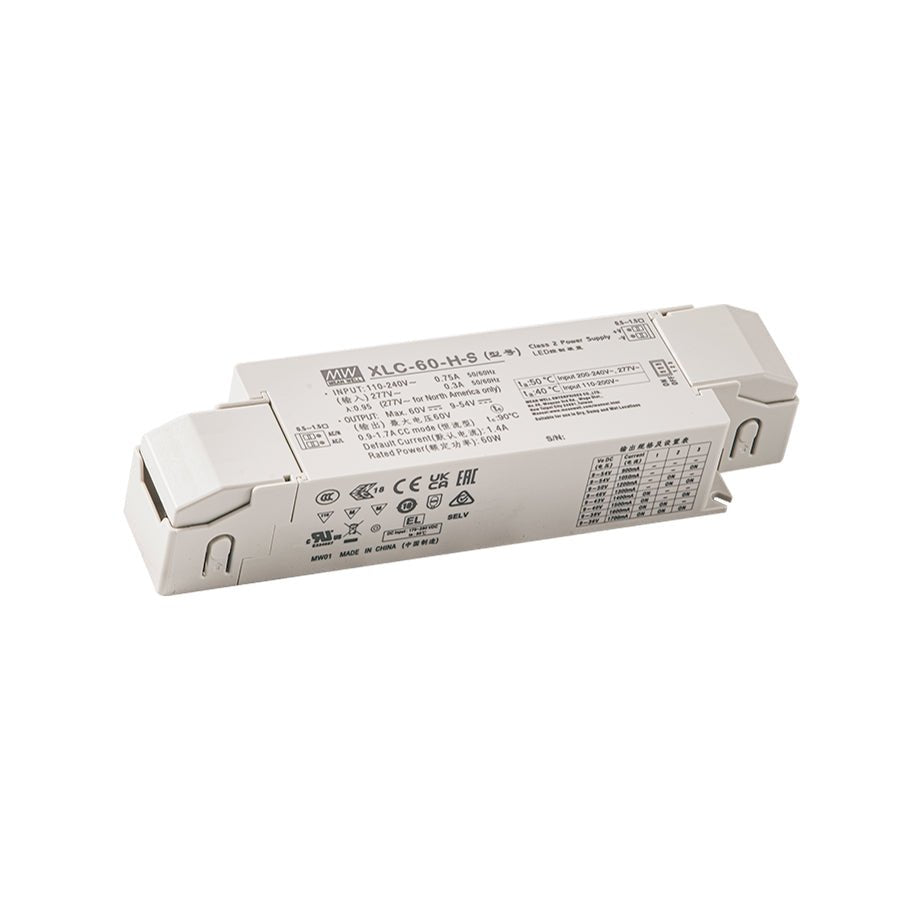

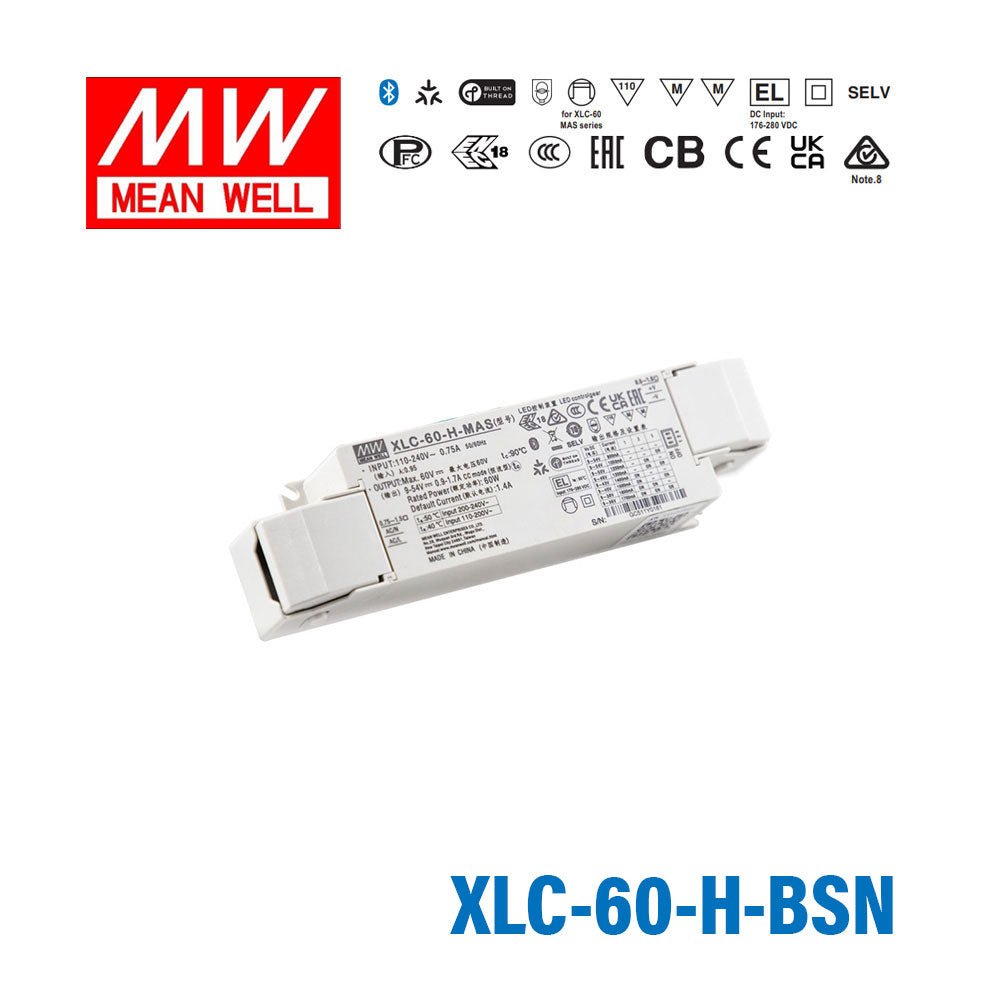

Mean Well XLC-60-H-BSN LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming with Strain-relief, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-BSN LED Driver 60W 1400mA 9~54V Constant Power, ...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-BSN for recessed LED downlights where both strain-relief and contactless current adjustment are needed?
Yes. The XLC-60-H-BSN combines output cable strain-relief with NFC-based current setting, allowing the constant current to be adjusted between 0.9A and 1.7A without physical dip-switch access. This combination suits hard-to-reach recessed downlight installations.
Is the XLC-60-H-BSN suitable for dimmable LED signage in locations where cable stress is expected?
Yes. The strain-relief protects the output cable from mechanical fatigue, and the 3-in-1 dimming interface supports 0–10V, PWM, and resistance control signals common in signage control systems. The driver delivers 60W at 1400mA across a 9–54V CC range.
Can the XLC-60-H-BSN be used in LED arrays installed inside equipment cabinets where cables pass through grommets?
Yes. The strain-relief makes the XLC-60-H-BSN well suited for equipment cabinets where the output lead passes through a panel grommet or is routed under mechanical tension. NFC current adjustment allows fine-tuning after the driver is enclosed.
What is the NFC programming range for current adjustment on the XLC-60-H-BSN?
The XLC-60-H-BSN allows current to be programmed from 0.9A to 1.7A via NFC using a compatible device. This replaces the dip switch found on the XLC-60-H-BS, enabling contactless configuration without opening the luminaire.
Is the XLC-60-H-BSN rated for operation in low-temperature environments?
Yes. The XLC-60-H-BSN operates from -25°C to +90°C, making it appropriate for installations in cold environments such as refrigerated display lighting or cold-climate outdoor luminaires (when installed in a suitable enclosure for built-in use).
How does the XLC-60-H-BSN compare to the XLC-60-H-BS?
Both models are 60W, 1400mA constant-current drivers with 3-in-1 dimming and output cable strain-relief. The distinction is the current-setting method: the XLC-60-H-BS uses a dip switch, while the XLC-60-H-BSN uses NFC programming for contactless current adjustment.
