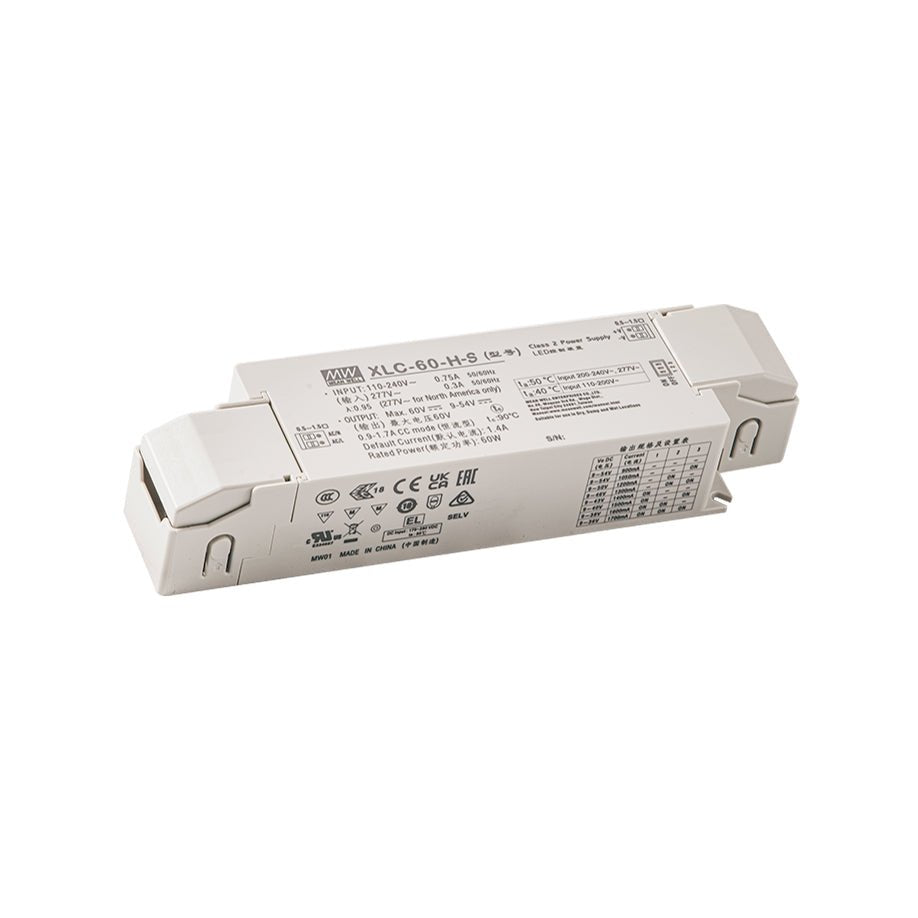

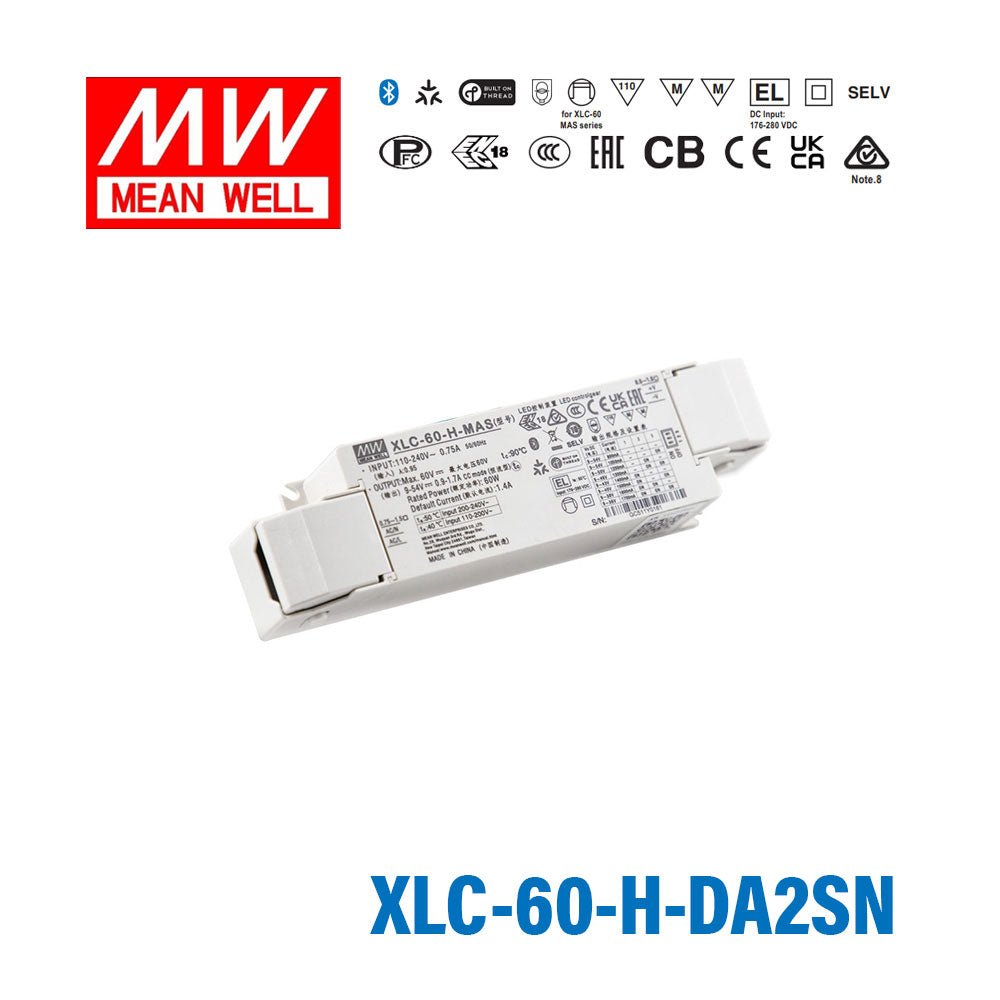

Mean Well XLC-60-H-DA2SN LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-DA2SN LED Driver 60W 1400mA 9~54V Constant Power...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-DA2SN to drive LED downlights in a DALI2 lighting control system?
Yes, the XLC-60-H-DA2SN supports DALI2 dimming protocol along with push dimming, making it suitable for DALI2-controlled LED downlight installations. It operates as a constant power driver with a CC output range of 9–54V and can be dimmed down to 0.1%.
Is the XLC-60-H-DA2SN suitable for powering LED signage modules that require precise current adjustment?
Yes, the driver supports NFC-based current setting and an adjustable output current range of 0.9–1.7A, allowing precise tuning for LED signage modules without physical dip switches. The 60W power capacity and 9–54V CC voltage range accommodate a variety of signage configurations.
Can I use the XLC-60-H-DA2SN for flicker-sensitive LED applications such as video studio or medical lighting?
The XLC-60-H-DA2SN is rated flicker-free and supports dimming as low as 0.1%, which makes it appropriate for environments where flicker must be minimized. It is a constant power LED driver, so connected LEDs must have forward voltages within the 9–54V CC range.
What input voltage range does the XLC-60-H-DA2SN accept, and can it be used in both North American and European installations?
The driver accepts 110–305VAC input, covering both North American (120V) and European (230V) mains voltages. This wide input range makes it suitable for multinational or dual-voltage building projects.
How many LEDs can the XLC-60-H-DA2SN drive?
The driver outputs constant current over a voltage range of 9–54V. The number of LEDs in series depends on each individual LED's forward voltage — there is no fixed LED count. Ensure the total string voltage of your series LED array falls within the 9–54V CC range.
What is the operating temperature range of the XLC-60-H-DA2SN, and is it suitable for outdoor enclosures?
The XLC-60-H-DA2SN operates from -25°C to +90°C. No IP rating is listed in the specifications, so it is intended for installation inside a suitable enclosure if used in outdoor or damp environments.
How does the XLC-60-H-DA2SN differ from other 60W variants in the XLC-60-H series?
The XLC-60-H series 60W variants share the same 60W power rating and 9–54V CC range but differ by dimming interface and physical features. The DA2SN adds both DALI2+push dimming and NFC current setting, plus strain-relief (the -S suffix), whereas models like XLC-60-H-KN use a dip switch for current setting and KNX-compatible dimming, and the base XLC-60-H has no wireless or bus dimming.
