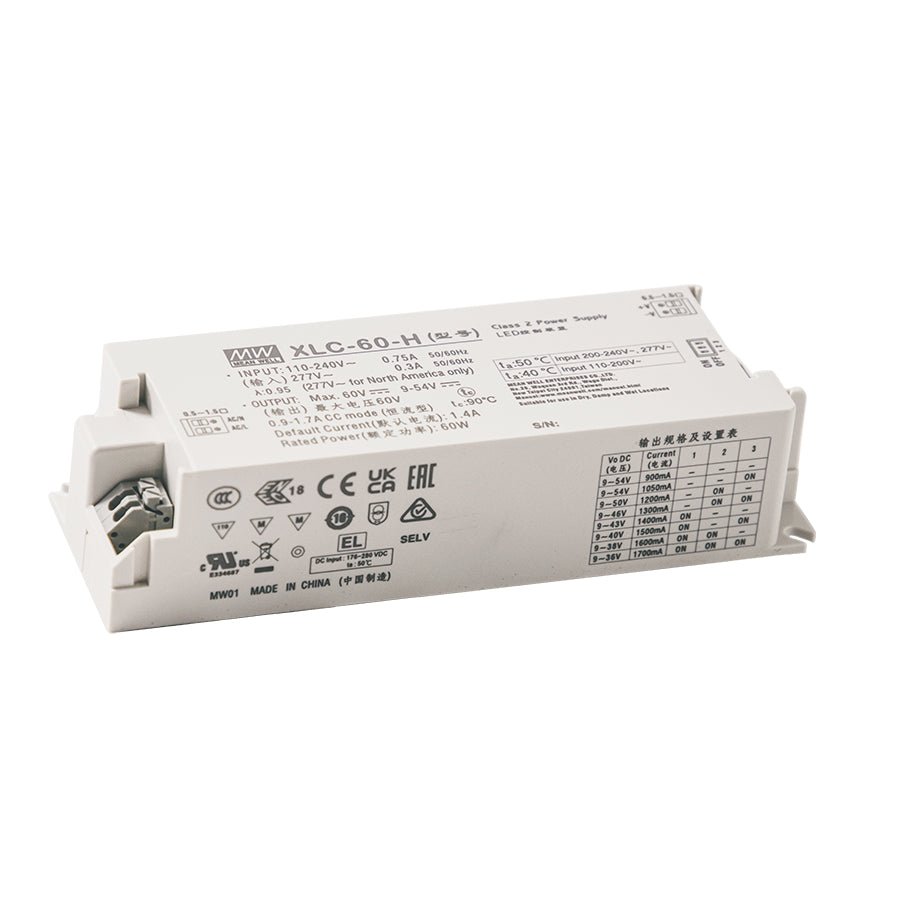

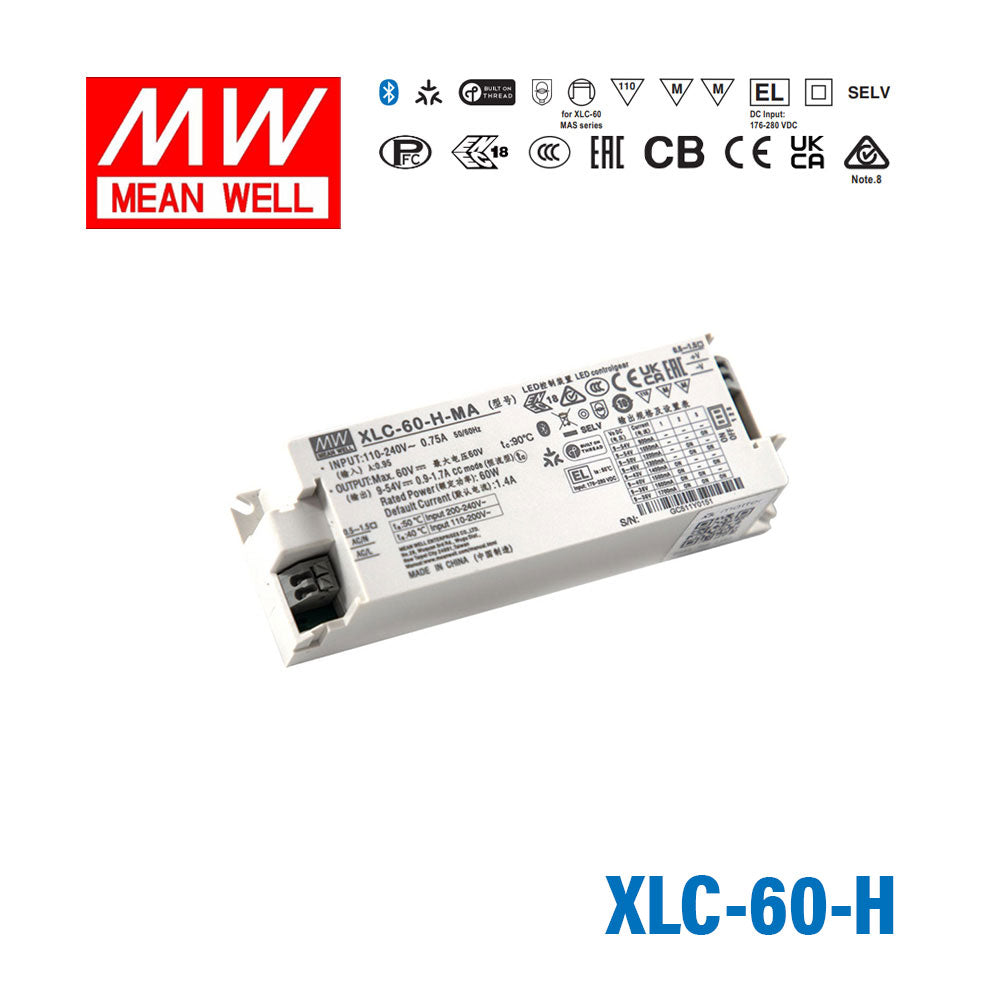

Mean Well XLC-60-H LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H LED Driver 60W 1400mA 9~54V Constant Power, Curr...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H to drive LED downlights in a commercial ceiling fixture?
Yes. The XLC-60-H delivers 60W at a constant current of 1400mA across a CC voltage range of 9–54V, making it well suited for LED downlight modules that operate within that voltage window. Its flicker-free output is appropriate for occupied commercial spaces.
Is the XLC-60-H suitable for powering LED signage modules?
Yes, the XLC-60-H can drive LED signage modules whose forward voltage requirements fall within the 9–54V CC output range. The driver operates at up to 60W, so the total load of the sign modules must stay within that power limit.
Can I use the XLC-60-H in a small LED array application?
Yes. The driver maintains a constant current output adjustable from 0.9A to 1.7A via the dip switch, which allows tuning for different LED array configurations. The number of LEDs that can be driven depends on each LED's forward voltage within the 9–54V operating range.
Is the XLC-60-H rated for indoor built-in use only, or can it be used in outdoor enclosures?
The XLC-60-H is designed for built-in use inside a luminaire or enclosure. It does not carry an IP rating for direct outdoor exposure, so it should be installed inside a suitable housing if used in outdoor environments.
What is the operating temperature range of the XLC-60-H?
The XLC-60-H operates from -25°C to +90°C, accommodating a wide range of installation environments from cold storage to high-ambient industrial spaces.
How does the XLC-60-H current output relate to the number of LEDs I can drive?
The XLC-60-H provides a constant current output adjustable between 0.9A and 1.7A across a CC voltage range of 9–54V. The number of LEDs in the string depends on each LED's individual forward voltage; there is no fixed LED count.
How does the XLC-60-H differ from the XLC-25-H and XLC-40-H siblings in this series?
The XLC-25-H delivers 25W at 700mA, the XLC-40-H delivers 40W at 1050mA, and the XLC-60-H delivers 60W at 1400mA — all with a 60V maximum output voltage and a 9–54V CC range. Choose based on the total wattage and current required by your LED load.
