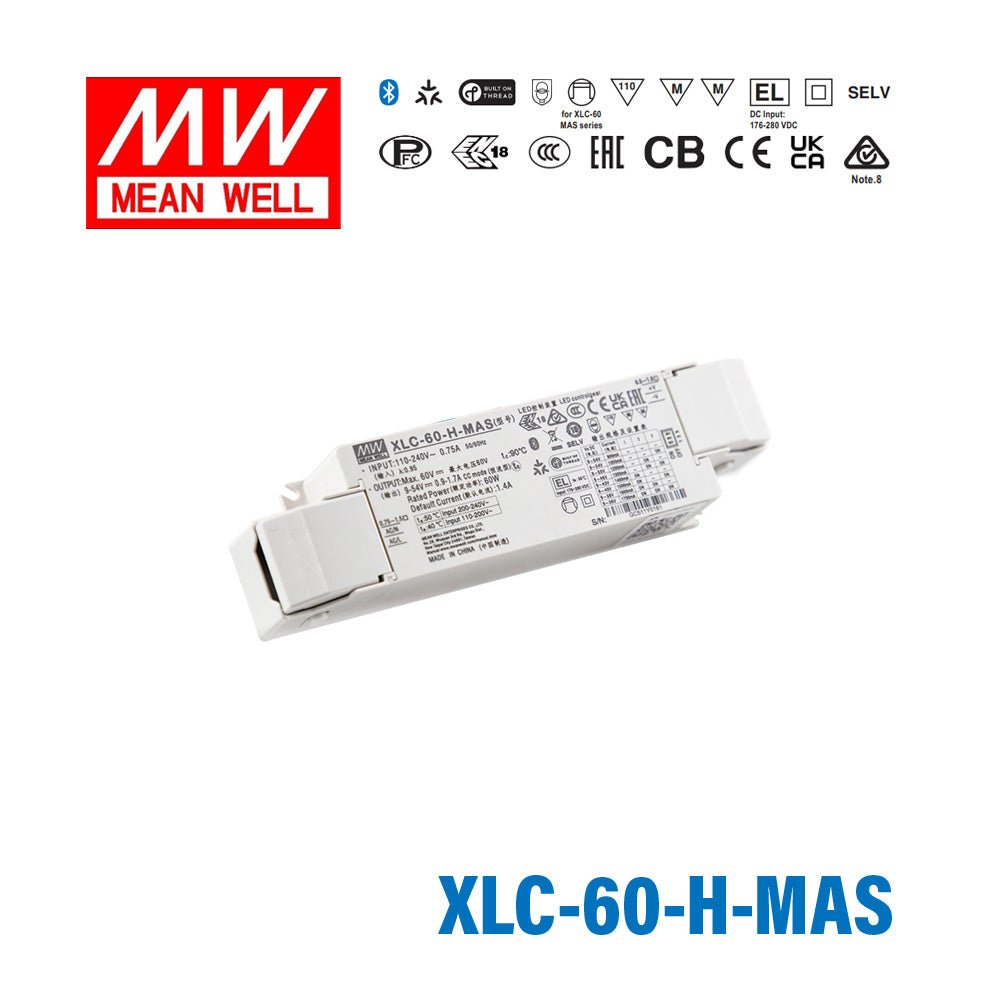

Mean Well XLC-60-H-MAS LED Driver 60W 1400mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-MAS LED Driver 60W 1400mA 9~54V Constant Power, ...
Description
Description
Key Features
- ✓Constant power mode output with multiple stage selectable by DIP switch (H-type)
- ✓Constant voltage mode output (12/24/48V)
- ✓Plastic housing with class II and PFC design
- ✓Flicker free, complying with CE ErP directive
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (12/24/48V)
- ✓Minimum dimming level 0.5% (H-type)
- ✓Matter over thread, Matter 1.3 specification
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
-
Weight85.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-H-MAS be used to dim LED downlights wirelessly through a Matter smart home system?
Yes, the XLC-60-H-MAS supports Matter 1.3 wireless dimming, enabling integration with Matter-compatible hubs and voice assistants for wireless control of LED downlight loads. The driver outputs 60W at 1400mA constant current with a 9–54V CC range.
Is the XLC-60-H-MAS appropriate for new-construction LED lighting where cables need a strain-relief termination?
The XLC-60-H-MAS includes an integrated strain-relief fitting, making it suited for new-construction or retrofit installations where cable strain management at the driver housing is required by local codes or installation practice. It provides 60W Matter-dimmable constant current output.
Can I use the XLC-60-H-MAS in a commercial space that requires flicker-free, dimmable LED lighting?
The XLC-60-H-MAS is rated flicker-free and supports Matter 1.3 wireless dimming with a current adjustment range of 0.9–1.7A, making it applicable for commercial environments with flicker-sensitivity requirements such as photography studios or healthcare facilities.
How many LEDs can the XLC-60-H-MAS drive in a series configuration?
The driver's constant current output covers 9–54V; the number of series LEDs is determined by each LED's forward voltage and is not a fixed number. Select a series string whose total forward voltage stays within the 9–54V CC range at the desired operating current.
What is the operating temperature range of the XLC-60-H-MAS, and can it handle high-temperature luminaire cavities?
The XLC-60-H-MAS is rated for -25°C to +90°C operation, accommodating high-temperature luminaire cavities or installation environments. No IP rating is specified, so it requires a suitable enclosure in wet or outdoor locations.
What is the difference between the XLC-60-H-MA and the XLC-60-H-MAS?
Both models are 60W, 1400mA constant current drivers with Matter 1.3 wireless dimming and a 9–54V CC range. The XLC-60-H-MAS includes a strain-relief fitting and is 176mm long, while the XLC-60-H-MA lacks strain-relief and is 136mm long.
