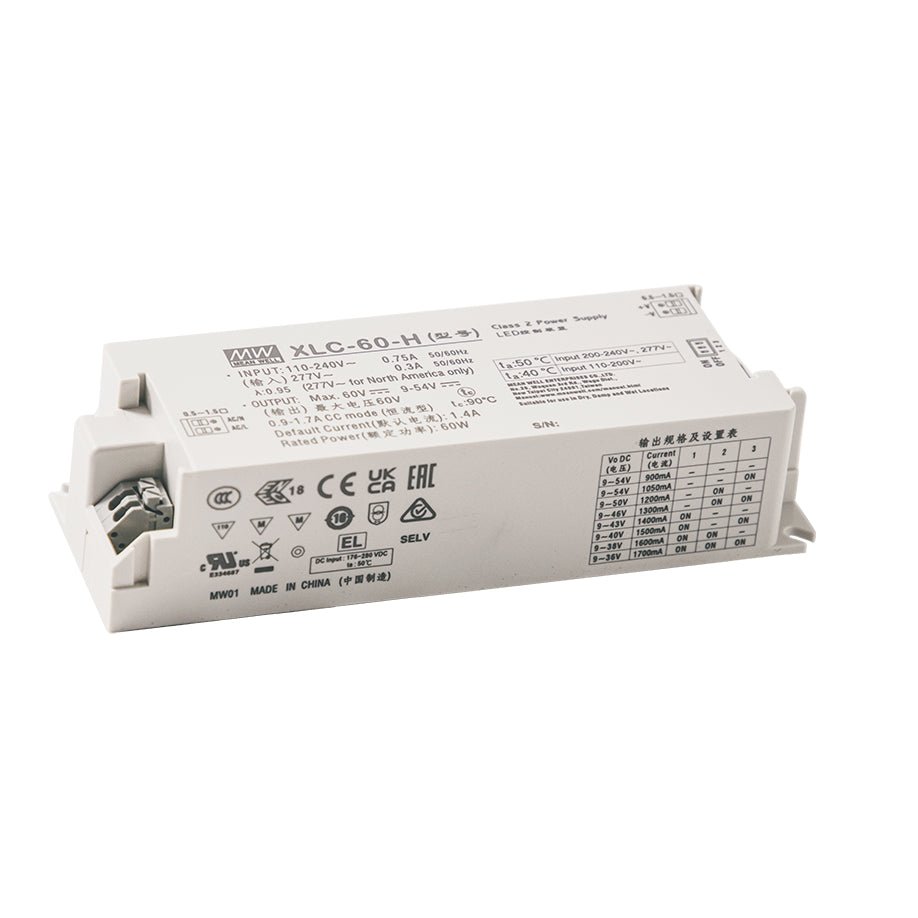

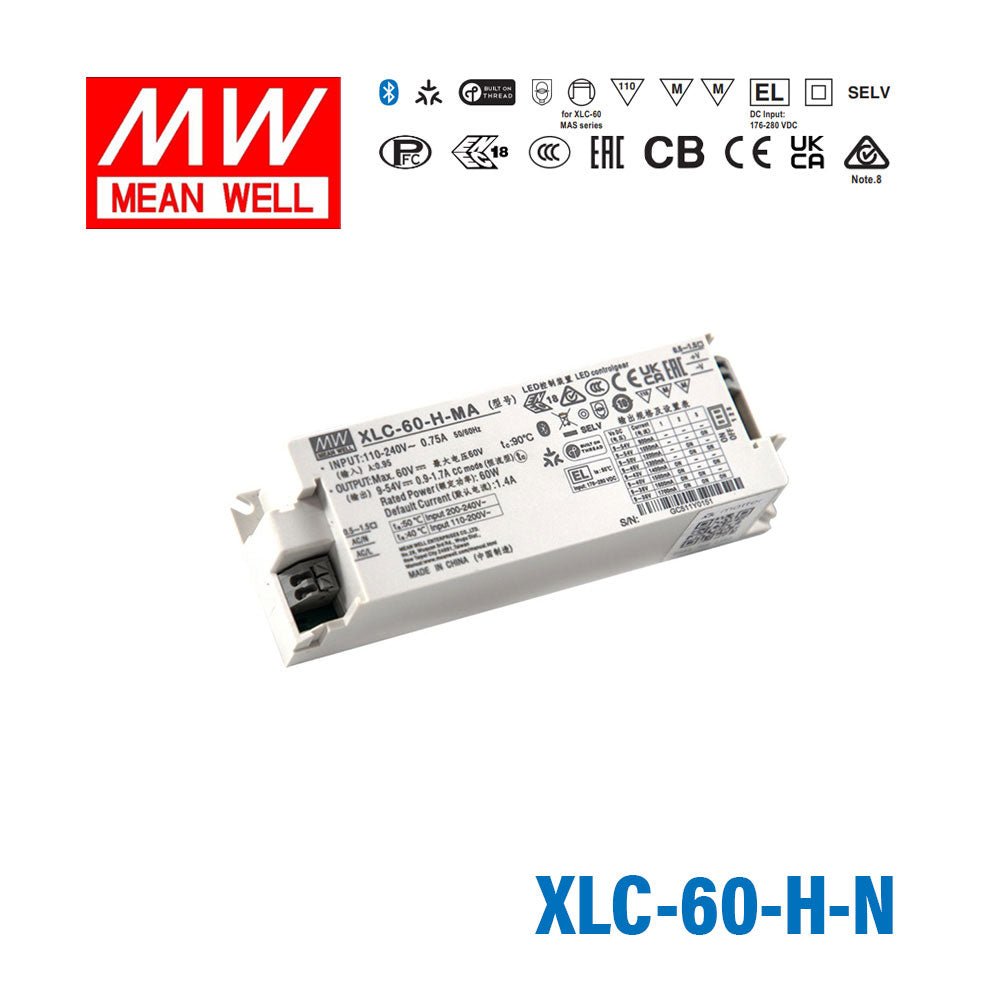

Mean Well XLC-60-H-N LED Driver 60W 1400mA 9~54V Constant Power, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-N LED Driver 60W 1400mA 9~54V Constant Power, NF...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-H-N be used to drive LED downlights where the current needs to be set using a smartphone or NFC reader?
Yes, the XLC-60-H-N uses NFC for current setting, allowing the output current to be adjusted within 0.9–1.7A using a compatible NFC device without physical access to dip switches. This simplifies commissioning of LED downlight installations where the driver is mounted in an inaccessible location.
Is the XLC-60-H-N appropriate for powering LED arrays in display or signage applications that require flicker-free operation?
The XLC-60-H-N is rated flicker-free, making it suitable for display and signage LED arrays where flicker must be avoided. It delivers 60W of constant current output over a 9–54V CC range with an adjustable current of 0.9–1.7A.
Can I use the XLC-60-H-N in a project that requires operation on both 120V and 230V mains supplies?
Yes, the XLC-60-H-N accepts 110–305VAC input, covering both 120V (North America) and 230V (Europe/Asia) mains voltages without any manual switching. This makes it suitable for international product designs or facilities with dual-voltage infrastructure.
How many LEDs can the XLC-60-H-N support in a series string?
The XLC-60-H-N provides constant current over a 9–54V output range. The number of series LEDs is not a fixed quantity — it depends on each LED's forward voltage. Design the string so that the combined forward voltages of the LEDs fall within the 9–54V CC window.
What operating temperature range does the XLC-60-H-N cover, and is it rated for use in thermally demanding environments?
The driver is rated for -25°C to +90°C operation, making it suitable for thermally demanding environments such as high-ambient industrial spaces or outdoor enclosures in cold climates. It does not carry an IP rating, so enclosure protection is required for non-dry locations.
How does the XLC-60-H-N differ from the XLC-60-H-SN?
Both the XLC-60-H-N and XLC-60-H-SN are 60W, 1400mA constant current drivers with NFC current setting and a 9–54V CC range. The XLC-60-H-SN adds an integrated strain-relief fitting (indicated by the -S suffix), while the XLC-60-H-N does not include strain-relief.
