Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

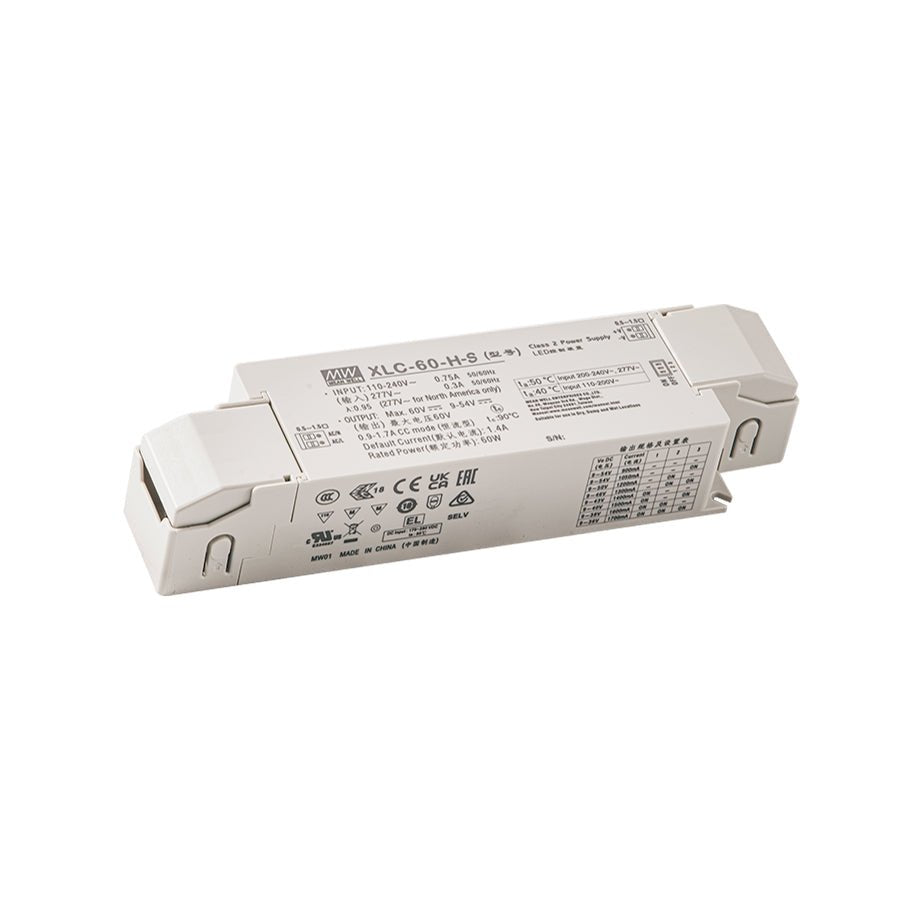

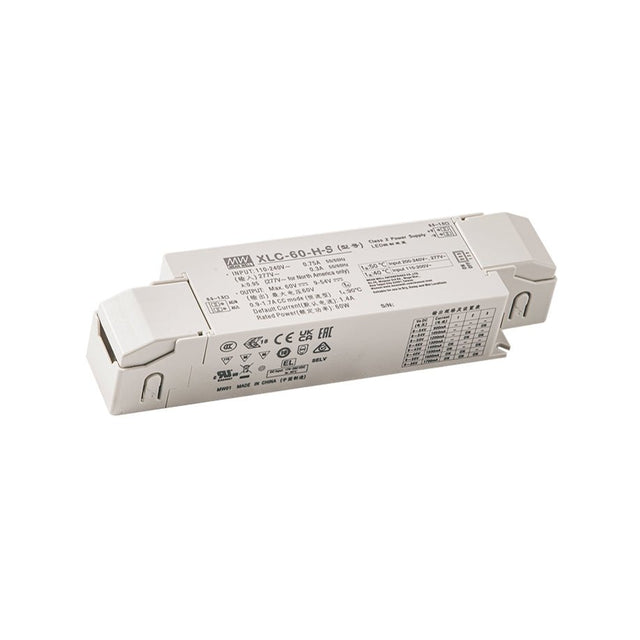

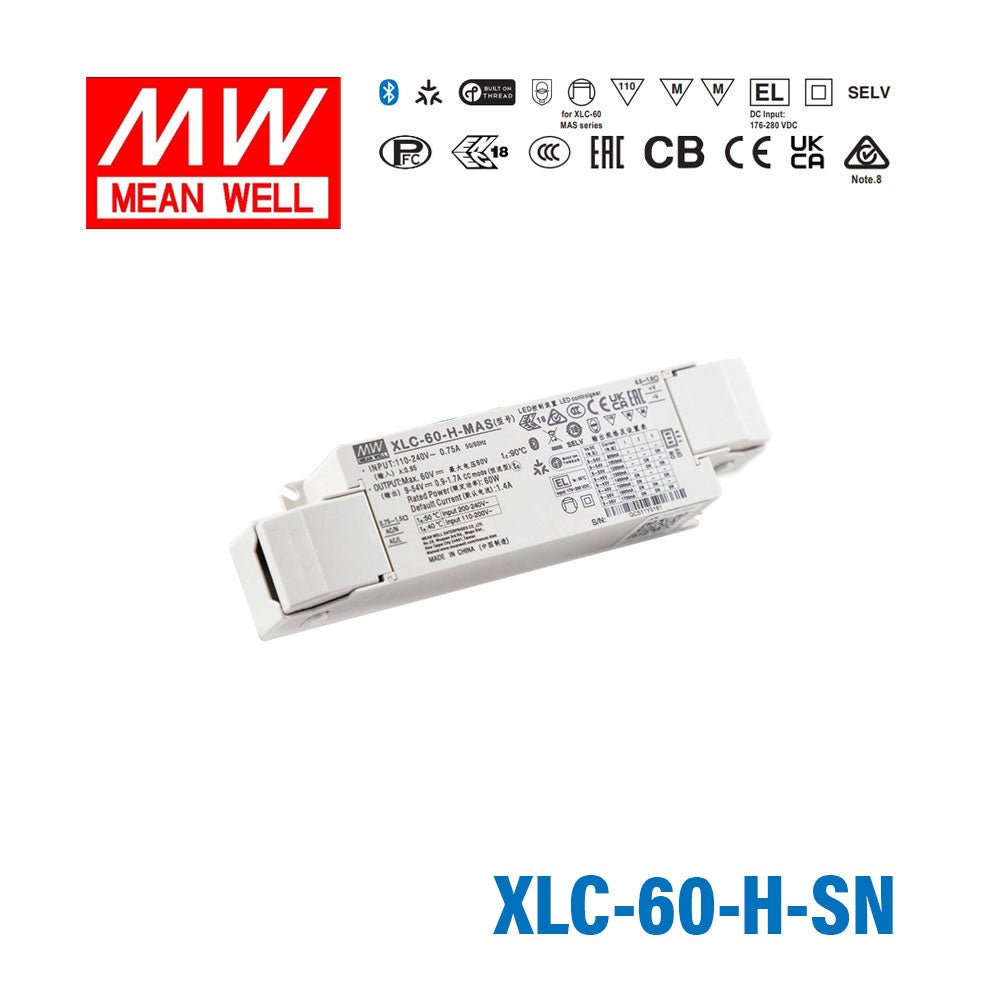

Mean Well XLC-60-H-SN LED Driver 60W 1400mA 9~54V Constant Power with Strain-relief, NFC Current Setting
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-SN LED Driver 60W 1400mA 9~54V Constant Power wi...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the XLC-60-H-SN be used to power LED downlights where the output current is adjusted via NFC from a mobile device?
Yes, the XLC-60-H-SN uses NFC current setting, allowing the output current to be configured within the 0.9–1.7A range using a compatible NFC reader or smartphone, without physical dip switches. This is useful for LED downlight installations where the driver is concealed inside a fixture.
Is the XLC-60-H-SN appropriate for flicker-sensitive LED applications in medical or broadcast environments?
The XLC-60-H-SN is rated flicker-free and provides stable constant current output at a configurable level between 0.9–1.7A, making it suitable for flicker-sensitive LED environments such as medical exam rooms or broadcast studios. The 9–54V CC range supports various LED array configurations.
Can the XLC-60-H-SN drive LED modules in architectural lighting installations that require individual current tuning per fixture?
NFC-based current adjustment on the XLC-60-H-SN allows per-driver current setting without removing the unit or accessing dip switches, which is practical for architectural LED installations where each fixture may need a different drive current. Output current is adjustable from 0.9 to 1.7A.
How many LEDs can the XLC-60-H-SN support in a series configuration?
The driver regulates constant current over a 9–54V output range; the number of LEDs that can be connected in series is determined by each LED's forward voltage, not a fixed number. Ensure the total series string voltage falls within 9–54V at the selected operating current.
What operating temperature range does the XLC-60-H-SN support, and can it be installed in tight ceiling cavities with limited airflow?
The XLC-60-H-SN is rated for -25°C to +90°C, accommodating high-temperature ceiling cavities. It is a Class II, 60W device; ensure the installation environment does not consistently exceed the 90°C case temperature limit in poorly ventilated cavities.
How does the XLC-60-H-SN differ from the XLC-60-H-N?
Both the XLC-60-H-SN and XLC-60-H-N are 60W, 1400mA NFC-programmable constant current drivers with a 9–54V CC range and identical certifications. The XLC-60-H-SN includes a built-in strain-relief fitting (the -S in the model name), while the XLC-60-H-N does not.
