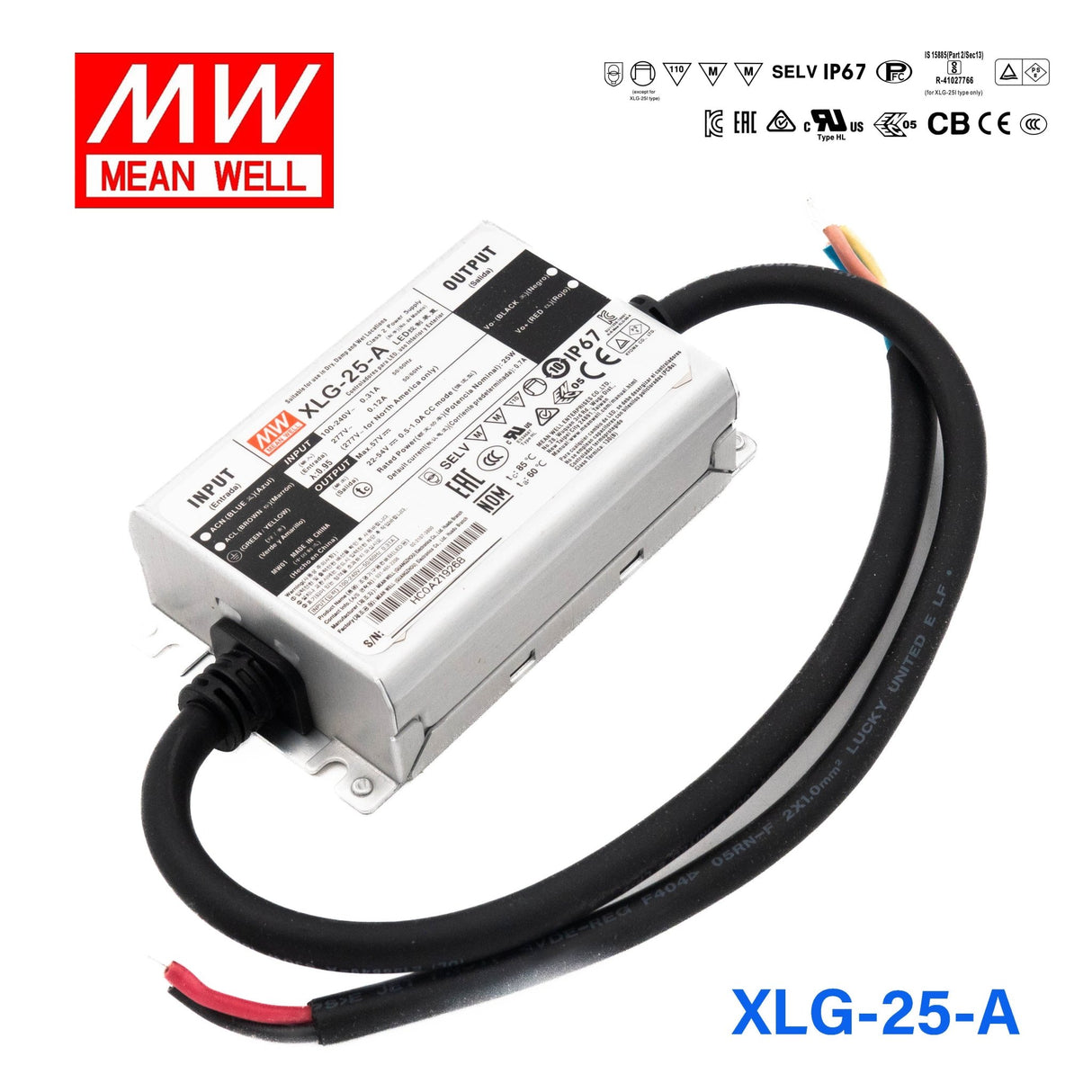

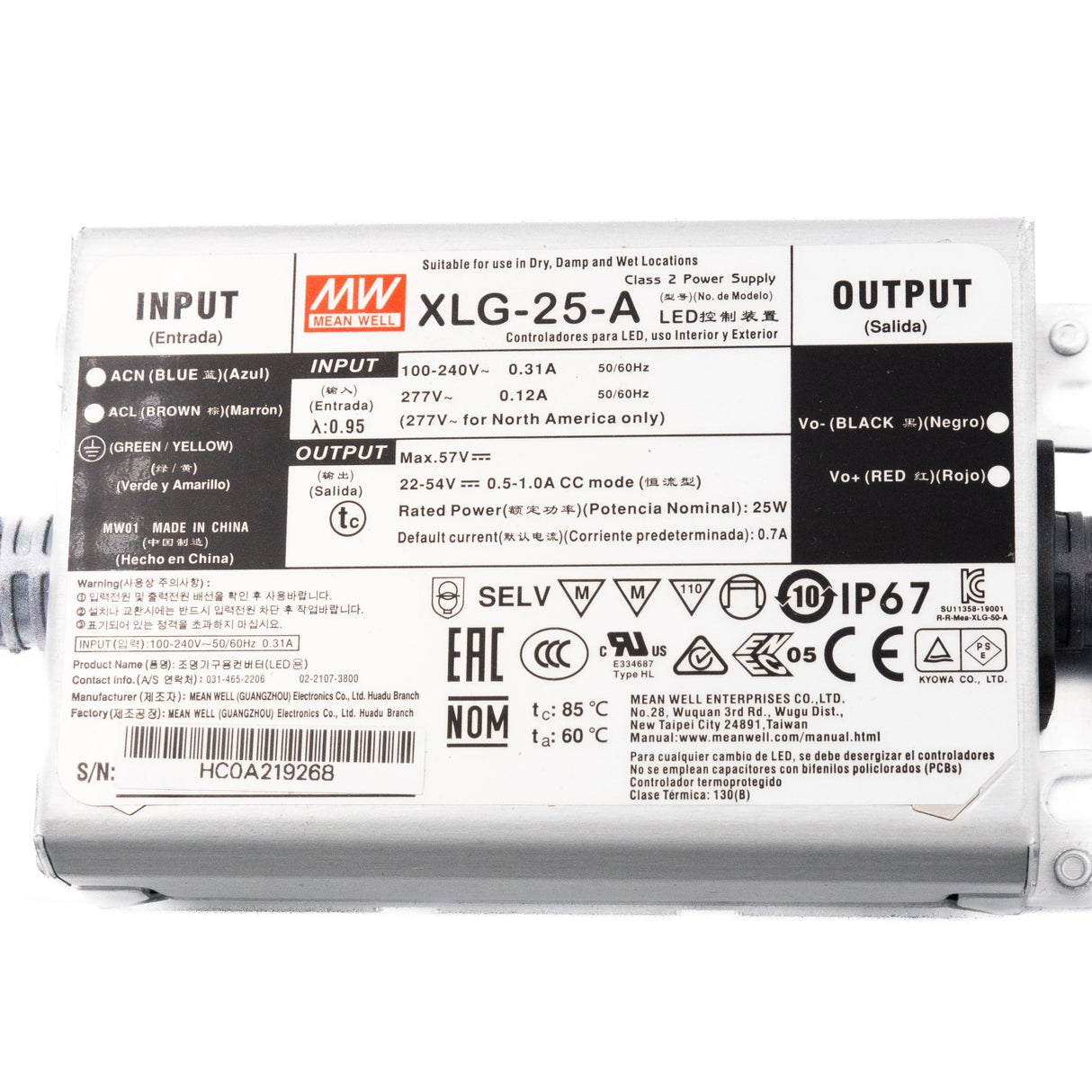

Mean Well XLG-25-A Power Supply 25W 700mA - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%
SKU:
XLG-25-A

Model
$19.90 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC function
No-load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation)
Lifetime > 50,000 hrs
5 years warranty

General Specification

AC input voltage range 90~305VAC;127~431VDC
AC inrush current Cold start, 50A at 230VAC
DC adjustment range ±10% rated output voltage
Over-voltage protection 128%~148% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 12ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+85°C
Safety standards UL8750 approved; NOM-058-SCFI-2017 approved; ENEC AS/NZS IEC BS EN/EN61347-1
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 105x63x30
Packing 24pcs / 10.5kg

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    25 Watt
  • Output Voltage
    57 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CCC,CE,ENEC,RCM,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    4.13 in
  • Width
    2.48 in
  • Height
    1.18 in
  • Weight
    0.9 lb

File Downloads
