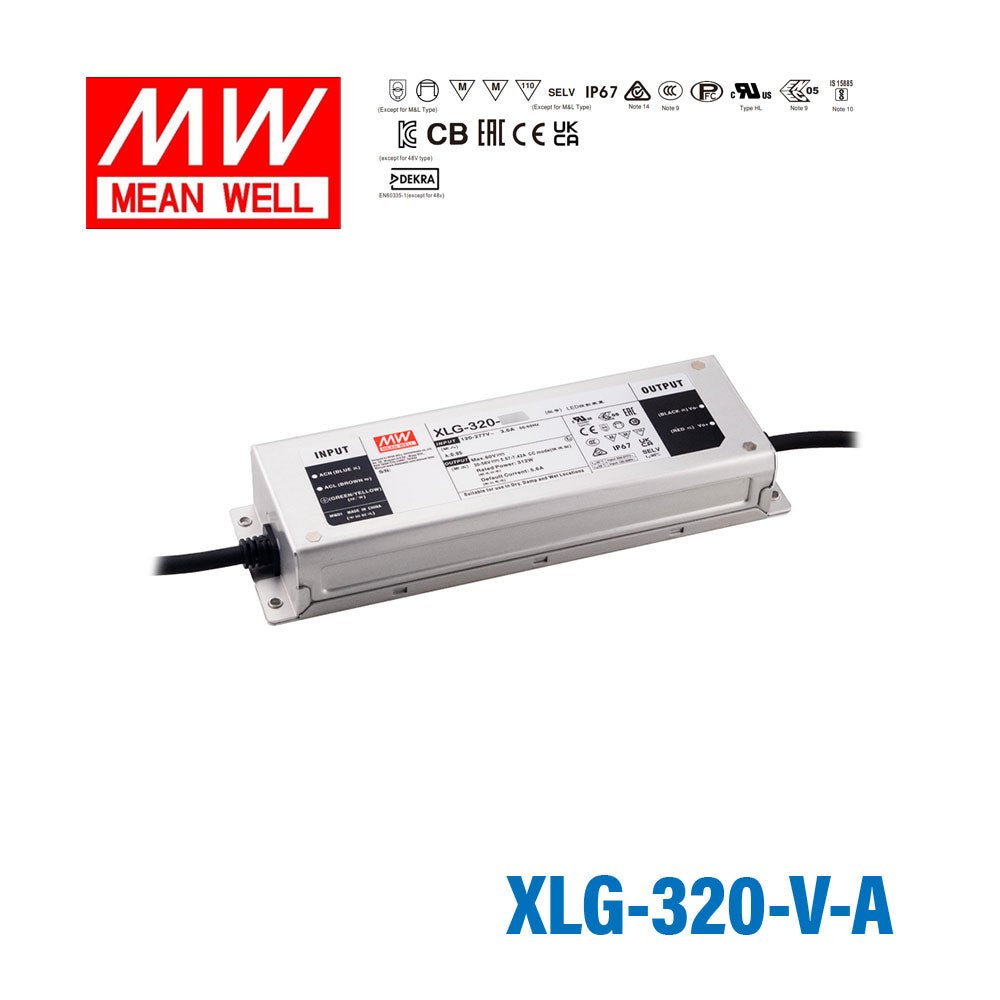

Mean Well XLG-320-V-A Power Supply 312W 24V or 216W 12V - Switchable Voltage 13A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-320-V-A Power Supply 312W 24V or 216W 12V - Switchabl...
Overview
XLG-320-V-A is the model of this series: rated power 24V/312W, 12V/216W, typical efficiency 93%. Type A: Output constant power adjustable via built-in lo potentiometer (IP67).
XLG-320 series is a 315W LED AC/DC driver featuring with constant power mode. XLG-320 operates from 120~305VAC and offers models with different rated current ranging between 1050mA and 7420mA. Thanks to the high efficiency up to 94.5% with the fanless design, the entire series is able to operate for -40℃ ~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-320 series comply with the latest version of IEC61347/GB/19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations and isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305VAC(classⅠ)
- Full power output at 75~100% constant power mode operation
- Metal case with IP67,suitable for outdoor application
- Surge protection with 6KV/4KV
- Protection Functions: OLP/ SCP/ OVP/ OTP
- Compliance to EN60335-1 household application
- Lifetime>50,000 hours and 5 years warranty
- Type “HL” for use in classⅠ,Division 2
- Household devices
- Retail and refrigerated display
Specifications
OUTPUT
- RATED CURRENT (Default)
- 13A/24V
- RATED POWERNote.11
- 24V/312W, 12V/216W
- CONSTANT CURRENT REGION
- NC
- OUTPUT VOLTAGE ADJ. RANGE
- 24V or 12V
- FULL POWER CURRENT RANGE
- 13~18A(24V/13A,12V/18A)
- OPEN CIRCUIT VOLTAGE (max.)
- NC
- CURRENT ADJ. RANGE
- NC
- CURRENT RIPPLE
- NC
- CURRENT TOLERANCE
- NC
- RIPPLE & NOISE(max.)
- 240mV p-p
- VOLTAGE TOLERANCE
- ±3%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±2%
- SET UP TIMENote.9
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.2
- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% @ load≧50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC; Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 3A / 120VAC 1.6A / 230VAC 1.3A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 34V Shut down output voltage, re-power on to recovery
- OVER TEMPERATURENote.12
- L/M/H-Type: Tcase>85℃±5℃,derate power automatically
- OVER LOADNote.11
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN/EN60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB/T19510.1, GB/T19510.213;EAC TP TC 004; IP67; IS15885(Part2/Sec13)(except for blank type), KC61347-1,KC61347-2-13 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15),GB/T 17743 Radiated BS EN/EN55015(CISPR15),GB/T 17743 Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT / Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 1476.4K hrs min. Telcordia SR-332(Bellcore) ; 168.1 K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 246*77*39.5mm (L*W*H)
- PACKING
- 1.45Kg;9pcs/14Kg/0.76CUFT
MODEL ENCODING
- Blank
- Io and Vo fixed.(For harsh environment); IP67
- A (this model)
- Output constant power adjustable via built-in lo potentiometer; IP67
- AB
- Output constant power adjustable via built-in lo potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
- ABV(48VONLY)
- Vo adjustable via built-in potentiometer + 3 in 1 dimming function (Flicker free C.V. Dimming); IP67
Test conditions and notes18
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. This series meets the typical life expectancy >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is 75℃ or less.
- 5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 9. Products sourced from the Americas regions may not have the ENEC/CCC/KC logo. Please contact your MEAN WELL sales for more information.
- 10. Some products may not have the BIS logo, please contact your MEAN WELL sales for more information.
- 12.When the secondary OTP fails, there is also a primary OTP, which is protected by Shut down output voltage, re-power on to recovery for the H/M/L-type.
- 13. When the current adjustment is more than 110% of the rated current, it will be enter the Protection state.
- 14. V,H type:RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. M,L type:RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
- 15. It may has an over-shoot status at output current when AC On/Off operate with lower Vf and lower loading conditions.
- 16. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 17. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 18. Please refer to "DRIVING METHODS OF LED MODULE".
- 19. For A/AB/ABV type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Bay lighting
- Stagelight
- Floodlight lighting
- Horticulture lighting
- Stadium lighting
- DMX power supply
Downloads
FAQ
Can the XLG-320-V-A power a large 24V LED strip installation in an outdoor environment?
Yes. The XLG-320-V-A is IP67-rated for dustproof and waterproof performance and operates from -40°C to +85°C, covering harsh outdoor conditions. At 312W and 24V, it can drive a substantial 24V LED strip load in exterior architectural, landscape, or sign lighting applications.
How much 24V LED strip can the XLG-320-V-A support?
The XLG-320-V-A delivers up to 312W at 24V. For a 24V strip rated at 14.4W/m, that covers approximately 21.7 meters at full load; for a 24W/m strip, roughly 13 meters. Always verify your strip's rated power per meter and limit continuous load to 80% of the driver's capacity, which gives a working budget of about 250W.
Is the XLG-320-V-A appropriate for cold storage or outdoor signage in freezing climates?
Yes. With a low-end operating temperature of -40°C, this driver is rated for extreme cold environments including cold storage facilities, outdoor signage in northern climates, and refrigerated display cases using 24V LED strip lighting.
Can I use the XLG-320-V-A to power large LED panels or channel letter signs?
Yes. The 24V output and 312W capacity make it well suited for powering multiple LED modules in channel letter signs or backlit display panels. Its wide input range of 100-305VAC also accommodates various single-phase supplies common in commercial sign installations.
Is the XLG-320-V-A suitable for powering LED drivers in a daisy-chain or distributed lighting network?
The XLG-320-V-A operates in constant voltage mode at 24V or 12V. It is designed as a single-output driver rather than a bus supply for distributed sub-drivers. For runs requiring distributed power, you would typically use this unit to feed one continuous LED strip segment or LED load up to 312W.
