Mean Well XLG-50-A Power Supply 50W 1A - Adjustable
Overview
XLG-50-A is the model of this series: rated power 100VAC ~ 305VAC 50W, typical efficiency 90%.
XLG-50 series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50 operates from 90~305VAC. Thanks to the high efficiency up to 90%, The entire series is able to operate between -40℃~90℃ wide case temperature range with air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-50 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Constant Power mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 rating for indoor or outdoor installations

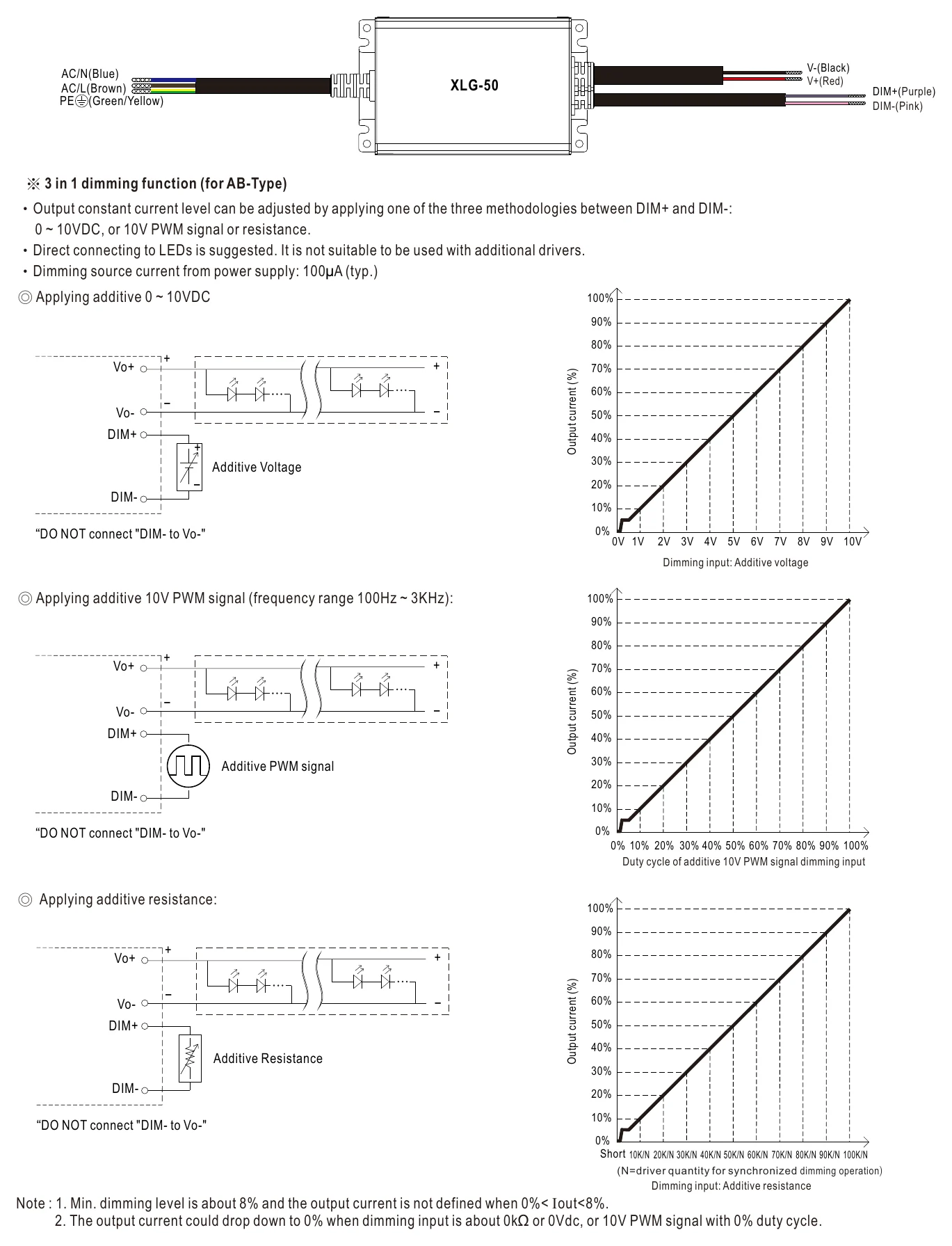

- Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design)
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT (Default)
- 1A
- CONSTANT CURRENT REGIONNote.2
- 22 ~54V
- RATED POWER
- 100VAC ~ 305VAC 50W
- CURRENT RIPPLE
- 5.0% max. @rated current
- OPEN CIRCUIT VOLTAGE (max.)
- 57V
- CURRENT ADJ. RANGE
- 0.53 ~ 2.1A
- SETUP, RISE TIMENote.3
- 500ms, 100ms/115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION

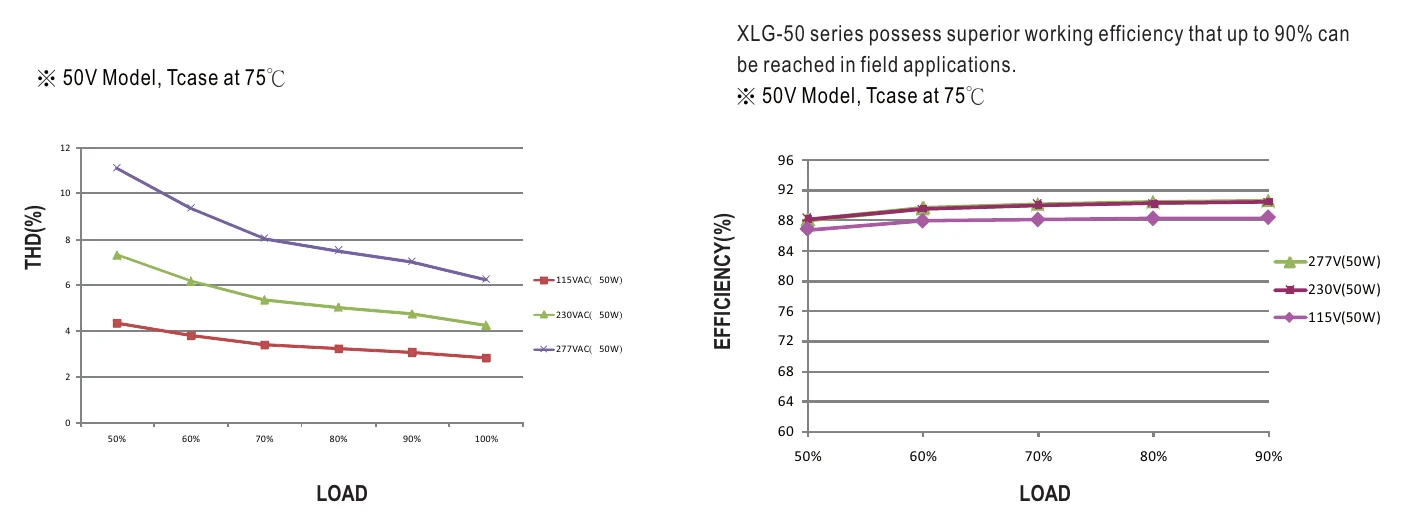

- THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)Note.10
- 90%
- AC CURRENT
- 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD / STANDBY POWER CONSUMPTION
- No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF)
PROTECTION
- OVER POWER
- 110-150% Over Power Protection, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Hiccup mode, recovers automatically after fault condition is removed
- INPUT OVER VOLTAGENote.8
- 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
ENVIRONMENT
- WORKING TEMP.

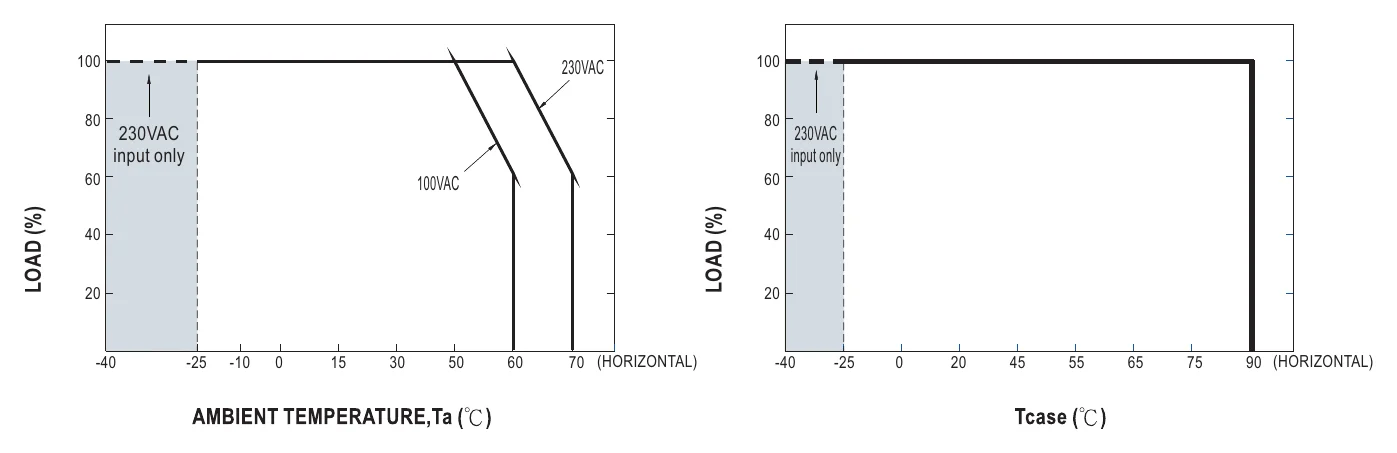

- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95%
- STORAGE TEMP.
- -40 ~ +80℃
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB/T19510.1, GB/T19510.213, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)( for XLG-50I type only); NOM-058-SCFI-2017 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 3931.6 K hrs min. Telcordia SR-332 (Bellcore) 394.6Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 105*63*30mm (L*W*H)
- PACKING
- 0.41Kg;24pcs/ 10.5Kg/0.81CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.81CUFT for AB-type
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.

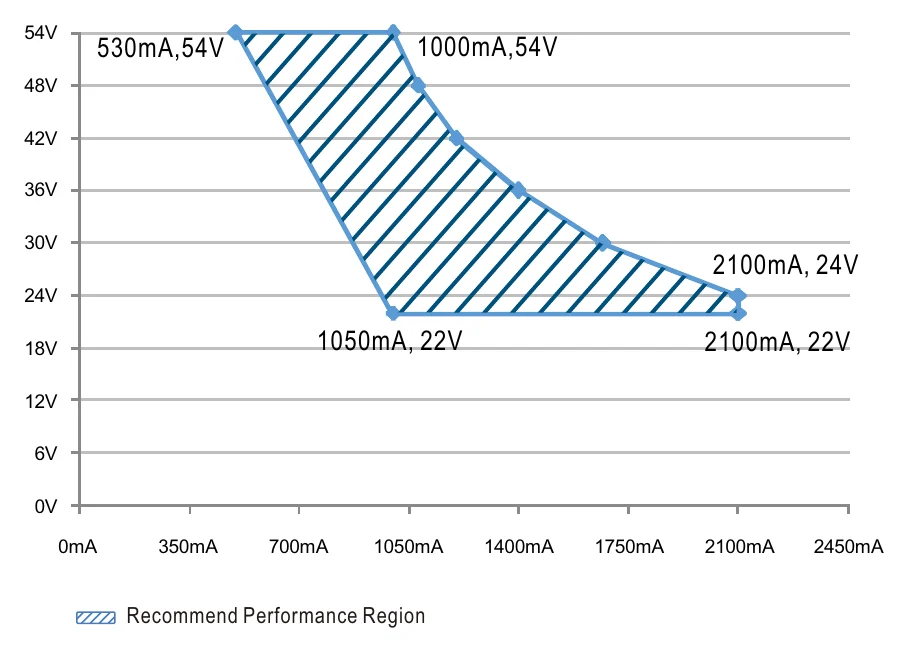

- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.

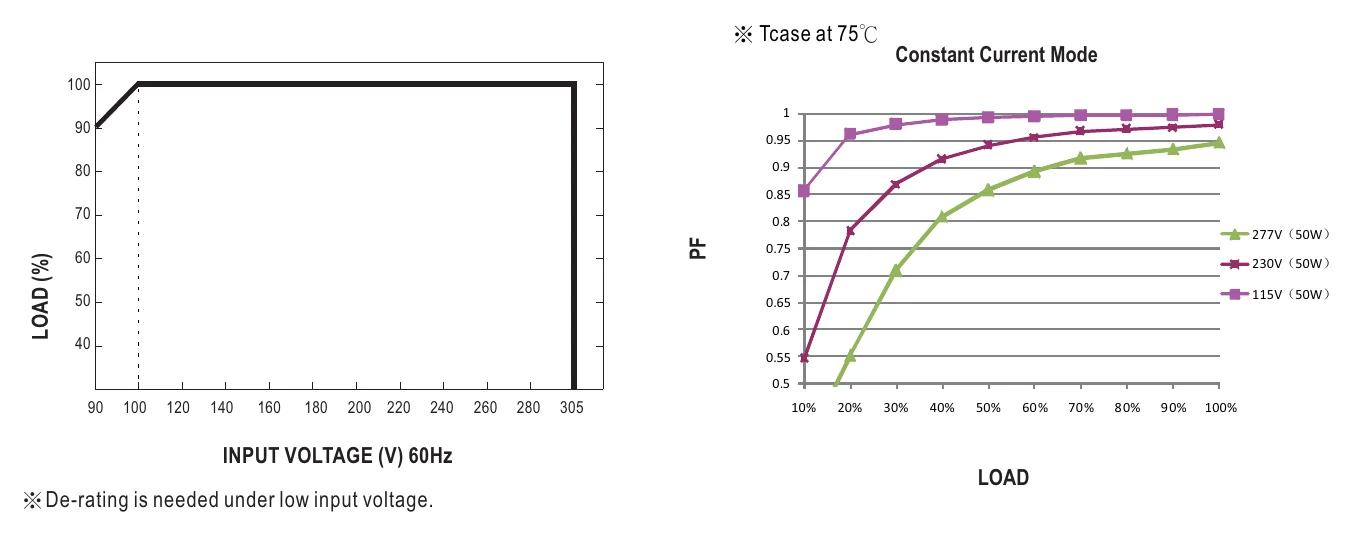

- 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

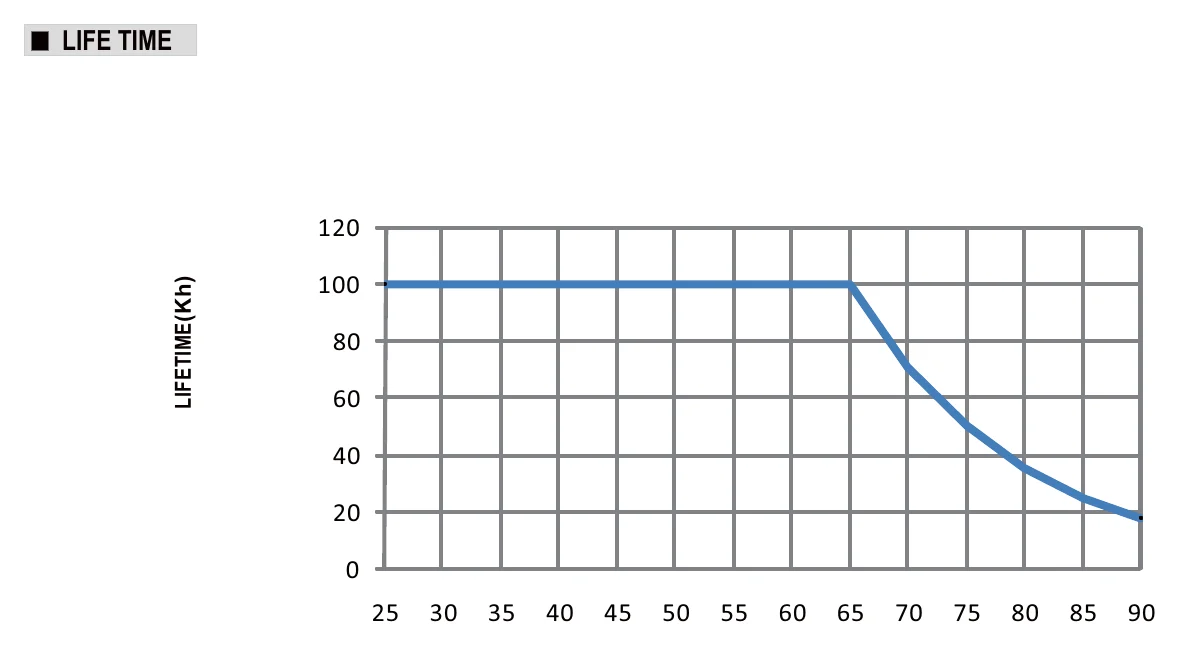

- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. Input over voltage only for XLG-50 I series ,and I series without UL/CSA certificate.
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Only for XLG-50-A
- 11. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 16. This series need to consider build in using to comply with Type HL application.

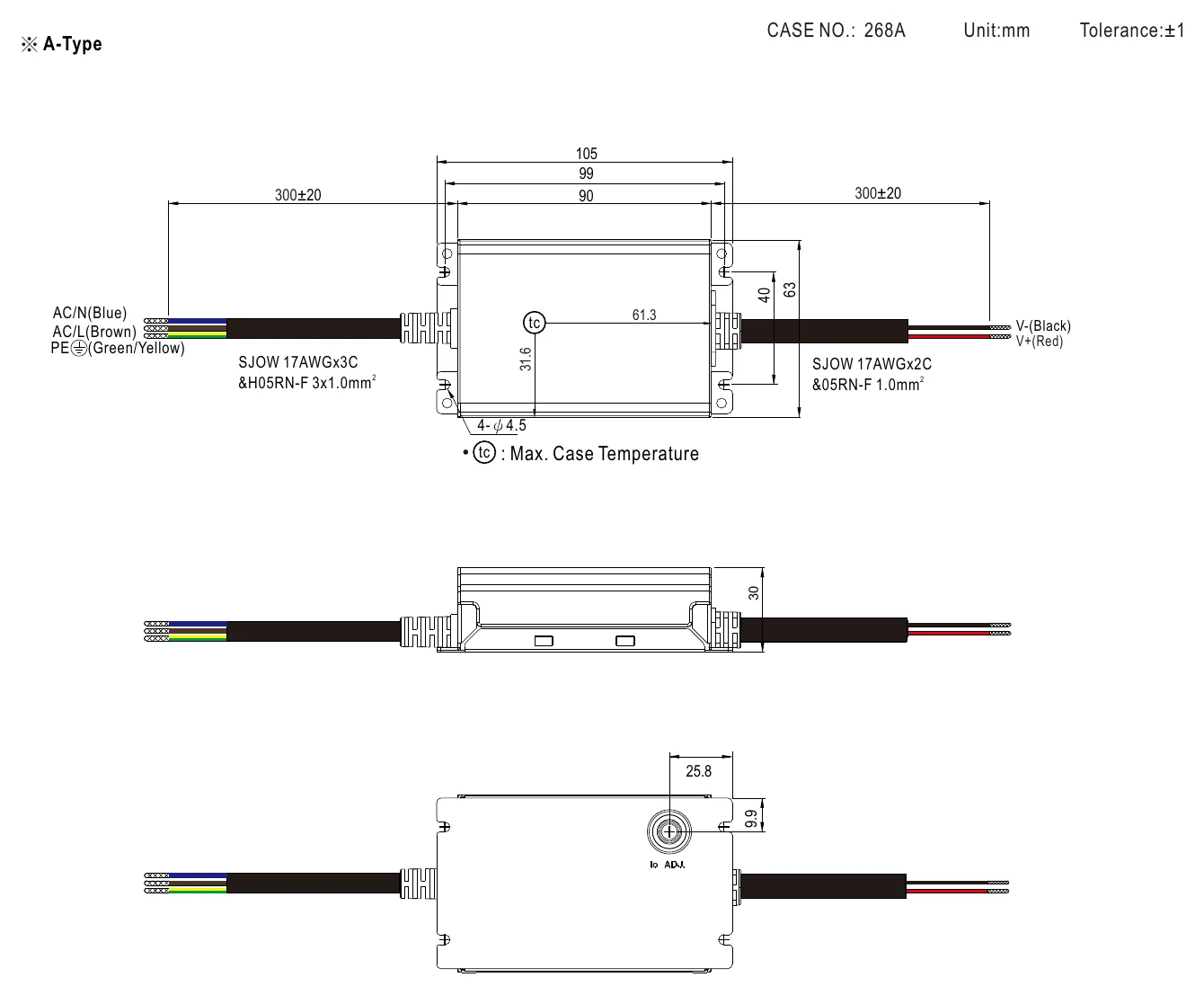

Technical drawings
Typical applications
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Downloads
FAQ
Can the XLG-50-A power a single LED strip zone in an outdoor retail display or outdoor sign?
Yes. The XLG-50-A carries an IP67 waterproof rating, making it suitable for outdoor and wet-location installations such as exterior retail signage, under-canopy lighting, or outdoor display cases. Its 50W capacity at 1A constant current is appropriate for a single zone of compatible LED strip or LED module array.
What length of LED strip can the XLG-50-A support?
The XLG-50-A outputs up to 50W. For example, a strip rated at 7.5W/m would allow up to about 6.6 meters at full load, and a 10W/m strip up to about 5 meters. Always check your strip's rated power per meter and size to no more than 80% of the driver's maximum (40W working load) for reliable continuous operation.
Can this driver be used for small LED signage or illuminated cabinet letters in wet environments?
Yes. The IP67 rating and compact 105 × 63 × 30 mm form factor make the XLG-50-A well suited for small illuminated cabinet letters, slim lightboxes, or under-counter LED strip lighting in wet or outdoor locations. The 90-305VAC input range also works across international mains voltages.
Is the XLG-50-A rated for use in very cold outdoor conditions?
Yes. The case temperature range is -40°C to +90°C, making this driver suitable for outdoor sign and display installations in cold climates, as well as high-ambient indoor environments such as industrial or commercial kitchens.
Can the XLG-50-A be used for LED strip cove lighting inside a bathroom or wet area?
Yes. The IP67 rating means the XLG-50-A is fully sealed against dust and protected against temporary water immersion, qualifying it for wet area installations. Position the driver in a ventilated enclosure outside the splash zone where required by local electrical codes, and pair it with appropriately rated LED strip for the wet zone.
How does the XLG-50-A differ from the XLG-50-AB?
Both the XLG-50-A and XLG-50-AB share the same 50W, 1A, 57V output, IP67 rating, and input range. The XLG-50-AB adds a 3-in-1 dimming interface (0-10V, PWM, or resistance), while the XLG-50-A is adjustable output current only via a built-in potentiometer without a dedicated dimming control input.
