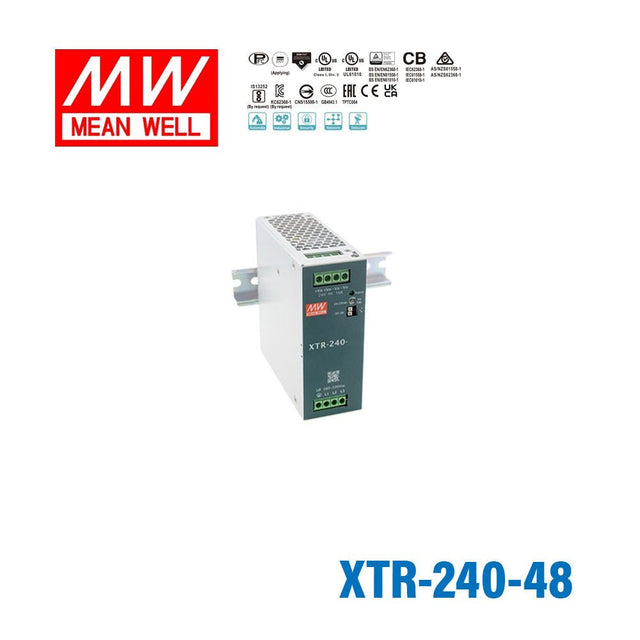

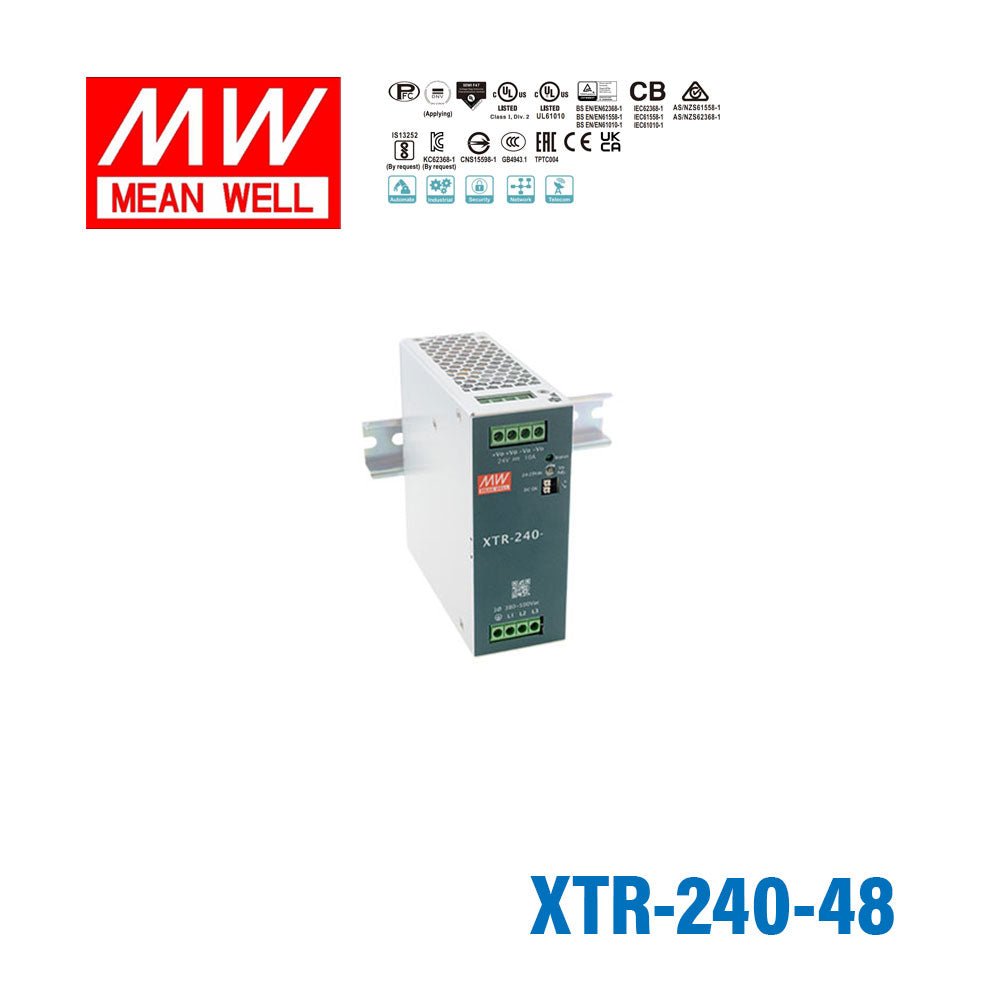

Mean Well XTR-240-48 Three Phase Din Rail Power Supply 240W 48V - Screw Terminal 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-240-48 Three Phase Din Rail Power Supply 240W 48V - S...
Overview
XTR-240-48 is the 48V output model of this series: rated current 5A, rated power 240W, typical efficiency 93.5%. Type Blank: Screw Terminal.
The XTR-240 series is a 240W AC/DC 3Ø 320~600Vac input ultra slim industrial high-reliability DIN rail power. Key features of this series include a narrow 48 mm casing, optimizing system installation space, it boasts a maximum efficiency of 93.5% and a low standby power consumption <2.5W for energy savings and carbon reduction. It provides constant current with up to 150% peak power; fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVC III compliance; parallel function capability up to 960W (By request); ultra-low inrush current of <10A; built-in DC OK and ORing FET (optional); internal PCB coating offers basic moisture and dust protection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XTR-240 series is a compact, high-performance, and highly reliable DIN rail power supply.
Features
- Three-Phase 320 ~ 600Vac wide range input, 600 ~ 700Vac surge input for 1 sec. occasionally (Dual phase operation possible)
- Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010) & Marine DNV,SEMI47,C1D2 HazLoc approved
- 48mm Ultra slim width
- High efficiency up to 93.5% and no load power dissipation<2.5W
- 150% Peak Power capability
- Built-in constant current limiting circuit
- Current sharing up to 960W(3+1) for parallel use (By request)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, cooling by free air convection
- Over voltage category III (OVC III)
- -40~+85℃ wide range operation temperature (>+60℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Ultra low inrush current < 10A
- Built-in ORing FET (By request)
- Conformal coating
- Can be installed on DIN Rail TS-35/7.5 or 15
- 5 years warranty
Model encoding
| Type | Function |
|---|---|
| Blank (this model) | Screw Terminal |
| LA | Lever-Actuated |
| PI | Push In |
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5A
- RATED POWER
- 240W
- PEAK CURRENT(5 sec.)
- 7.5A
- PEAK POWER(5 sec.)
- 360W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 48 ~ 55V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 2000ms, 60ms/400Vac 1500ms, 60ms/500Vac at full load
- HOLD UP TIME (Typ.)
- 20ms / 400Vac 40ms / 500Vac at full load
INPUT
- VOLTAGE RANGENote.4
- Three-Phase 320 ~ 600Vac 450 ~ 800Vdc (Dual phase operation possible in connecting L1,L3,FG or L2,L3,FG,L3 is DC+ )
- NO LOAD POWER CONSUMPTION (Typ.)
- 2.5W/400Vac
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.53/400Vac PF≧0.52/500Vac at full load
- EFFICIENCY (Typ.)
- 93.5%
- AC CURRENT (Typ.)
- 0.69A/400Vac 0.6A/500Vac
- INRUSH CURRENT (Typ.)
- COLD START 10A/400Vac
- LEAKAGE CURRENT
- <2mA / 530Vac
PROTECTION
- OVERLOAD
- 105%~150% rated output power for more than 5 sec then constant current limiting without shutdown at rate current when Vo=30%~100%
- OVER VOLTAGE
- 56 ~ 65V Hiccup mode , recovers automatically after fault condition is removed
- OVER TEMPERATURE
- Shut down o/p voltage or hiccup mode, recovers automatically after temperature goes down
FUNCTION
- PARALLEL(Optional)
- Up to 960W (3+1) , please refer to Function Manual for more details
- DC OK RELAY CONTACT
- Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT
- WORKING TEMP.Note.5
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
- SAFETY STANDARDSNote.7&8&9
-
Parameter Standard CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL UL121201/CSA C22.2 NO.213.17 Class I, Div. 2 Group A, B, C, D Hazardous Locations T4; UL/CUL 61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TPTC004 Marine DNV approved SEMI F47 approved KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock,contact sales by request - OVER VOLTAGE CATEGORYNote.6
- IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
- SAFETY EXTRA-LOW VOLTAGE(SELV)
- IEC/EN 61558-2-16 (SELV) ; IEC/EN 62368-1 (SELV/ ES1 12V/24V/36V )
- WITHSTAND VOLTAGE
- I/P-O/P:4.87KVac I/P-FG:2.5KVac O/P-FG:0.5KVac O/P-DC OK:0.5KVac
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032(CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Radiated BS EN/EN55032(CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035 , BS EN/EN61204-3 , BS EN/EN61000-6-2:2005 , BS EN/EN IEC61000-6-2:2019, KS C 9835,SEMI F47 tested at 200Vac
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact Radiated Field BS EN/EN61000-4-3 Level 3, 10V/m; criteria A EFT / Burst BS EN/EN61000-4-4 Level 4, 4KV; criteria A Surge BS EN/EN61000-4-5 Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth Conducted BS EN/EN61000-4-6 Level 3, 10V/m; criteria A Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A Voltage Dips and Interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods＞ 95% interruptions 250 periods
OTHERS
- MTBF
- 1432.3K hrs min. Telcordia SR-332(Bellcore) ; 191.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 48*125.2*125mm (W*H*D)
- PACKING
- 990g ; 12pcs/12.9Kg/1.16CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 400Vac input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Dual phase operation is allowed under certain derating to output load. Please refer to derating curves for details.
- 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
- 9. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Electro-mechanical apparatus
Downloads
Datasheet1
FAQ
What is the Mean Well XTR-240-48 used for?
The XTR-240-48 is intended for industrial AC/DC power applications where a compact DIN rail power supply is needed. Typical uses include industrial control systems, semiconductor fabrication equipment, and factory automation systems.
What output does the XTR-240-48 provide?
The XTR-240-48 is rated for 240W output power with a 48V DC output. Its rated output current is 5A.
Is the XTR-240-48 suitable for space-constrained industrial panels?
Yes. The XTR-240 series is described as compact and ultra-slim, making it suitable for space-constrained industrial installations where DIN rail equipment density matters.
What temperature range is this power supply rated for?
The XTR-240-48 is specified for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments.
How much does the XTR-240-48 weigh?
The XTR-240-48 has a listed weight of 990g. This can help buyers estimate enclosure load and shipping weight for industrial power supply projects.
What warranty period applies to the XTR-240-48?
The XTR-240-48 is listed with a 5-year warranty period. This is useful for buyers planning long-term industrial maintenance and replacement cycles.
Is the XTR-240-48 a good fit for factory automation equipment?
Yes. The product description identifies factory automation as one of the intended application areas for the XTR-240 series. Its 240W, 48V, 5A output rating makes it relevant for systems that require a 48V industrial power source within those limits.
