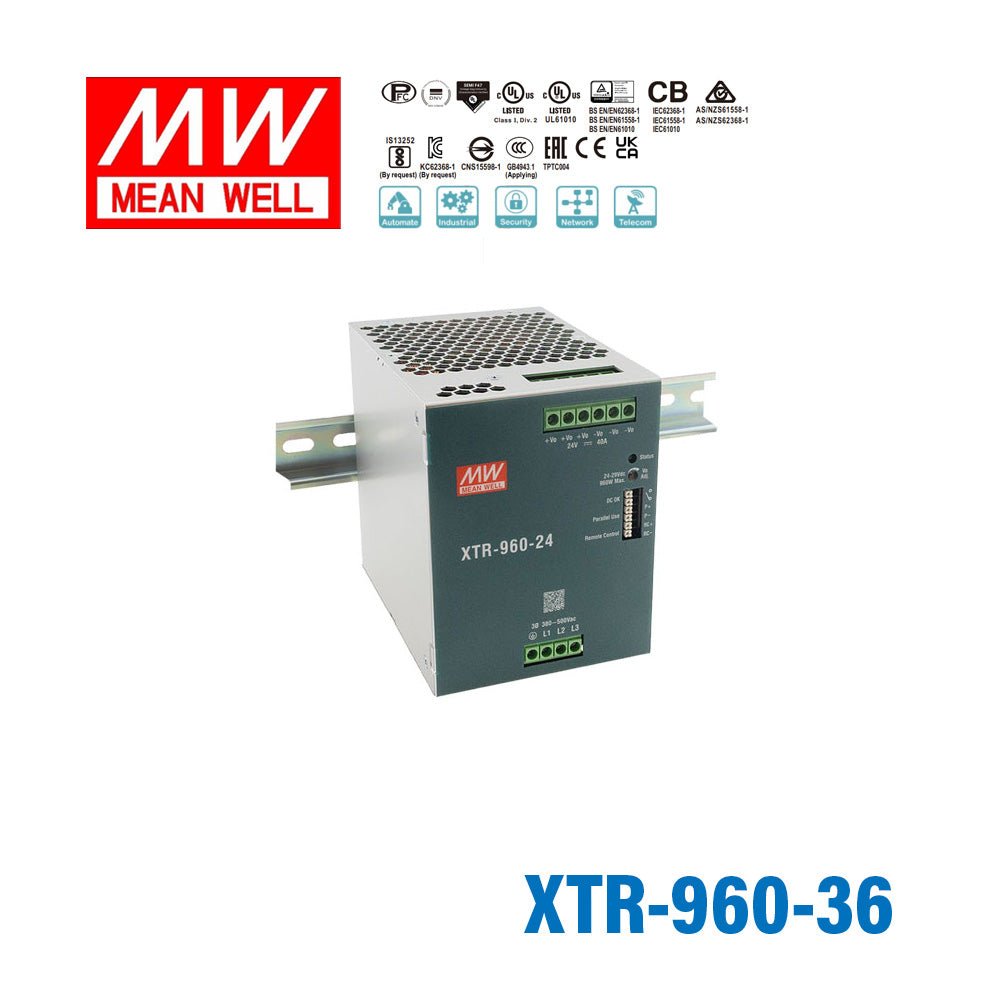

Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - Push In
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - P...
Description
Description
XTR-960 Series
The XTR-960 series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
- Three-Phase 320 ~ 600Vac wide range input (Dual phase operation possible)
- Efficiency up to 96% with ultra low inrush current <10A
- 200% Peak Power capability
- Current sharing up to 3840W for parallel use
- Comprehensive protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless cooling design
- Operating temperature range: -40~+85°C
- Built-in DC OK relay contact
- Conformal coating for moisture and dust protection
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage36 Volt
-
Rated Current26.66 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
-
Weight3.97 lb
