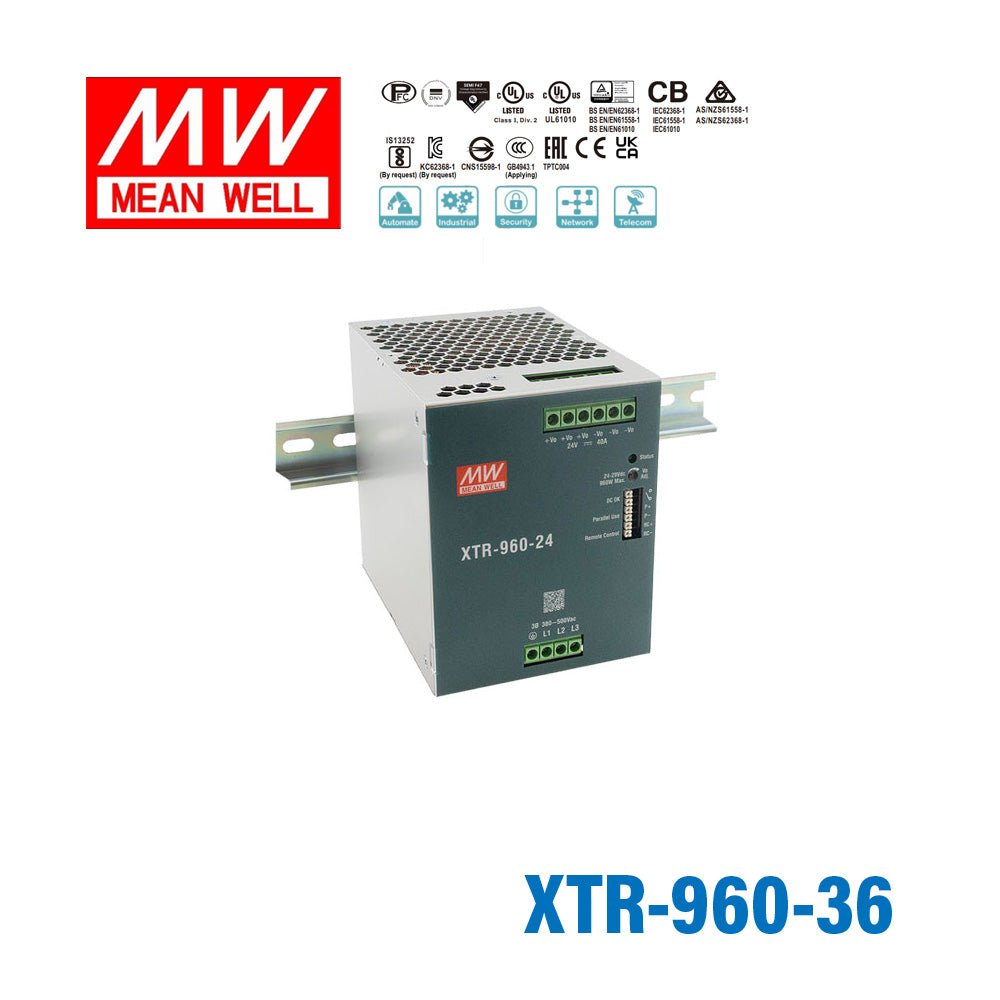

Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - Screw Terminal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - S...
TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage36 Volt
-
Rated Current26.66 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What applications is the Mean Well XTR-960-36 designed for?
The XTR-960-36 is intended for high-capacity industrial power systems that need a stable 36V DC output. With a 960W rating and 26.66A rated current, it is suited to larger automation, control, and equipment power loads within its stated output range.
What output does the XTR-960-36 provide?
This model provides a 36V DC output with a rated current of 26.66A. Its total power rating is 960W.
What input range does this power supply support?
The XTR-960-36 supports a three-phase 320 to 600Vac wide input range. The provided product data also notes that dual phase operation is possible.
Can the XTR-960-36 be used in high-temperature or cold industrial environments?
Yes, the listed operating temperature range is -40°C to 85°C. That makes it appropriate for demanding environments where the power supply must tolerate both low and elevated ambient temperatures within the specified range.
Does the XTR-960-36 support scalable power systems?
Yes, the XTR-960 series supports parallel operation according to the product description. This makes the series relevant for larger systems where power distribution needs may grow over time.
How does the XTR-960-36 differ from lower-power DIN rail power supplies?
The key difference is capacity: this model is rated at 960W with a 36V, 26.66A output. It is a better fit for higher-load industrial applications than lower-wattage DIN rail supplies when the system requires this voltage and current range.
What warranty period is listed for the XTR-960-36?
The listed warranty period for the Mean Well XTR-960-36 is 5 years. This aligns with its positioning as a high-capacity industrial power supply.
