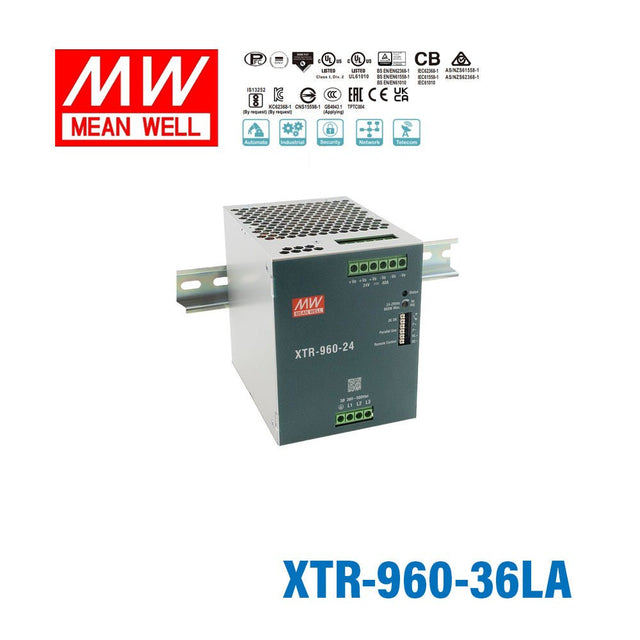

Mean Well XTR-960-36LA Three Phase Din Rail Power Supply 960W 36V - Lever-Actuated
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-960-36LA Three Phase Din Rail Power Supply 960W 36V -...
TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage36 Volt
-
Rated Current26.66 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What is the Mean Well XTR-960-36LA used for?
The XTR-960-36LA is a 960W DIN rail AC-DC power supply for industrial power systems that need a stable 36V DC output. It is suited to larger control panels, automation equipment, and other B2B industrial applications where high output power and reliability are important.
What output does the XTR-960-36LA provide?
This model provides a 36V DC output with a rated current of 26.66A. Its total power rating is 960W, making it a high-capacity option within DIN rail power supply applications.
Does the XTR-960-36LA support three-phase input?
Yes. The XTR-960-36LA is specified for three-phase 320 to 600Vac wide range input, with dual phase operation also noted as possible in the product description.
Can the XTR-960-36LA be used in harsh temperature environments?
The listed operating temperature range for this model is -40°C to 85°C. That wide range makes it relevant for demanding industrial environments where equipment may be exposed to low or elevated ambient temperatures.
Is the XTR-960-36LA suitable when more power capacity may be needed later?
The XTR-960 series supports parallel operation according to the product description. That can make it useful in scalable power distribution designs where capacity requirements may grow.
How does the XTR-960-36LA compare with lower-wattage DIN rail power supplies?
The main difference is capacity: this model is rated at 960W with a 36V, 26.66A output. It is better matched to larger industrial loads than lower-wattage DIN rail supplies, assuming the system requires the listed voltage and power range.
What warranty period applies to the XTR-960-36LA?
The listed warranty period for the XTR-960-36LA is 5 years. This is relevant for industrial buyers evaluating lifecycle cost and long-term support expectations.
How heavy is the XTR-960-36LA?
The listed weight for this model is 1.8 kg. That weight is useful to consider when planning equipment layout, panel capacity, or shipping requirements.
