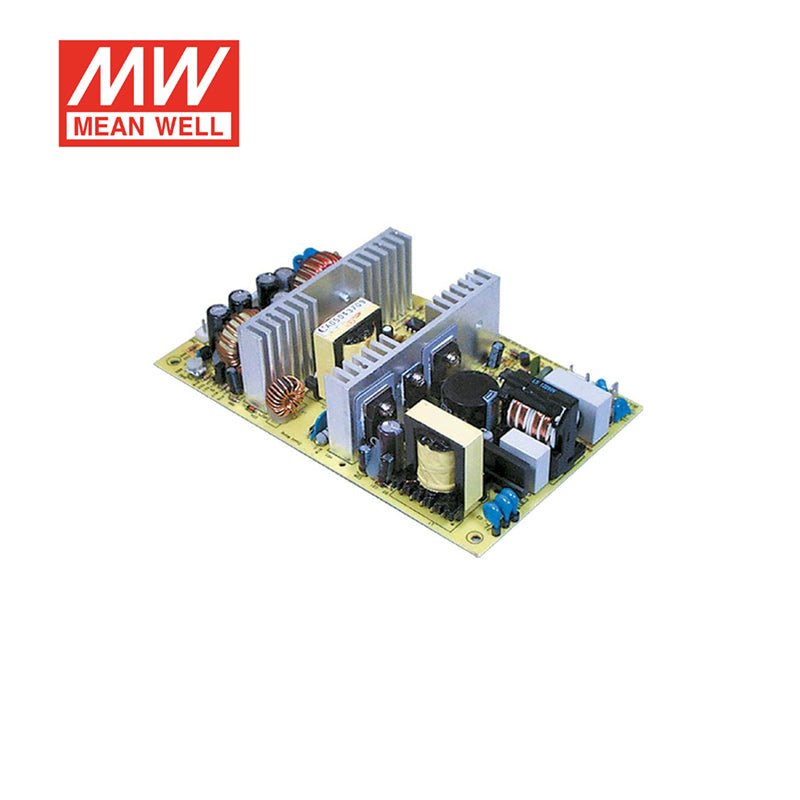

Meanwell PPQ-100C 100W Quad Output with PFC Switching Power Supply 10A
Overview
PPQ-100C is the 5V 15V -15V -5V output model of this series: rated current 10A 2.6A 0.6A 0.6A, typical efficiency 76%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 70KHz(Optional)
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3 CH4
- DC VOLTAGE
- 5V 15V -15V -5V
- RATED CURRENT
- 10A 2.6A 0.6A 0.6A
- CURRENT RANGE
- 2 ~ 15A 0.3 ~ 4A 0 ~ 1A 0 ~ 1A
- RATED POWER (max.)
- 101W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p 150mVp-p 100mVp-p 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1:4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±3.0% +10,-6% ±5.0% ±5.0%
- LINE REGULATION
- ±1.0% ±2.0% ±2.0% ±1.0%
- LOAD REGULATION
- ±2.0% ±6.0% ±2.0% ±2.0%
- SETUP, RISE TIME
- 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 24ms/230VAC 24ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY(Typ.)
- 76%
- AC CURRENT (Typ.)
- 1.65A/115VAC 0.85A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A
- LEAKAGE CURRENT
- <3.5mA /240VAC
PROTECTION
- OVERLOAD
- 105% ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
OTHERS
- MTBF
- 162.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 177.8*107.95*38mm (L*W*H)
- PACKING
- 0.62Kg; 24pcs/15.9Kg/1.34CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 5. Heat Sink HS1,HS2 can not be shorted.
