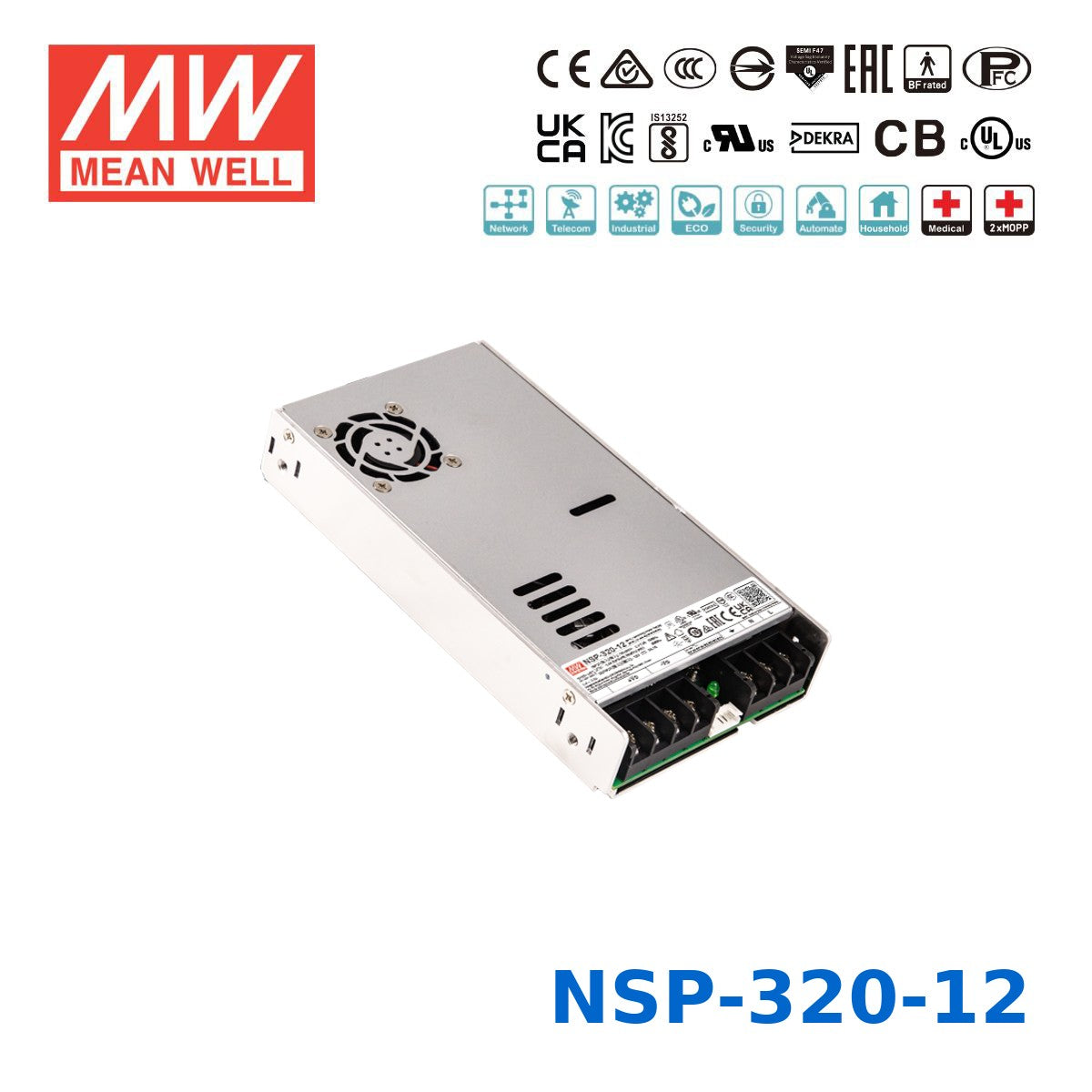

NSP-320-12
Description
Description
The MEAN WELL NSP-320 series is a 320W high-reliability AC/DC enclosed power supply designed for multi-industry applications including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, and PoE power sourcing. With a universal 85–305VAC input and built-in active PFC, it delivers up to 93.5% efficiency and extremely low no-load power consumption for enhanced energy savings. The compact 179×99×30 mm design incorporates forced-air cooling with a DC fan, enabling stable performance across a wide operating temperature range from –40°C to +85°C. Featuring 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, DC OK signal, and fan ON/OFF temperature control, the NSP-320 series ensures dependable performance in demanding environments. It meets a broad range of global safety standards, including IEC/EN/UL 62368-1, 60601-1 (2×MOPP), 60335-1, 61010-1, and 62477-1, making it suitable for BF-rated medical applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-320-12?
The NSP-320-12 is a 320.4W enclosed AC/DC power supply with a 12V DC output rated at 26.7A. It is designed for applications that need a high-current 12V industrial power source with high efficiency and active PFC.
What types of applications is the NSP-320-12 intended for?
This model is designed for multi-industry use, including industrial automation, mechanical equipment, security systems, telecommunications, PoE power sourcing, and some medical-related equipment. Its high reliability design and broad safety compliance make it suitable for demanding commercial and industrial environments.
Can the NSP-320-12 operate in harsh temperature conditions?
Yes. The NSP-320-12 supports an operating temperature range from -40°C to +85°C when used within the product's derating limits. Its forced-air cooling design with a built-in DC fan helps maintain stable performance across a wide temperature range.
Does the NSP-320-12 support a wide input voltage range?
Yes. This model accepts a universal 85-305VAC input range and also supports 120-431VDC input. That wide input range makes it easier to use in systems deployed across different regional power standards.
What makes the NSP-320-12 different from standard enclosed power supplies?
Compared with basic enclosed power supplies, the NSP-320-12 adds high-reliability features such as active PFC, remote ON/OFF control, remote sense, a DC OK signal, fan ON/OFF temperature control, and up to 200% peak power capability for 5 seconds. It also carries broad safety approvals, including IEC/EN/UL 62368-1 and 60601-1 with 2xMOPP support.
Is the NSP-320-12 suitable for systems that need monitoring and protection features?
Yes. The NSP-320-12 includes a DC OK signal for system monitoring, remote sense for output compensation up to 0.3V, and protections for short circuit, overload, overvoltage, and overtemperature. These features make it a strong fit for equipment that requires stable power and fault visibility.
Is the NSP-320-12 built for energy-efficient operation?
Yes. This model delivers efficiency up to 93.5% and uses built-in active PFC to improve input power performance. It also has very low no-load power consumption, helping reduce wasted energy in standby or lightly loaded systems.
