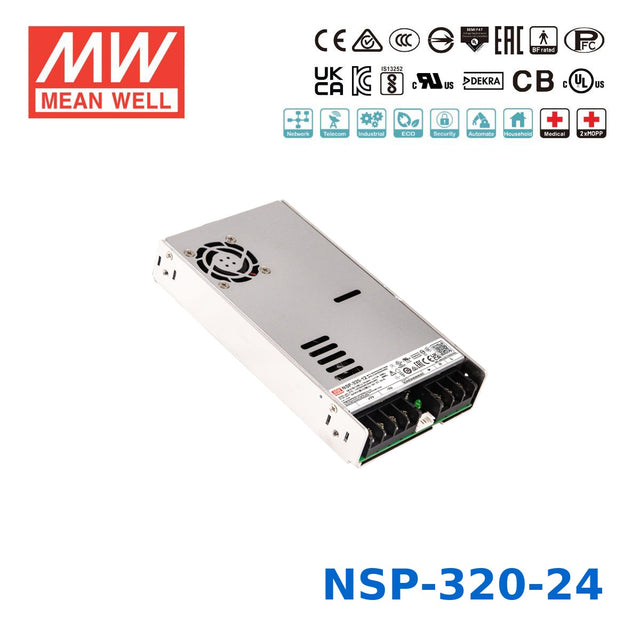

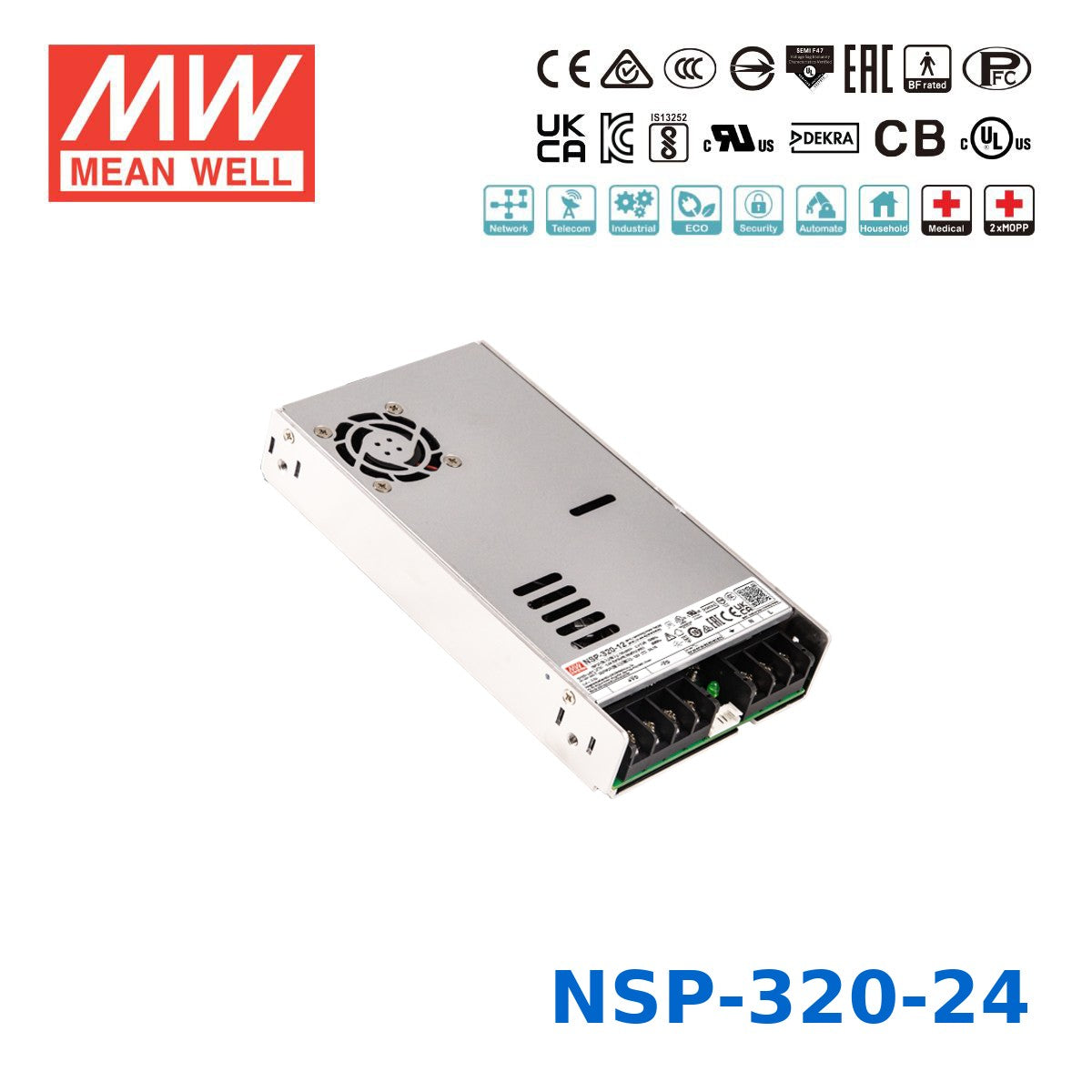

NSP-320-24
Description
Description
The MEAN WELL NSP-320 series is a 320W high-reliability AC/DC enclosed power supply designed for multi-industry applications including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, and PoE power sourcing. With a universal 85–305VAC input and built-in active PFC, it delivers up to 93.5% efficiency and extremely low no-load power consumption for enhanced energy savings. The compact 179×99×30 mm design incorporates forced-air cooling with a DC fan, enabling stable performance across a wide operating temperature range from –40°C to +85°C. Featuring 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, DC OK signal, and fan ON/OFF temperature control, the NSP-320 series ensures dependable performance in demanding environments. It meets a broad range of global safety standards, including IEC/EN/UL 62368-1, 60601-1 (2×MOPP), 60335-1, 61010-1, and 62477-1, making it suitable for BF-rated medical applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the NSP-320-24 best suited for?
The Mean Well NSP-320-24 is designed for multi-industry equipment that needs a regulated 24V DC output at up to 13.4A. Typical fit includes industrial automation, mechanical equipment, medical devices, security systems, telecommunications equipment, PoE power sourcing, and charging systems. Its high-reliability design and broad certification coverage make it suitable for demanding commercial and industrial environments.
What are the key electrical ratings of the NSP-320-24?
This model provides a nominal 24V DC output with a rated current of 13.4A and a power rating of 321.6W. It accepts a universal 85-305VAC input or 120-431VDC input. The unit also includes active power factor correction and reaches efficiency up to 93.5%.
Is the NSP-320-24 suitable for high-temperature or harsh operating environments?
Yes. The NSP-320-24 is specified for operation from -40°C to +85°C, with derating required above +60°C. It uses forced-air cooling with a built-in DC fan and has a conformal coated PCB to improve durability in demanding environments.
Can the NSP-320-24 be used in medical or safety-sensitive equipment?
This model is certified to IEC/EN/UL 60601-1 and is described as compliant with 2xMOPP for medical BF applications. It also features very low leakage current below 350uA, which is relevant for medical-oriented designs. In addition, it carries approvals including 62368-1, 60335-1, 61010-1, and 62477-1 for broader professional equipment use.
What monitoring and control features does the NSP-320-24 include?
The NSP-320-24 includes remote ON/OFF control, remote sense with up to 0.3V compensation, and a DC OK signal for status monitoring. It also supports fan ON/OFF temperature control and constant current limiting. These features make it easier to integrate into systems that need supervision and stable output performance.
How does the NSP-320-24 compare with standard 24V enclosed power supplies?
Compared with basic enclosed 24V supplies, the NSP-320-24 is positioned as a higher-reliability model with broader safety certifications, active PFC, and up to 93.5% efficiency. It also offers advanced functions such as remote ON/OFF, remote sense, DC OK signaling, and 200% peak power capability within the NSP-320 series. That makes it better suited for more demanding industrial, medical, and telecom applications than a simple general-purpose PSU.
Does the NSP-320-24 support high-altitude installations?
Yes. The product description states OVC III compliance up to 2000 meters and OVC II compliance up to 5000 meters. That makes it a viable option for installations where altitude is part of the environmental requirement.
