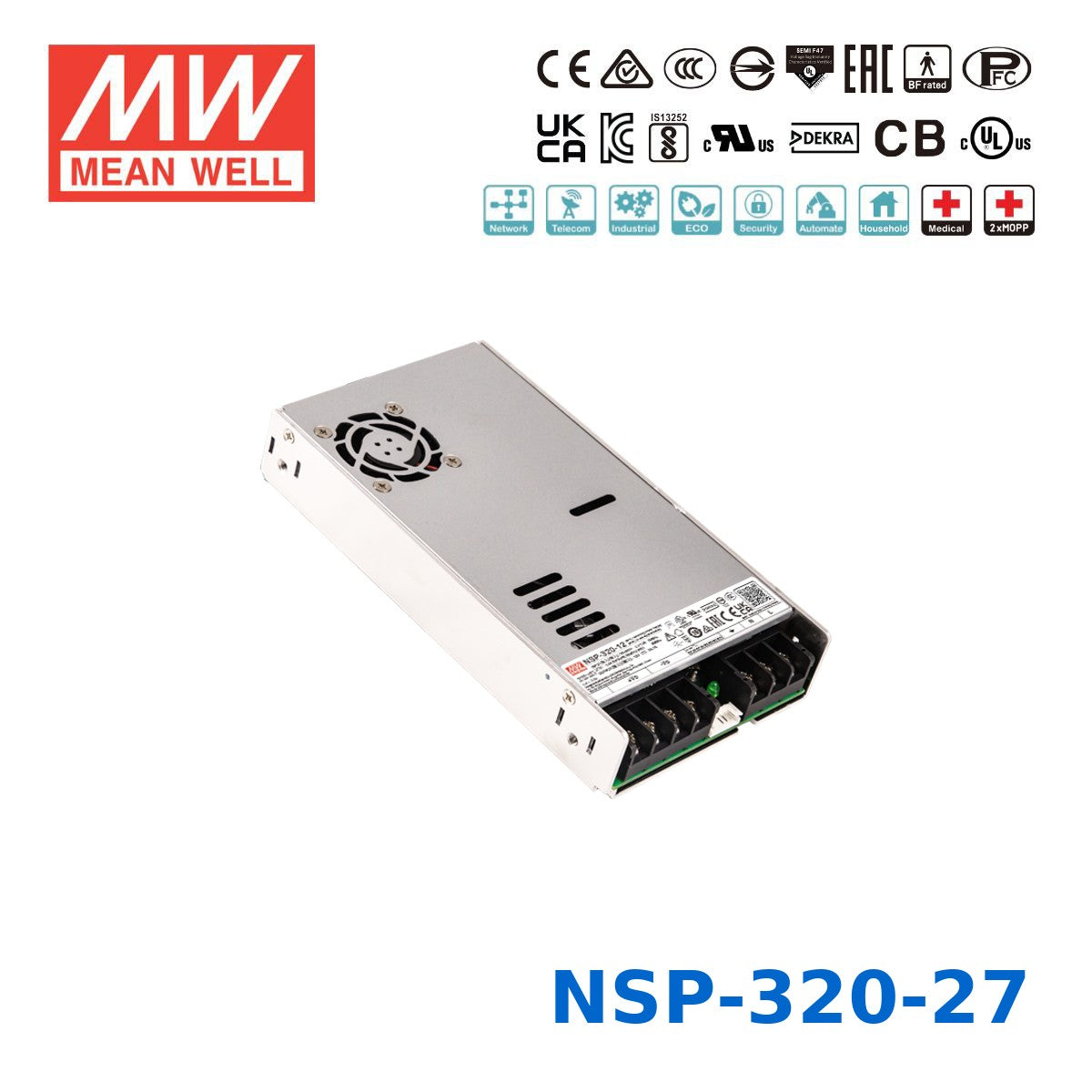

NSP-320-27
Description
Description
The MEAN WELL NSP-320 series is a 320W high-reliability AC/DC enclosed power supply designed for multi-industry applications including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, and PoE power sourcing. With a universal 85–305VAC input and built-in active PFC, it delivers up to 93.5% efficiency and extremely low no-load power consumption for enhanced energy savings. The compact 179×99×30 mm design incorporates forced-air cooling with a DC fan, enabling stable performance across a wide operating temperature range from –40°C to +85°C. Featuring 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, DC OK signal, and fan ON/OFF temperature control, the NSP-320 series ensures dependable performance in demanding environments. It meets a broad range of global safety standards, including IEC/EN/UL 62368-1, 60601-1 (2×MOPP), 60335-1, 61010-1, and 62477-1, making it suitable for BF-rated medical applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the main use case for the Mean Well NSP-320-27 power supply?
The Mean Well NSP-320-27 is a 321.3W enclosed AC/DC power supply built for demanding multi-industry equipment. It is suitable for industrial automation, mechanical equipment, medical devices, security systems, telecommunications, PoE power sourcing, and charging systems where a regulated 27V output is needed.
What output does the NSP-320-27 provide?
This model provides a nominal 27V DC output with a rated current of 11.9A. Its power rating is 321.3W, making it a fit for systems that need a higher-power 27V supply in a compact enclosed form factor.
Is the NSP-320-27 designed for harsh industrial environments?
Yes. The NSP-320-27 is specified for operation from -40°C to +85°C, with derating above +60°C, and it uses forced-air cooling with a built-in DC fan for thermal stability. It also has a conformal coated PCB and supports high-altitude installations up to 5000 meters under the stated overvoltage category conditions.
Can the NSP-320-27 be used in medical or high-reliability equipment?
Yes, this series is built for high-reliability applications and includes compliance with IEC/EN/UL 60601-1 with 2 x MOPP. The product description also notes very low leakage current and suitability for BF-rated medical applications, which makes it relevant for certain medical equipment designs.
How energy efficient is the Mean Well NSP-320-27?
The NSP-320 series reaches efficiency up to 93.5% and includes built-in active PFC. It also has very low no-load power consumption, listed as below 0.3-0.5W, which helps reduce standby energy use in always-on systems.
What protection and monitoring features are included in the NSP-320-27?
This model includes constant current limiting and protection functions for short circuit, overload, overvoltage, and overtemperature. It also provides remote ON/OFF control, remote sense with up to 0.3V compensation, a DC OK signal, and fan ON/OFF temperature control for system-level monitoring and reliability.
Why choose the NSP-320-27 over a general-purpose 27V power supply?
The NSP-320-27 is differentiated by its high-reliability design, broad safety certifications, wide operating temperature range, active PFC, and support for demanding industrial and medical-oriented environments. It also offers 200% peak power capability within the NSP-320 series for 12-60V models, which can be useful in applications with short-duration peak load demands.
