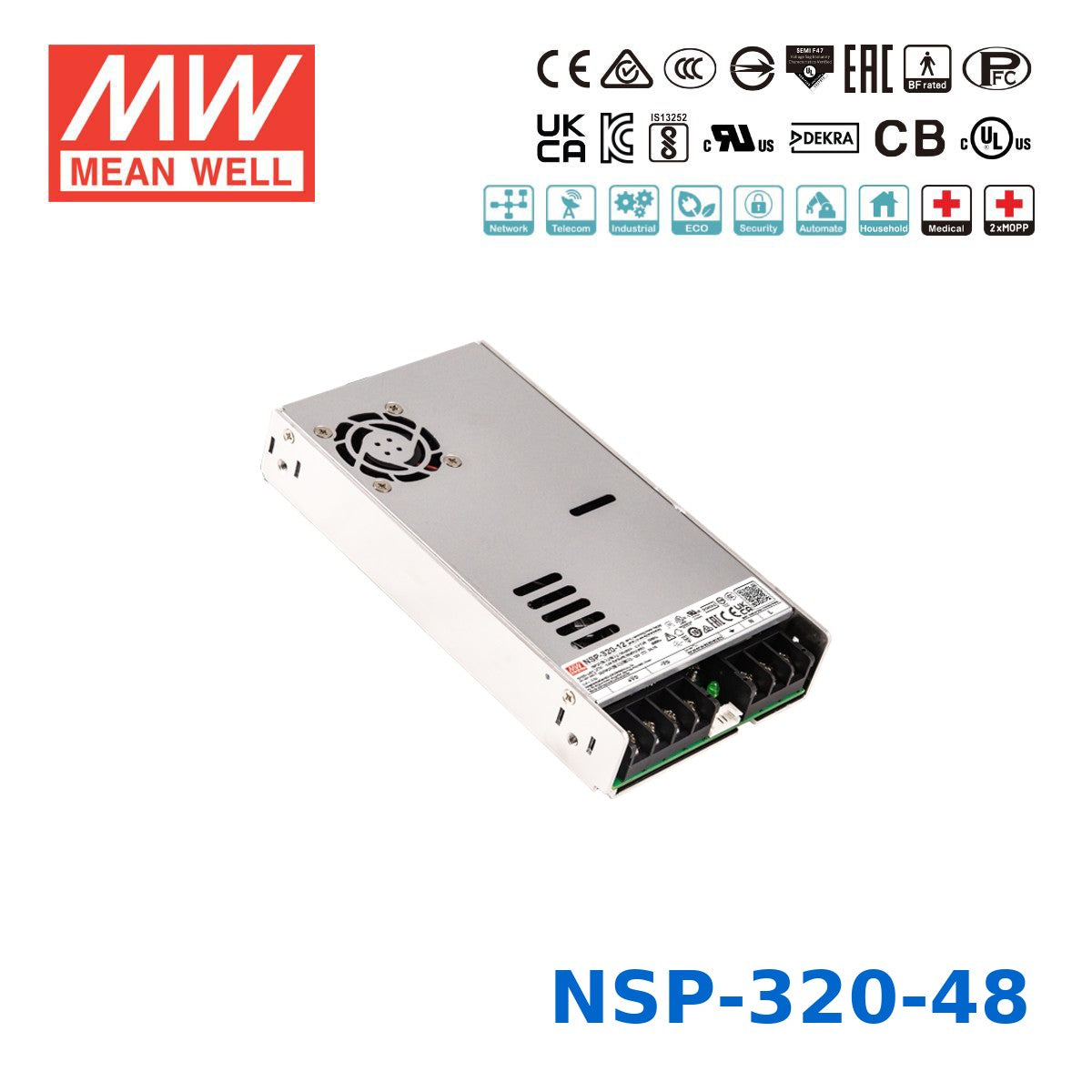

NSP-320-48
Description
Description
The MEAN WELL NSP-320 series is a 320W high-reliability AC/DC enclosed power supply designed for multi-industry applications including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, and PoE power sourcing. With a universal 85–305VAC input and built-in active PFC, it delivers up to 93.5% efficiency and extremely low no-load power consumption for enhanced energy savings. The compact 179×99×30 mm design incorporates forced-air cooling with a DC fan, enabling stable performance across a wide operating temperature range from –40°C to +85°C. Featuring 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, DC OK signal, and fan ON/OFF temperature control, the NSP-320 series ensures dependable performance in demanding environments. It meets a broad range of global safety standards, including IEC/EN/UL 62368-1, 60601-1 (2×MOPP), 60335-1, 61010-1, and 62477-1, making it suitable for BF-rated medical applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-320-48?
The NSP-320-48 is a 48V enclosed AC/DC power supply rated for 6.7A output current. Its nominal power rating is 321.6W, making it suitable for higher-demand industrial and commercial systems that require a regulated 48V DC supply.
What types of applications is the NSP-320-48 designed for?
This model is designed for multi-industry use, including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, PoE power sourcing, and charging systems. Its high-reliability design and broad safety coverage make it suitable for demanding professional environments.
Can the NSP-320-48 operate in harsh temperature conditions?
Yes. The NSP-320-48 is specified for operation from -40°C to +85°C, with derating required above +60°C. It also uses forced-air cooling with a built-in DC fan and fan temperature control to support stable performance across a wide operating range.
What makes the NSP-320-48 a high-reliability power supply?
The unit combines high efficiency up to 93.5%, active power factor correction, conformal coating, and multiple built-in protections including short circuit, overload, overvoltage, and overtemperature protection. It also includes remote ON/OFF, remote sense, and a DC OK signal for better system monitoring in critical applications.
Is the NSP-320-48 suitable for medical or safety-sensitive equipment?
Yes, this series is certified to IEC/EN/UL 60601-1 and supports 2xMOPP with leakage current below 350uA, which makes it appropriate for BF-rated medical applications. It is also certified to additional standards such as IEC/EN/UL 62368-1, 60335-1, 61010-1, and 62477-1.
Does the NSP-320-48 support high peak loads?
Yes. The NSP-320 series supports 200% peak power capability on 12V to 60V models, allowing up to 640W for 5 seconds. For the 48V version, this can help accommodate short-duration surge demands without changing to a larger nominal power supply.
What input range does the NSP-320-48 support?
The NSP-320-48 accepts a universal input range of 85-305VAC or 120-431VDC. This wide input range supports use across varied power environments and helps simplify specification for global industrial equipment.
