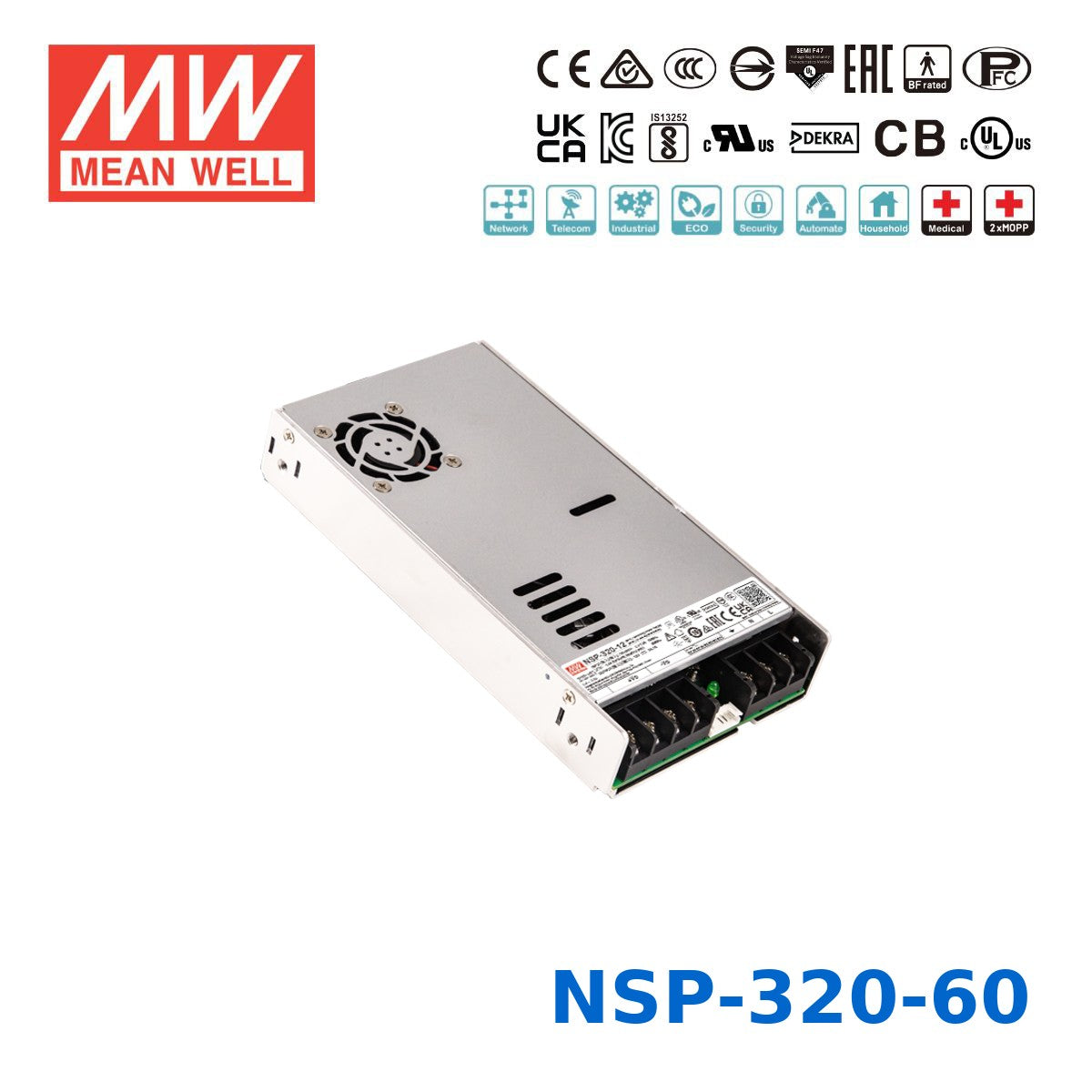

NSP-320-60
Description
Description
The MEAN WELL NSP-320 series is a 320W high-reliability AC/DC enclosed power supply designed for multi-industry applications including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, and PoE power sourcing. With a universal 85–305VAC input and built-in active PFC, it delivers up to 93.5% efficiency and extremely low no-load power consumption for enhanced energy savings. The compact 179×99×30 mm design incorporates forced-air cooling with a DC fan, enabling stable performance across a wide operating temperature range from –40°C to +85°C. Featuring 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, DC OK signal, and fan ON/OFF temperature control, the NSP-320 series ensures dependable performance in demanding environments. It meets a broad range of global safety standards, including IEC/EN/UL 62368-1, 60601-1 (2×MOPP), 60335-1, 61010-1, and 62477-1, making it suitable for BF-rated medical applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.48 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-320-60 designed for?
The NSP-320-60 is built for multi-industry use, including industrial automation, mechanical equipment, medical devices, security systems, telecommunications, PoE power sourcing, and charging systems. Its high-reliability design and broad safety certifications make it a strong fit for demanding commercial and industrial environments.
What are the main electrical output specifications of the NSP-320-60?
This model provides a 60V DC output at 5.4A, with a rated power of 324W. It is part of the NSP-320 series, which uses a universal 85-305VAC input range and includes active power factor correction.
How efficient is the Mean Well NSP-320-60?
The NSP-320 series delivers efficiency up to 93.5%, which helps reduce wasted energy and heat. It also has very low no-load power consumption, listed as less than 0.3-0.5W depending on the model conditions.
Is the NSP-320-60 suitable for harsh temperature environments?
Yes. The unit is specified for operation from -40°C to +85°C, with derating above +60°C. It uses forced-air cooling with a built-in DC fan to support stable performance across that wide temperature range.
Does the NSP-320-60 support medical or high-reliability applications?
Yes. The series is compliant with IEC/EN/UL 60601-1 and supports 2xMOPP, with leakage current below 350uA, making it suitable for BF-rated medical applications. It is also conformal coated and designed for high-reliability industrial use.
What protection and monitoring features are included in the NSP-320-60?
The NSP-320-60 includes short circuit, overload, overvoltage, and overtemperature protection. It also provides constant current limiting, a DC OK signal for system monitoring, remote ON/OFF control, remote sense, and fan ON/OFF temperature control.
Can the NSP-320-60 handle short peak loads above its rated power?
The NSP-320 series supports 200% peak power capability on 12V to 60V models. For applicable models, that means up to 640W for 5 seconds, which can help with equipment that has brief surge demand.
What certifications and compliance standards does the NSP-320-60 meet?
This series is certified to IEC/EN/UL 62368-1, 60601-1, 60335-1, 61558-1/-2-16, 61010-1/-2-201, and 62477-1. It also meets EMC standards including EN55032/EN55011 Class B, EN55035, and multiple EN61000-4 immunity standards.
