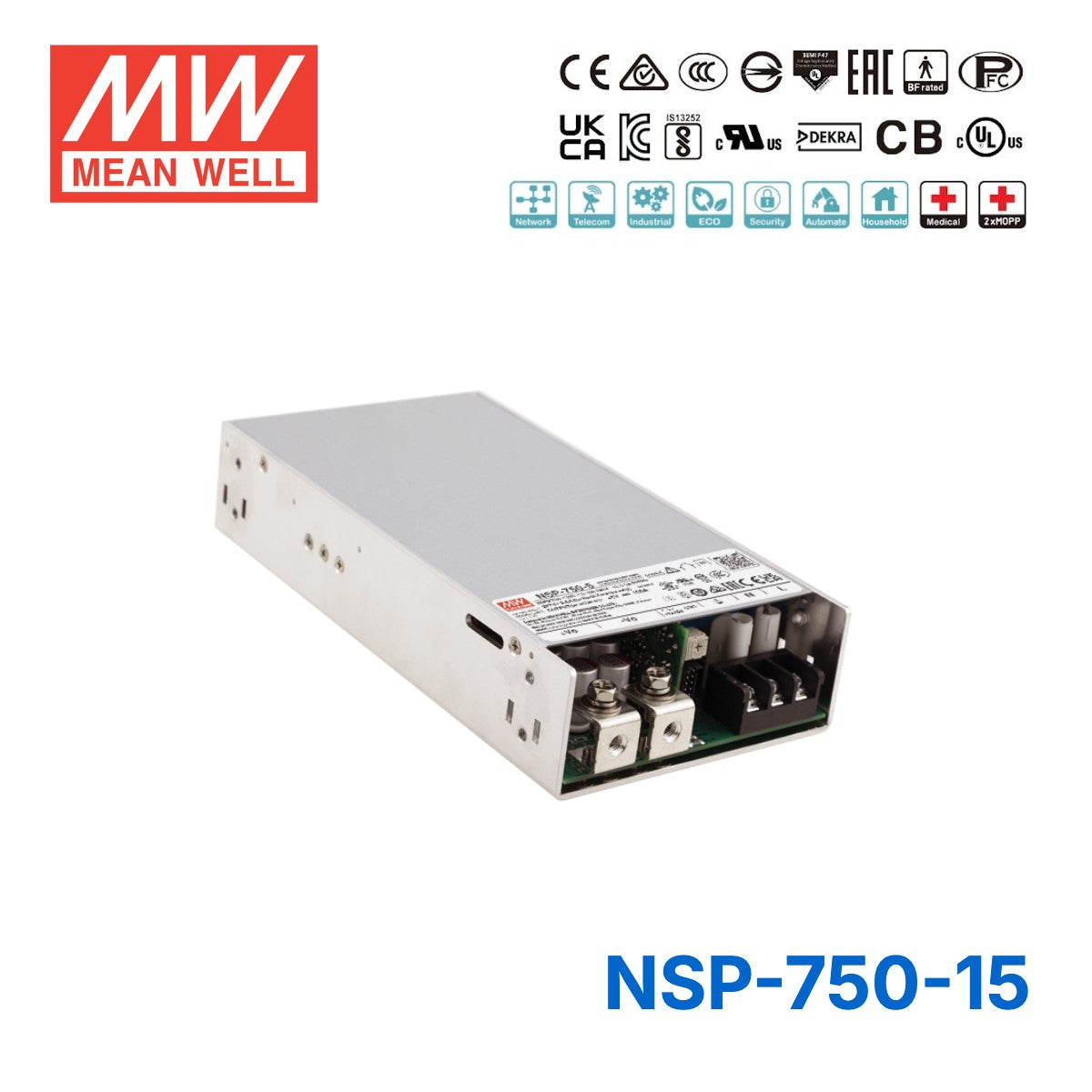

NSP-750-15
Description
Description
The MEAN WELL NSP-750 series is a 750W high-reliability AC/DC enclosed power supply engineered for industrial, medical, automation, telecommunications, PoE power sourcing, mechanical equipment, and home automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 95% efficiency and extremely low no-load power consumption under 0.75–1W depending on model. The compact 199×105×41 mm design incorporates forced-air cooling with a built-in temperature-controlled DC fan and supports 200% peak power capability for up to 5 seconds. The NSP-750 series features constant current limiting, wide operating temperature from –40°C to +85°C, remote ON/OFF, remote sense, auxiliary outputs (5V/12V), and a DC OK signal for system monitoring. With extremely low leakage current (<350µA), 2×MOPP medical safety approval, and certifications across ITE, medical, household, industrial, and energy-conversion standards, it offers robust performance for demanding multi-industry applications and high-altitude installations up to 5000 meters.
Key Features
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Length7.83 in
-
Width4.13 in
-
Height1.61 in
-
Weight2.71 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-750-15 designed for?
The NSP-750-15 is built for demanding multi-industry use, including industrial automation, medical equipment, telecommunications, PoE power sourcing, mechanical equipment, and home automation systems. Its 15V output, 750W power rating, and high-reliability design make it suited to systems that need stable DC power in continuous-duty environments.
What are the main output specifications of the NSP-750-15?
This model provides a 15V DC output with a rated current of 50A for a total power rating of 750W. It accepts a universal 85-305VAC or 120-431VDC input range and is part of the high-efficiency NSP-750 series with performance up to 95% efficiency.
Can the NSP-750-15 handle short peak power demands?
Yes. The NSP-750 series supports 200% peak power capability for up to 5 seconds, which helps when the load has brief startup or surge demand above the normal running level. That makes the NSP-750-15 a stronger fit for equipment with short-duration peak requirements than a supply sized only for steady-state load.
Is the NSP-750-15 suitable for harsh industrial environments?
The unit is designed for wide operating conditions, with a rated temperature range from -40°C to +85°C, with derating above +60°C. It also uses a conformal coated PCB, forced-air cooling with a temperature-controlled DC fan, and supports high-altitude use up to 5000 meters under the stated overvoltage categories.
Does the NSP-750-15 support medical or low-leakage applications?
Yes. This model is specified with leakage current below 350uA and carries 2 x MOPP medical safety approval with BF-rated compliance in the series description. It is also certified across medical, ITE, household, industrial, and energy-conversion standards, which makes it useful where broader compliance coverage matters.
What control and monitoring features are included on the NSP-750-15?
The NSP-750-15 includes remote ON/OFF control, remote sense with up to 0.3V compensation, a DC OK signal for system monitoring, and auxiliary outputs in the series. These features help OEMs and panel builders integrate status feedback and voltage compensation into higher-reliability systems.
How does the NSP-750-15 compare with other NSP-750 series models?
The main difference is output voltage and current, while the platform keeps the same 750W high-reliability enclosed design and core feature set. The NSP-750 series is available in 5V, 12V, 15V, 24V, 27V, 36V, 48V, and 60V versions, so the NSP-750-15 is the 15V option for systems that need up to 50A.
