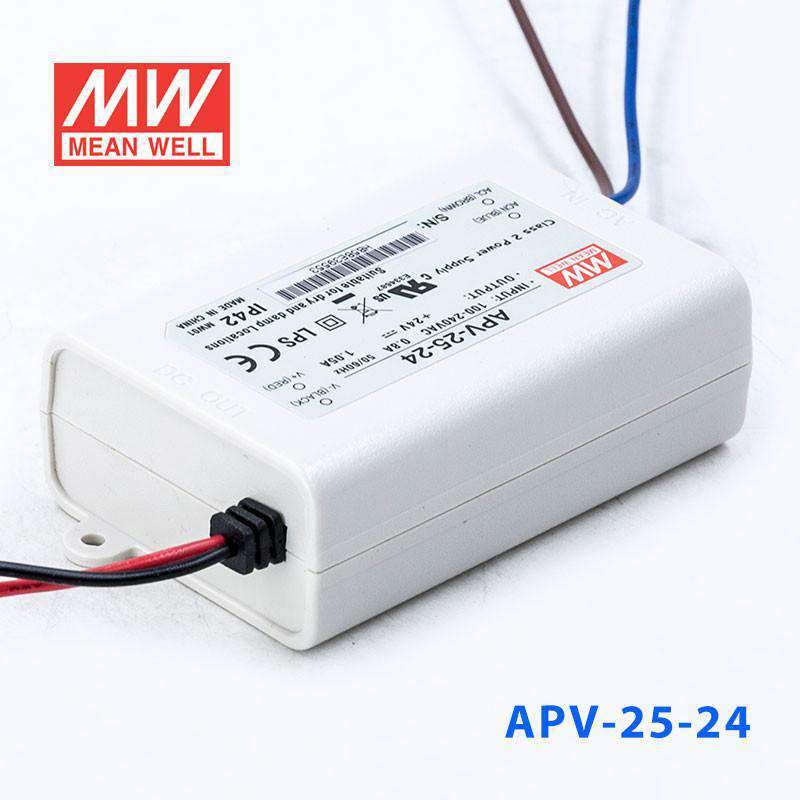

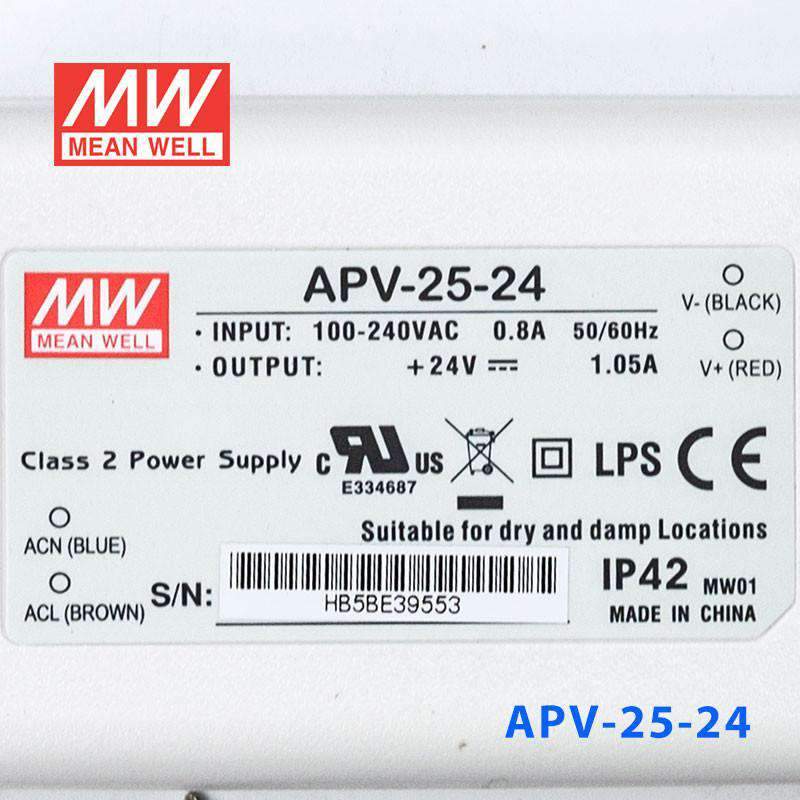

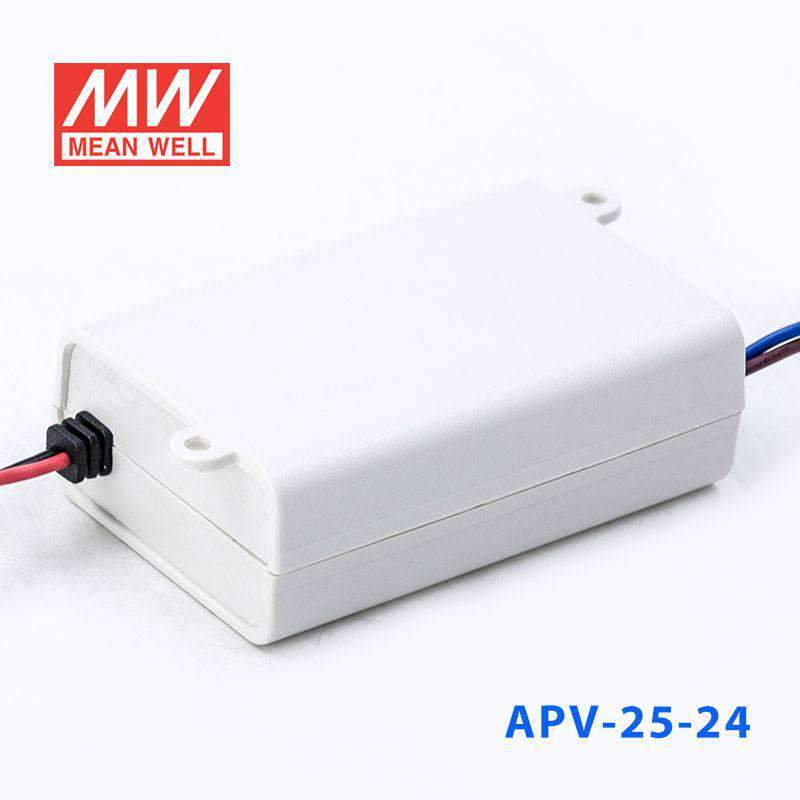

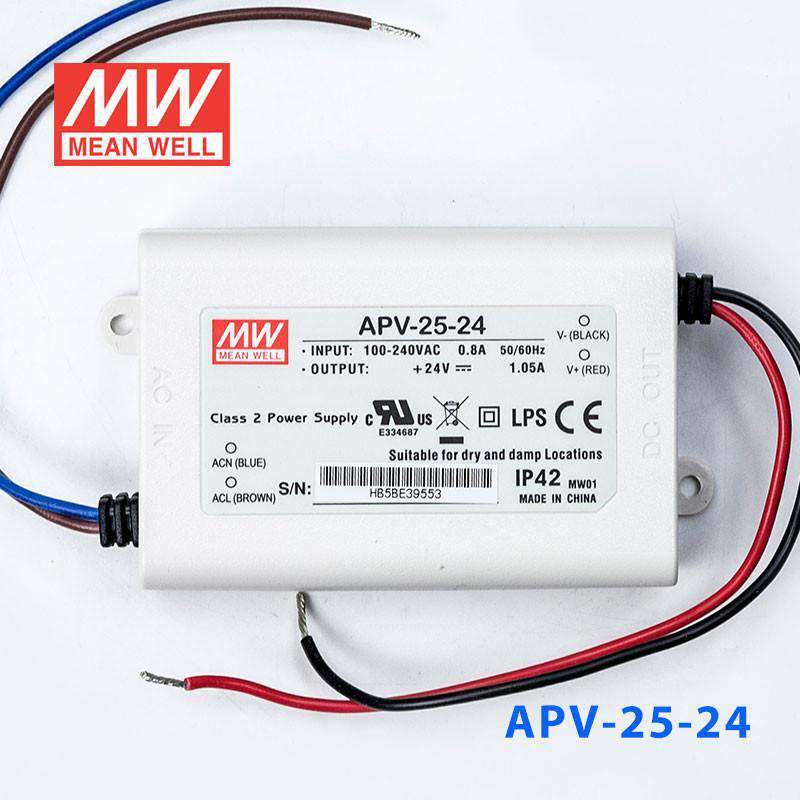

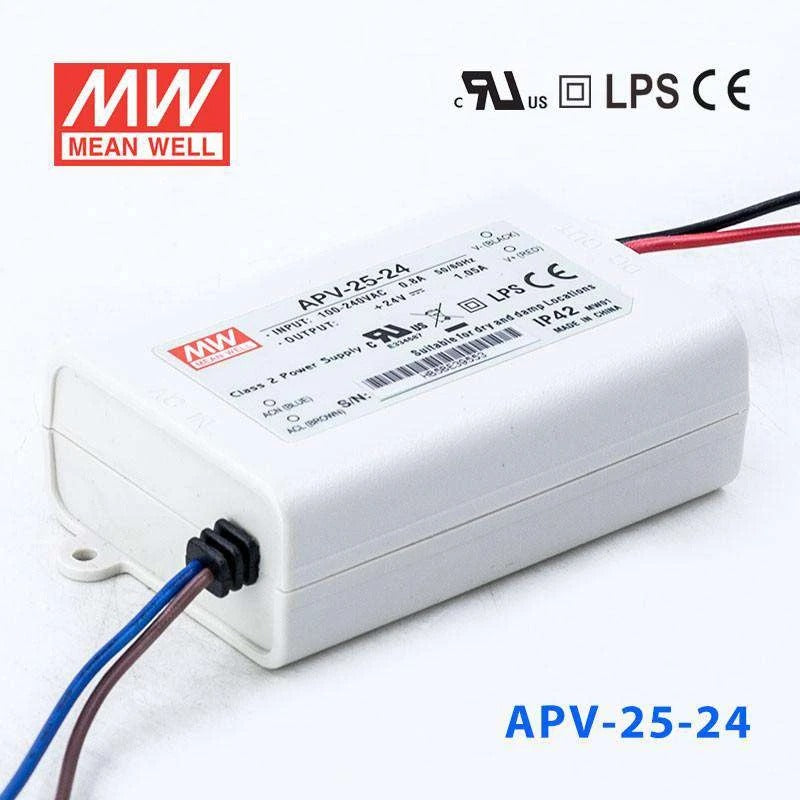

Mean Well APV-25-24 Power Supply 25W 24V 1.05A
The APV-25 is a 25.2W Mean Well AC-DC constant voltage LED driver (input: 90~264VAC, output: 24V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 24V
- ✓ Rated output current: 1.05A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CE, EAC, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What 24V LED lighting tasks is the APV-25-24 suited to?
The APV-25-24 outputs 24V at 1.05A for a maximum of 25.2W. It suits medium-length 24V LED strip runs in retail shelving and display cases, 24V LED panel fixtures, and small backlit signage panels where total load is at or below 25.2W.
How long a 24V LED strip run can the APV-25-24 support?
The APV-25-24 provides 25.2W at 24V. At a strip rated 14.4 W/m, the maximum supported length is approximately 1.75 m. Divide 25.2W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before specifying.
How does the APV-25-24 compare to the APV-16-24 and APV-35-24?
All three output 24V from 90–264VAC. The APV-16-24 provides 16.08W at 0.67A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-24 provides 25.2W at 1.05A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-24 provides 36W at 1.5A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on total wattage required.
What certifications does the APV-25-24 carry for North American and European use?
The APV-25-24 is certified CE, EAC, and UL. The UL listing covers North American market requirements, and CE covers European markets. It accepts 90–264VAC input, so no voltage switching is needed between regions.
