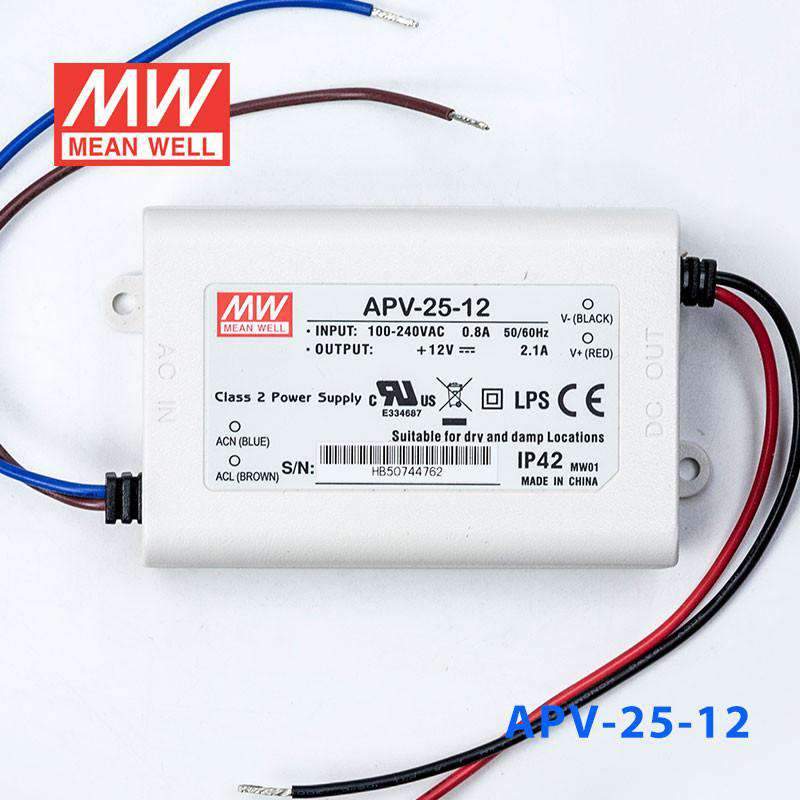

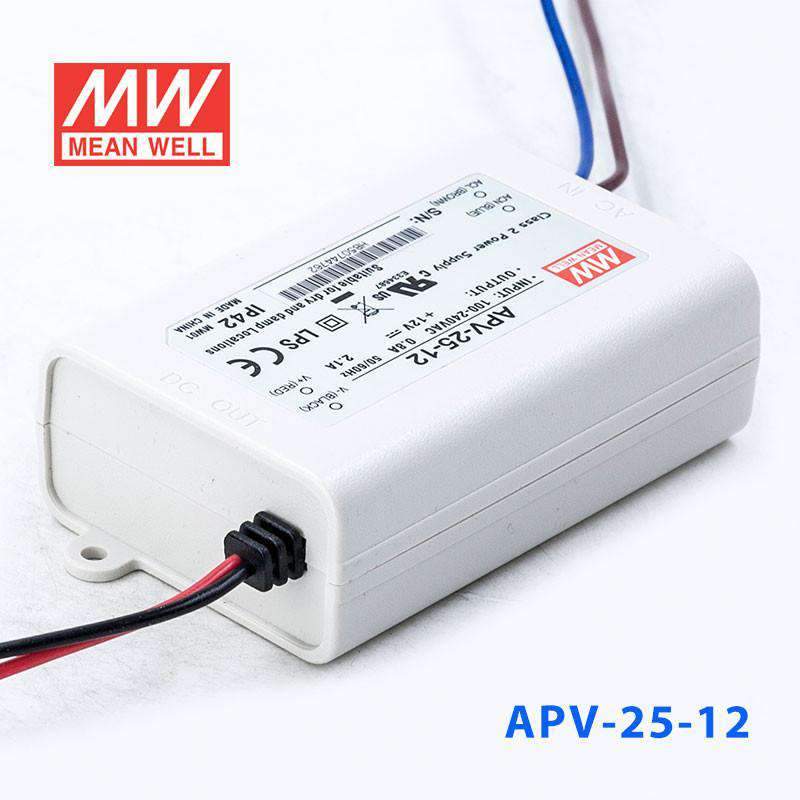

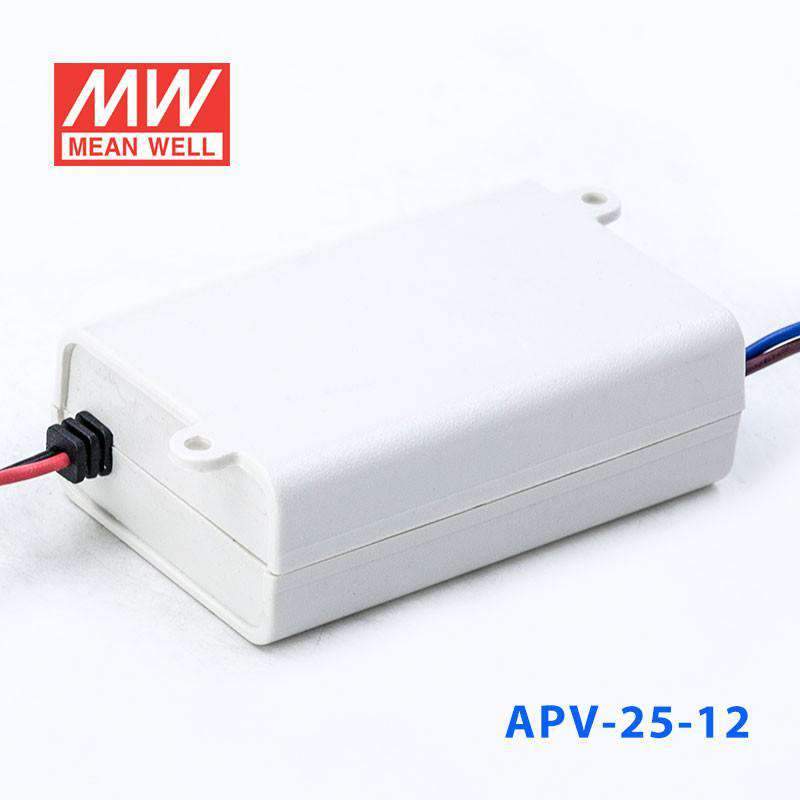

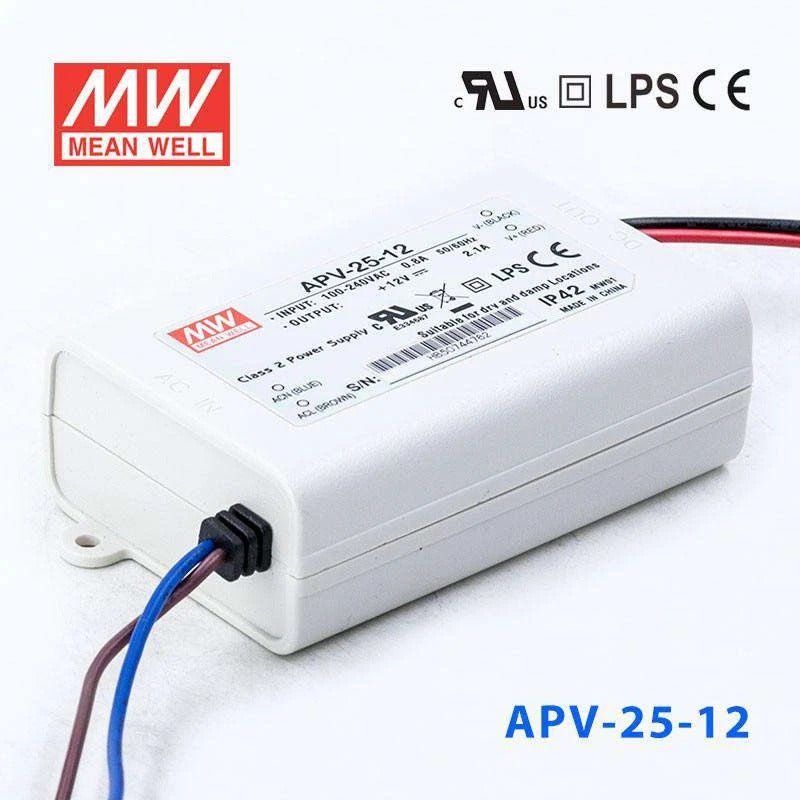

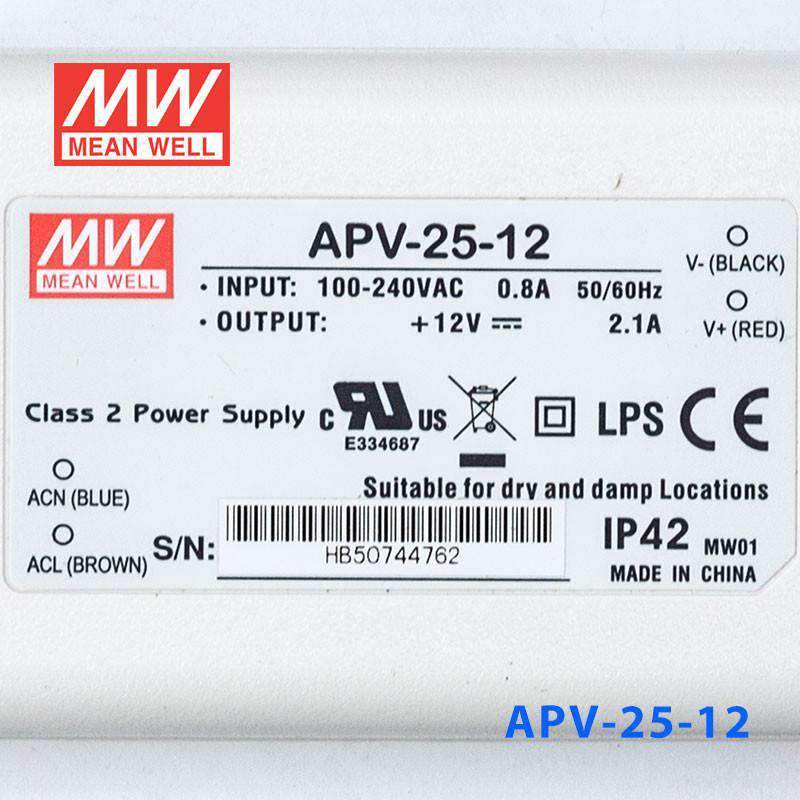

Mean Well APV-25-12 Power Supply 25W 12V
Description
Description
The APV-25 is a 25W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 12V LED lighting applications suit the APV-25-12?
The APV-25-12 outputs 12V at 2.1A for a maximum of 25.2W. It suits longer 12V LED strip runs for retail shelf lighting, under-counter task lighting, and illuminated display cases, as well as 12V LED panel fixtures where a single driver powers a moderate-length installation.
How long a run of 12V LED strip can the APV-25-12 support?
The APV-25-12 delivers 25.2W at 12V. At a strip rated 4.8 W/m, that supports approximately 5.25 m. Divide 25.2W by your strip's rated power per meter to calculate your specific limit, and check your strip's rated power per meter before specifying.
How does the APV-25-12 compare to the APV-16-12 and APV-35-12?
All three output 12V from 90–264VAC. The APV-16-12 provides 15W at 1.25A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-12 provides 25.2W at 2.1A in a larger 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-12 provides 36W at 3A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on total wattage required.
What are the operating temperature limits of the APV-25-12?
The APV-25-12 operates from -30°C to +70°C. This range covers most indoor commercial and retail environments. The IP42 rating means it should be installed away from direct moisture, spray, or outdoor exposure.
Can the APV-25-12 be used in a slightly damp indoor environment?
The APV-25-12 is rated IP42, which provides protection against solid particles larger than 1 mm and dripping water at up to 15° from vertical. It is suitable for dry to lightly damp indoor locations. For wet, splash-prone, or outdoor installations, a driver rated IP65 or higher is required.
Other APV-25 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APV-25-24 Power Supply 25W 24V | 25.2W | 24V | 1.05A | Indoor | $9.08 | View |
| Mean Well APV-25-5 Power Supply 16W 5V | 17.5W | 5V | 3.5A | Indoor | $11.44 | View |
| Mean Well APV-25-36 Power Supply 25W 36V | 25.2W | 36V | 0.7A | Indoor | $12.19 | View |
| Mean Well APV-25-15 Power Supply 25W 15V | 25.2W | 15V | 1.68A | Indoor | $11.74 | View |
