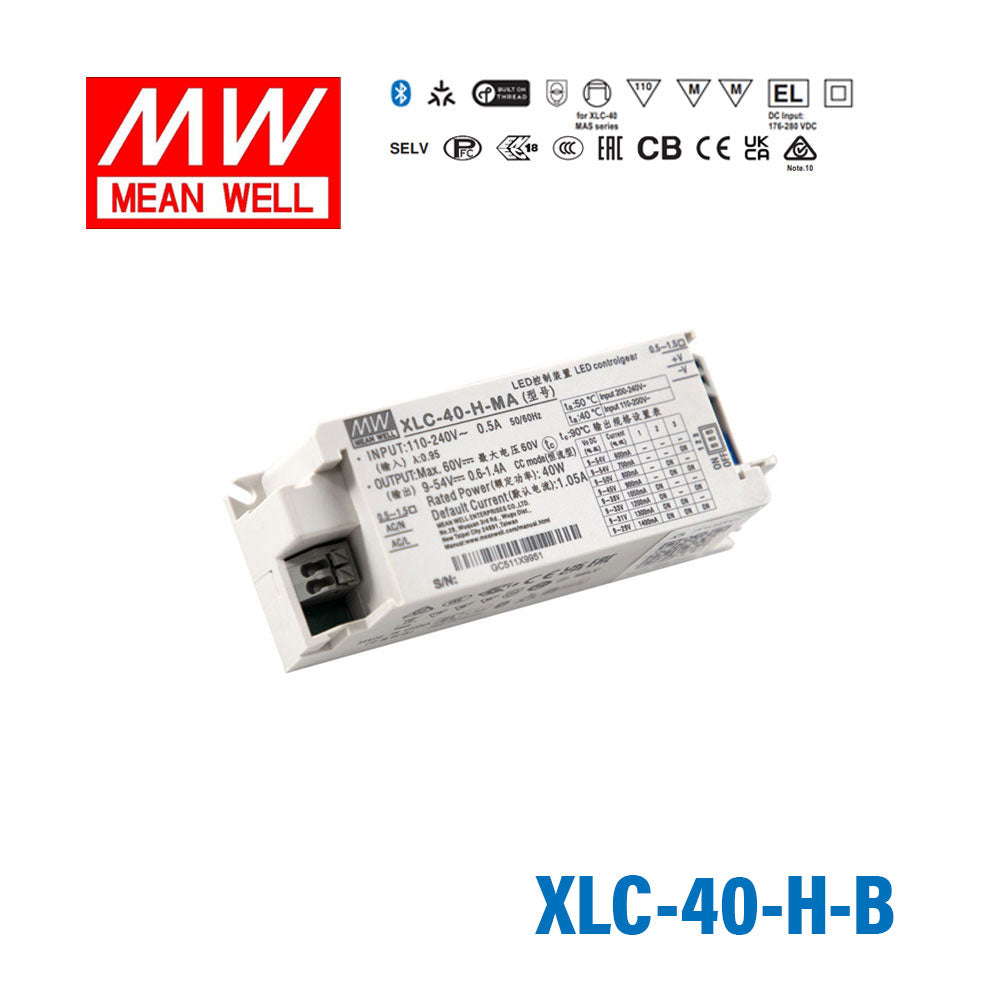

Mean Well XLC-40-H-B LED Driver 40W 1050mA 9~54V Constant Power, 3 in 1 Dimming, Current Setting by Dip Switch

The Mean Well XLC-40-H-B is a 40W multiple-stage constant power LED driver delivering 1.05A across a 9~54V constant current region, with the output current selectable by DIP switch. It is housed in a built-in type plastic housing, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-40-H-B operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports 1-10V, 10V PWM and resistance (3-in-1) dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

• ✓Constant power mode output with multiple stages selectable by dip switch (H-type)
• ✓Plastic housing with class II/2 and PFC design
• ✓Flicker-free, complying with IEEE1789/ErP
• ✓Standby power consumption <0.5W
• ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
• ✓5 years warranty

• Brand
  Mean Well
• Series
  Mean Well XLC Series
• Power Rating
  40 Watt
• Output Voltage
  60 Volt
• Rated Current
  1.05 Ampere
• Input Voltage
  100V~305V
• No of Output
  1
• Dimming Control
  10V PWM,1-10V,Resistance
• Standards Met
  CB,CCC,CE,EAC,ENEC,SELV
• Operation Mode
  Constant Current
• Operating Temperature
  -25°C~90°C
• Warranty
  5 Year
• Length
  5.79 in
• Width
  1.57 in
• Height
  1.26 in
• Weight
  0.43 lb
