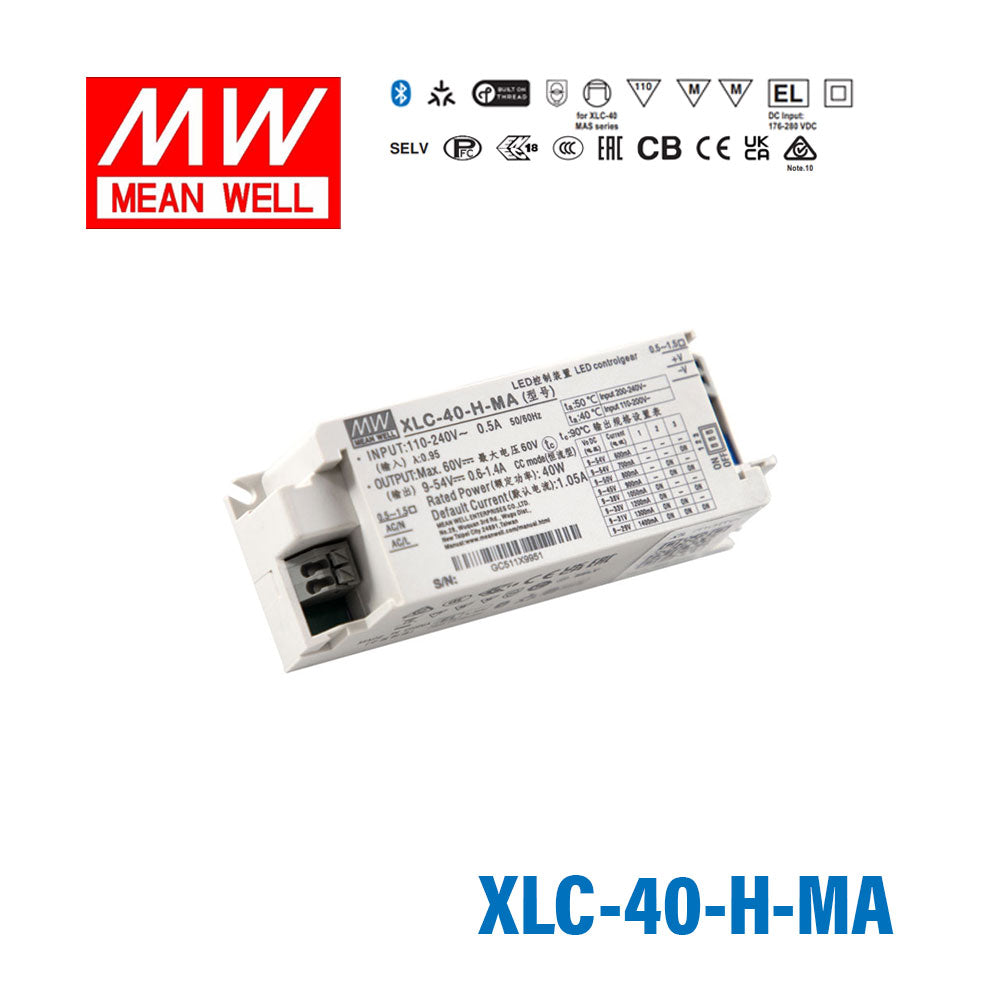

Mean Well XLC-40-H-MA LED Driver 40W 1050mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming

The Mean Well XLC-40-H-MA is a 40W multiple-stage constant power LED driver delivering 1.05A across a 9~54V constant current region, with the output current selectable by DIP switch. It is housed in a built-in type plastic housing, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-40-H-MA operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports Matter over Thread control to the Matter 1.3 specification. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

• ✓Constant power mode output with multiple stage selectable by DIP switch
• ✓Plastic housing with class II and PFC design
• ✓Flicker free, complying with CE ErP directive
• ✓Minimum dimming level 0.5%
• ✓Matter over thread, Matter 1.3 specification
• ✓5 years warranty

• Brand
  Mean Well
• Series
  Mean Well XLC Series
• Power Rating
  40 Watt
• Output Voltage
  60 Volt
• Rated Current
  1.05 Ampere
• Input Voltage
  100V~305V
• No of Output
  1
• Dimming Control
  Dimmable
• Standards Met
  CB,CCC,CE,EAC,ENEC,SELV
• Operation Mode
  Constant Current
• Operating Temperature
  -25°C~90°C
• Warranty
  5 Year
• Length
  4.21 in
• Width
  1.57 in
• Height
  1.26 in
• Weight
  0.46 lb
