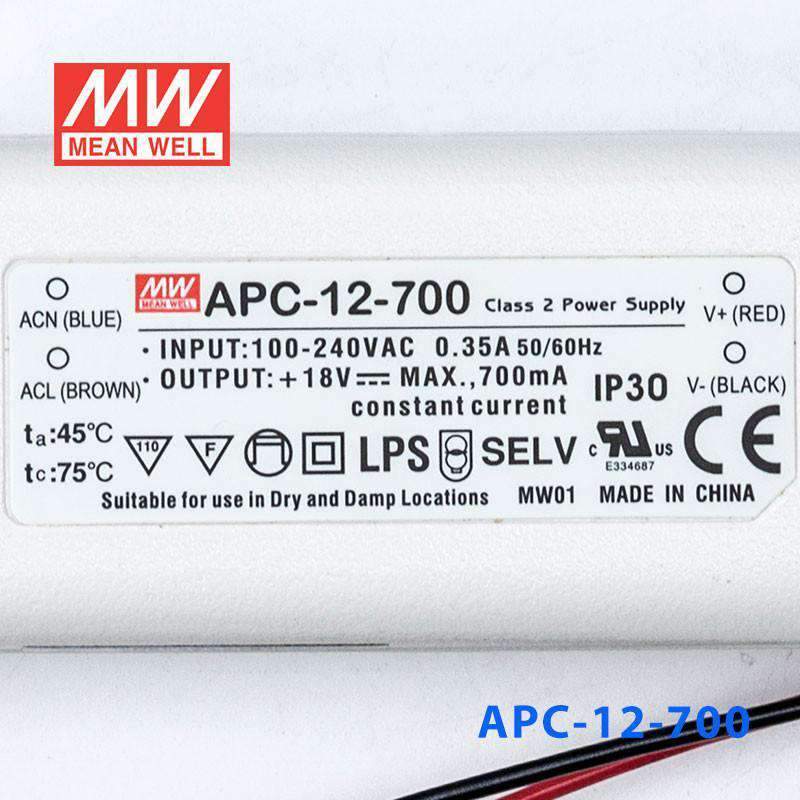

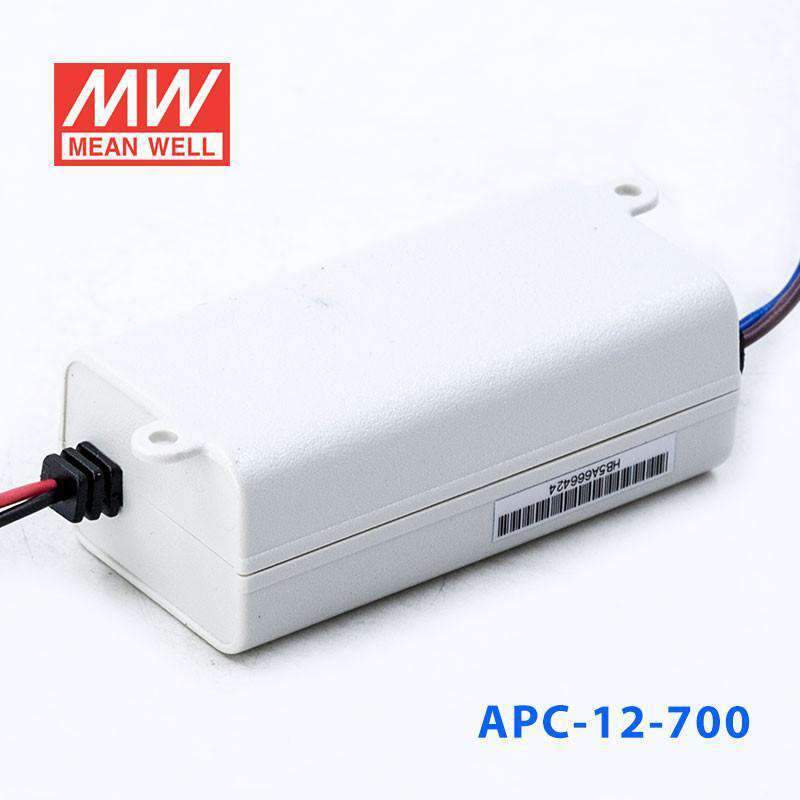

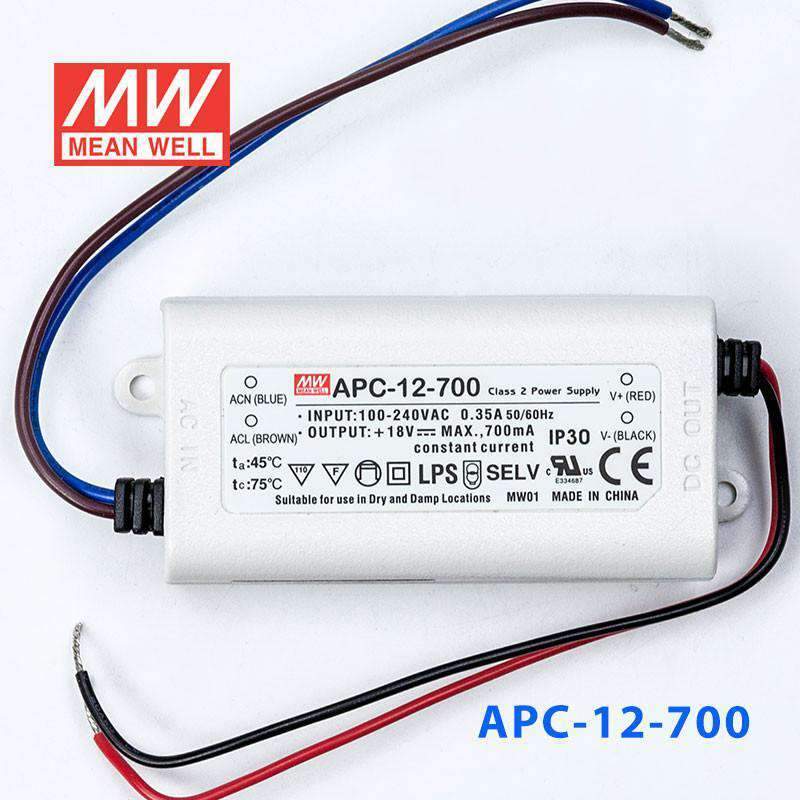

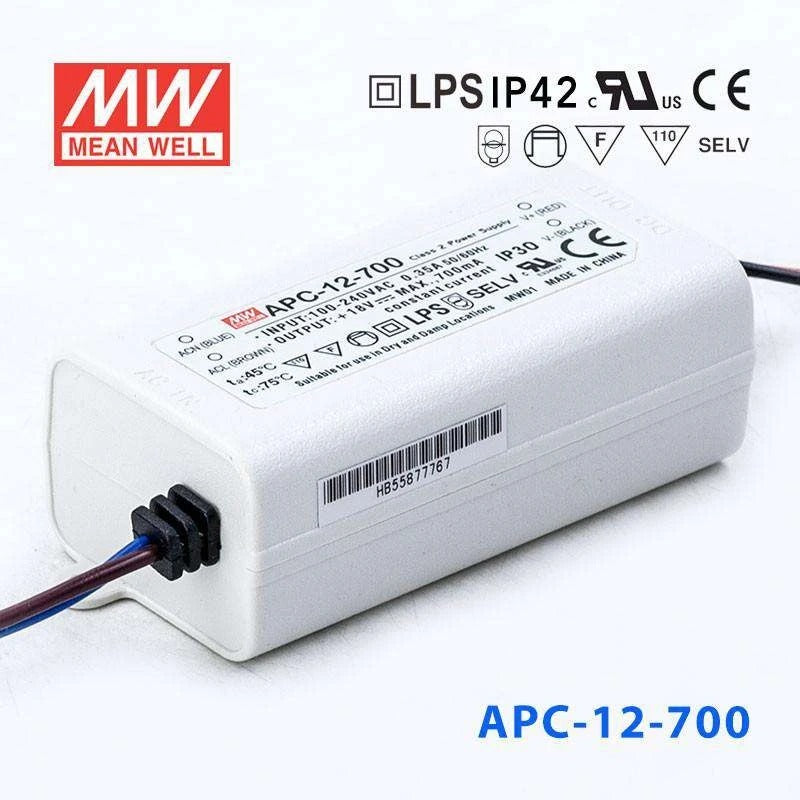

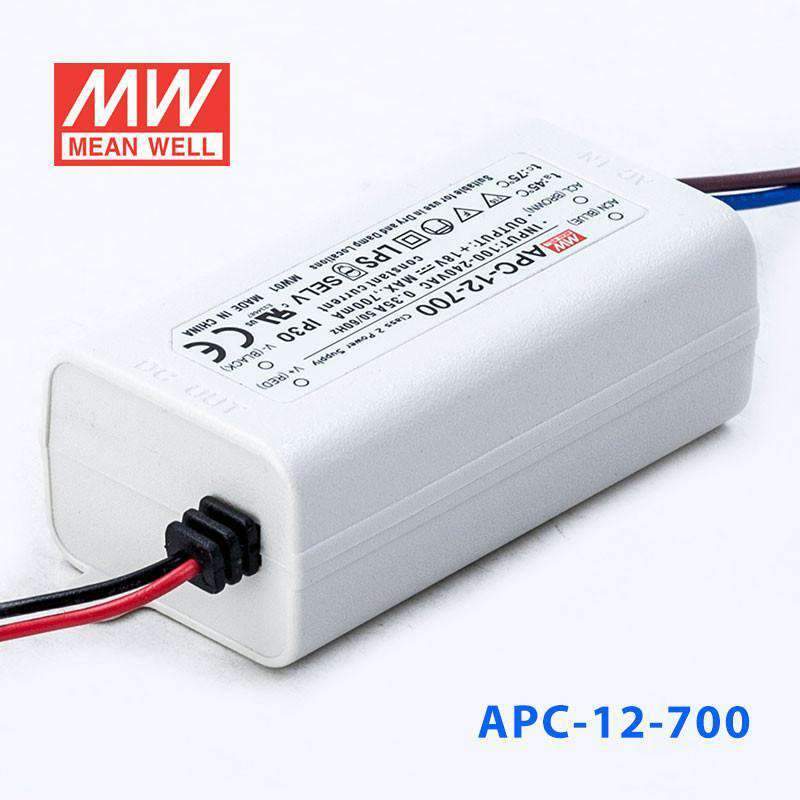

Mean Well APC-12-700 Power Supply 12W 700mA
The APC-12 is a 12.6W Mean Well AC-DC constant current LED driver (input: 90~264VAC, output: 18V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 18V
- ✓ Rated output current: 700mA
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CE, cUL, EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating12.6 Watt
-
Output Voltage18 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
What kinds of LED applications is the APC-12-700 designed for?
The Mean Well APC-12-700 is designed for small constant-current LED lighting and moving sign applications that need a 700mA drive current. With 12.6W rated power, it is intended for LED loads specified for 700mA rather than the lower 350mA class.
Is the APC-12-700 a better fit than the APC-12-350 when the LED load requires 700mA?
Yes. The APC-12-700 is the correct choice when the LED load is designed for 700mA constant current, while the APC-12-350 is intended for 350mA loads. The driver current rating should match the LED load requirement rather than being selected by wattage alone.
Can the APC-12-700 be used for indoor LED sign and lighting assemblies?
Yes. The product is intended for LED lighting and moving sign applications, so indoor sign lighting and small LED assemblies are appropriate uses when the connected load is designed for 700mA constant-current operation and fits within the driver's output capability.
Will the APC-12-700 operate from standard AC mains?
Yes. The listed AC input range is 90-264VAC, so the APC-12-700 can run from common 120V and 240V AC mains systems that fall within that range. That helps simplify use in general-purpose lighting installations.
Is the APC-12-700 intended for direct outdoor use?
No. The APC-12-700 has an IP30 rating, so it is better suited to indoor use or protected enclosures rather than direct exposure to weather. Its working temperature range is listed as -30°C to +70°C, but ingress protection still needs to be considered separately.
How does the APC-12-700 compare with other APC series drivers?
The APC-12-700 provides 12.6W at 700mA, while the APC-12-350 provides the same wattage class at 350mA, and the APC-16-350 provides higher power at 16.8W while staying at 350mA. The main difference is the constant-current level and available power for the LED load.
