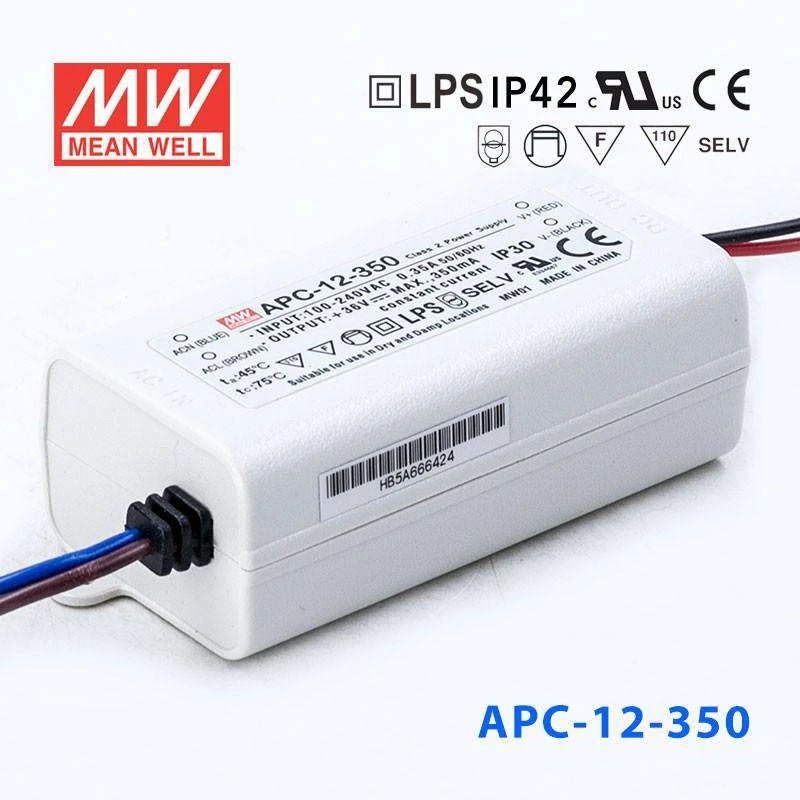

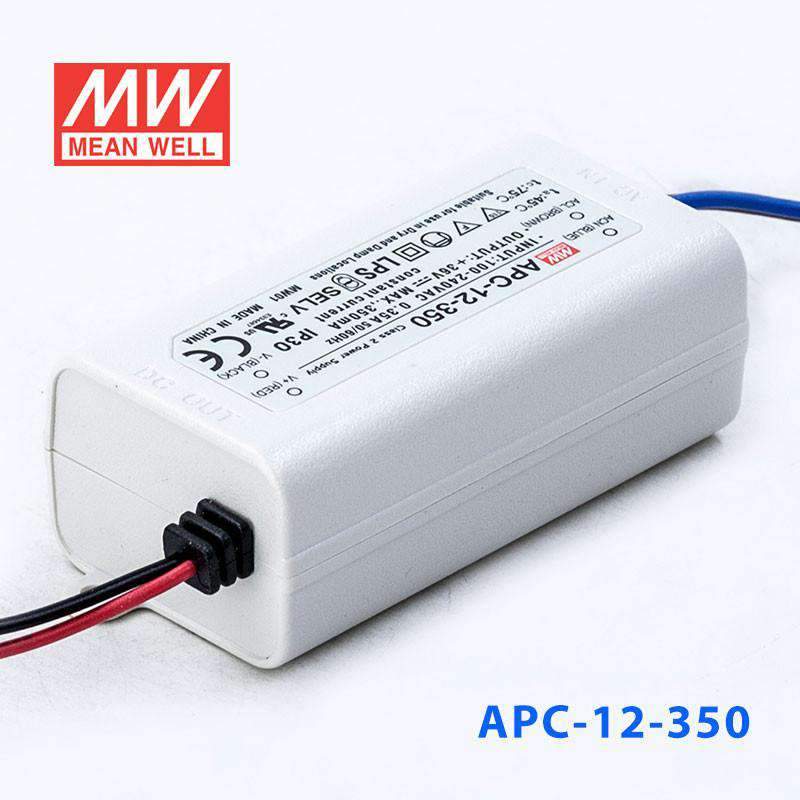

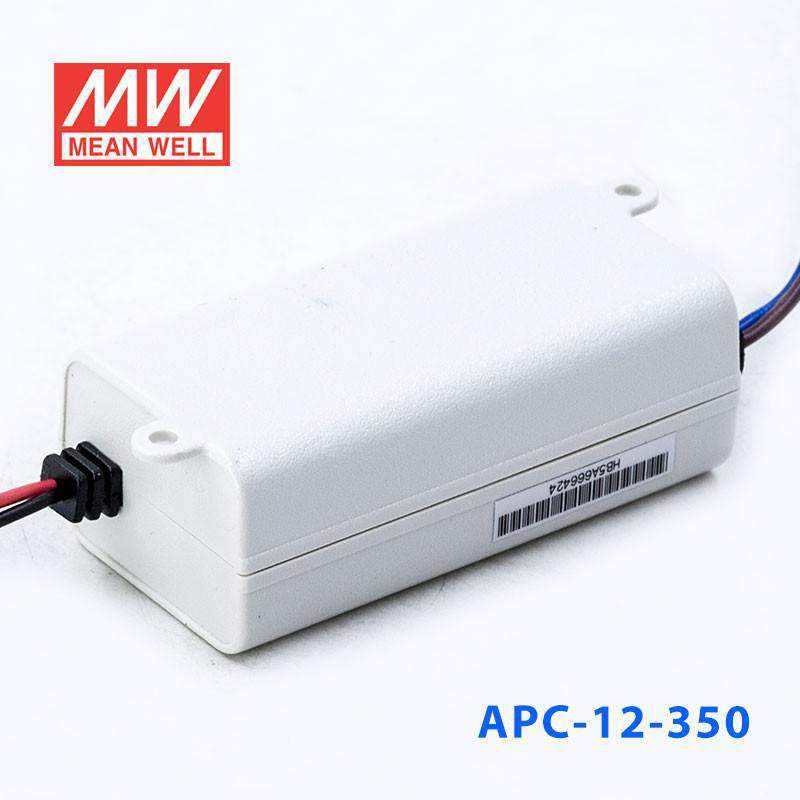

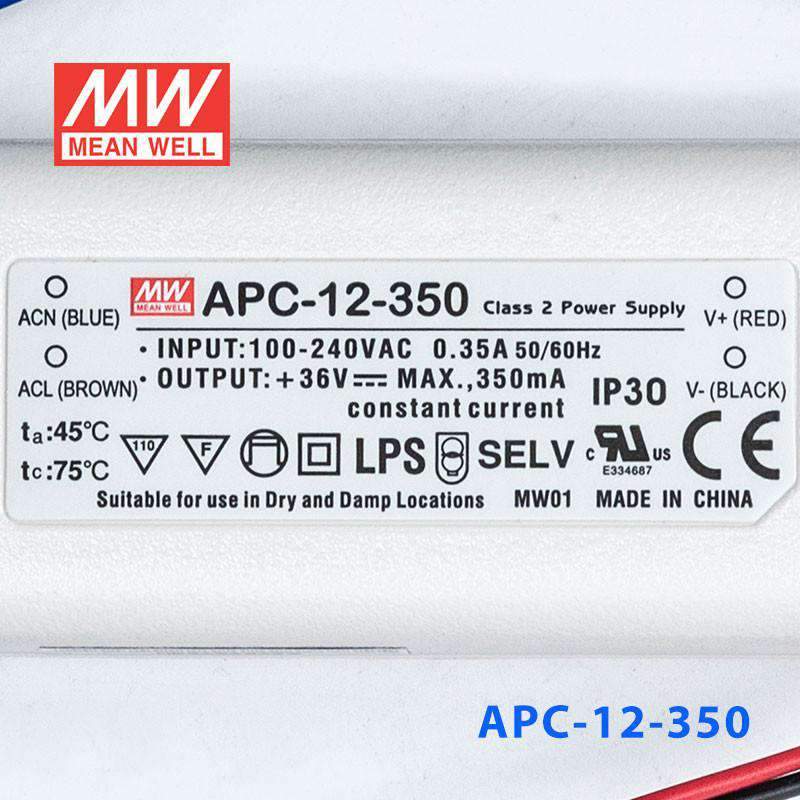

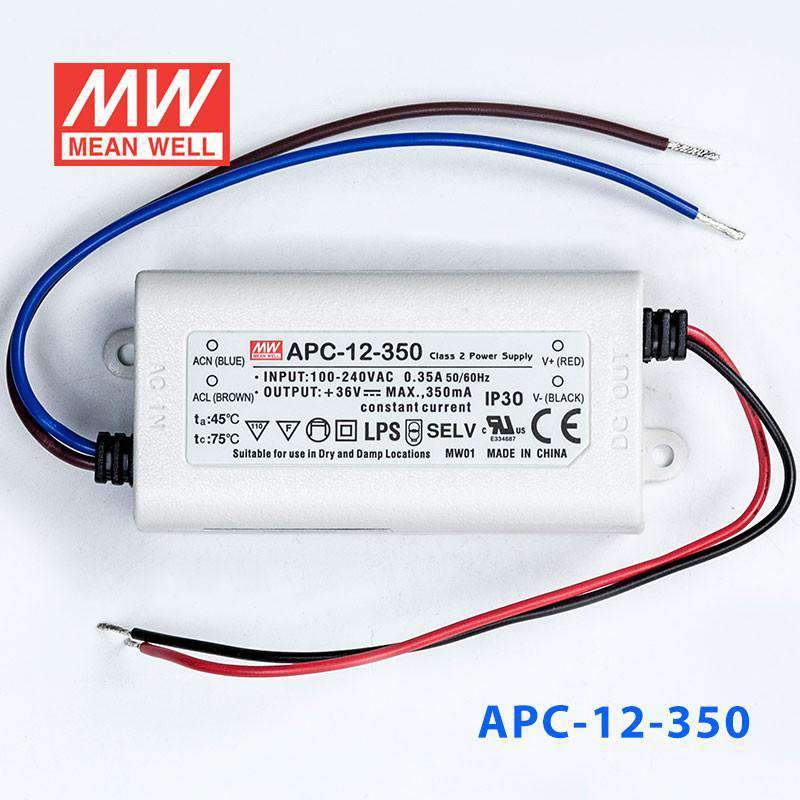

Mean Well APC-12-350 Power Supply 12W 350mA
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current | Cold start, 70A at 230VAC |
| Overload Range | >105% rated output current |
| Protection Type | Hiccup up mode, auto-recovery |
| Over voltage protection | 110%~145% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70OC (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class A ,EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, 18AWGx2C (15cm) |
| Connection Output | UL rated, 20AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 77x 40x 29 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating12.6 Watt
-
Output Voltage36 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-12-350 typically used for?
The Mean Well APC-12-350 is typically used for small constant-current LED lighting and moving sign applications. It delivers 350mA constant current with 12.6W rated power, making it a fit for LED loads designed around a 350mA drive current.
Is the APC-12-350 a good fit for 350mA LED loads?
Yes. The APC-12-350 is built as a constant-current LED driver rated at 350mA, so it should be matched to LED loads designed for that current level. The connected LED load also needs to stay within the driver's output capability and rated power.
Can the APC-12-350 be used for indoor sign or accent lighting projects?
Yes. The product features specifically call out LED lighting and moving sign applications, so indoor sign lighting, light-duty decorative lighting, and small LED assemblies are typical uses when the electrical requirements match the driver's 350mA constant-current design.
Will the APC-12-350 run on standard AC mains input?
Yes. The specified input range is 90-264VAC, so the APC-12-350 can operate from common 120V and 240V AC mains systems within that range. That makes it practical for a wide range of general lighting installations.
Is the APC-12-350 suitable for exposed outdoor installation?
No. The APC-12-350 has an IP30 design, which means it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -30°C to +70°C, but enclosure protection still matters.
How does the APC-12-350 compare with other APC models?
The APC-12-350 provides 12.6W at 350mA, while the APC-12-700 provides the same wattage class at 700mA, and the APC-16-350 provides a higher 16.8W capacity at 350mA. The main choice is whether your LED load needs 350mA or 700mA constant current, and how much output power margin is required.
Other APC-12 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-12-700 Power Supply 12W 700mA | 12.6W | 18V | 0.7A | Indoor | $7.43 | View |
