Mean Well

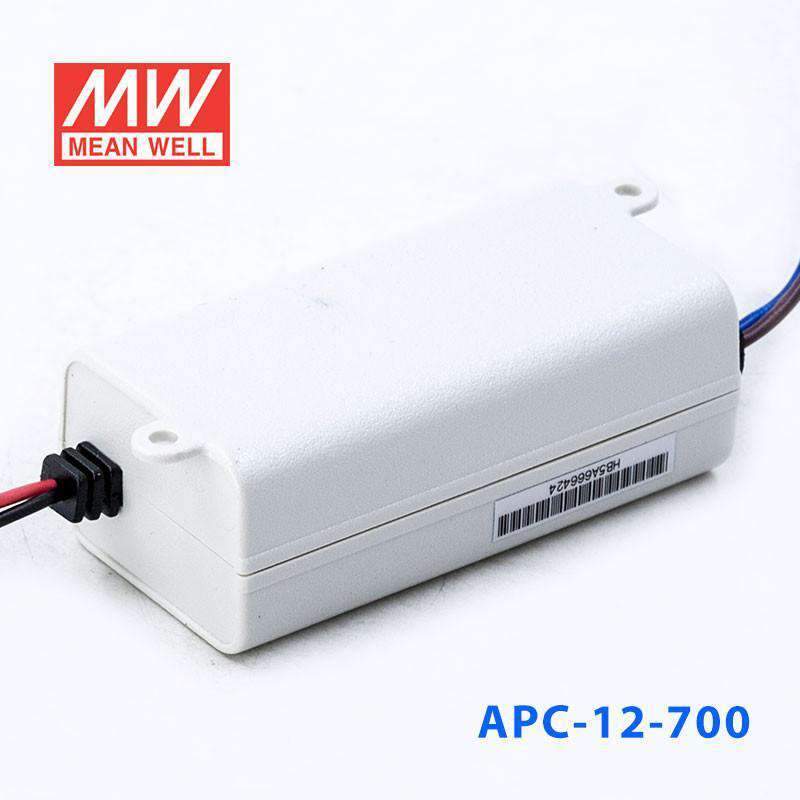

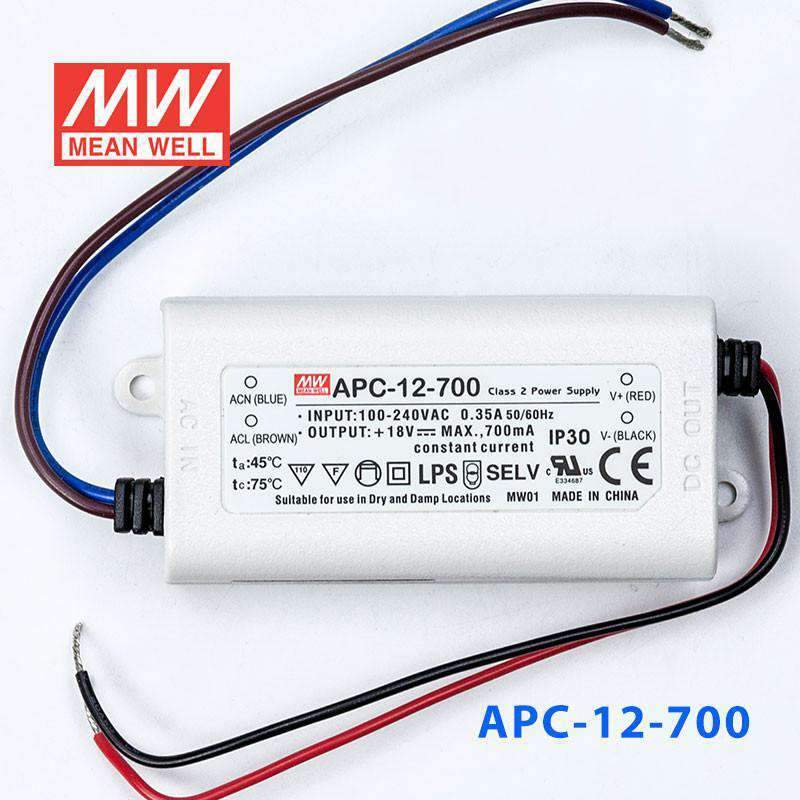

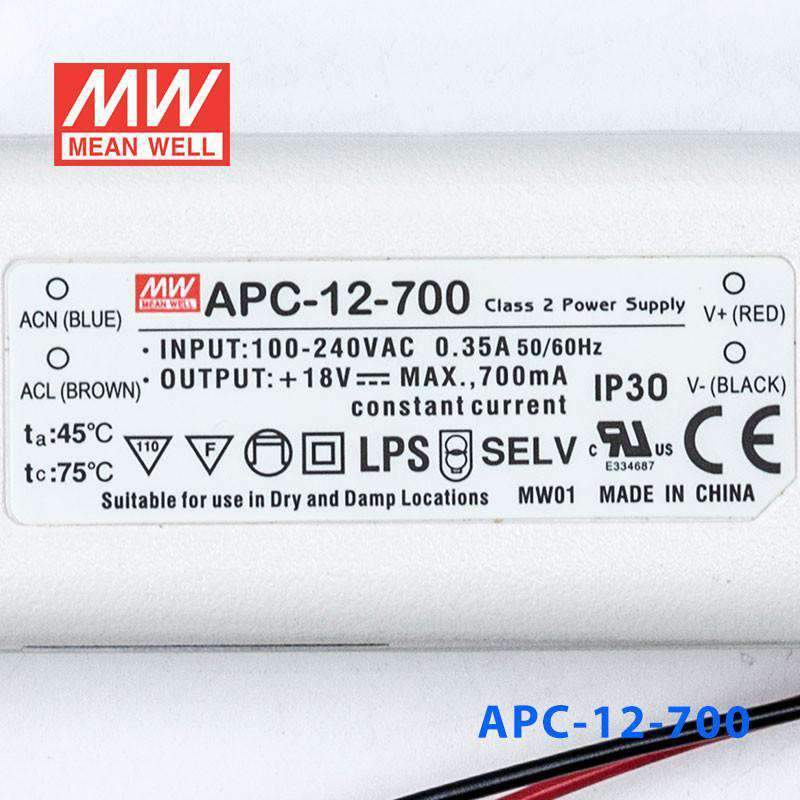

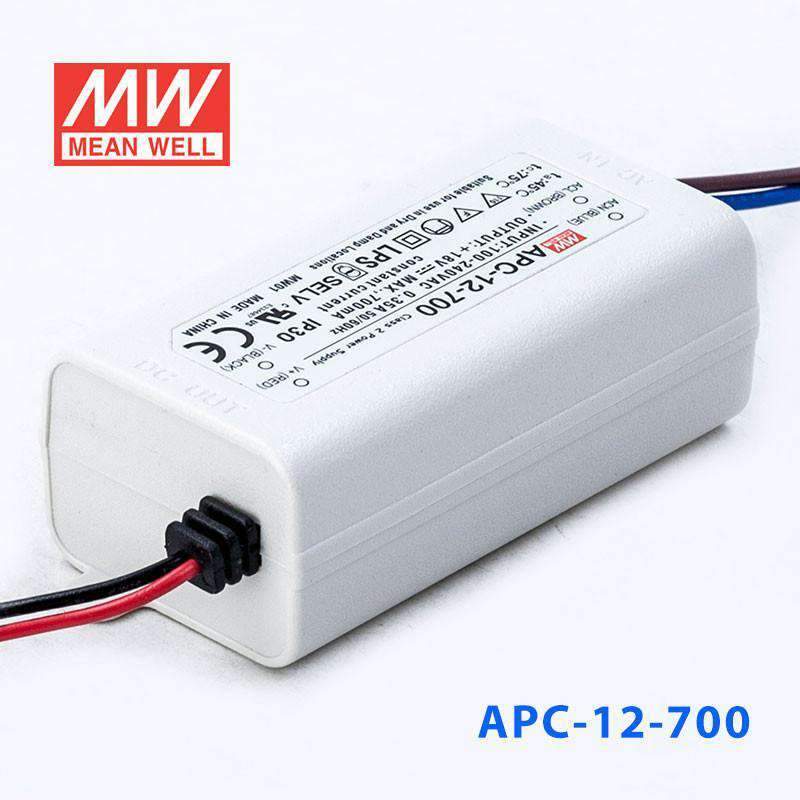

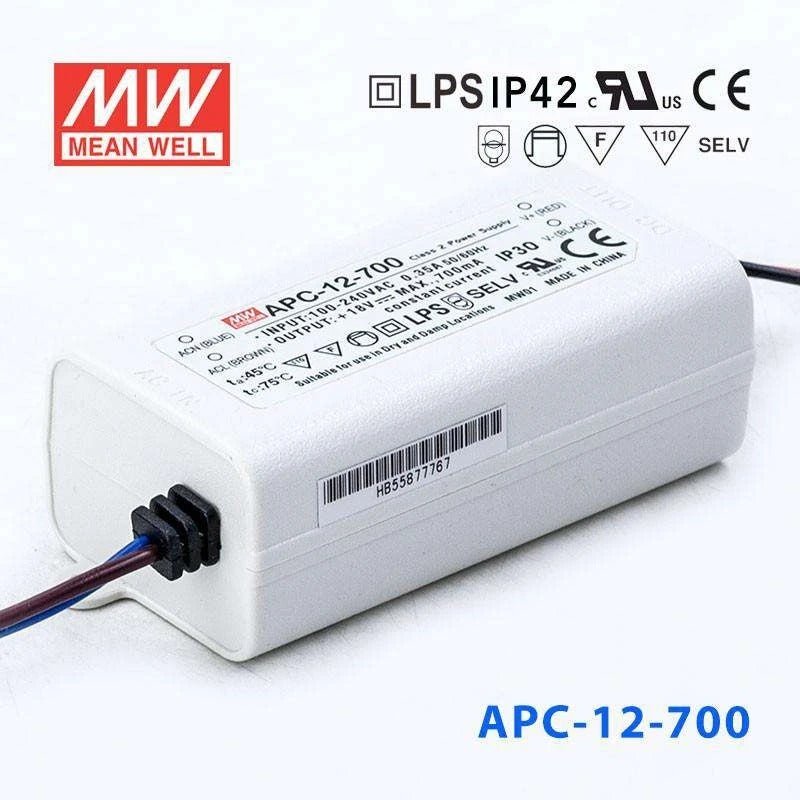

Mean Well APC-12-700 Power Supply 12W 700mA

Name: Mean Well APC-12-700 Power Supply 12W 700mA
Brand: Mean Well
SKU: APC-12-700
Price: 8.25 USD
Availability: InStock

586 units in stock

$8.25 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current	Cold start, 70A at 230VAC
Overload Range	>105% rated output current
Protection Type	Hiccup up mode, auto-recovery
Over voltage protection	110%~145% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70OC (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13
EMC standards	EN55015, EN61000-3-2 class A ,EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, 18AWGx2C (15cm)
Connection Output	UL rated, 20AWGx2C (15cm)
Dimension (LxWxH)(mm)	77x 40x 29
