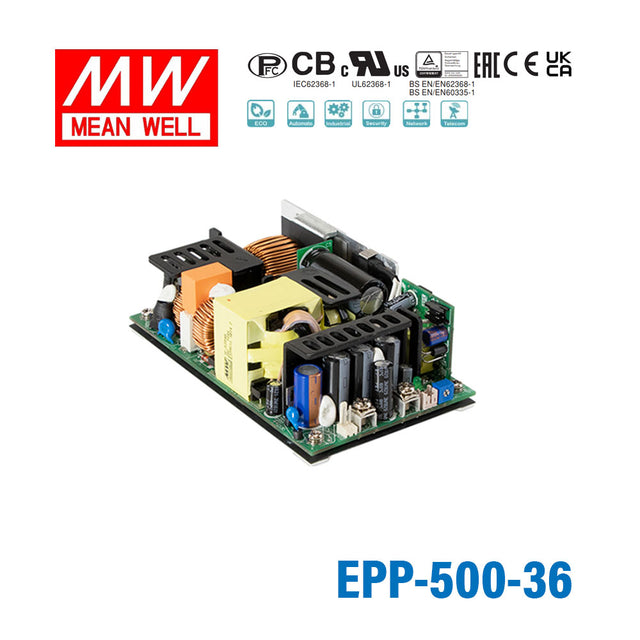

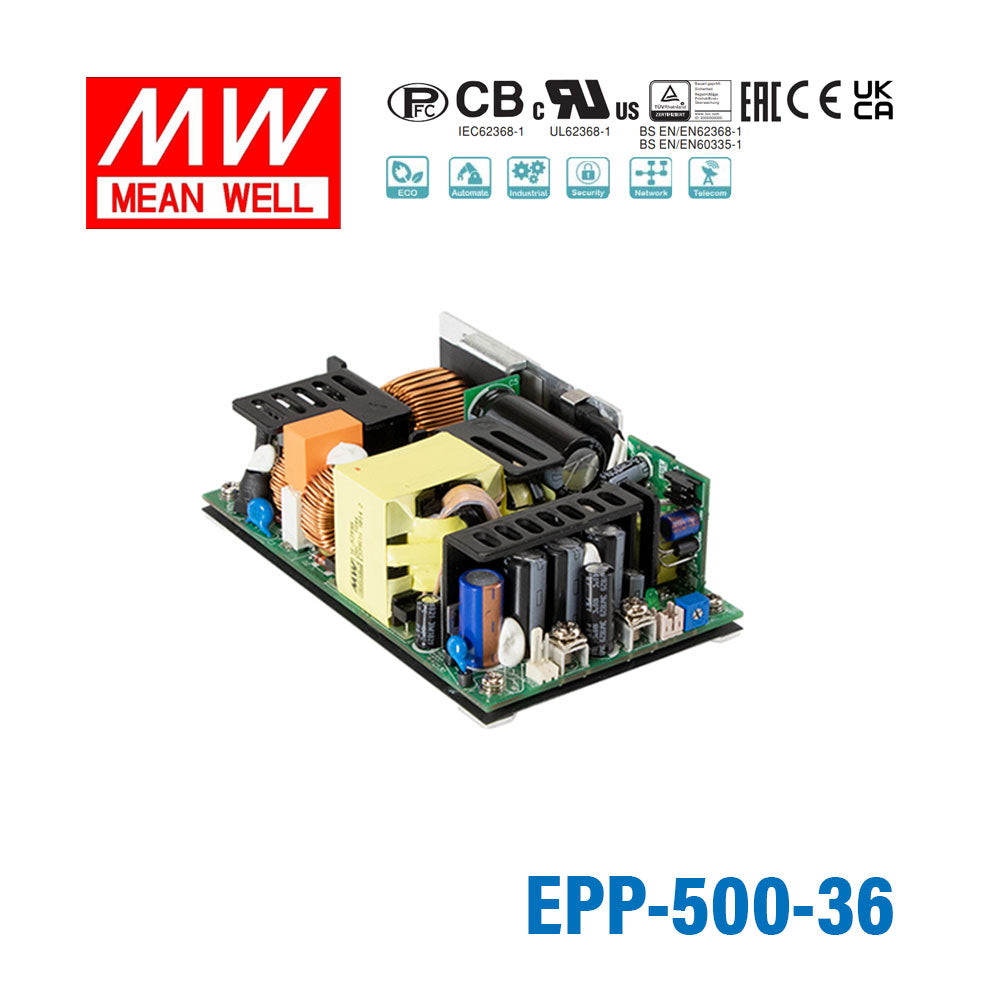

Mean Well EPP-500-36 Power Supply 320W 36V 8.9A
The EPP-500 is a 320.4W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 36V
- ✓ Rated output current: 8.9A
- ✓ Operating temperature: -30~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating320.4 Watt
-
Output Voltage36 Volt
-
Rated Current8.9 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the EPP-500-36 for 36V industrial equipment?
Yes, this model is intended for constant 36V output applications. It can support 36V industrial or embedded loads up to 8.9A and 320.4W.
Is the EPP-500-36 suitable for a compact OEM or automation build that needs 36V DC?
It can be a fit where the system requires 36V DC from an AC source and the power budget stays within 320.4W. The mechanical size is 127.0 x 76.2 x 41.0 mm with a weight of 0.46 kg.
Can this power supply run multiple 36V devices in one control assembly?
It can, provided the total 36V demand stays at or below 8.9A and 320.4W. All connected equipment should be designed for constant 36V input.
Is the EPP-500-36 rated for indoor-only use or for outdoor conditions too?
Its operating temperature range is -30C to +70C, so the thermal rating is broad. Because no IP rating is shown in the provided specs, it is better treated as a supply for protected indoor use or installation inside an enclosure.
What is the difference between the EPP-500-36 and the other EPP-500 power supplies?
The EPP-500 series includes 12V at 26.7A and 320.4W, 15V at 21.3A and 319.5W, 18V at 17.8A and 320.4W, 24V at 13.4A and 321W, 27V at 11.9A and 321.3W, 36V at 8.9A and 320.4W, 48V at 6.7A and 321.6W, and 54V at 5.93A and 320.2W. The 36V version provides less current than the lower-voltage siblings but keeps the same approximate 320W output class.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-500 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-500-54 Power Supply 320W 54V 5.93A | 320.2W | 54V | 5.93A | Indoor | $96.22 | View |
| Mean Well EPP-500-48 Power Supply 321W 48V 6.7A | 321.6W | 48V | 6.7A | Indoor | $84.19 | View |
| Mean Well EPP-500-27 Power Supply 321W 27V 11.9A | 321.3W | 27V | 11.9A | Indoor | $97.19 | View |
| Mean Well EPP-500-24 Power Supply 321W 24V 13.4A | 321W | 24V | 13.4A | Indoor | $97.20 | View |
| Mean Well EPP-500-18 Power Supply 320W 18V 17.8A | 320.4W | 18V | 17.8A | Indoor | $97.19 | View |
| Mean Well EPP-500-15 Power Supply 320W 15V 21.3A | 319.5W | 15V | 21.3A | Indoor | $97.19 | View |
| Mean Well EPP-500-12 Power Supply 320W 12V 26.7A | 320.4W | 12V | 26.7A | Indoor | $97.19 | View |
