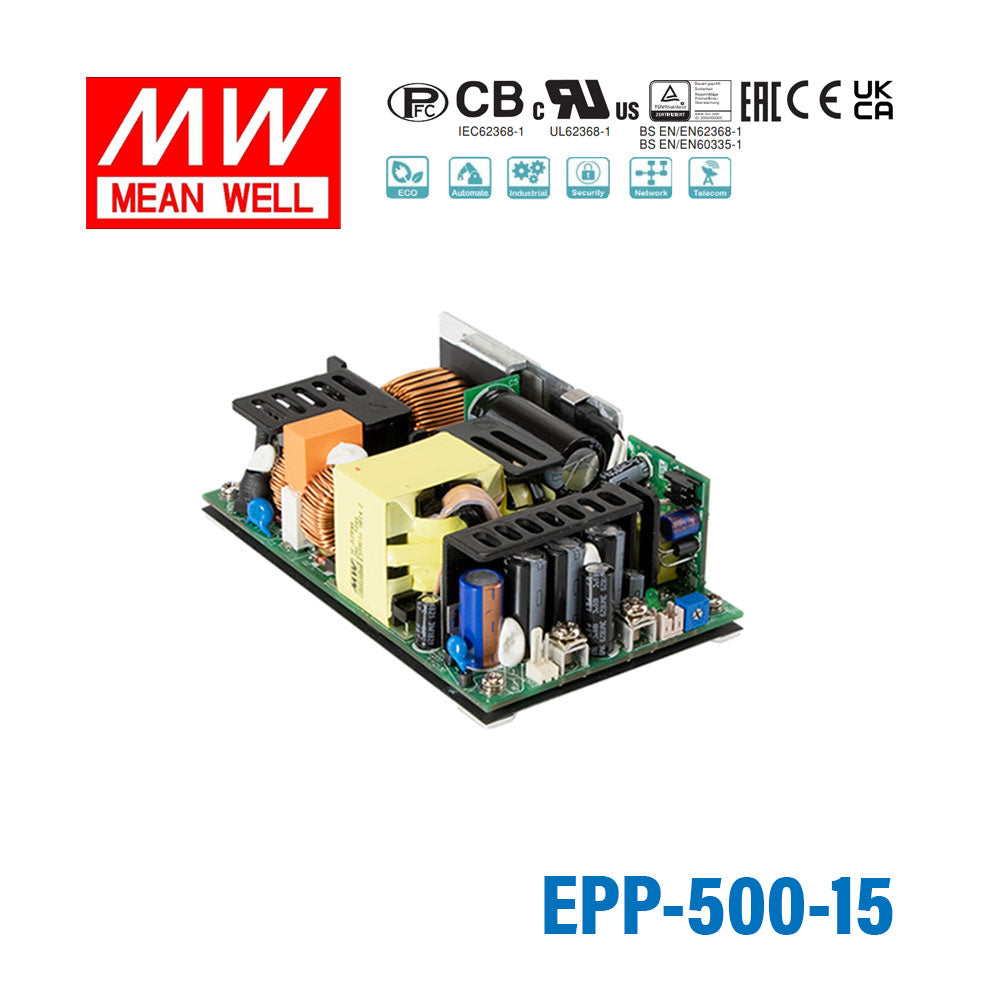

Mean Well EPP-500-15 Power Supply 320W 15V 21.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPP-500-15 Power Supply 320W 15V 21.3A
The EPP-500 is a 319.5W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 80~264VAC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 21.3A
- ✓ Operating temperature: -30~+70°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating319.5 Watt
-
Output Voltage15 Volt
-
Rated Current21.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
Can I use the EPP-500-15 for a 15V industrial control or instrumentation load?
Yes, when the equipment requires constant 15V and the load stays within 21.3A. This model provides up to 319.5W.
Is the EPP-500-15 suitable for a 15V embedded or automation system with several DC loads?
It can be used where multiple 15V loads are combined on one regulated supply, provided the total draw does not exceed 21.3A. The output rating is 319.5W at constant 15V.
Can this model support 15V equipment used internationally on different mains voltages?
Yes, the input specification is 80-264VAC, which supports broad AC mains compatibility. The output side is fixed constant voltage at 15V with up to 21.3A available.
What is the difference between the EPP-500-15 and other EPP models?
For 15V, the family includes EPP-100-15 at 75W and 5A, EPP-120S-15 at 114W and 7.6A, EPP-150-15 at 100.5W and 6.7A, EPP-200-15 at 141W and 9.4A, EPP-300-15 at 200W and 13.33A, EPP-400-15 at 250.5W and 16.7A, and EPP-500-15 at 319.5W and 21.3A. The broader EPP series also includes 12V, 18V, 24V, 27V, 36V, 48V, and 54V options with power ratings from 75.6W to 321.6W.
Is the EPP-500-15 intended for outdoor applications?
The specified operating temperature range is -30°C to +70°C. No IP rating is listed in the provided specs, so the product data does not identify it as weatherproof or outdoor-rated.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPP-500 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPP-500-36 Power Supply 320W 36V 8.9A | 320.4W | 36V | 8.9A | Indoor | $97.19 | View |
| Mean Well EPP-500-54 Power Supply 320W 54V 5.93A | 320.2W | 54V | 5.93A | Indoor | $96.22 | View |
| Mean Well EPP-500-48 Power Supply 321W 48V 6.7A | 321.6W | 48V | 6.7A | Indoor | $84.19 | View |
| Mean Well EPP-500-27 Power Supply 321W 27V 11.9A | 321.3W | 27V | 11.9A | Indoor | $97.19 | View |
| Mean Well EPP-500-24 Power Supply 321W 24V 13.4A | 321W | 24V | 13.4A | Indoor | $97.20 | View |
| Mean Well EPP-500-18 Power Supply 320W 18V 17.8A | 320.4W | 18V | 17.8A | Indoor | $97.19 | View |
| Mean Well EPP-500-12 Power Supply 320W 12V 26.7A | 320.4W | 12V | 26.7A | Indoor | $97.19 | View |
