Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

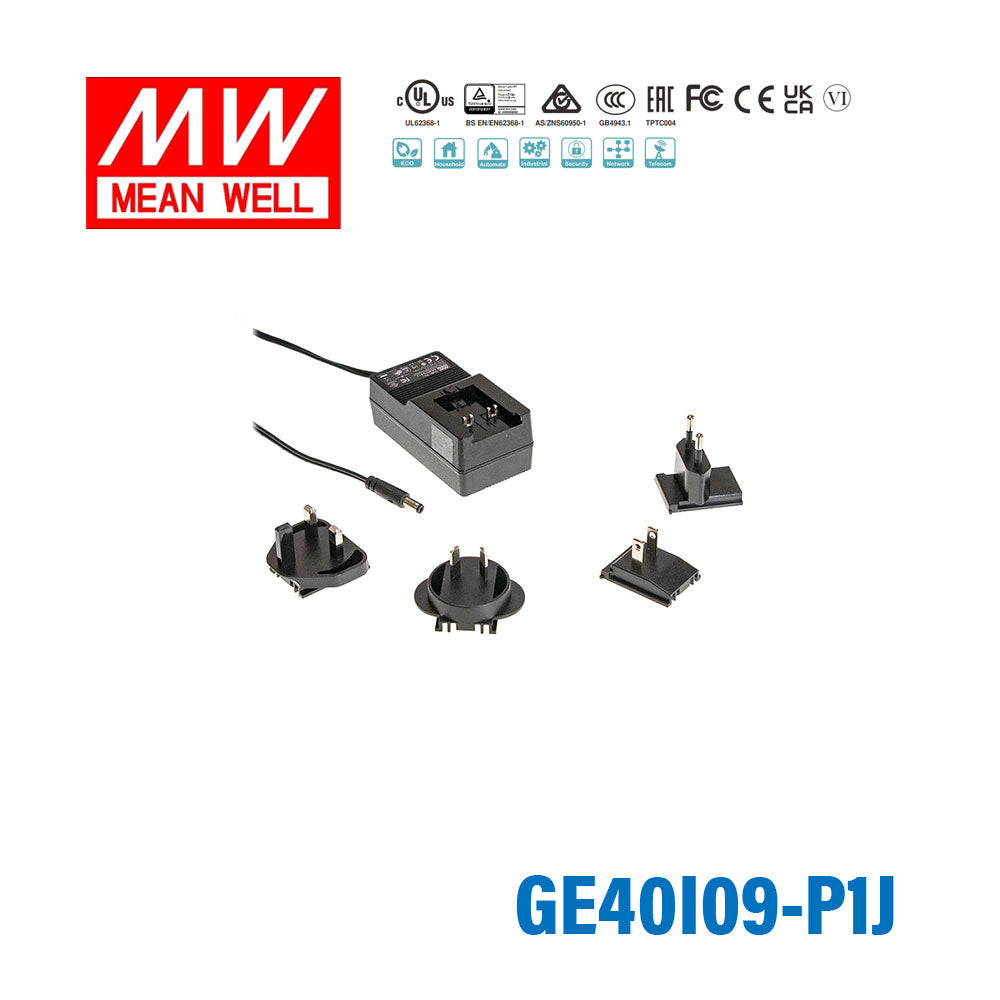

Mean Well GE40I09-P1J Power Supply 29.7W 9V 3.3A
The GE40I09 is a 29.7W Mean Well power supply (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 9V
- ✓ Rated output current: 3.3A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CCC, CE, EAC, FCC, RCM, TÜV, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesGE Series
-
Power Rating29.7 Watt
-
Output Voltage9 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.91 in
-
Height1.57 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GE40I09-P1J for a 9V embedded system or control board?
Yes, if the equipment is designed for a 9V constant voltage input. This power supply delivers 9V with up to 29.7W and 3.3A, which suits many compact embedded systems and control boards in that range.
Is this power supply a good fit for 9V industrial electronics?
It is intended for 9V constant voltage loads, so it can support industrial electronics that call for 9V DC. With 29.7W and 3.3A available, it fits moderate-power devices rather than larger industrial assemblies.
Can the GE40I09-P1J power a small IT or telecom accessory that needs 9V DC?
It can be suitable for small IT or telecom accessories that require a regulated 9V supply. The main checks are that the device matches the 9V output and stays within the 29.7W and 3.3A limits.
Would this model work for bench or test equipment that runs on 9V?
For bench or test equipment designed for 9V constant voltage input, this unit can be a practical option. Its output capacity is 29.7W at 3.3A, so it is appropriate for lighter-duty 9V loads within that rating.
Is the GE40I09-P1J appropriate for indoor or exposed environments?
The operating temperature range of -30°C to +70°C supports use in both cold and warm conditions. The product data provided does not include an IP rating, so exposed outdoor suitability should not be assumed from these specs alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GE40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GE40I24-P1J Power Supply 40W 24V 1.67A | 40W | 24V | 1.67A | Indoor | $21.97 | View |
| Mean Well GE40I15-P1J Power Supply 40.5W 15V 2.7A | 40.5W | 15V | 2.7A | Indoor | $21.97 | View |
| Mean Well GE40I12-P1J Power Supply 39.6W 12V 3.3A | 39.6W | 12V | 3.3A | Indoor | $21.97 | View |
| Mean Well GE40I48-P1J Power Supply 40W 48V 830mA | 40W | 48V | 0.83A | Indoor | $21.97 | View |
| Mean Well GE40I36-P1J Power Supply 40W 36V 1.11A | 40W | 36V | 1.11A | Indoor | $21.97 | View |
| Mean Well GE40I18-P1J Power Supply 39.6W 18V 2.2A | 39.6W | 18V | 2.2A | Indoor | $21.97 | View |
| Mean Well GE40I07-P1J Power Supply 20W 7.5V 2.66A | 20W | 7.5V | 2.66A | Indoor | $21.97 | View |
| Mean Well GE40I05-P1J Power Supply 20W 5V 4A | 20W | 5V | 4A | Indoor | $21.97 | View |
