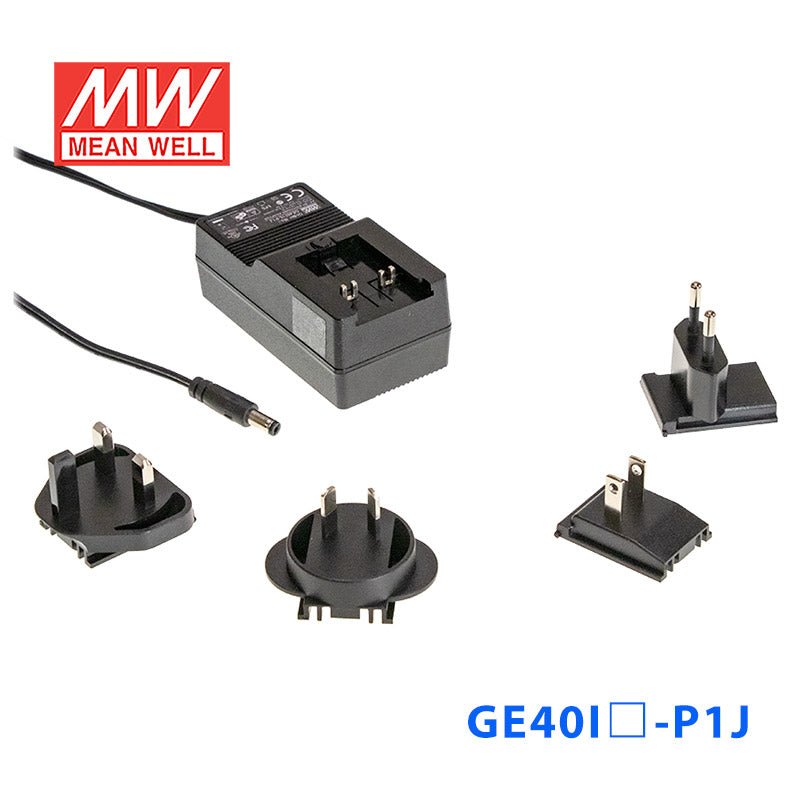

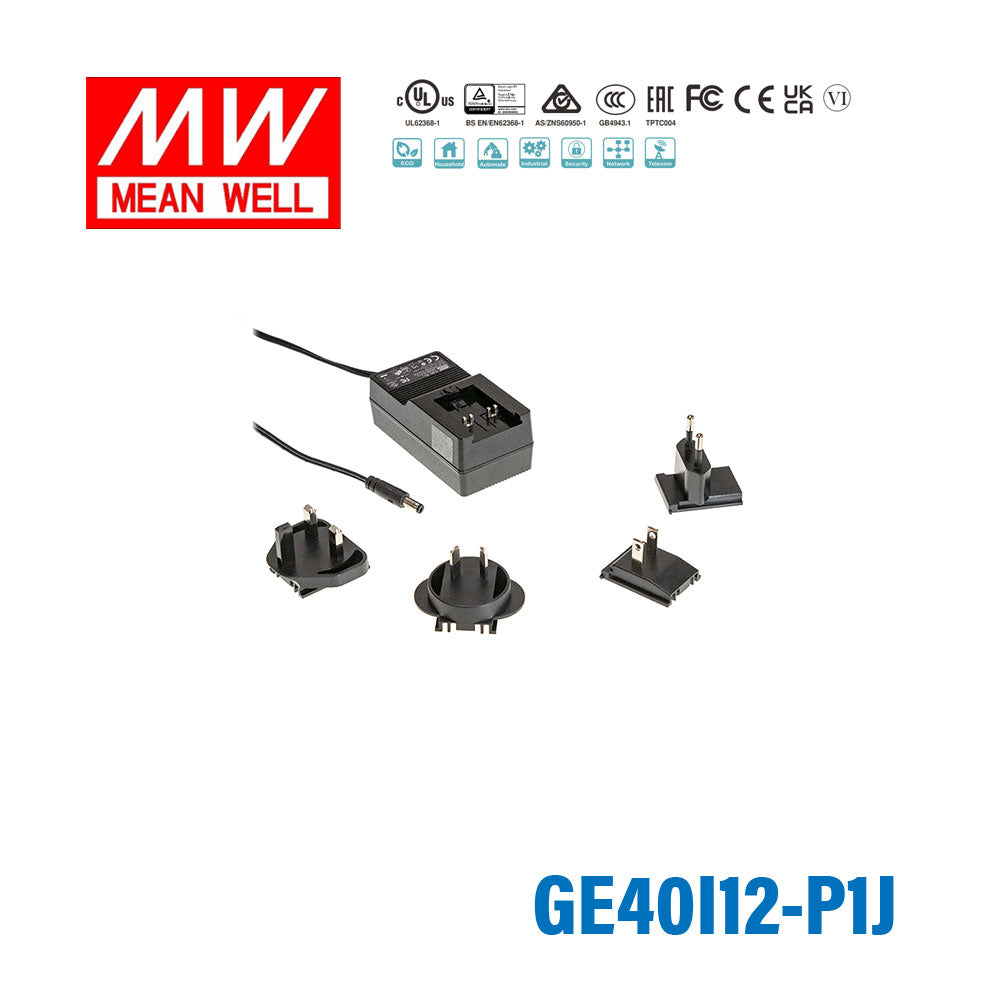

Mean Well GE40I12-P1J Power Supply 39.6W 12V
Description
Description
The GE40I12 is a 40W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating39.6 Watt
-
Output Voltage12 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.91 in
-
Height1.57 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE40I12-P1J for a 12V automation controller or panel device?
Yes, if the equipment is built for 12V constant voltage input. This model provides 12V output with up to 39.6W and 3.3A, which fits many compact automation controllers and panel devices.
Is the GE40I12-P1J suitable for 12V embedded or industrial electronics?
It is a constant voltage 12V power supply, so it can support embedded or industrial electronics that require 12V DC. The available output is 39.6W at 3.3A, so the load needs to remain within those limits.
Can this 12V model power a small industrial display, sensor group, or interface module?
It can be used for 12V display modules, grouped sensors, or interface electronics when the total demand stays within 39.6W and 3.3A. Because it is a constant voltage design, it is meant for equipment that expects a fixed 12V supply.
Would the GE40I12-P1J work for a compact security or monitoring device that uses 12V DC?
It may be a fit for compact monitoring or security electronics that require 12V DC constant voltage input. Buyers should confirm the device voltage matches 12V and that the power draw does not exceed 39.6W or 3.3A.
Can the GE40I12-P1J handle wide temperature conditions?
The listed operating temperature range is -30°C to +70°C, so it is specified for a broad temperature window. The provided specs do not state an IP rating, so indoor or protected use is the safer assumption unless enclosure protection is addressed elsewhere.
