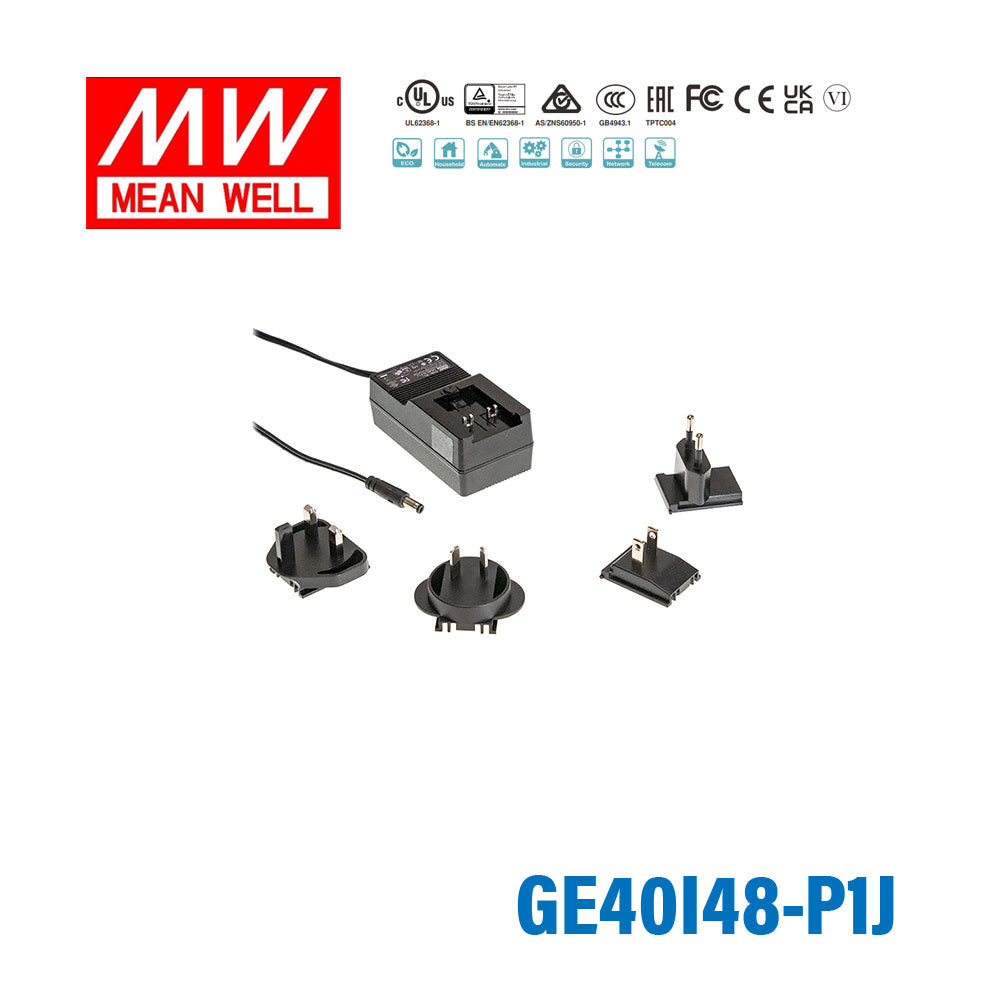

Mean Well GE40I48-P1J Power Supply 40W 48V
Description
Description
The GE40I48 is a 40W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating40 Watt
-
Output Voltage48 Volt
-
Rated Current0.83 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.91 in
-
Height1.57 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE40I48-P1J for a 48V telecom or networking device?
Yes, it can be used with 48V IT or telecom equipment that requires constant-voltage DC input and draws no more than 40W or 0.83A. Voltage match is critical, so the connected device should be specified for 48V operation.
Is the GE40I48-P1J suitable for a compact 48V automation or control subsystem?
It is a fit for compact 48V control or automation electronics when the load stays within 0.83A at 48V. This model is designed as a constant-voltage supply, so it should be used with equipment built for a fixed 48V DC source.
Can this 48V 40W model power embedded equipment that uses a 48V rail?
Yes, for embedded devices that are designed for 48V DC input and need no more than 40W. It accepts 90-264VAC input, which can help in installations with varying AC mains conditions.
Would the GE40I48-P1J work for a small 48V industrial communications node?
It can work for a 48V communications node or similar industrial electronics if the required current does not exceed 0.83A. Buyers should confirm that the equipment expects constant-voltage 48V DC rather than another output type.
Is this 48V supply appropriate for indoor-only use or outdoor use?
No IP rating is shown in the provided specifications, so this model should be treated as suited to protected indoor applications rather than exposed outdoor environments. The operating temperature range is -30°C to +70°C, but that does not replace a stated ingress-protection rating.
Other GE40 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GE40I24-P1J Power Supply 40W 24V | 40W | 24V | 1.67A | Indoor | $21.97 | View |
| Mean Well GE40I12-P1J Power Supply 39.6W 12V | 39.6W | 12V | 3.3A | Indoor | $21.97 | View |
| Mean Well GE40I09-P1J Power Supply 29.7W 9V | 29.7W | 9V | 3.3A | Indoor | $21.97 | View |
| Mean Well GE40I36-P1J Power Supply 40W 36V | 40W | 36V | 1.11A | Indoor | $21.97 | View |
| Mean Well GE40I18-P1J Power Supply 39.6W 18V | 39.6W | 18V | 2.2A | Indoor | $21.97 | View |
| Mean Well GE40I15-P1J Power Supply 40.5W 15V | 40.5W | 15V | 2.7A | Indoor | $21.97 | View |
| Mean Well GE40I07-P1J Power Supply 20W 7.5V | 20W | 7.5V | 2.66A | Indoor | $21.97 | View |
| Mean Well GE40I05-P1J Power Supply 20W 5V | 20W | 5V | 4A | Indoor | $21.97 | View |
