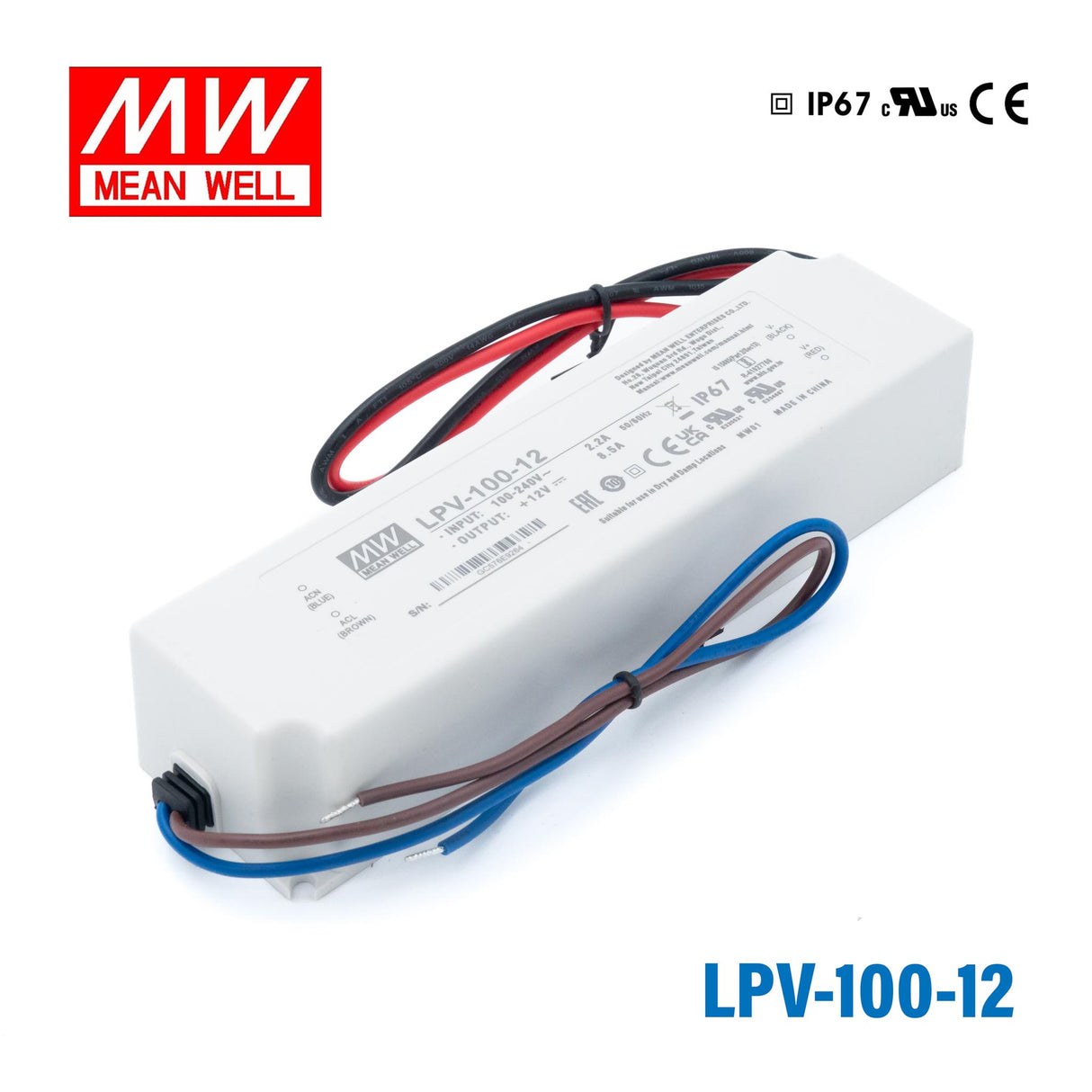

Mean Well LPV-100-12 LED Driver — 102W 12V 8.5A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-100-12 LED Driver — 102W 12V 8.5A IP67 Waterproof
The Mean Well LPV-100-12 is a 102W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 8.5A and carries CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-100-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -25°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 12V DC at up to 8.5A (102W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, UL
- ✓Wide operating temperature: -25°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 190.0 × 52.0 × 37.0 mm, 0.63 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length7.48 in
-
Width2.05 in
-
Height1.46 in
-
Weight1.39 lb
::specification::
Frequently Asked Questions
Is the LPV-100-12 suitable for outdoor LED strip installations?
Yes. The LPV-100-12 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water up to 1 meter, making it well suited for covered outdoor signage, landscape accent lighting, and exterior architectural strips running at 12V.
How many meters of 12V LED strip can the LPV-100-12 power?
The LPV-100-12 delivers 102W at 12V. To find the maximum length, divide 102W by your strip's rated wattage per meter — for example, a 10 W/m strip yields up to 10.2 meters, while a 14.4 W/m strip yields about 7 meters. Always verify your strip's rated power per meter before sizing.
Can the LPV-100-12 work with both 120V and 240V mains supplies?
Yes. Its universal input range of 90–264 VAC covers both 120V North American and 240V European/international mains without any manual switching or adapter.
What is the operating temperature range of the LPV-100-12?
The LPV-100-12 operates from -25°C to +70°C, allowing use in cold outdoor environments as well as moderately warm enclosures. Sustained operation near the upper end of that range may require derating; consult the full datasheet for derating curves.
How does the LPV-100-12 compare to the LPV-150-12 for the same 12V application?
Both output 12V DC, but they differ in capacity and input requirements: the LPV-100-12 supplies 102W / 8.5A on a 90–264 VAC input, while the LPV-150-12 supplies 120W / 10A but requires a narrower 180–305 VAC input. Choose the LPV-100-12 when you need 120V compatibility; choose the LPV-150-12 when higher current at 12V is needed and 200V-class mains are available.
