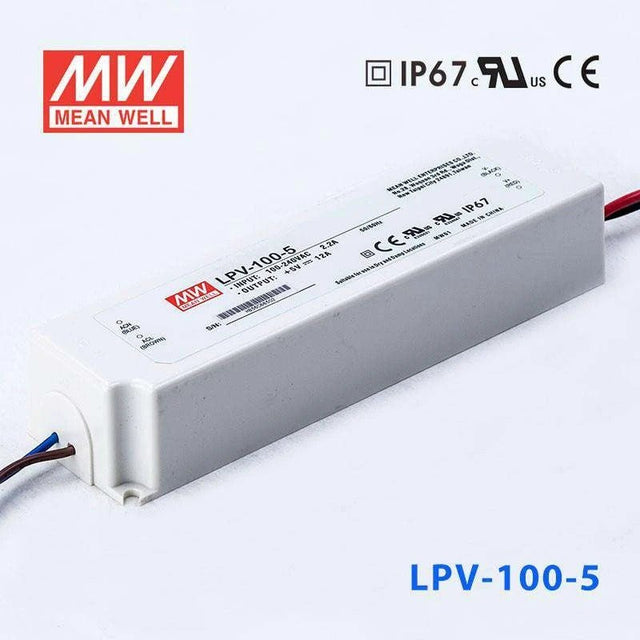

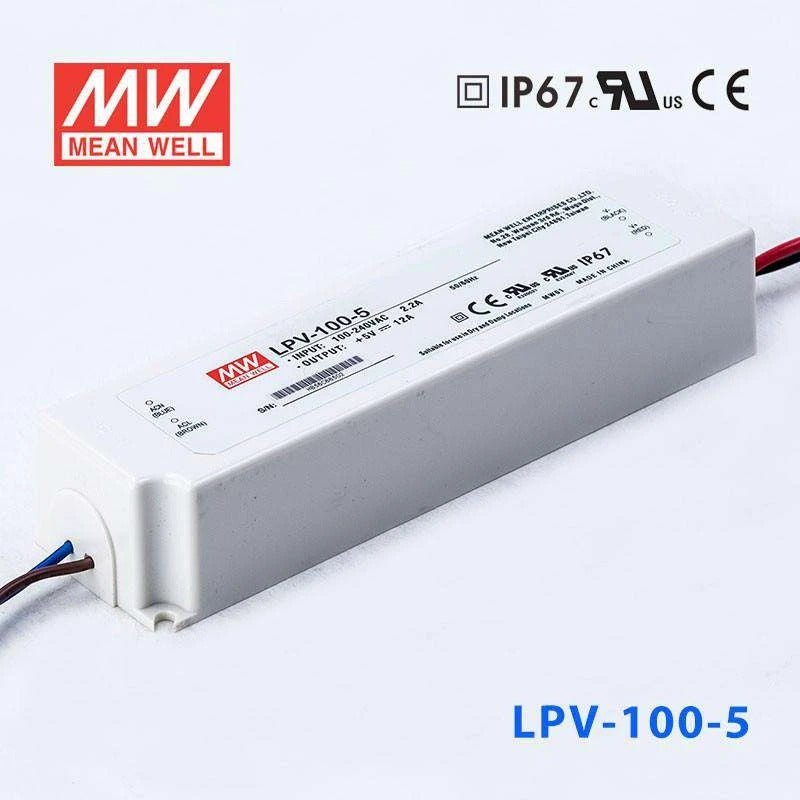

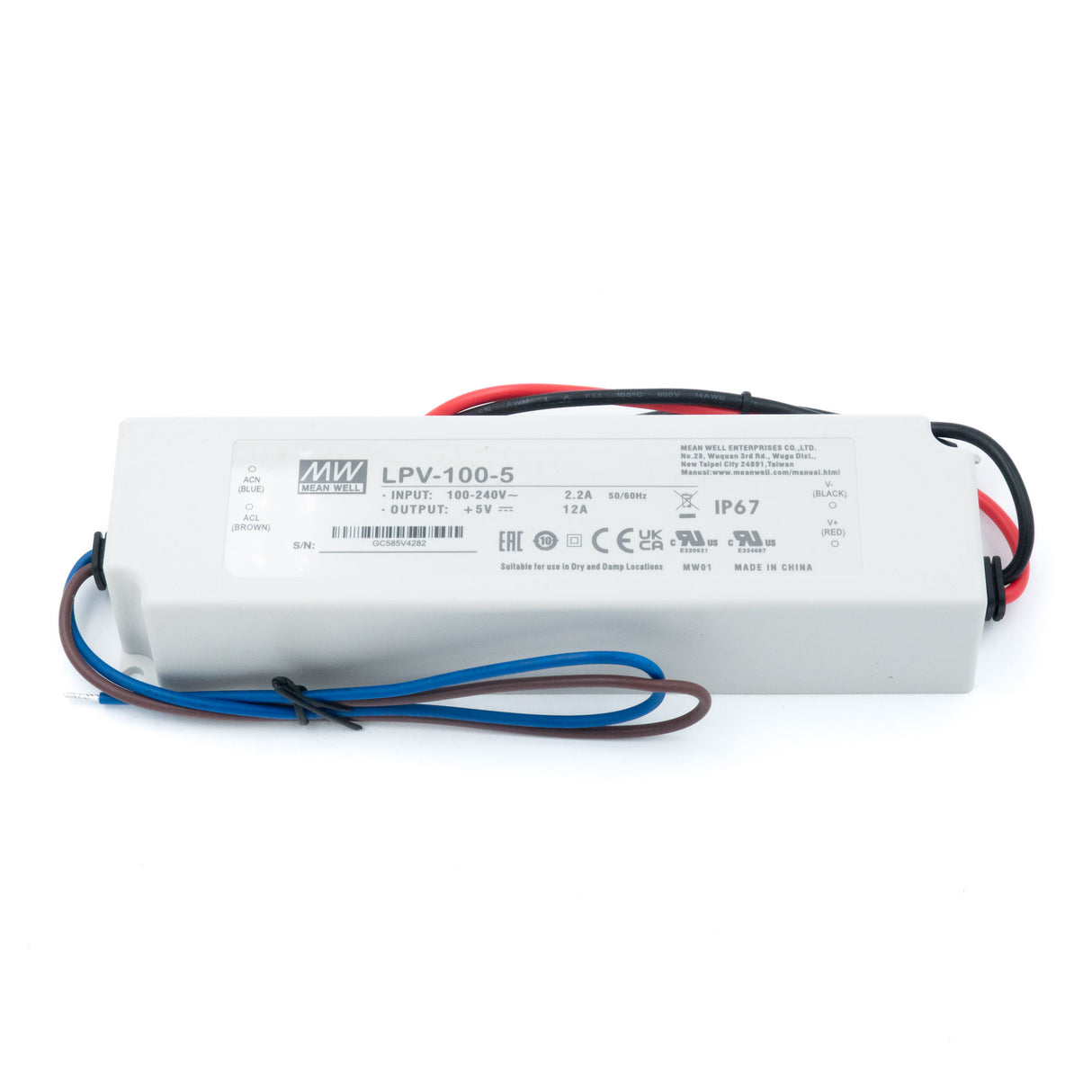

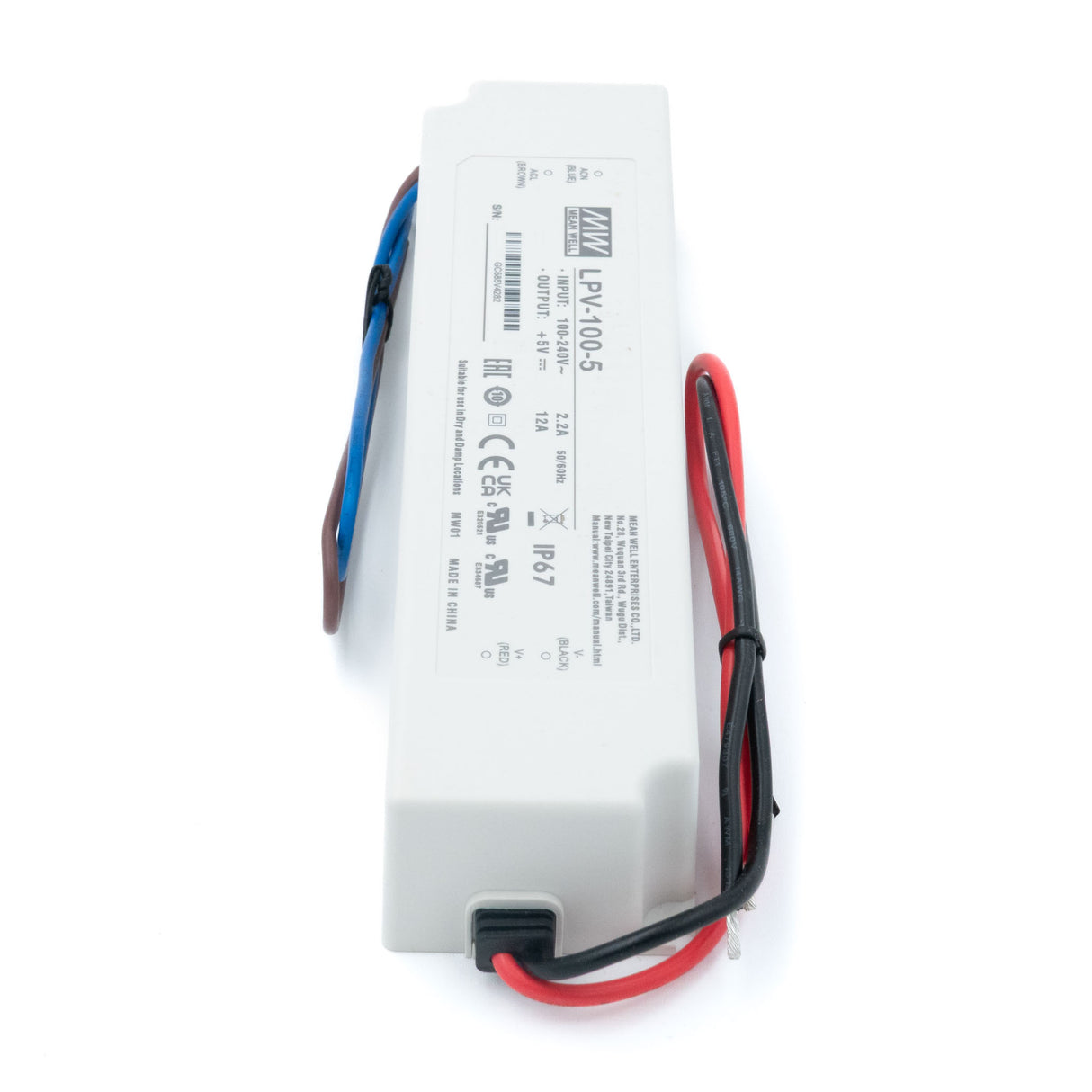

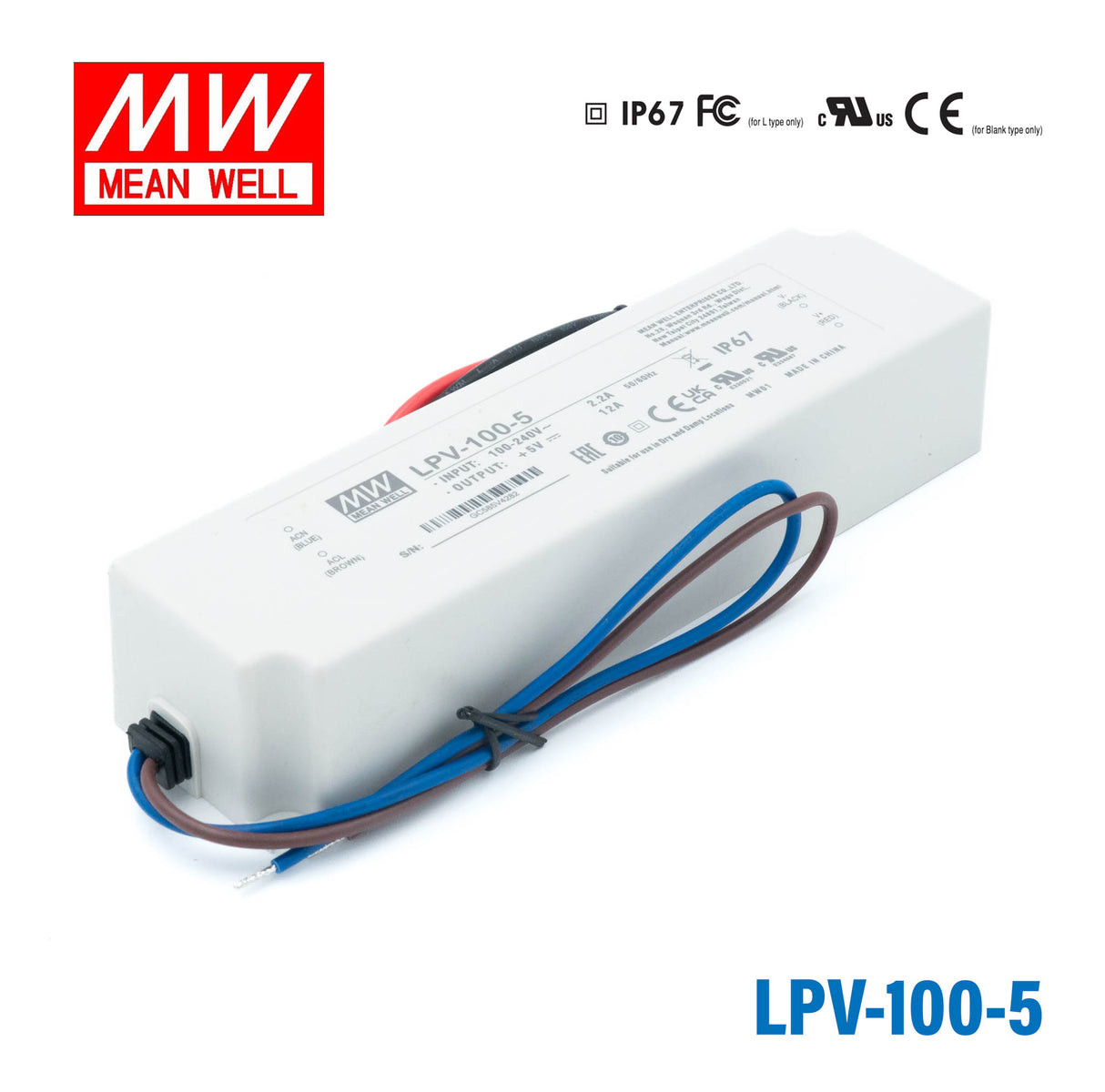

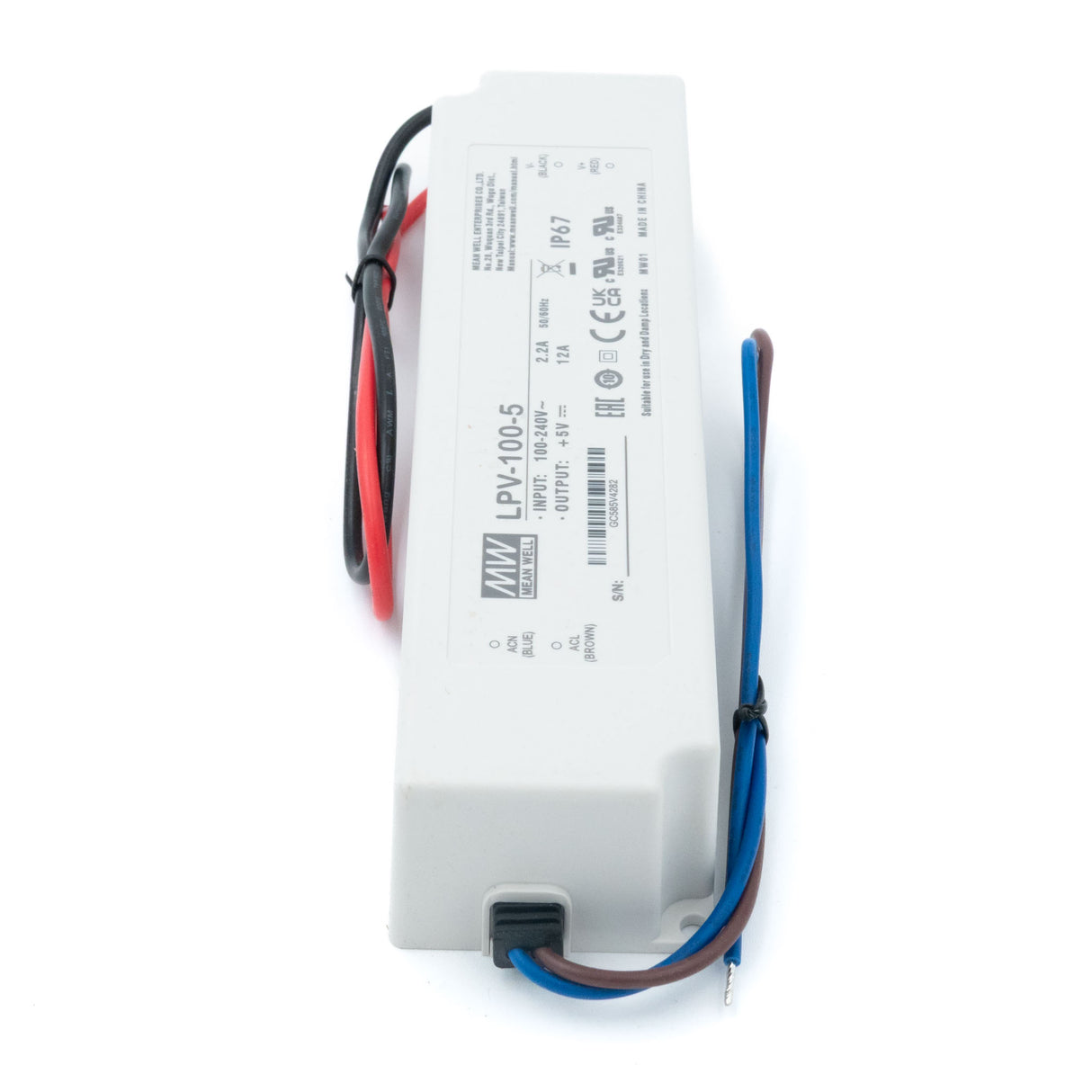

Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-100-5 LED Driver — 60W 5V 12A IP67 Waterproof
Overview
LPV-100-5 is the 5V output model of this series: rated current 12A, rated power 60W, typical efficiency 80%.
Features
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level (Note.7)
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Display devices for decorative & advertising accessories (Note.11)
- General-purpose electronics operated in dusty or damp environments
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 12A
- CURRENT RANGE
- 0 ~ 12A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- VOLTAGE TOLERANCENote.3
- ±8.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±6.0%
- SETUP, RISE TIMENote.6
- 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
- HOLD UP TIME (Typ.)
- 50ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 80%
- AC CURRENT
- 2.2A/115VAC 1.2A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 190*52*37mm (L*W*H)
- PACKING
- 0.61Kg;20pcs/13.2Kg/0.57CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Suitable for indoor use or outdoor use without direct sunlight exposure.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 12. R-41027766 (GZ factory) only for 12V,24V / R-62002178 (ID factory) for 5V~48V
Technical drawings
Downloads
FAQ
What LED applications use a 5V DC supply?
The LPV-100-5 outputs 5V DC at up to 12A (60W), which is the standard supply voltage for addressable/digital LED strips such as WS2812B and SK6812 types commonly used in decorative displays, indoor signage, and pixel-mapped installations. Ensure your total strip load does not exceed 60W.
How many meters of 5V addressable LED strip can the LPV-100-5 support?
The LPV-100-5 provides 60W at 5V. Divide 60W by your strip's wattage per meter — a 5V strip at 9W/m (e.g., 30 LEDs/m at full white) allows roughly 6.6 meters, while a strip at 6W/m supports about 10 meters. Always verify the rated power per meter for your specific strip at full brightness.
Is the LPV-100-5 suitable for outdoor pixel displays or exterior decorative installations?
Yes, with care. The unit is fully encapsulated to IP67 and Mean Well rates it for indoor use or outdoor use without direct sunlight exposure, so it can be installed in covered outdoor sign boxes or weatherproof enclosures supporting exterior 5V LED pixel displays. The working temperature is -25°C to +70°C, but the 5V model must be derated at higher ambient temperatures (see the derating curve).
Why does the LPV-100-5 show only 60W when the series family is nominally 100W?
The LPV-100 is a 100W-class series, but the rated power differs by model. At 5V the rated output is 60W (5V × 12A), because the rated output current of this model is 12A. The higher-voltage models of the LPV-100 series are rated from 100.5W to 102W.
Does the LPV-100-5 accept 120V and 240V mains without modification?
Yes. The universal input range of 90–264 VAC means the LPV-100-5 operates on both 120V North American and 230–240V international mains with no jumpers or switches to change.
