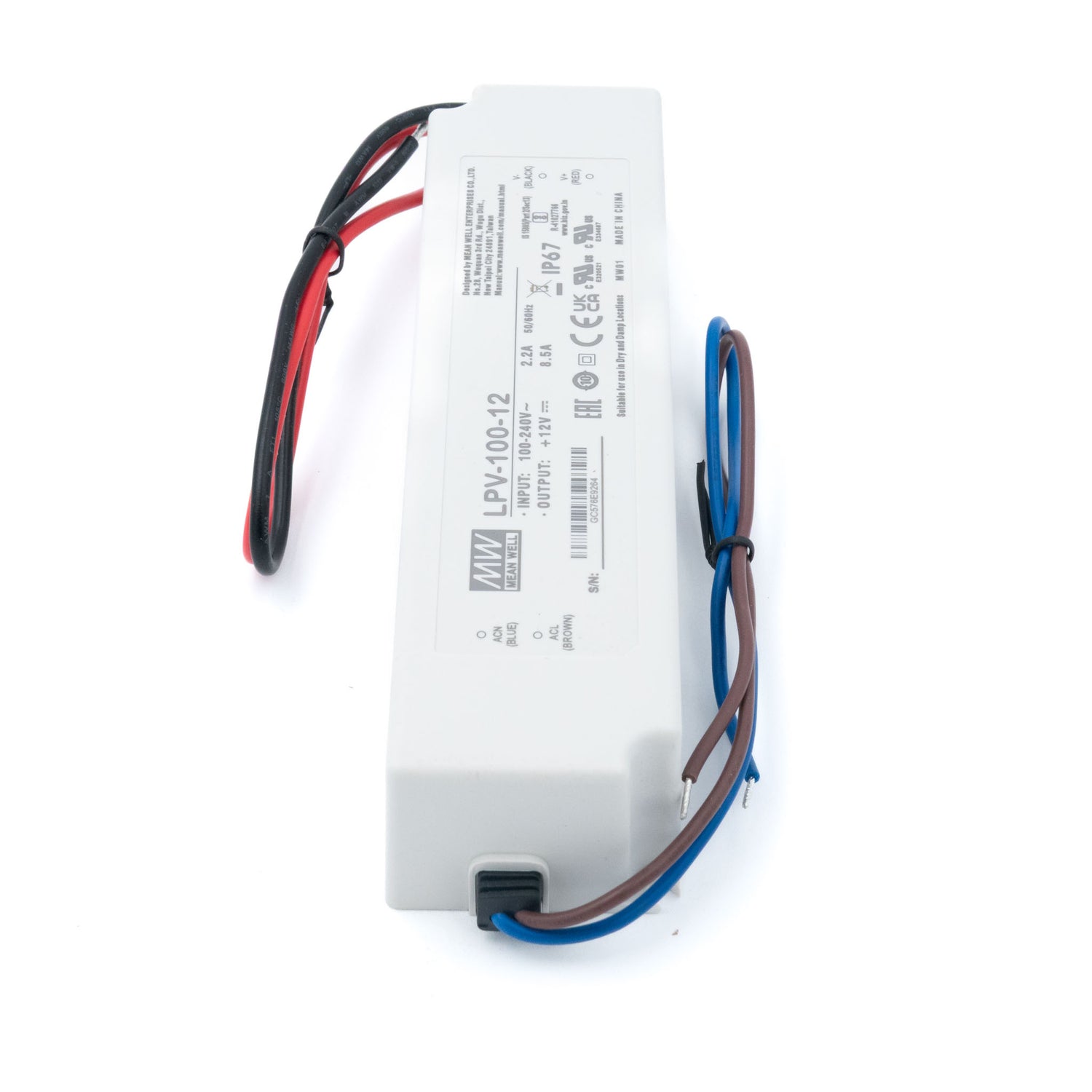

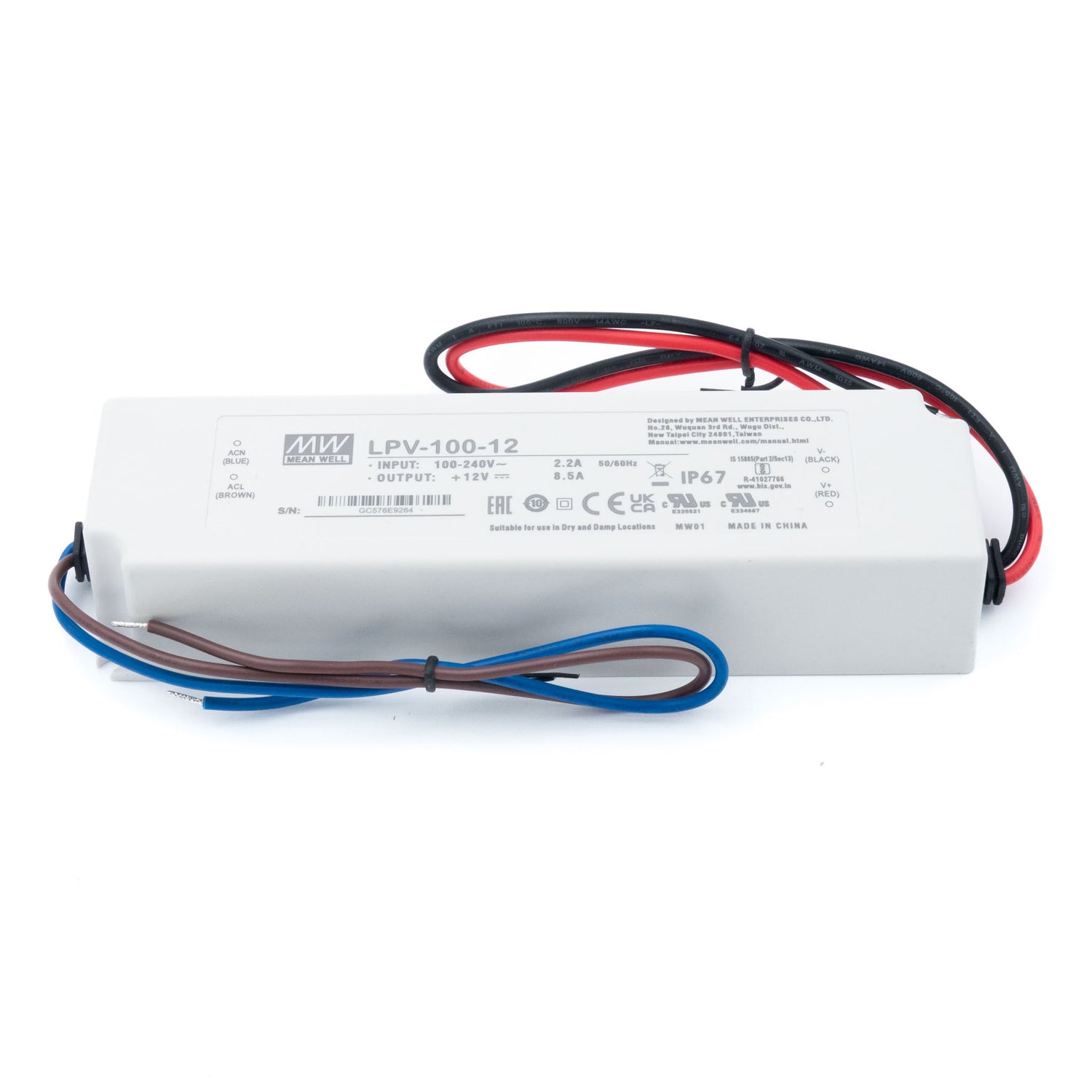

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

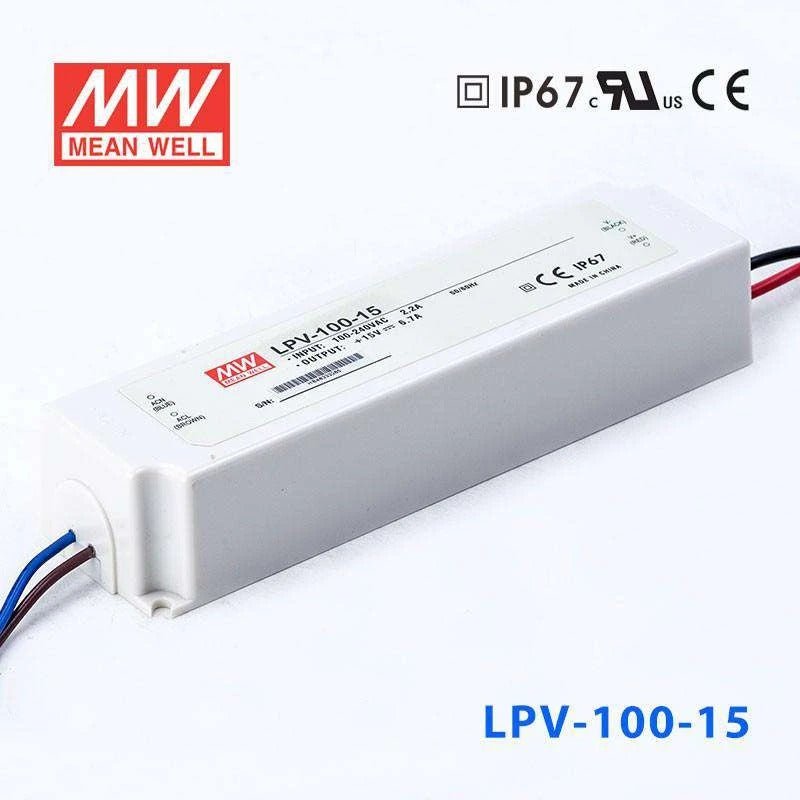

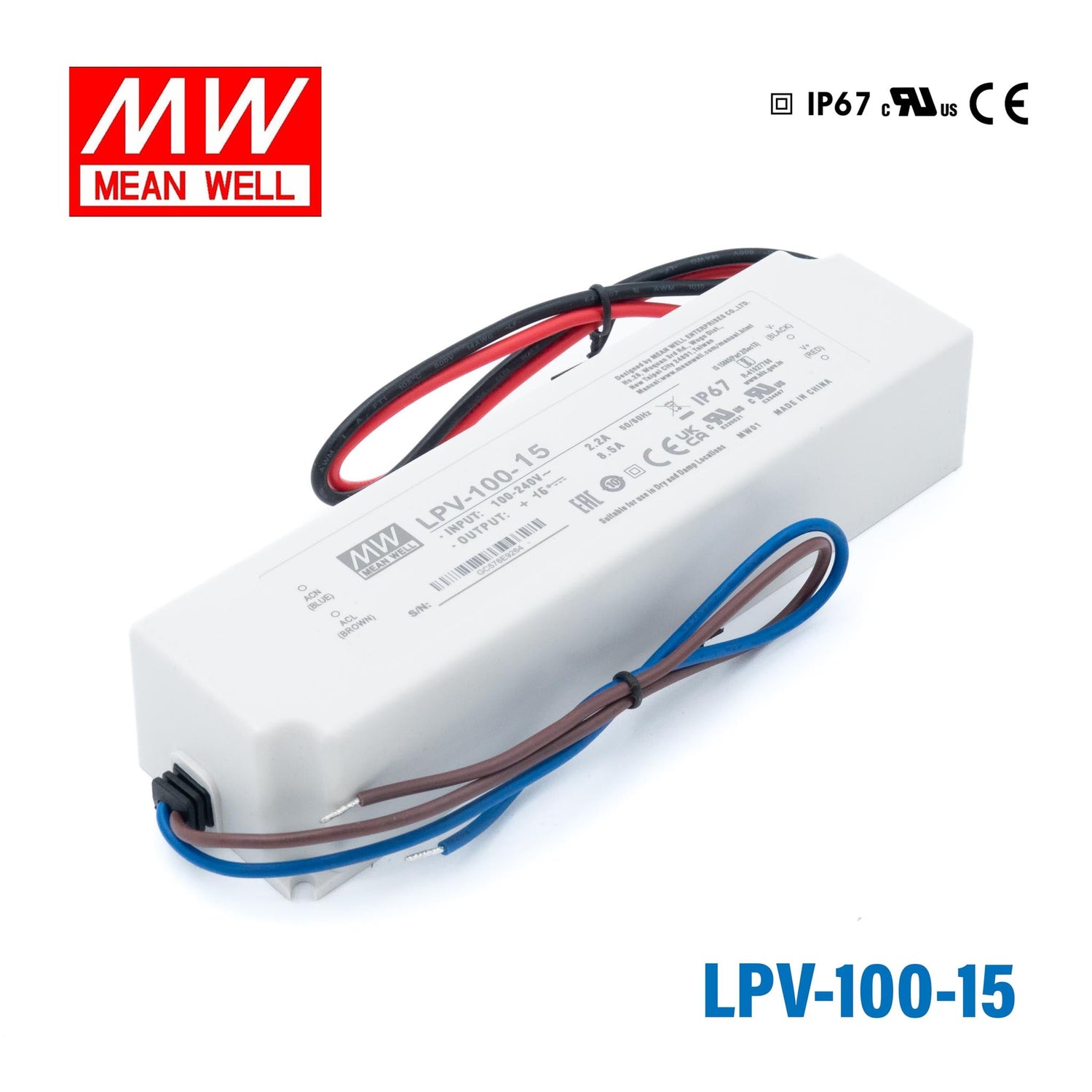

Mean Well LPV-100-15 LED Driver — 100.5W 15V 6.7A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-100-15 LED Driver — 100.5W 15V 6.7A IP67 Waterproof
Overview
LPV-100-15 is the 15V output model of this series: rated current 6.7A, rated power 100.5W, typical efficiency 87%.
Features
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level (Note.7)
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Display devices for decorative & advertising accessories (Note.11)
- General-purpose electronics operated in dusty or damp environments
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 6.7A
- CURRENT RANGE
- 0 ~ 6.7A
- RATED POWER
- 100.5W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
- HOLD UP TIME (Typ.)
- 50ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT
- 2.2A/115VAC 1.2A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 190*52*37mm (L*W*H)
- PACKING
- 0.61Kg;20pcs/13.2Kg/0.57CUFT
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Suitable for indoor use or outdoor use without direct sunlight exposure.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the TUV/BIS/CCC logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 11. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 12. R-41027766 (GZ factory) only for 12V,24V / R-62002178 (ID factory) for 5V~48V
Technical drawings
Downloads
FAQ
What types of LED loads is the LPV-100-15 designed for?
The LPV-100-15 outputs a constant 15V DC at up to 6.7A (100.5W total), making it suited for 15V LED strips and modular LED signage panels that require a voltage rail above the common 12V standard. Its IP67 rating also makes it usable in covered outdoor signage out of direct sunlight.
Can the LPV-100-15 be used in a humid or wet outdoor environment?
The unit is fully encapsulated to IP67, dust-tight and able to withstand temporary water immersion, and Mean Well rates it for indoor use or outdoor use without direct sunlight exposure, so it is appropriate for covered or shaded outdoor installations and damp environments such as garden feature lighting or exterior channel-letter signage using 15V strips.
How many meters of 15V LED strip can the LPV-100-15 support?
With 100.5W available at 15V, divide by your strip's rated wattage per meter to find the limit — a 10 W/m strip allows roughly 10 meters, and a 7.5 W/m strip allows about 13 meters. Always confirm the exact rated power per meter printed on your strip before finalising the run length.
Is the LPV-100-15 certifed for North American markets?
Yes. The LPV-100-15 is approved to UL8750, UL879 and CSA C22.2 for North America, plus IEC/EN62368-1, BIS IS15885 and EAC TP TC 004 for European, Indian and Eurasian markets.
