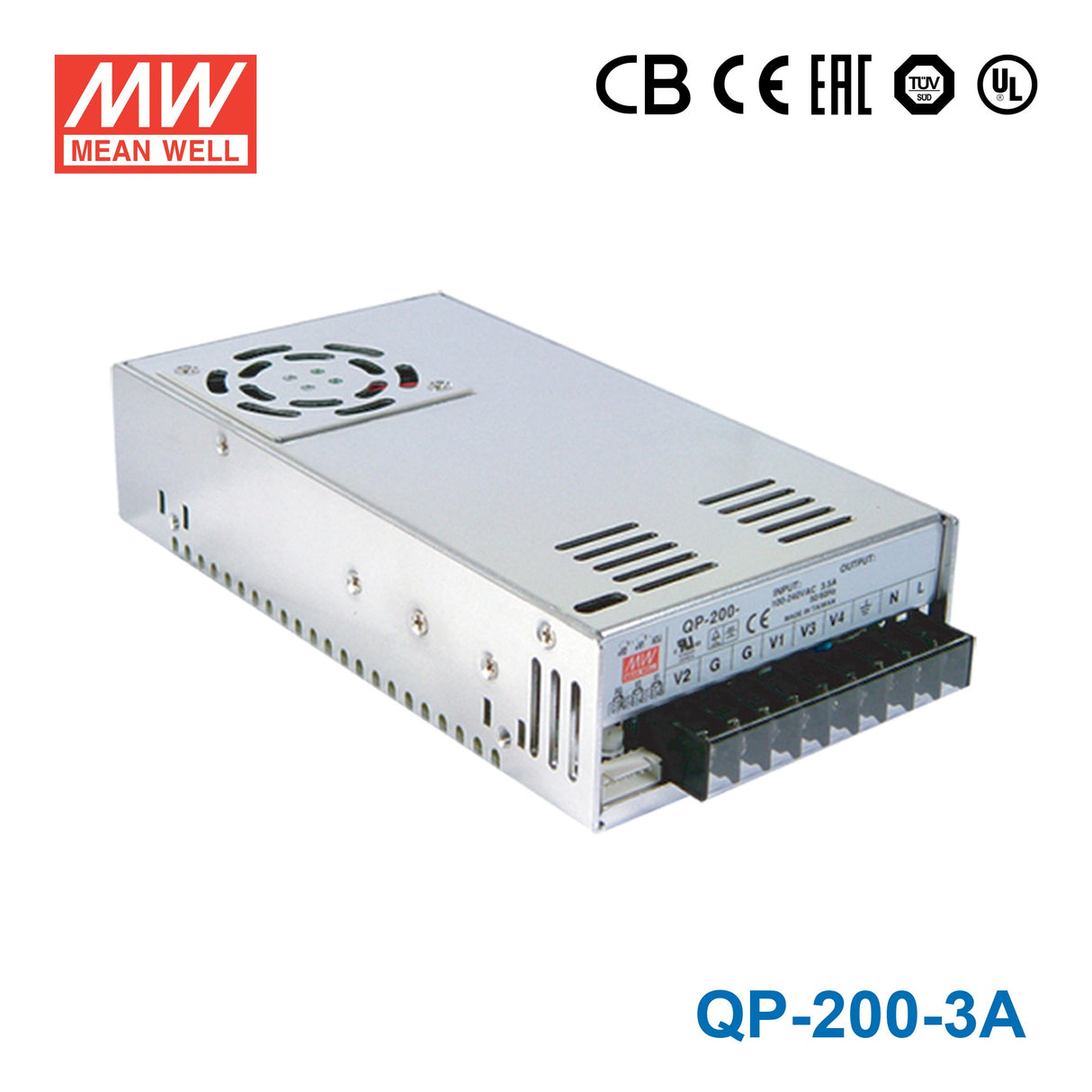

Mean Well QP-200-3A Power Supply 200W 5V 3.3V 12V -5V
The QP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+60℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -10~+60℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF ℃ , 10 ~ 95% RH non-condensing -20 ~ +85 ± 0.03%/ ℃ (0~50 ℃ ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes , UL60950-1, TUV EN60950-1 EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesQP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.65 lb
::specification::
Frequently Asked Questions
Can I use the QP-200-3A for PLC or industrial control electronics that need 5V and 3.3V logic rails?
Yes, this quad-output supply is well matched to control electronics that combine 5V and 3.3V logic with additional auxiliary rails. It delivers 5V at 15A, includes 3.3V, 12V, and -5V outputs, and is rated for 200W total.
Is the QP-200-3A suitable for powering embedded computing and interface boards in one chassis?
It can be a good fit when an embedded system needs several regulated constant-voltage outputs from one AC-fed supply. The 90-264VAC input range, 200W rating, and 5V 15A main rail make it suitable for fixed multi-board equipment rather than a single-output load.
Would this model work for industrial test equipment that combines digital and low-voltage support rails?
Yes, the output mix of 5V, 3.3V, 12V, and -5V is aligned with electronic test, measurement, and interface assemblies that use both logic and support rails. Its quad-output design and 200W capacity are more relevant to mixed-voltage equipment than to a basic 5V-only application.
Can the QP-200-3A be used outdoors or in unprotected ambient conditions?
The provided specifications do not include an IP rating, so outdoor or washdown use is not established by this data. The listed operating temperature range is -10C to +60C, which defines the ambient range it is specified for.
How does the QP-200-3A compare with other QP 200 series options?
In the 200 group shown here, QP-200-3A is 200W with 5V and 15A, QP-200-3B is 203.4W, QP-200-3C is 203.4W, QP-200-3D is 203.9W with 5V and 10A, QP-200-3E is 203.4W, QP-200D is 203.4W with 5V and 15A, and QP-200F is 202.5W with 5V and 15A. The wider family also includes 100W and 150 class models, 316W models QP-320D and QP-320F with 5V and 20A, and 375W to 378W 5V and 24V models.
