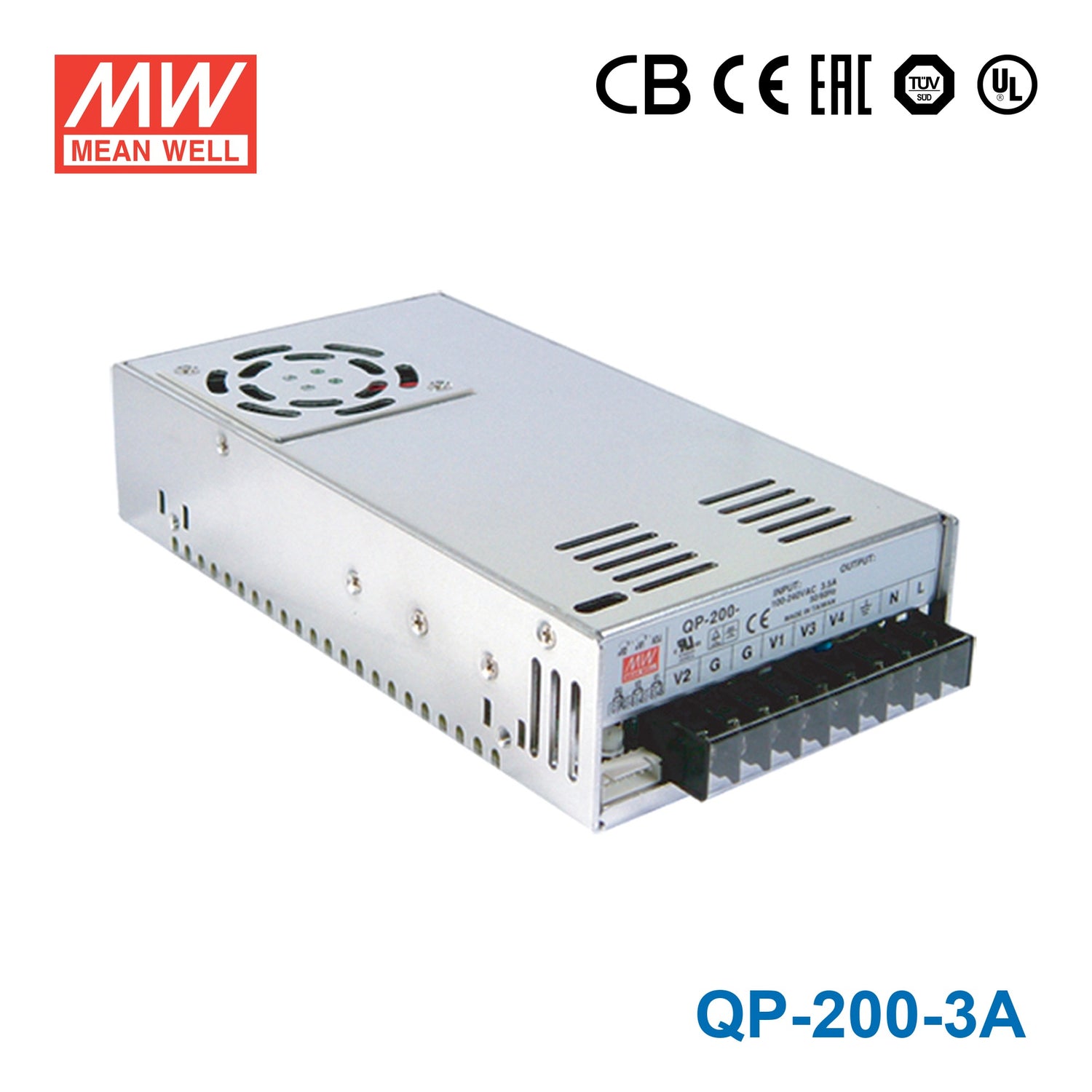

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well QP-200-3A Power Supply 200W 5V 3.3V 12V -5V

built-in active PFC, PF>0.95, quad output

SKU:

QP-200-3A

$120.62 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Protections: Short circuit / Overload / Over voltage

Built-in active PFC function, PF>0.95

Universal AC input/Full range

Cooling by built-in DC fan

High operating temperature up to 60°C

Built-in remote sense function for CH1,2

Fixed switching frequency at 100KHz

High efficiency, long life and high reliability

3 years warranty

General Specification

AC input voltage range	90~264VAC, 127~373VDC
AC inrush current (max.)	50A at 230VAC
DC adjustment range	±10% by potentiometer for CH1, CH2
Overload protection	110%~150%
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature	-10~+60°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	Terminal block for input and output
Dimension (LxWxH)	215x 115x 50
Case No.	912B
Packing	12pcs /15.4kg

Specifications

Brand

Mean Well
Series

QP Series
Power Rating

200 Watt
Output Voltage

5 Volt
Rated Current

15 Ampere
Input Voltage

90V~264V
No of Output

4
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.97 in
Weight

2.65 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the QP-200-3A for PLC or industrial control electronics that need 5V and 3.3V logic rails?

Yes, this quad-output supply is well matched to control electronics that combine 5V and 3.3V logic with additional auxiliary rails. It delivers 5V at 15A, includes 3.3V, 12V, and -5V outputs, and is rated for 200W total.

Is the QP-200-3A suitable for powering embedded computing and interface boards in one chassis?

It can be a good fit when an embedded system needs several regulated constant-voltage outputs from one AC-fed supply. The 90-264VAC input range, 200W rating, and 5V 15A main rail make it suitable for fixed multi-board equipment rather than a single-output load.

Would this model work for industrial test equipment that combines digital and low-voltage support rails?

Yes, the output mix of 5V, 3.3V, 12V, and -5V is aligned with electronic test, measurement, and interface assemblies that use both logic and support rails. Its quad-output design and 200W capacity are more relevant to mixed-voltage equipment than to a basic 5V-only application.

Can the QP-200-3A be used outdoors or in unprotected ambient conditions?

The provided specifications do not include an IP rating, so outdoor or washdown use is not established by this data. The listed operating temperature range is -10C to +60C, which defines the ambient range it is specified for.

How does the QP-200-3A compare with other QP 200 series options?

In the 200 group shown here, QP-200-3A is 200W with 5V and 15A, QP-200-3B is 203.4W, QP-200-3C is 203.4W, QP-200-3D is 203.9W with 5V and 10A, QP-200-3E is 203.4W, QP-200D is 203.4W with 5V and 15A, and QP-200F is 202.5W with 5V and 15A. The wider family also includes 100W and 150 class models, 316W models QP-320D and QP-320F with 5V and 20A, and 375W to 378W 5V and 24V models.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well QP-200-3D PFC Switching Power Supply	203.9W	5V	10A	Indoor	$74.09	View
