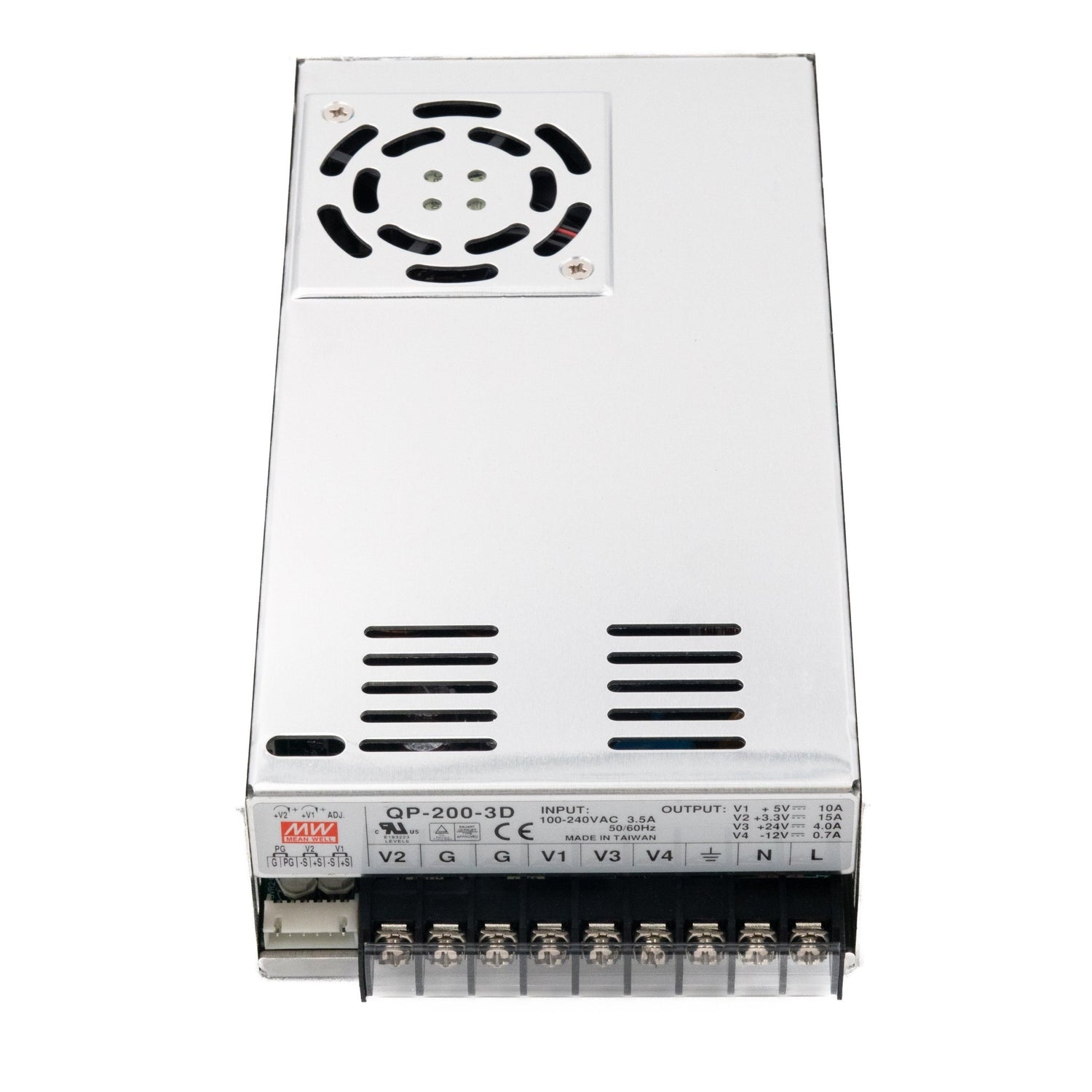

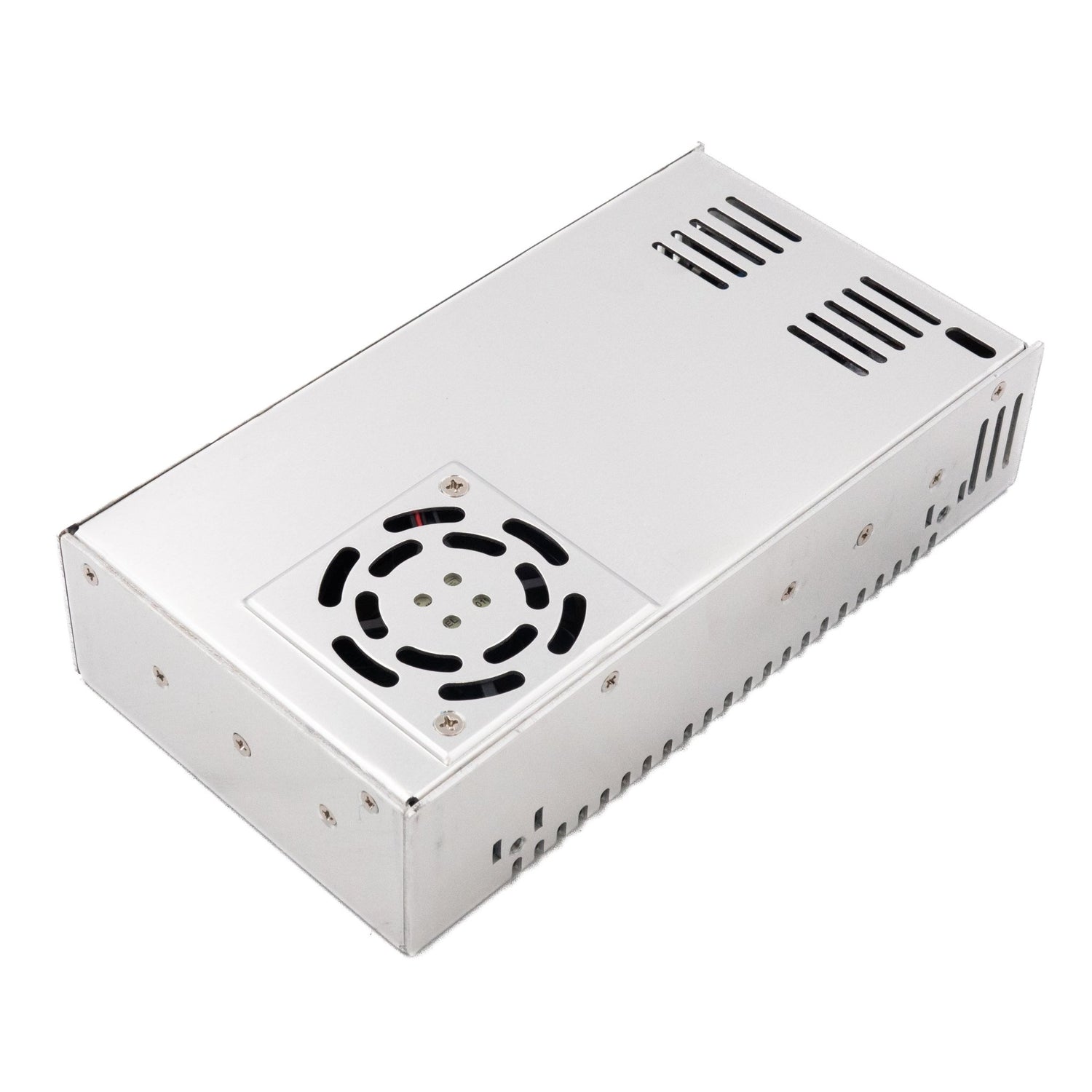

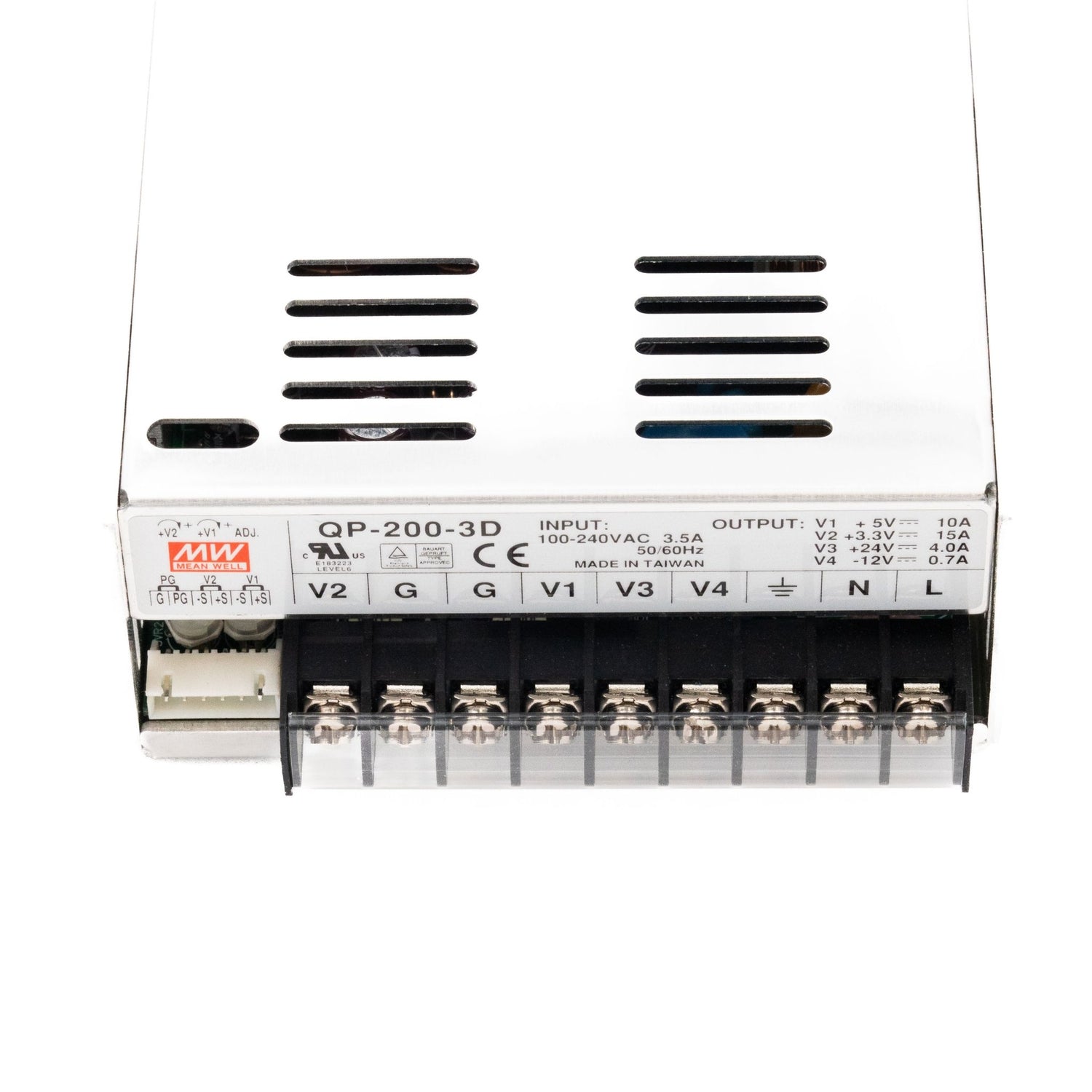

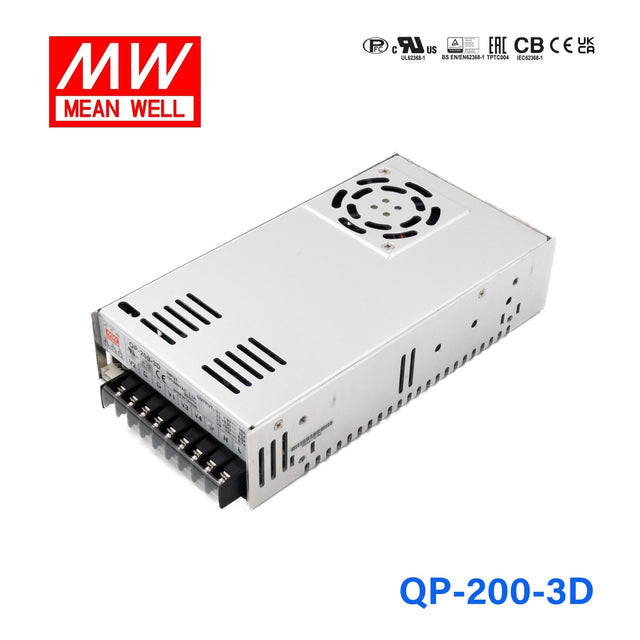

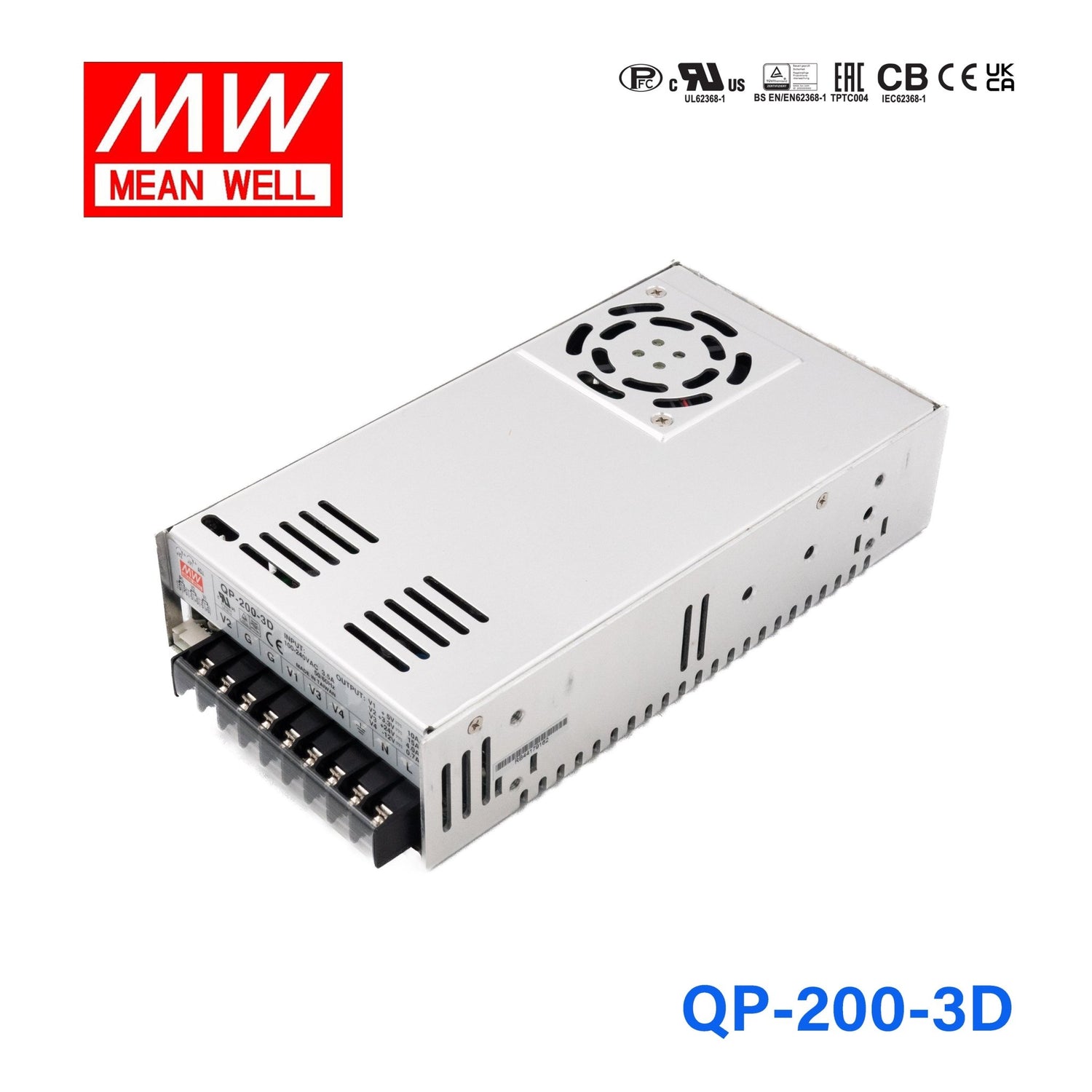

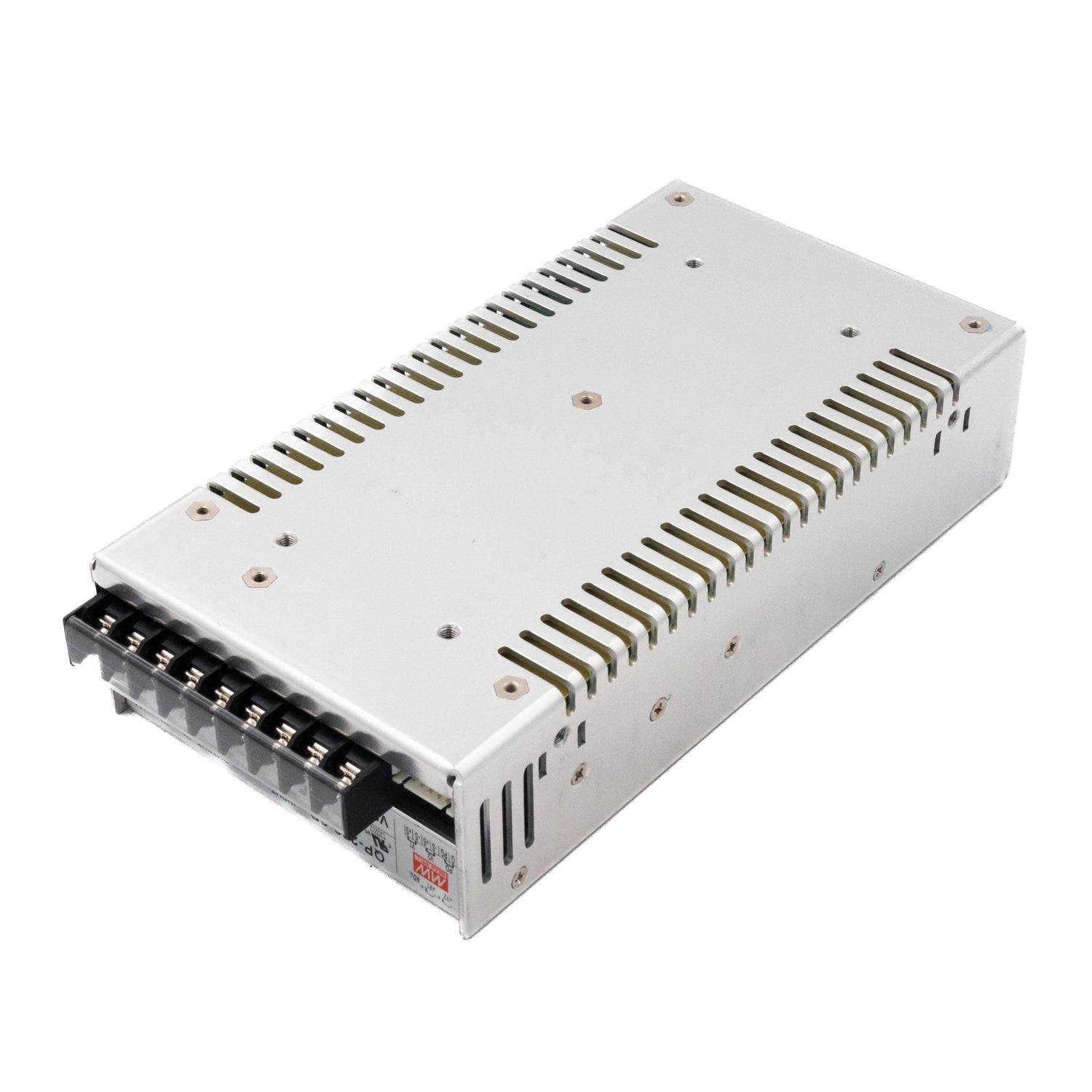

Mean Well QP-200-3D PFC Switching Power Supply 10A
$157.92 USD
Unit price /
Unavailable
Overview
QP-200-3D is the 5V 3.3V 24V -12V output model of this series: rated current 10A 15A 4A 0.7A, rated power 203.9W, typical efficiency 74%.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- CH1,2 can be adjustable from -5~+10%
- With power good and fail signal output(Optional)
- Built-in remote sense function for CH1,2
- 100% full load burn-in test
- CH4 can set to positive after consult us before delivery(Optional)
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Specifications
QP-200-3DSpecifications from the official datasheet (2024-11-22 edition)
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3 CH4
- DC VOLTAGE
- 5V 3.3V 24V -12V
- RATED CURRENT
- 10A 15A 4A 0.7A
- CURRENT RANGE
- 3 ~ 15A 0 ~ 20A 0.4 ~ 5A 0 ~ 1A
- RATED POWER
- 203.9W
- PEAK CURRENTNote.4
- 20A 20A 6A 1A
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p 100mVp-p 150mVp-p 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V
- VOLTAGE TOLERANCENote.3
- ±3.0% ±3.0% +10,-6% ±6.0%
- LINE REGULATION
- ±1.0% ±1.0% ±2.0% ±1.0%
- LOAD REGULATION
- ±2.0% ±2.0% ±6.0% ±2.0%
- SETUP, RISE TIME
- 800ms, 50ms at full load
- HOLD UP TIME (Typ.)
- 24ms at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 74%
- AC CURRENT (Typ.)
- 3.5A/115VAC 2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- POWER GOOD / POWER FAIL(OPTIONAL)
- 10ms/1ms
ENVIRONMENT
- WORKING TEMP.

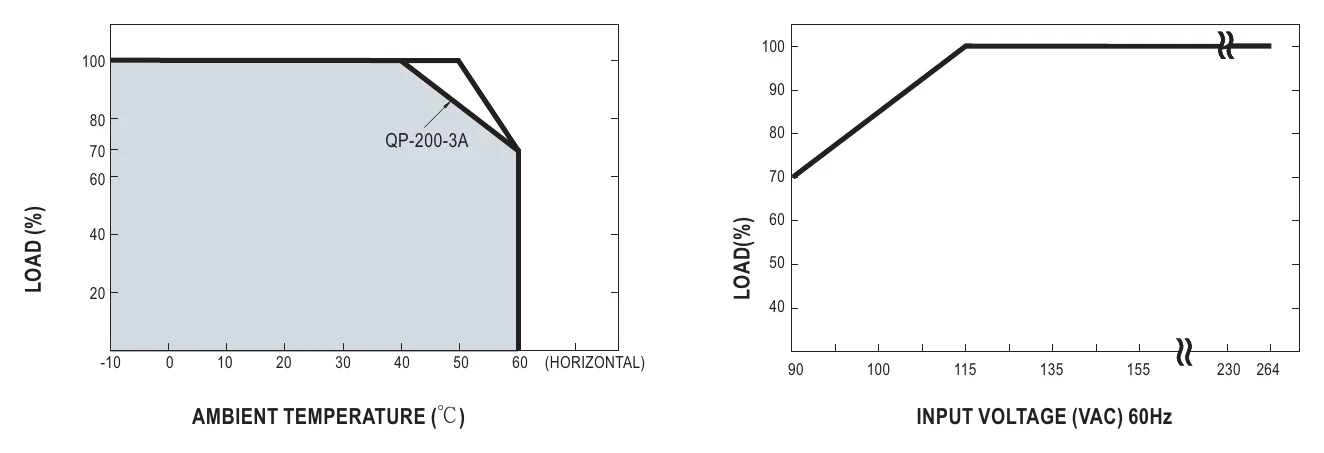

- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃ , 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ± 0.03%/℃ (0~50℃ )
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 6)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 160.6K hrs min. MIL-HDBK-217F (25℃ )
- DIMENSION
- 215*115*50mm (L*W*H)
- PACKING
- 1.2Kg; 12pcs/15.4Kg/0.9CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

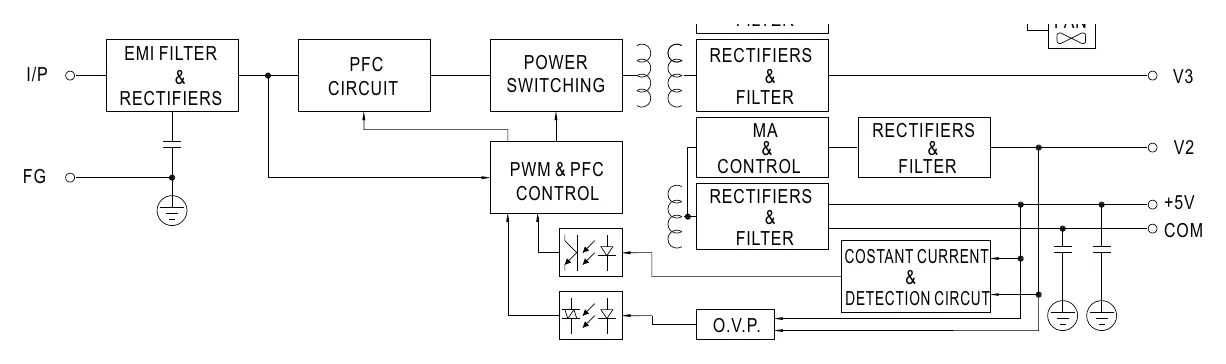

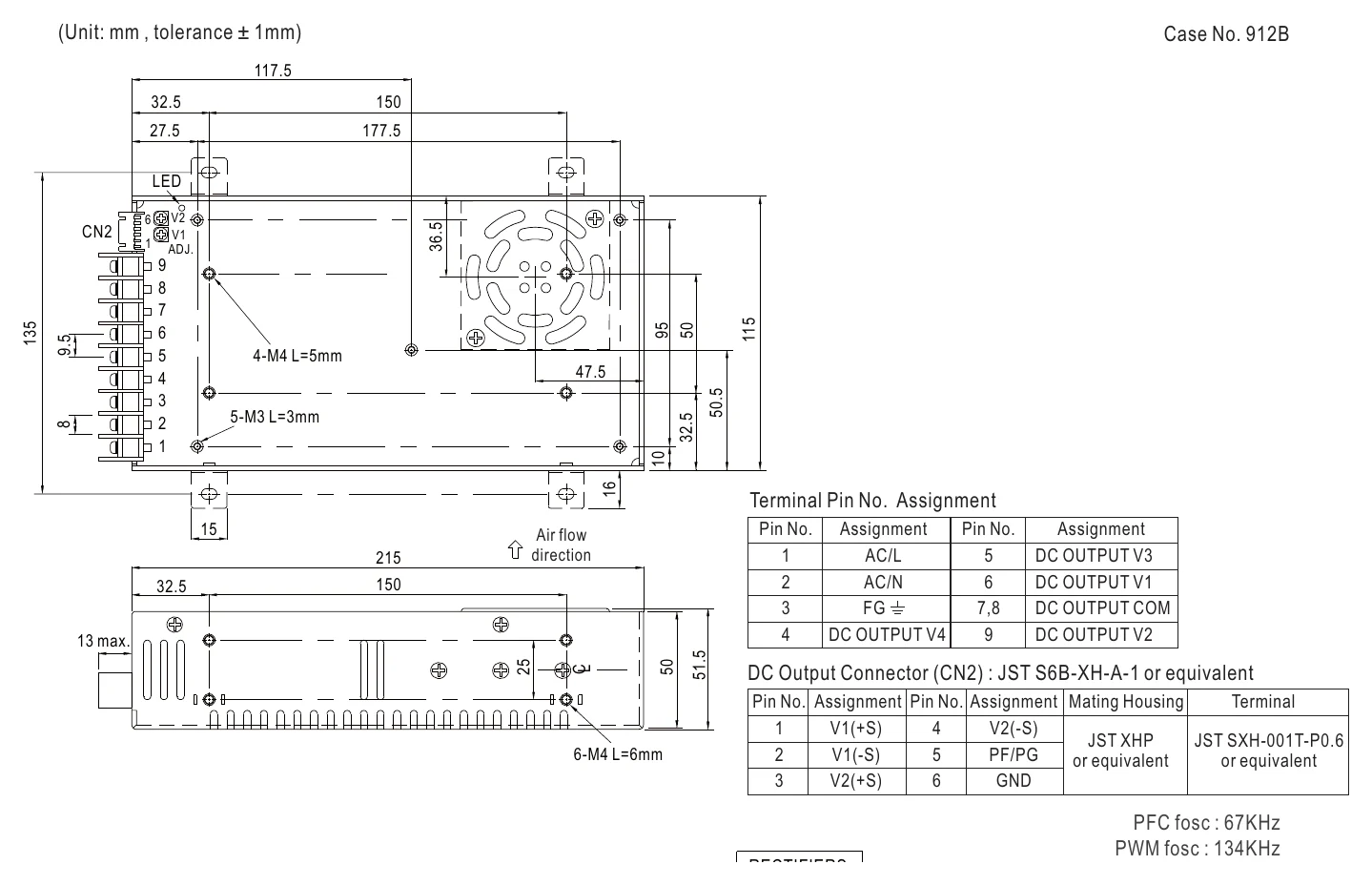

Technical drawings
Downloads
Datasheet1
