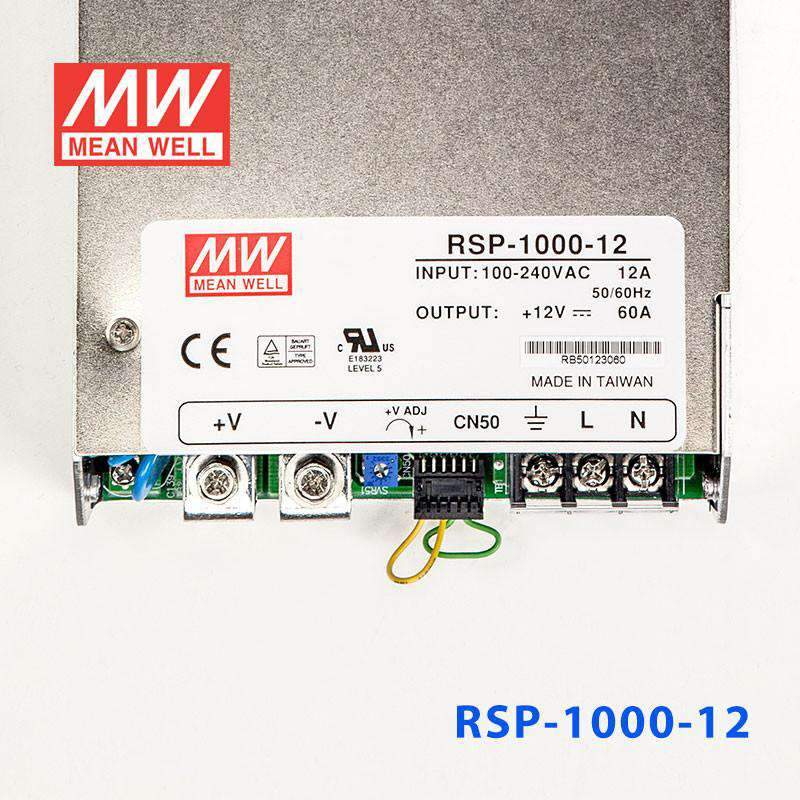

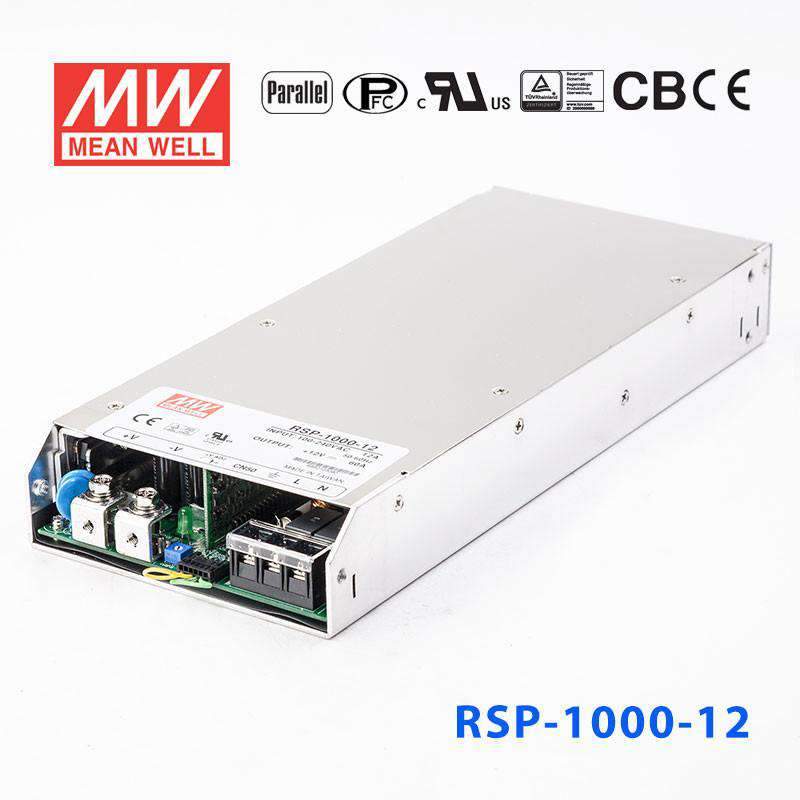

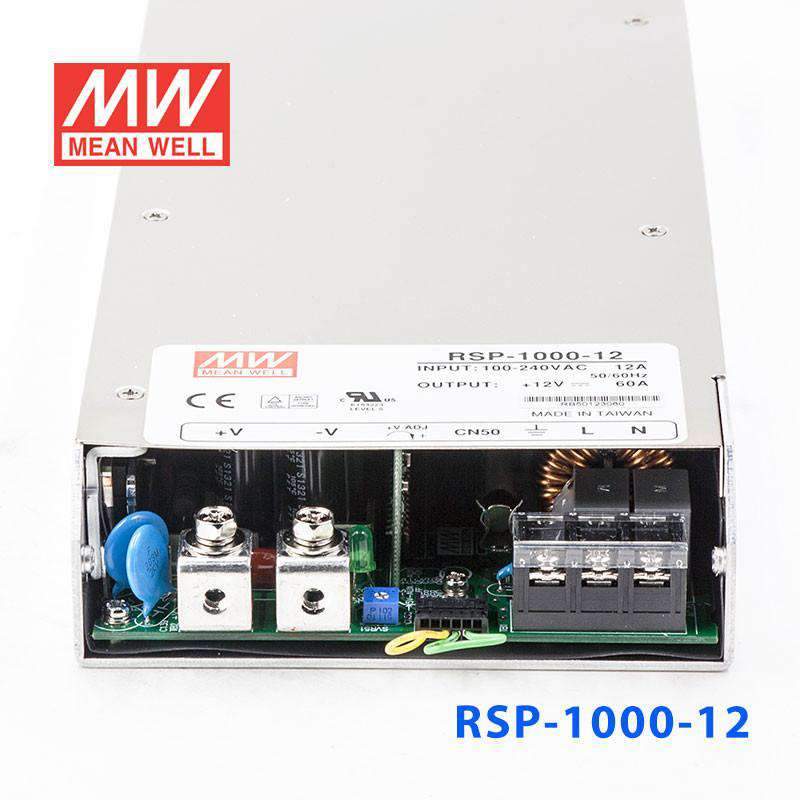

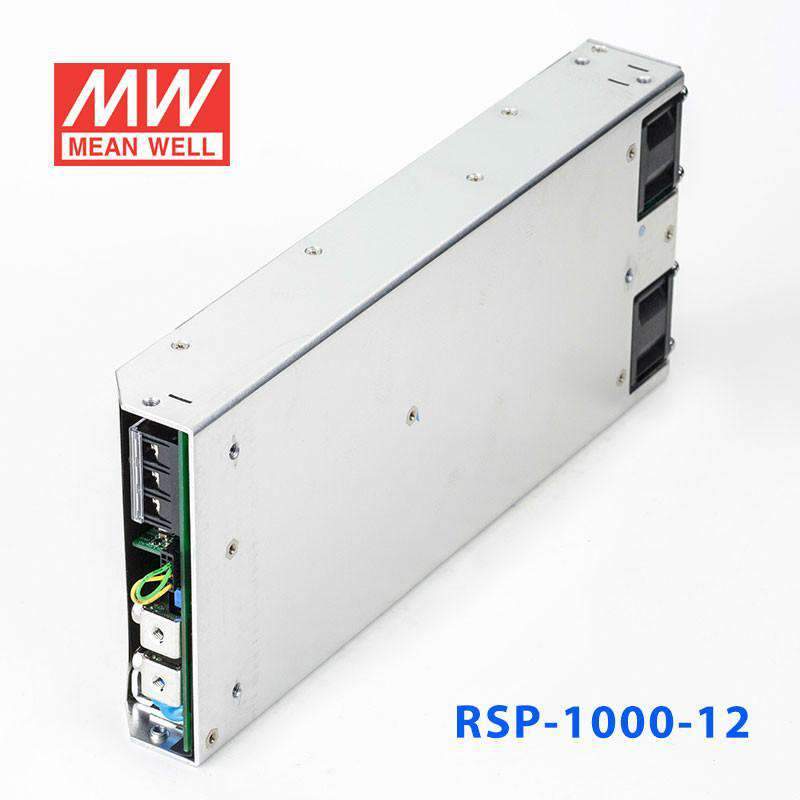

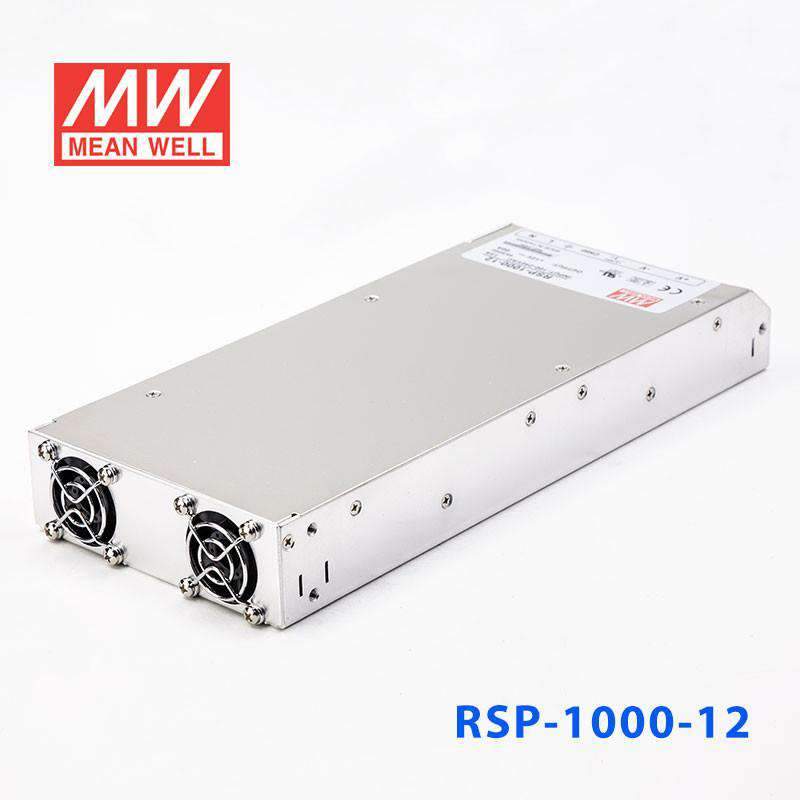

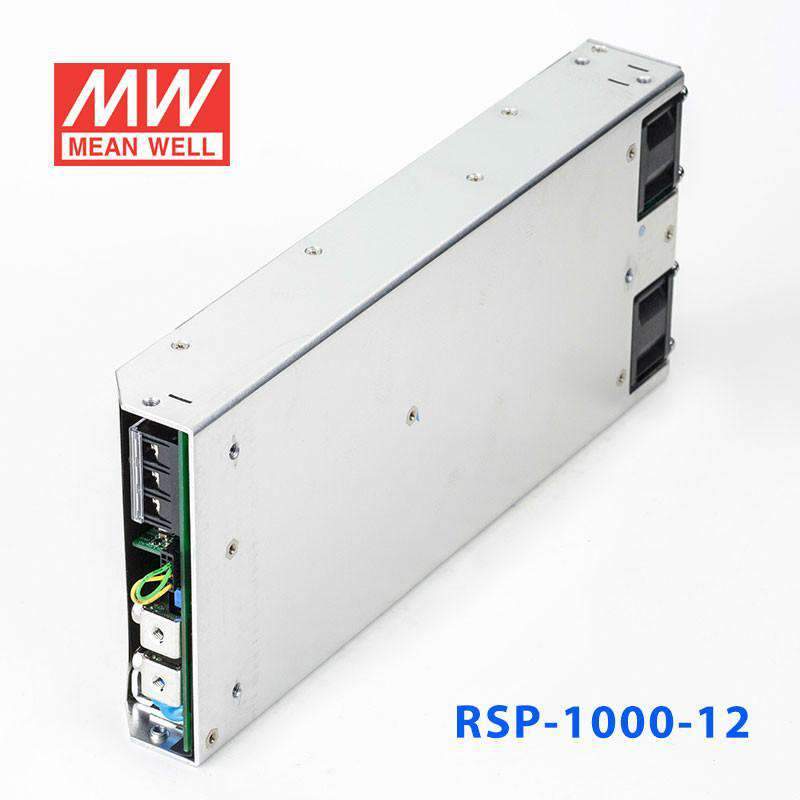

Mean Well RSP-1000-12 Power Supply 720W 12V 60A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1000-12 Power Supply 720W 12V 60A
The RSP-1000 is a 720W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+60°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 60A
- ✓ Operating temperature: -20~+60°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: BSMI, CB, CCC, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
::specification::
Frequently Asked Questions
What high-power industrial applications is the RSP-1000-12 suited for?
The RSP-1000-12 delivers 12V at 60A (720W) and is designed for high-current 12V DC bus applications including industrial machine control systems, multi-axis motion controllers, large relay panels, and centralized 12V distribution in automation cells. The 90–264VAC input supports worldwide single-phase supply.
What does the active current sharing (3+1) feature mean for the RSP-1000-12?
Active current sharing (3+1) means up to three RSP-1000-12 units can operate in parallel to triple the output current to 180A while a fourth unit can serve as a hot standby for N+1 redundancy. This allows the system to sustain 60A per operating unit with automatic load balancing, improving both capacity and reliability.
How does the RSP-1000-12 compare to the other RSP-1000 voltage variants?
The RSP-1000 series is available in five voltage options: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). All share the same 295.0 × 127.0 × 41.0 mm form factor, 90–264VAC input, -20°C to +60°C operating range, and 5-year warranty. The 12V variant provides the highest current at 60A.
What is the operating temperature range of the RSP-1000-12 and how does it affect deployment?
The RSP-1000-12 operates from -20°C to +60°C ambient. Note that the upper limit is +60°C rather than the +70°C found in smaller RSP-100/150/200 models. In higher ambient environments, ensure the enclosure provides adequate cooling to keep ambient at or below +60°C for this unit.
Does the RSP-1000-12 include active PFC and how efficient is it?
Yes. The RSP-1000-12 includes built-in active PFC and achieves up to 91% efficiency. This means at full 720W output, input losses are approximately 79W, reducing heat dissipation and lowering operating costs compared to lower-efficiency supplies at this power level.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-1000 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-1000-48 Power Supply 1008W 48V 21A | 1008W | 48V | 21A | Indoor | $209.55 | View |
| Mean Well RSP-1000-24 Power Supply 960W 24V 40A | 960W | 24V | 40A | Indoor | $210.55 | View |
| Mean Well RSP-1000-27 Power Supply 999W 27V 37A | 999W | 27V | 37A | Indoor | $271.44 | View |
