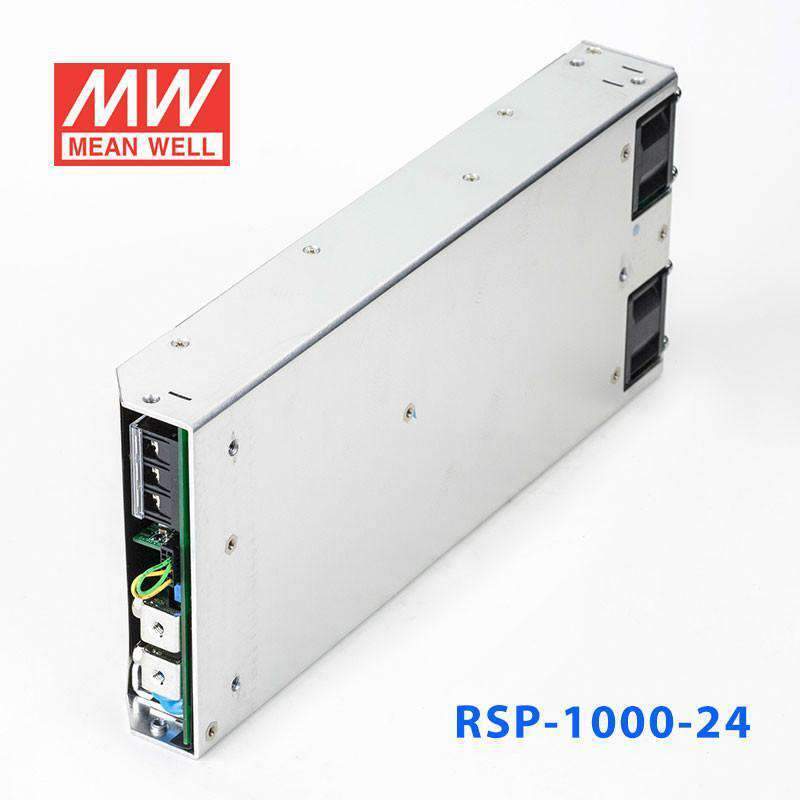

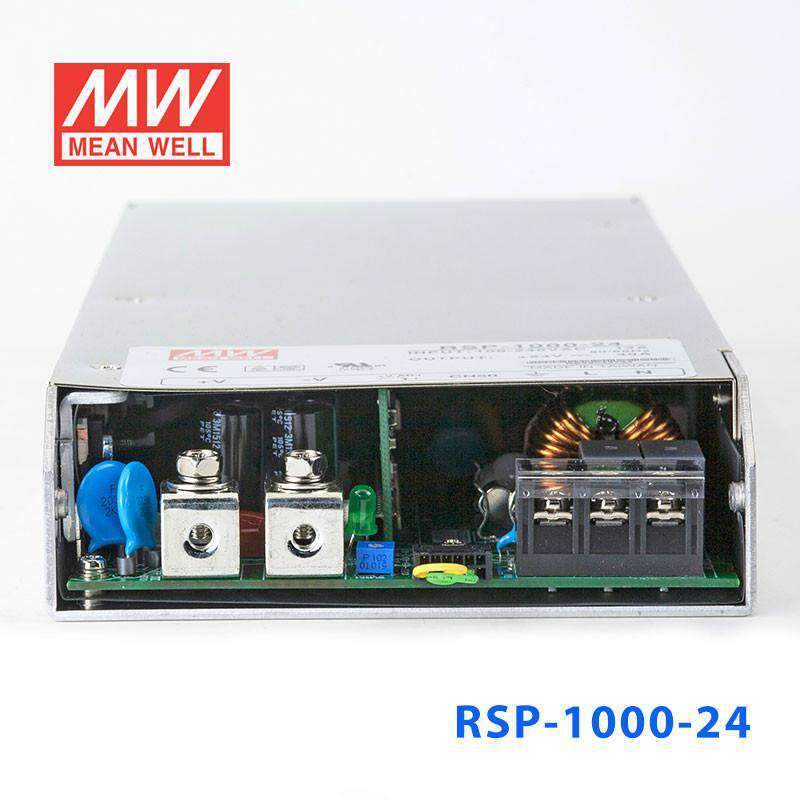

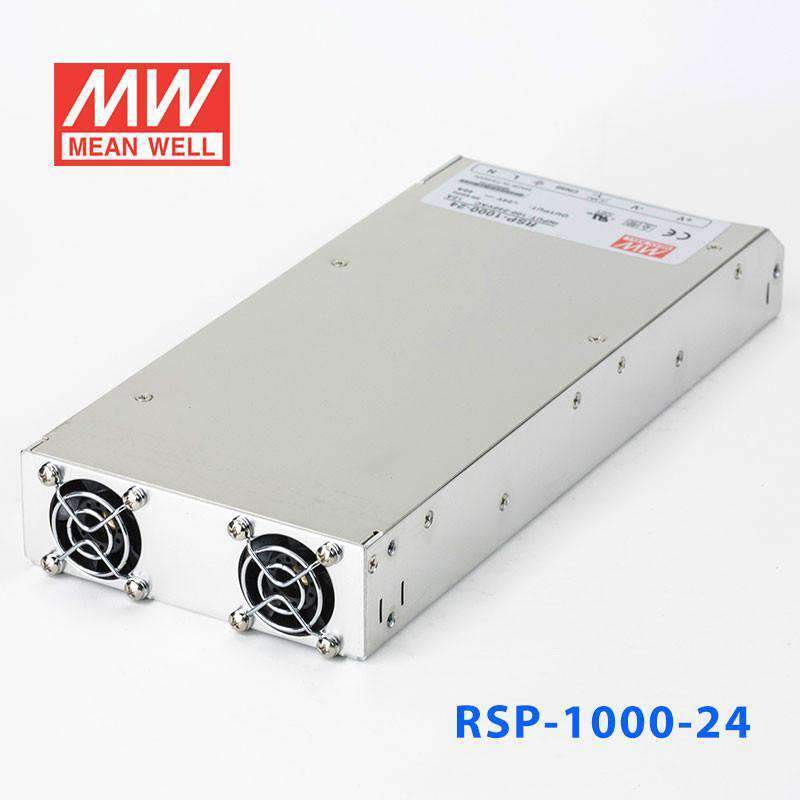

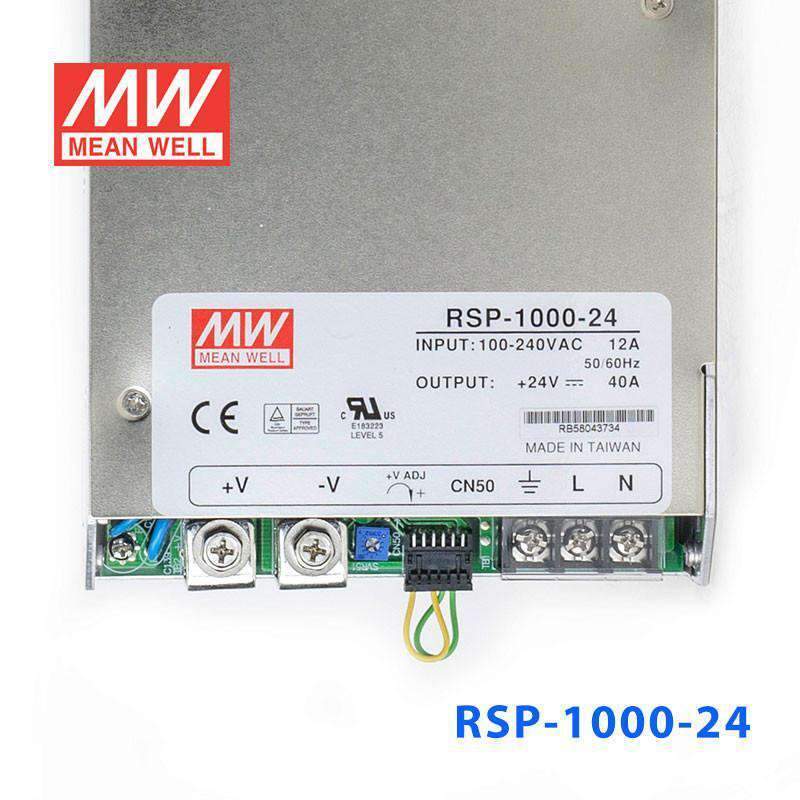

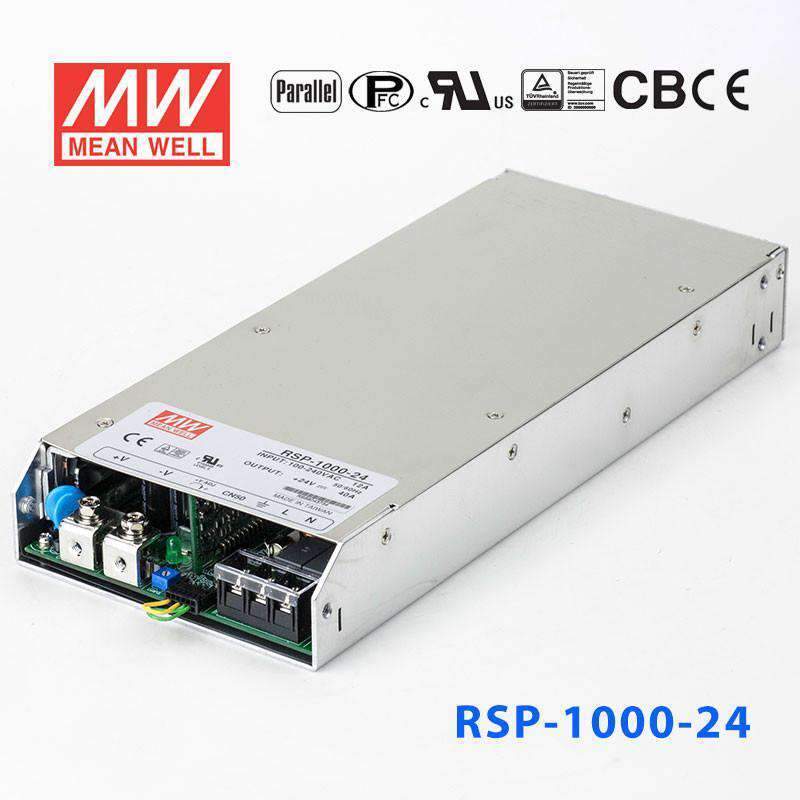

Mean Well RSP-1000-24 Power Supply 960W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-1000-24 Power Supply 960W 24V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| DC OK signal |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~125% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~135% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 10mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 295x127x41 |
| Case No. | 952B |
| Packing | 1.95kg; 6pcs / 12.7kg / 1.15CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the RSP-1000-24 supply a 24V DC bus for a large industrial automation system?
Yes. The RSP-1000-24 delivers 24V at 40A (960W), making it appropriate for powering 24V DC distribution buses in large PLCs, motor drives with 24V logic rails, and industrial control panels with multiple 24V loads. The 90–264VAC input provides universal single-phase compatibility.
What redundancy options are available with the RSP-1000-24?
The RSP-1000-24 supports active current sharing (3+1), enabling up to three units in parallel for 120A at 24V with a fourth unit providing N+1 hot-standby redundancy. The active sharing function balances current automatically across units.
How does the RSP-1000-24 compare to the RSP-1000-48 at the two most common industrial voltages?
The RSP-1000-24 outputs 24V at 40A (960W) while the RSP-1000-48 outputs 48V at 21A (1008W). Both use the same 295.0 × 127.0 × 41.0 mm chassis, 90–264VAC input, -20°C to +60°C temperature range, and 5-year warranty. The 48V model delivers slightly higher total wattage at a lower current.
What is the ambient temperature limit for the RSP-1000-24?
The RSP-1000-24 is rated from -20°C to +60°C ambient. The +60°C upper limit means enclosure cooling must be verified for installations in warm climates or high-load conditions. The unit should not be operated in ambient temperatures above +60°C.
What efficiency does the RSP-1000-24 achieve?
The RSP-1000-24 includes built-in active PFC and achieves up to 91% efficiency. At the rated 960W output, this corresponds to approximately 1055W input power, with roughly 95W dissipated as heat. This is significantly more efficient than typical non-PFC designs at comparable power.
