Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

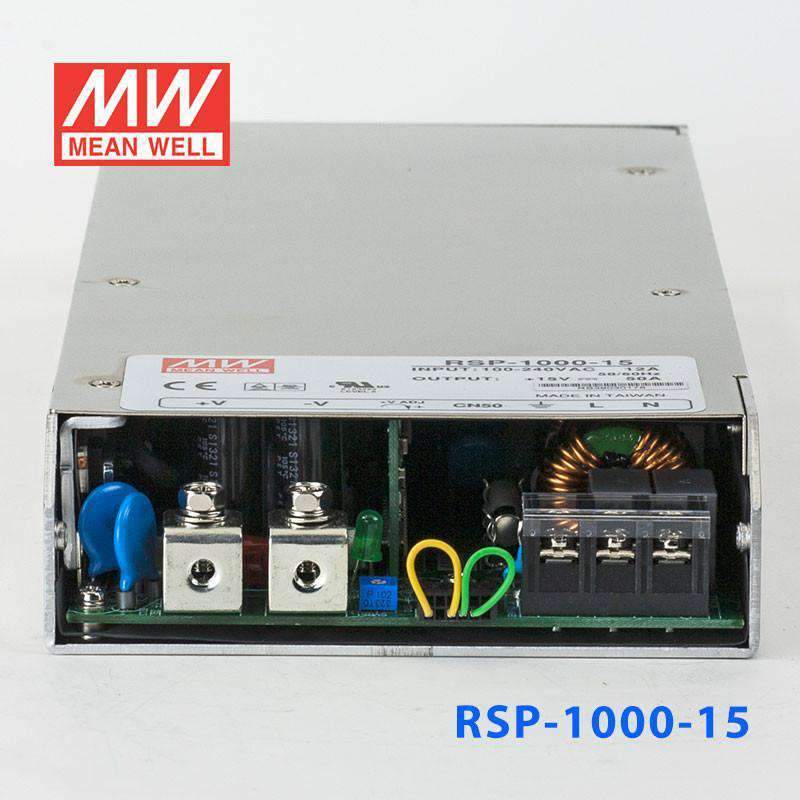

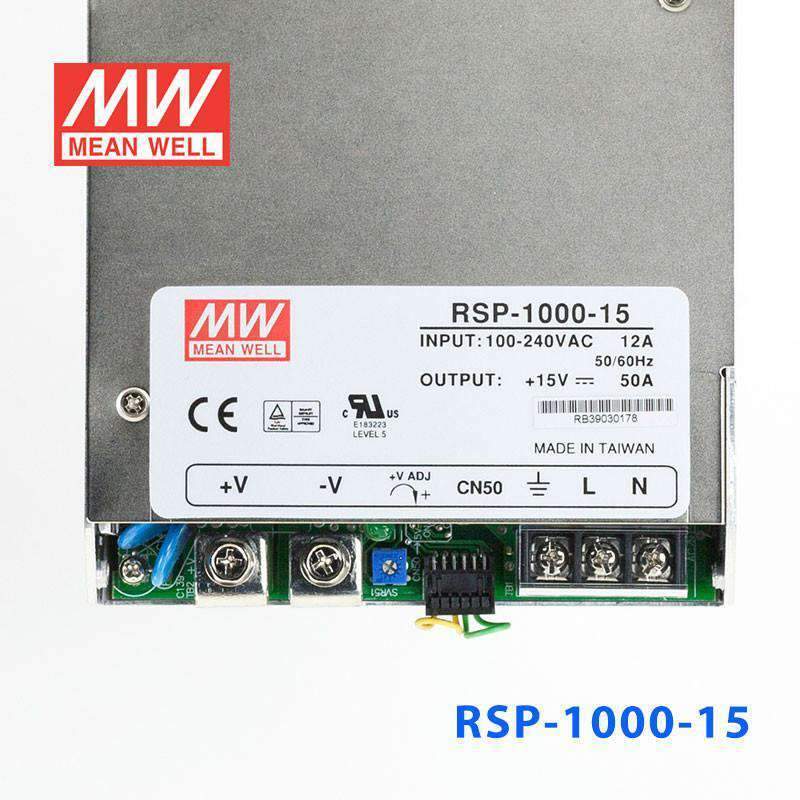

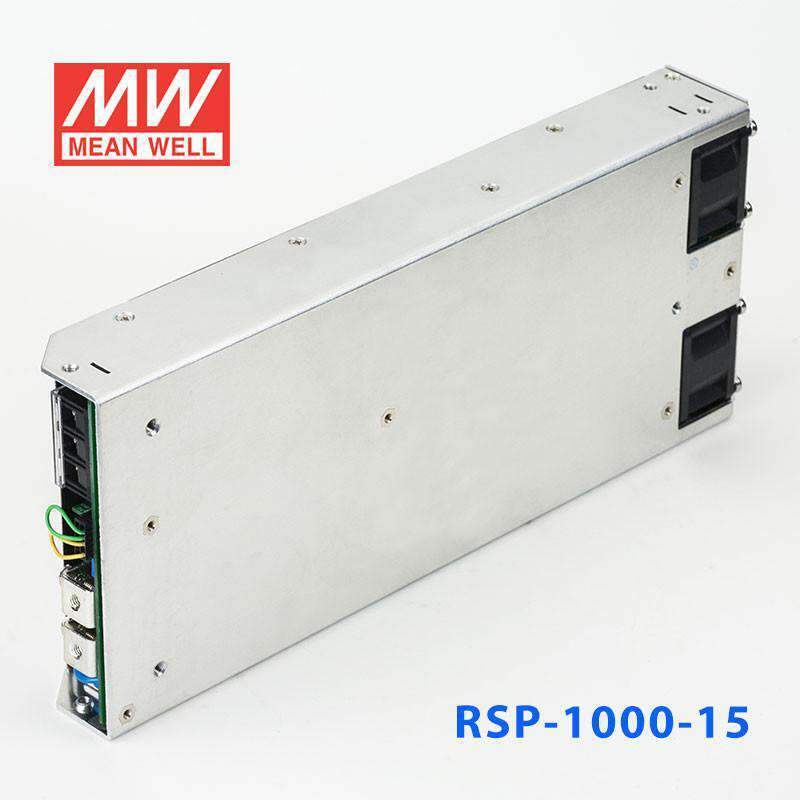

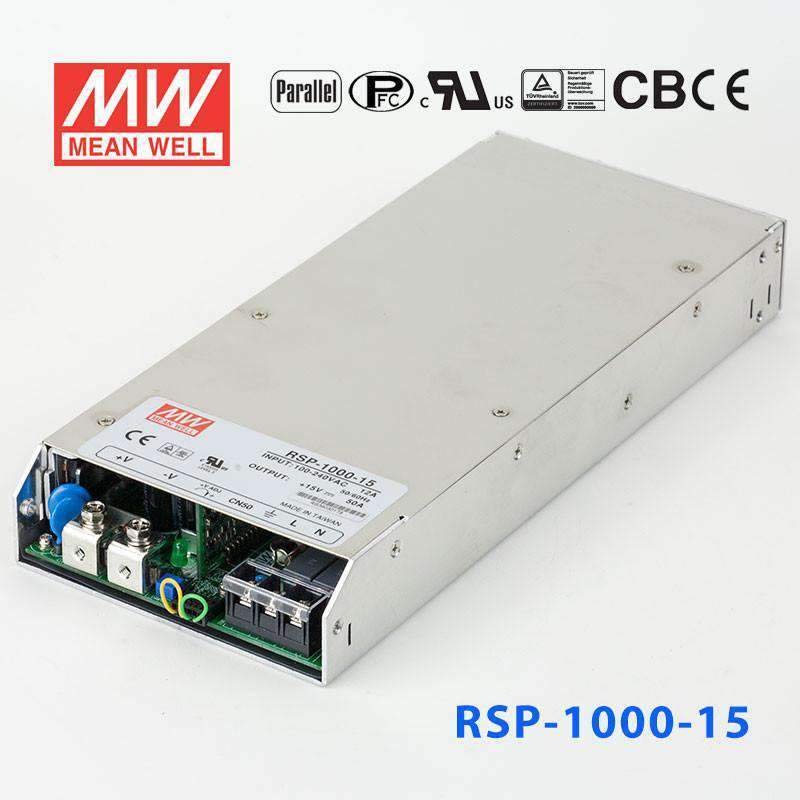

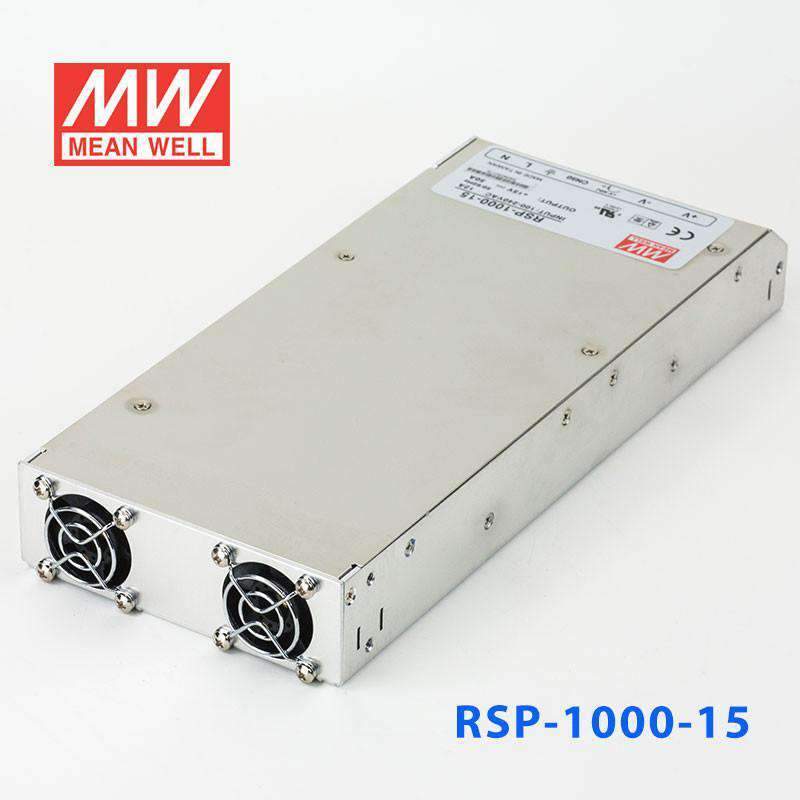

Mean Well RSP-1000-15 Power Supply 750W 15V
$271.44 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| DC OK signal |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~125% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~135% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 10mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 295x127x41 |
| Case No. | 952B |
| Packing | 1.95kg; 6pcs / 12.7kg / 1.15CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating750 Watt
-
Output Voltage15 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
