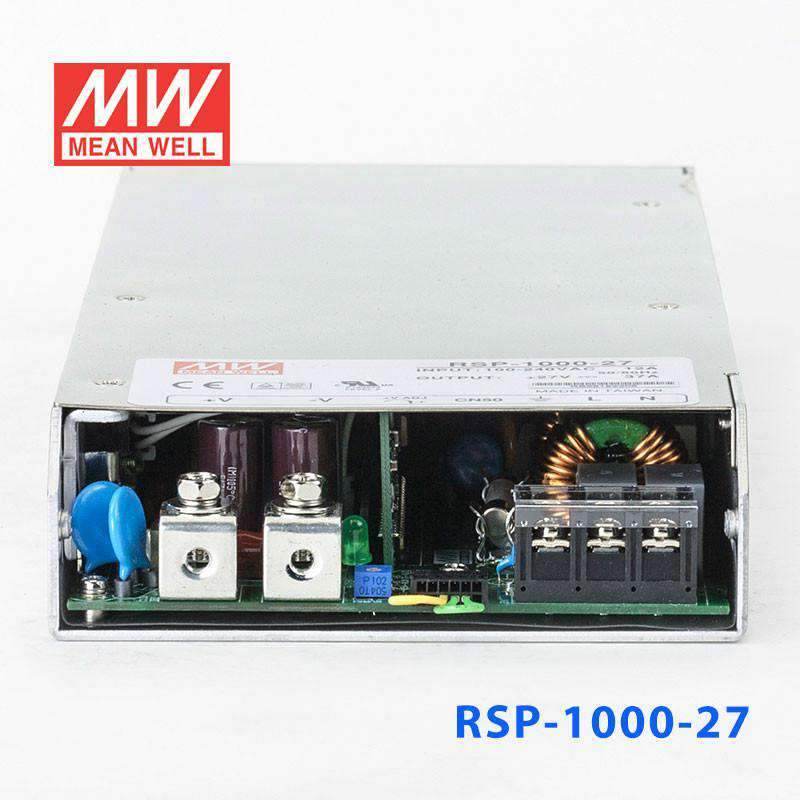

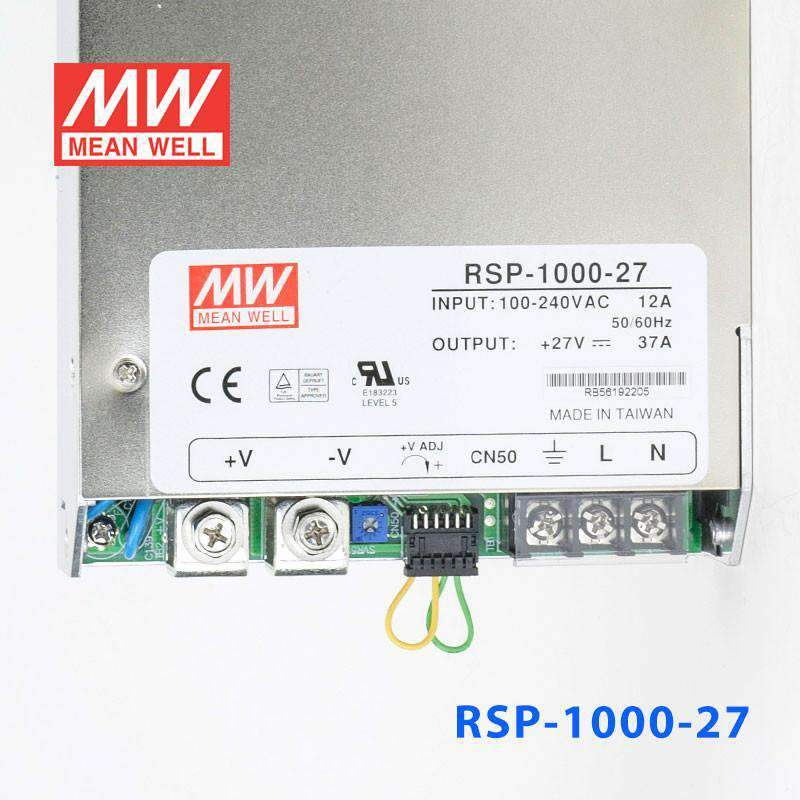

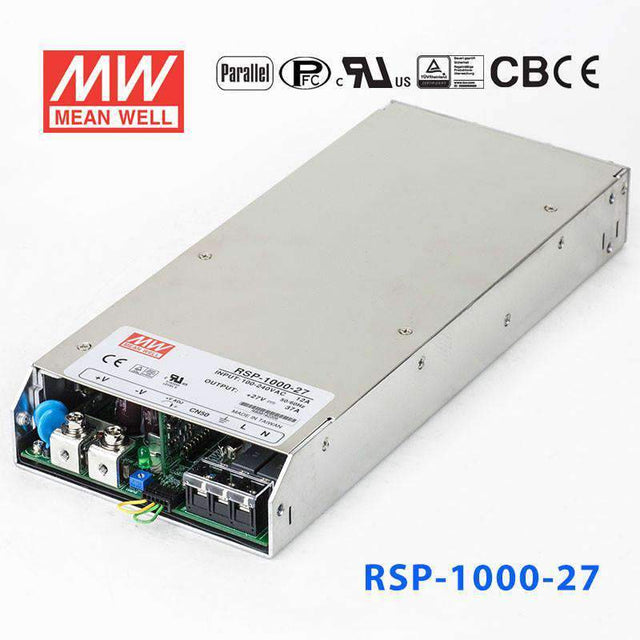

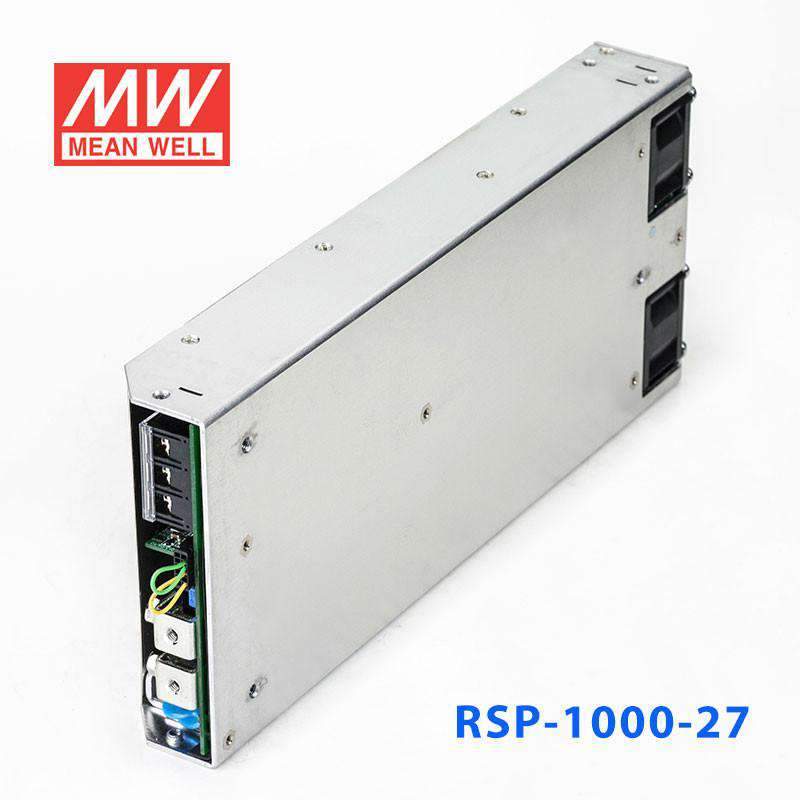

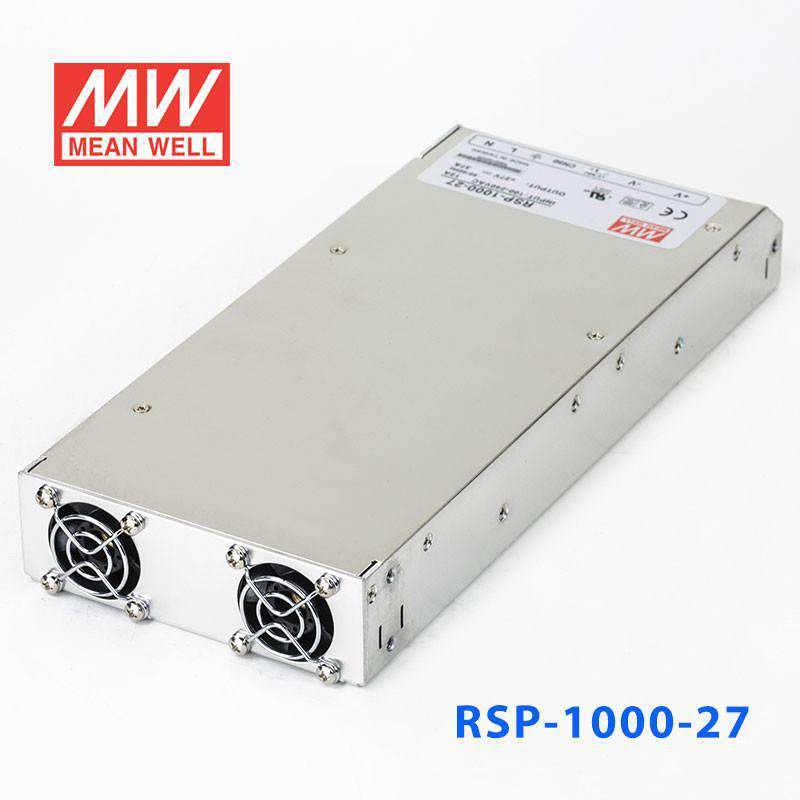

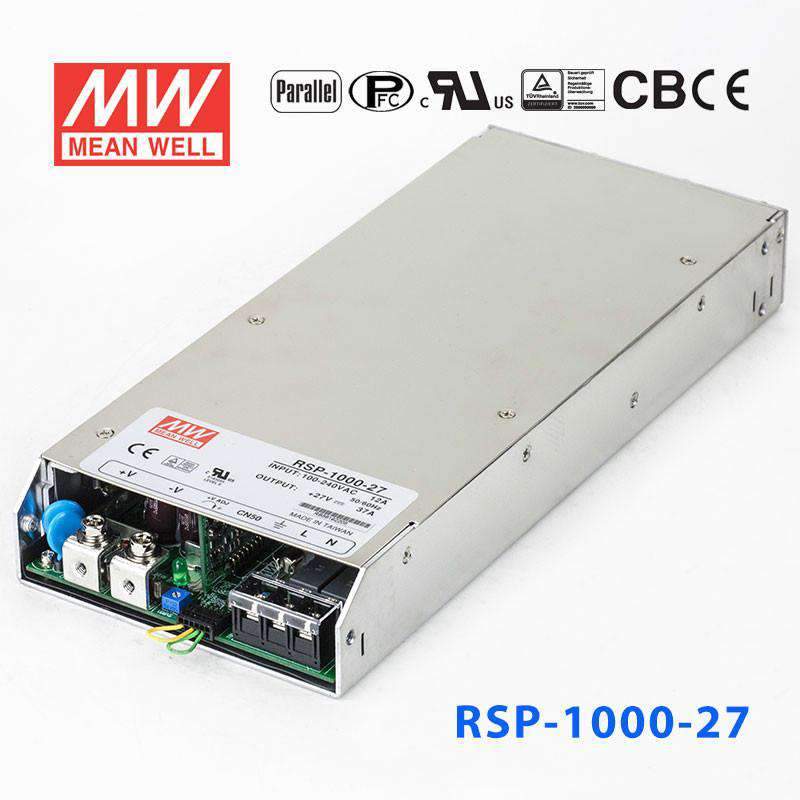

Mean Well RSP-1000-27 Power Supply 999W 27V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| DC OK signal |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~125% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~135% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 10mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 295x127x41 |
| Case No. | 952B |
| Packing | 1.95kg; 6pcs / 12.7kg / 1.15CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating999 Watt
-
Output Voltage27 Volt
-
Rated Current37 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.3 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications require a 27V power supply like the RSP-1000-27?
The RSP-1000-27 provides 27V at 37A (999W) and is suited for 27V DC bus systems such as industrial battery charging applications for 24V lead-acid battery banks requiring a float/absorption voltage, certain servo amplifiers, and specialized telecommunications equipment with 27V bus specifications. The 90–264VAC input supports worldwide supply voltages.
Is the RSP-1000-27 suitable for N+1 redundant configurations?
Yes. Like all RSP-1000 variants, the RSP-1000-27 supports active current sharing (3+1), allowing up to three units in parallel delivering 111A at 27V combined, with a fourth unit available as a hot standby. Load balancing is automatic.
How does the RSP-1000-27 compare to the RSP-1000-24 and RSP-1000-48?
RSP-1000 voltage variants: RSP-1000-12 (720W/12V/60A), RSP-1000-15 (750W/15V/50A), RSP-1000-24 (960W/24V/40A), RSP-1000-27 (999W/27V/37A), RSP-1000-48 (1008W/48V/21A). The RSP-1000-27 sits between 24V and 48V at 27V/37A/999W. All share the same physical chassis and electrical characteristics.
What is the operating temperature range and ingress protection of the RSP-1000-27?
The RSP-1000-27 operates from -20°C to +60°C. It carries no IP rating for moisture or dust ingress, and must be installed in an appropriately rated enclosure for the deployment environment. The -20°C lower limit means it is not suited for unheated outdoor enclosures in very cold climates without supplemental heating.
What certifications does the RSP-1000-27 carry for global market compliance?
The RSP-1000-27 holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. These approvals cover Taiwan, China, Europe, North America, and the Eurasian Economic Union.
