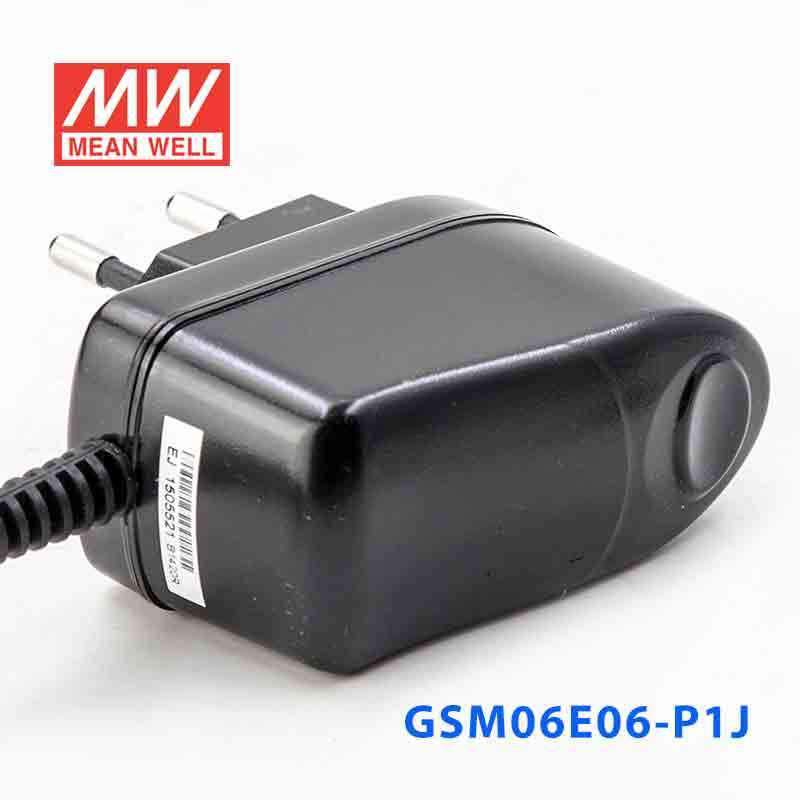

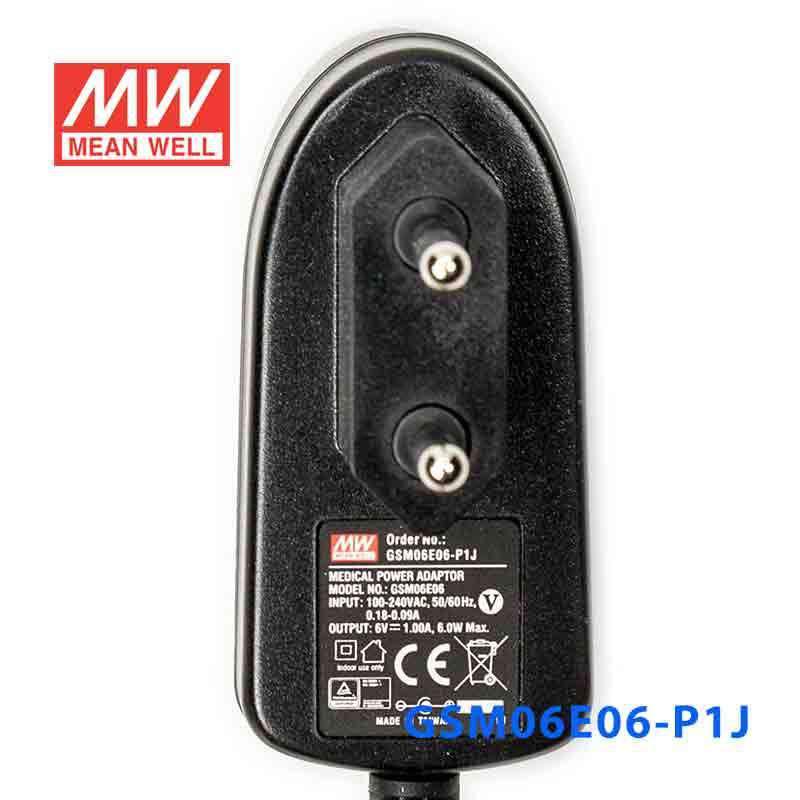

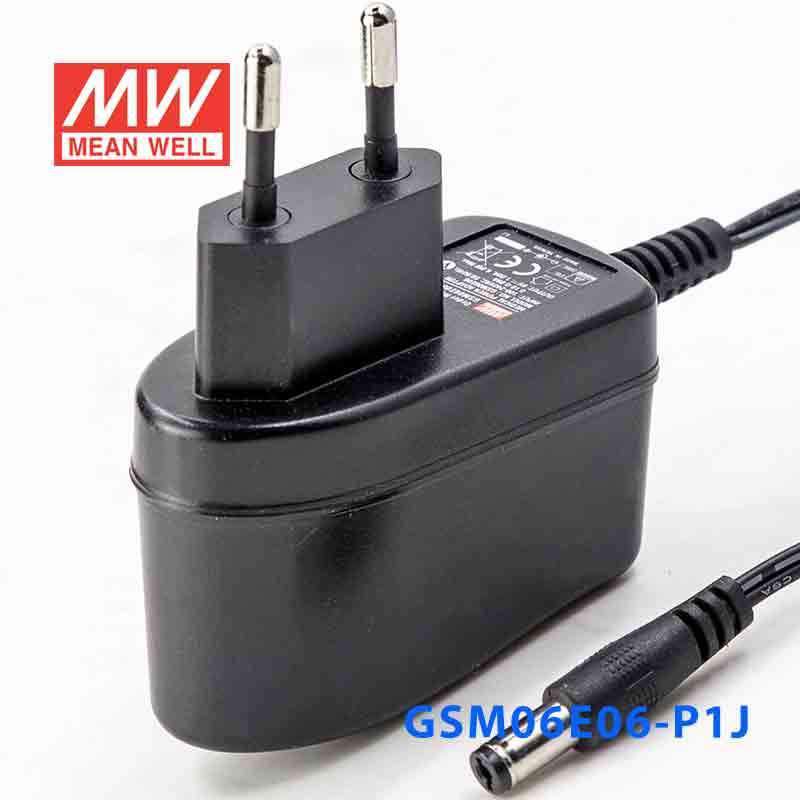

Mean Well GSM06E06-P1J Power Supply 06W 6V
The GSM06E06 is a 6W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating6 Watt
-
Output Voltage6 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty3 Year
-
Length2.6 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM06E06-P1J for a 6V embedded device or small controller?
Yes, this unit is a constant voltage 6V power supply rated for 1A output current. That makes it appropriate for smaller embedded or control devices that require regulated 6V power within its 6W capacity.
Is this power supply suitable for 6V sensors, test instruments, or portable electronics docks?
It can fit low-power 6V equipment when the total load stays within 1A and 6W. The compact 66.0 × 42.5 × 32.0 mm size may also help where space is limited around the powered device.
Can the GSM06E06-P1J be used for light-duty automation accessories that need 6V DC?
For light-duty automation accessories that require constant 6V DC and do not exceed 1A, this model matches that electrical profile. It is not aimed at higher-power loads because the total power rating is 6W.
Is this model suitable for outdoor use or unprotected environments?
The provided specs list an operating temperature range of 0°C to +50°C, but no IP rating is given. Based on the product data supplied, outdoor or exposed-environment suitability is not indicated.
What kind of AC input range does the GSM06E06-P1J support?
This model accepts 85-264VAC input, which supports use across a wide standard AC mains range. The supplied specs also list CE, EAC, and TÜV certifications and a 3-year warranty.
