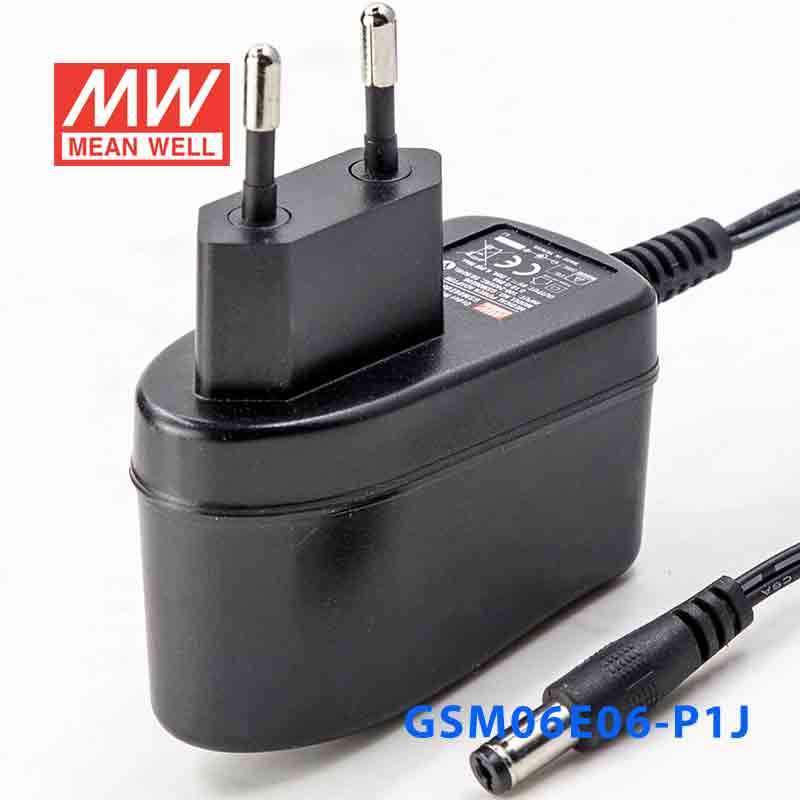

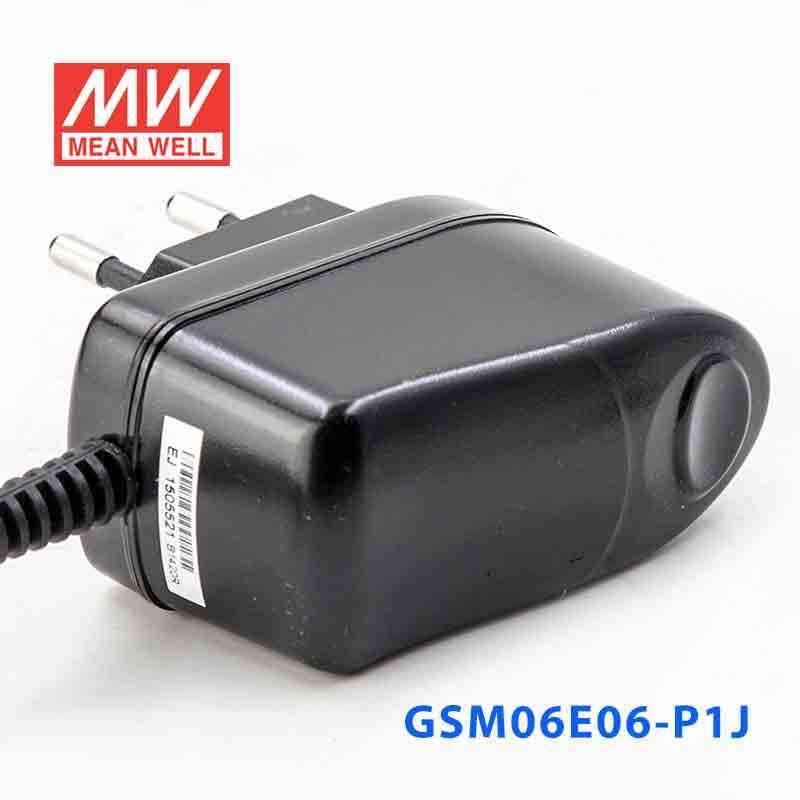

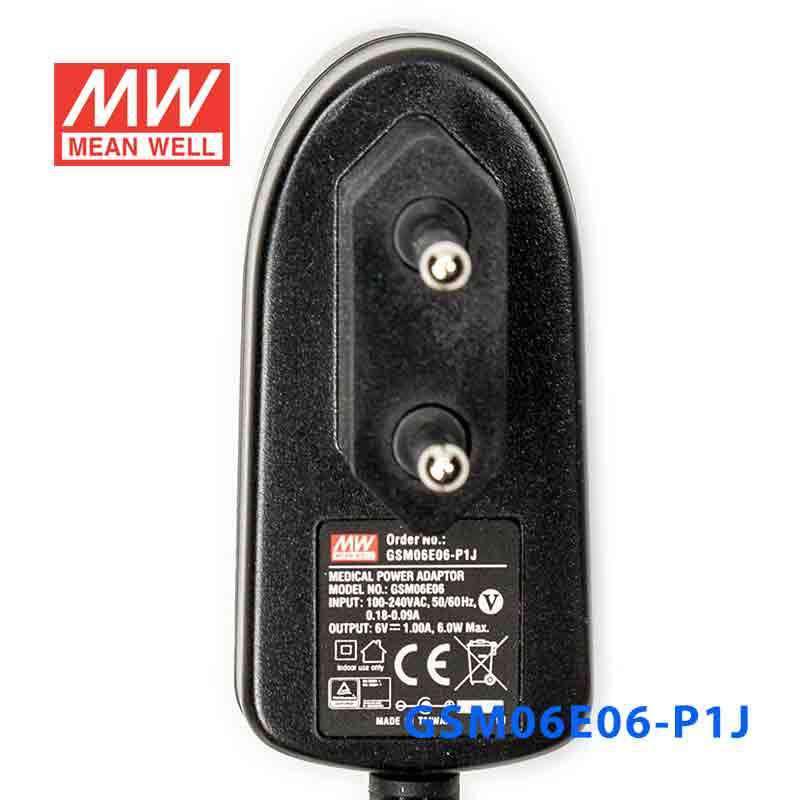

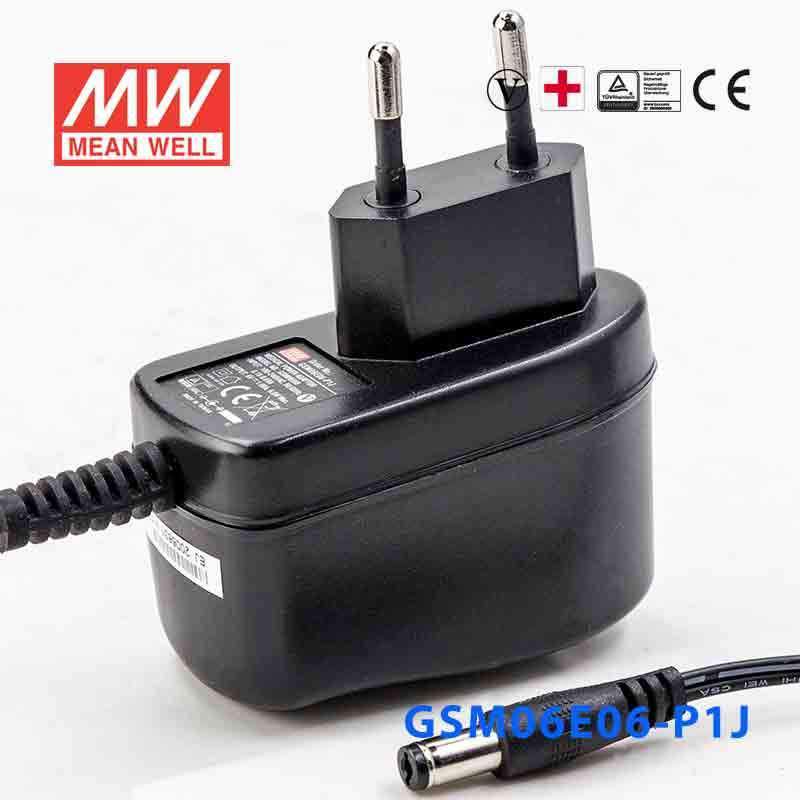

Mean Well GSM06E06-P1J Power Supply 06W 6V 1A
Overview
GSM06E06-P1J is the 6V output model of this series: rated current 1A, rated power 6W, typical efficiency 74%.
GSM06E is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06E is compliant with EU ErP. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06E is approved with the international medical safety certificates.
Features
- 2 pole EURO plug , Class Ⅱ power unit
- Medical safety approved (2 x MOPP) according to BS EN/EN60601-1
- Extremely low leakage current
- No load power consumption< 0.3W
- Energy efficiency Level Ⅴ
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM06E06
- DC VOLTAGENote.2
- 6V
- RATED CURRENT
- 1A
- CURRENT RANGE
- 0 ~ 1A
- RATED POWER
- 6W
- RIPPLE & NOISE (max.)Note.3
- 50mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±0.5%
- LOAD REGULATIONNote.6
- ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 50ms, 12ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 74%
- AC CURRENT
- 0.18A / 100VAC
- INRUSH CURRENT (max.)
- Cold start 15A/ 115VAC 30A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 140% rated output power Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +50℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.04% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
- ISOLATION LEVEL
- Pimary - Secondary: 2 x MOPP
- WITHSTAND VOLTAGE
- I/P-O/P:5656VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11) Class B Radiated emission BS EN/EN55011 (CISPR11) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 32*66*42.5mm (L*W*H)
- PACKING
- 100g ; 90pcs / 10Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes7
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 0% to 100% rated load.
- 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates3
Test reports1
FAQ
Can I use the GSM06E06-P1J for a 6V embedded device or small controller?
Yes, this unit is a constant voltage 6V power supply rated for 1A output current. That makes it appropriate for smaller embedded or control devices that require regulated 6V power within its 6W capacity.
Is this power supply suitable for 6V sensors, test instruments, or portable electronics docks?
It can fit low-power 6V equipment when the total load stays within 1A and 6W. The compact 66.0 × 42.5 × 32.0 mm size may also help where space is limited around the powered device.
Can the GSM06E06-P1J be used for light-duty automation accessories that need 6V DC?
For light-duty automation accessories that require constant 6V DC and do not exceed 1A, this model matches that electrical profile. It is not aimed at higher-power loads because the total power rating is 6W.
Is this model suitable for outdoor use or unprotected environments?
The provided specs list an operating temperature range of 0°C to +50°C, but no IP rating is given. Based on the product data supplied, outdoor or exposed-environment suitability is not indicated.
What kind of AC input range does the GSM06E06-P1J support?
This model accepts 85-264VAC input (120-370VDC is also listed), which supports use across a wide standard AC mains range. The sheet lists TÜV EN60601-1 and EN60601-1-11 medical safety approvals and EAC TP TC 004.
