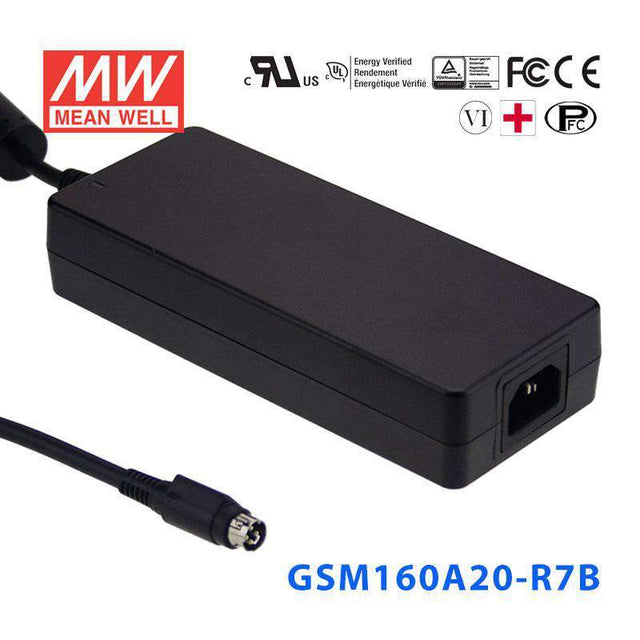

Mean Well GSM160A20-R7B Power Supply 160W 20V
The GSM160A20 is a 160W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage20 Volt
-
Rated Current8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the GSM160A20-R7B to power a 20V industrial PC or embedded terminal?
It can be used for 20V equipment that expects a constant-voltage DC source. This model provides 20V output at up to 8A, for a total of 160W.
Is this 20V power supply suitable for automation or control electronics that need more than a small adapter can deliver?
Yes, it is designed for higher-power 20V loads compared with light-duty adapters. The output rating is 160W, so it can support 20V automation electronics as long as the load stays at or below 8A.
Can this model run a 20V test bench, lab fixture, or industrial development setup?
For 20V constant-voltage applications, it can be a suitable source for lab fixtures, validation setups, and development stations. The available output is 20V with up to 8A of current capacity.
Would the GSM160A20-R7B fit a 20V monitoring, display, or communications device?
It can fit 20V monitoring, display, or communications hardware if the equipment is specified for constant-voltage input. The power budget is 160W maximum, and the input side accepts 80-264VAC.
Can this power supply be used in cold or hot indoor environments?
The specified operating range is -30°C to +70°C, which covers many unheated or warm indoor equipment areas. The product data does not list an IP rating, so exposed outdoor placement or water-prone environments are not confirmed by the provided specs.
